Bently Nevada 330104-00-13-10-02-00 3300 XL 8 mm Proximity Probes

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

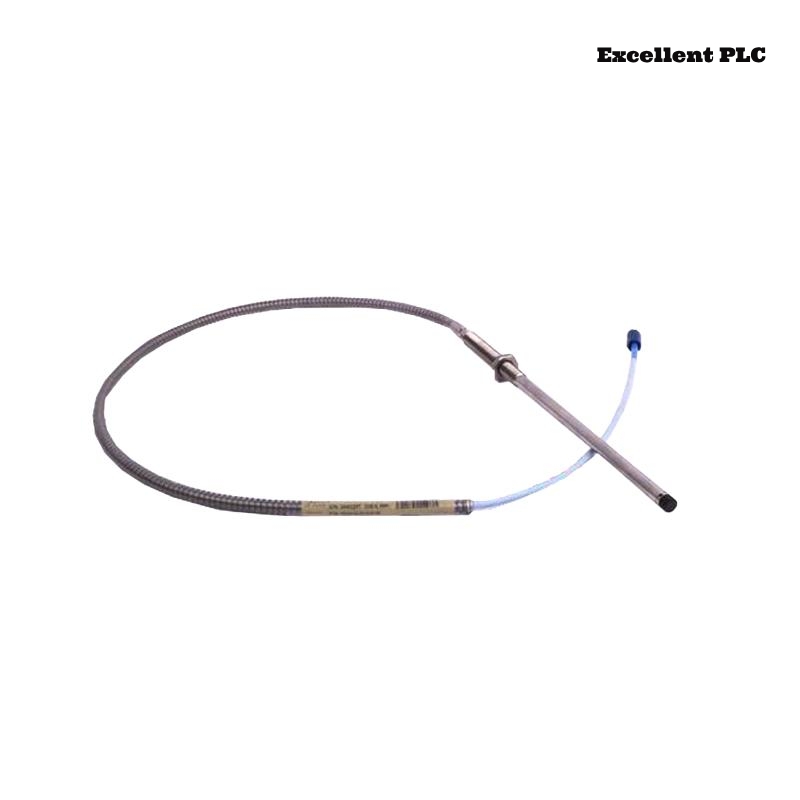

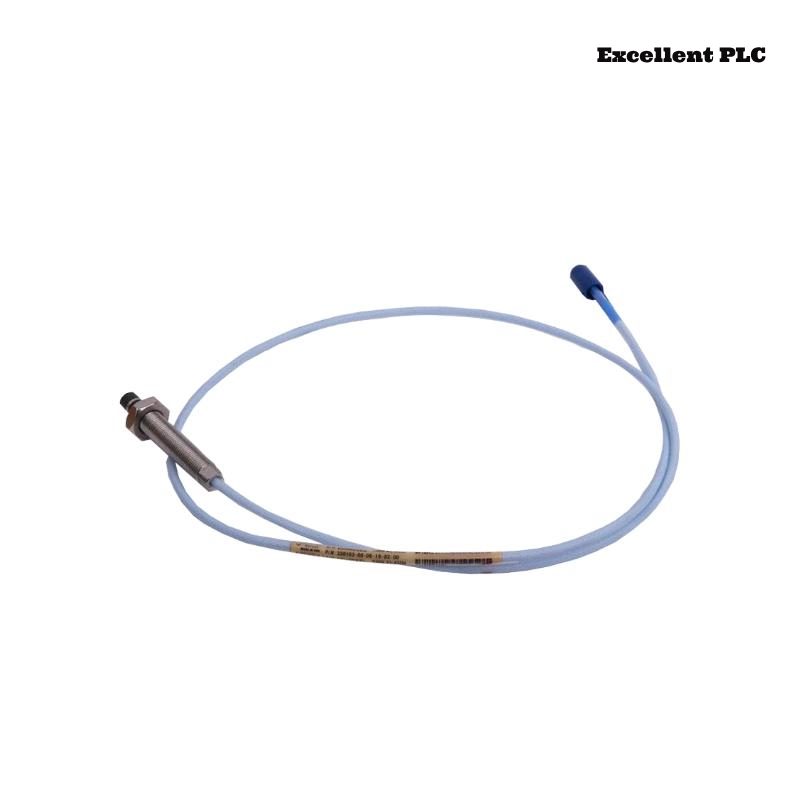

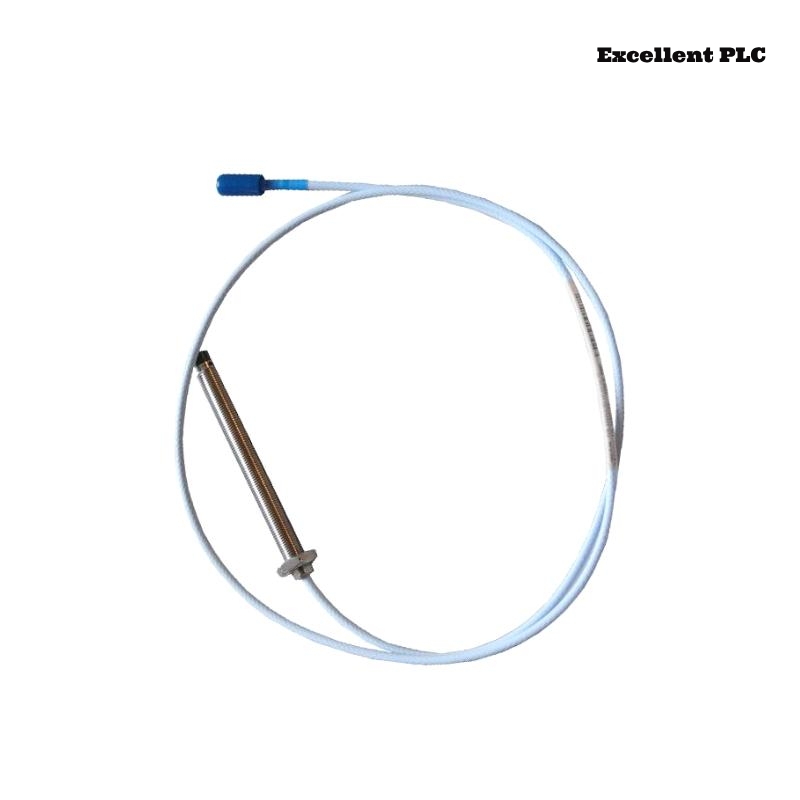

The Bently Nevada 330104-00-13-10-02-00 is a key component of the 3300 XL 8 mm Proximity Transducer System, engineered for precise non-contact measurement of shaft position and vibration in rotating machinery. This probe is integral to machinery monitoring systems, providing critical data for assessing machine health and performance.​

Designed to meet the rigorous standards of the American Petroleum Institute’s (API) 670 Standard, the 3300 XL series ensures high performance in mechanical configuration, linear range, accuracy, and temperature stability. The 330104-00-13-10-02-00 model features a 130 mm case length and a total length of 1.0 meter (3.3 feet), making it suitable for various industrial applications.

Constructed with robust materials, including a polyphenylene sulfide (PPS) probe tip and AISI 303 or 304 stainless steel case, this probe is designed to withstand harsh industrial environments. Its ClickLoc™ connector ensures secure and reliable connections, enhancing the probe’s durability and ease of installation.​

---

Product Specifications

---

Applications

The 330104-00-13-10-02-00 proximity probe is widely used in various industrial applications, including:

• Steam and Gas Turbines: Monitoring shaft vibration and position to ensure optimal performance and prevent failures.​

• Compressors: Assessing rotor dynamics and detecting early signs of imbalance or misalignment.​

• Electric Motors and Generators: Providing data on shaft position to maintain efficient operation and prolong lifespan.​

• Pumps: Ensuring proper alignment and detecting cavitation or other anomalies.​

• Fans and Blowers: Monitoring vibration levels to prevent mechanical failures.​

Its robust design and accurate measurements make it suitable for use in power generation, oil and gas, petrochemical, and other heavy industries where machinery reliability is critical.​

---

Product Advantages

1. High Accuracy: Delivers precise measurements essential for effective machinery diagnostics.​

2. Robust Construction: Built with durable materials to withstand harsh industrial conditions.​

3. Temperature Resilience: Operates effectively across a wide temperature range, ensuring reliability in extreme environments.​

4. Secure Connections: Features ClickLoc™ connectors that provide reliable and easy installations.​

5. Compliance with Standards: Meets API 670 requirements, ensuring compatibility with industry norms.​

6. Versatile Applications: Suitable for a broad range of rotating machinery in various industries.​

7. Environmental Protection: IP67 rating ensures protection against dust and temporary water immersion.​

8. Interchangeability: Compatible with other 3300 series components, allowing flexible system configurations.​

---

Latest News Headlines

1. “Bently Nevada’s 3300 XL Proximity Probes Enhance Machinery Monitoring Capabilities”

2. “Advancements in Non-Contact Sensing: Spotlight on Bently Nevada’s 3300 XL Series”

3. “Industry Leaders Adopt Bently Nevada Proximity Probes for Improved Asset Protection”

4. “Exploring the Impact of Accurate Shaft Measurement on Machine Reliability”

5. “Bently Nevada’s Commitment to Quality: The 3300 XL Proximity Probe Series”

6. “How Bently Nevada’s Proximity Probes Are Shaping the Future of Predictive Maintenance”

7. “Case Study: Reducing Downtime with Bently Nevada’s 3300 XL Proximity Probes”

8. “The Role of Proximity Probes in Modern Industrial Automation Systems”

---

Frequently Asked Questions (FAQ)

1. What is the 330104-00-13-10-02-00 proximity probe primarily used for?

This probe is designed for measuring the relative vibration and position of rotating shafts and other moving machinery components in industrial environments. It’s commonly used in turbines, compressors, pumps, and gearboxes.

2. Is this probe compatible with other Bently Nevada monitoring systems?

Yes, the 330104-00-13-10-02-00 probe is fully compatible with the 3300 XL Proximitor sensor and integrates seamlessly with the Bently Nevada 3500 Series Monitoring System.

3. Can the probe be used in high-temperature or hazardous environments?

The probe has a wide operating temperature range and is certified for use in hazardous zones, depending on installation guidelines and pairing with appropriate extension cables and proximitor sensors.

4. How long is the cable in the 330104-00-13-10-02-00 model?

This specific model includes a probe with a cable length of 1 meters, making it suitable for applications requiring extended distances between the probe tip and the proximitor.

5. What shaft material is it calibrated for?

Like other Bently Nevada proximity probes, this model is factory calibrated for AISI 4140 steel. If used with different materials, recalibration or adjustment of scale factors may be necessary.

6. What is the typical gap voltage output for this probe?

The system provides a standard gap voltage of –200 mV/mil (–7.87 mV/μm), which is consistent across 3300 XL 8 mm probe systems.

7. Can the probe be replaced without recalibrating the entire system?

Yes, as long as you replace it with a probe of the exact same model and cable length, the system does not require recalibration, due to matched components during manufacturing.

8. What is the maximum temperature this probe can handle?

The probe itself can operate in temperatures ranging from –35°C to +177°C (–31°F to +350°F), which makes it suitable for many industrial settings.

9. How is the probe mounted in a machine system?

It’s typically mounted using a threaded sleeve or clamp, ensuring the probe tip is precisely positioned relative to the target shaft, with a specified initial gap of around 2 mm.

10. Is this model suitable for both radial and axial position monitoring?

Yes, the 330104-00-13-10-02-00 model can be used to monitor both radial shaft vibration and axial position (thrust position), depending on the probe placement.

---
