Product Description

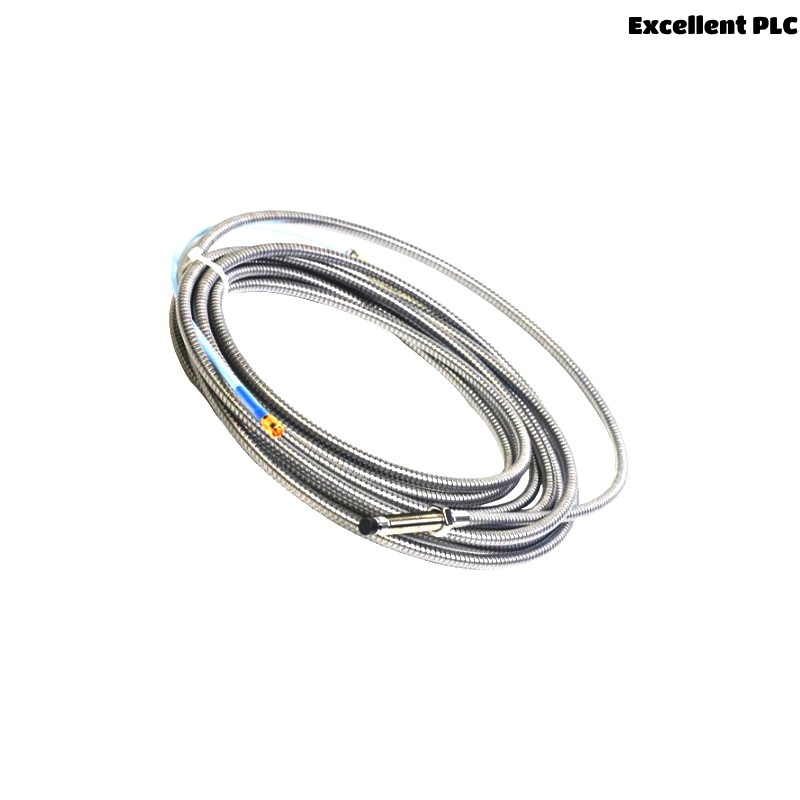

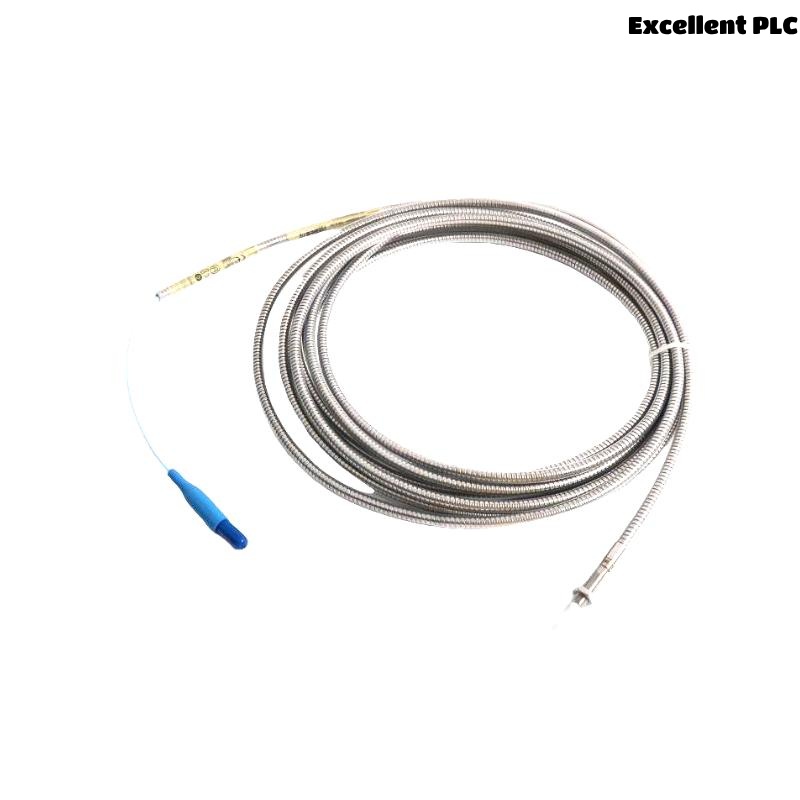

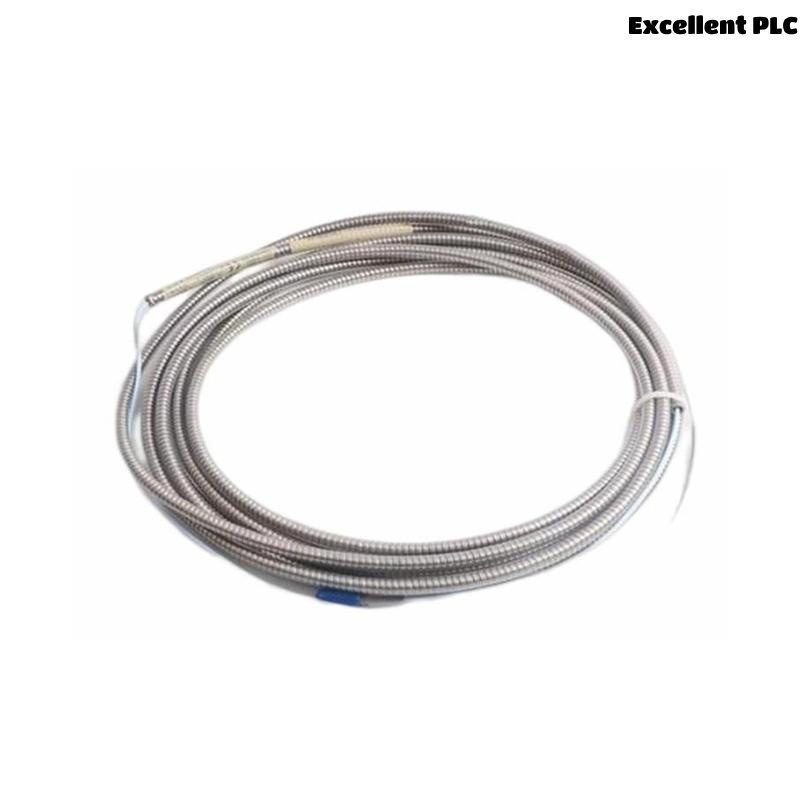

The Bently Nevada 330104-00-14-10-01-05 is a high-performance 8 mm proximity probe designed for vibration and position measurements on fluid-film bearing machinery. It is part of the 3300 XL system, delivering excellent accuracy, rugged construction, and full interchangeability with other XL and non-XL components. The probe is ideal for radial vibration, axial position, Keyphasor, and speed measurements.
Product Applications
-
Vibration monitoring of fluid-film bearing machinery
-
Shaft position and displacement detection
-
Keyphasor reference signals
-
Overspeed protection systems
-
High-temperature and high-density installations
Product Advantages
-
Fully compliant with API 670 standard
-
Rugged TipLoc and CableLoc design for durability
-
Easy installation with ClickLoc connectors
-
High immunity to RFI/EMI, CE compliant
-
Compatible with standard and extended temperature ranges
-
Interchangeable without re-calibration
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330104-00-14-10-01-05 |
| Probe Type | M10 x 1 thread with armor |
| Measurement Range | 2 mm (80 mils) linear |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Incremental Scale Factor | 7.87 V/mm ±5% |
| Frequency Response | 0 to 10 kHz |
| Shaft Diameter (min) | 50.8 mm (2 in) recommended ≥76.2 mm |
| Operating Temperature (probe) | -52°C to +177°C |
| Extended Temperature (optional) | up to +218°C (probe tip) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
FAQs
Q1: What is the primary use of the 330104-00-14-10-01-05 probe?
A1: It is primarily used for measuring vibration and position in rotating machinery.
Q2: Is this probe compliant with API 670?
A2: Yes, it fully complies with the API 670 standard.
Q3: Can the probe be used in high-temperature environments?
A3: Yes, with the extended temperature range option, it can operate up to 218°C at the probe tip.
Q4: Does the probe require special tools for connector installation?
A4: No, the ClickLoc connectors can be installed finger-tight.
Q5: Is the probe compatible with older 3300 series systems?
A5: Yes, it is electrically and physically interchangeable with non-XL 3300 series components.
Q6: What is the minimum recommended shaft diameter?
A6: A minimum shaft diameter of 50.8 mm is required, with 76.2 mm recommended.
Q7: Can the probe withstand exposure to oil?
A7: Yes, it can be ordered with FluidLoc cables to prevent oil ingress.
Q8: What is the recommended gap setting?
A8: The recommended gap setting is approximately 1.27 mm (50 mils).
Q9: Does the probe support both static and dynamic measurements?
A9: Yes, it measures both static position and dynamic vibration.
Q10: How does the probe handle RFI/EMI interference?
A10: The probe and system are designed with high immunity to RFI/EMI, suitable for industrial environments.
Related Models (Same Series)
| Model | Thread Type | Length | Weight |
|---|---|---|---|
| 330101-00-08-10 | 3/8-24 UNF | 1.0 m | 0.323 kg |
| 330102-00-20-10 | 3/8-24 UNF | 2.0 m | 0.355 kg |
| 330103-00-02-10 | M10 x 1 | 0.5 m | 0.290 kg |
| 330105-02-12-10 | 3/8-24 UNF | 1.0 m | 0.323 kg |
| 330106-05-30-10 | M10 x 1 | 3.0 m | 0.370 kg |
| 330191-00-16-10 | 3/8-24 UNF | 1.6 m | 0.340 kg |
