Bently Nevada 330104-00-14-15-02-05 3300 XL 8 mm Proximity Probes

Product Introduction

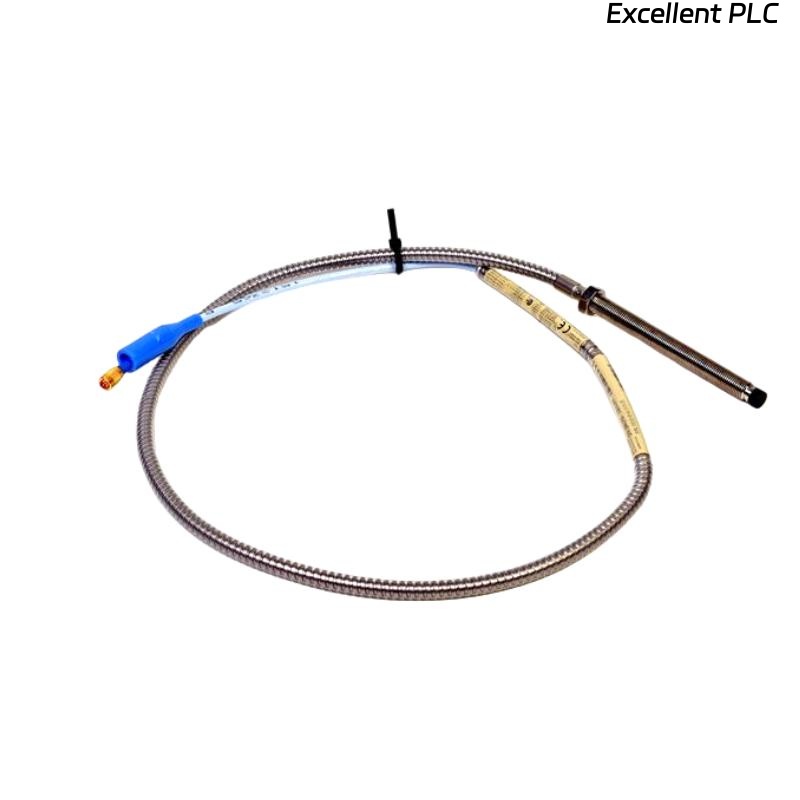

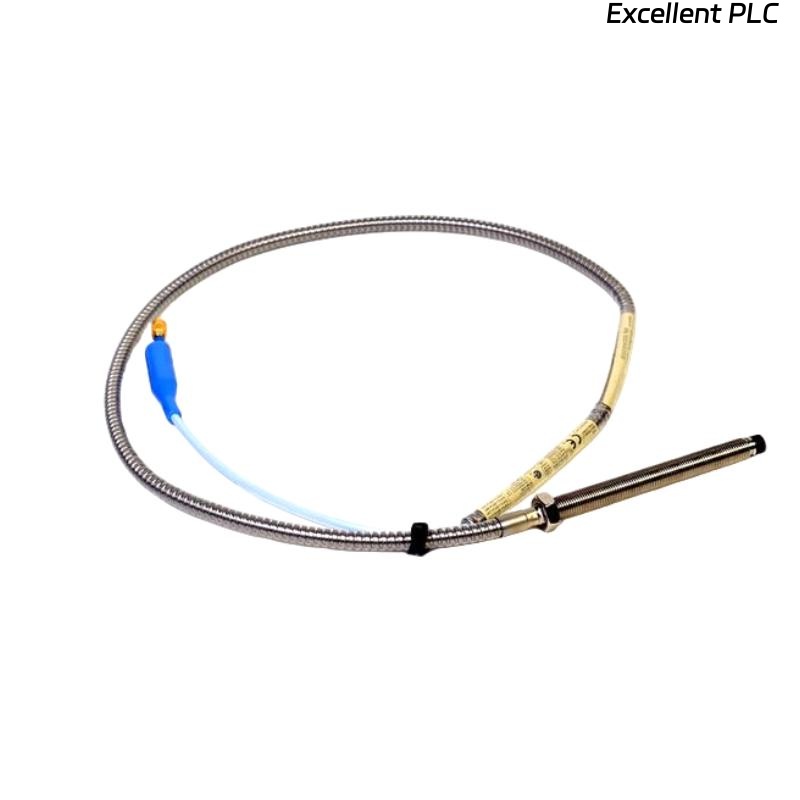

The Bently Nevada 330104-00-14-15-02-05 3300 XL 8 mm Proximity Probe is a high-precision, non-contact eddy current sensor designed for monitoring rotating machinery. Part of the widely used 3300 XL series, this probe provides accurate measurements of shaft displacement and vibration for machinery protection and condition monitoring systems.

With an 8 mm probe diameter and a total cable length of 1.5 meters, the 330104-00-14-15-02-05 ensures reliable signal transmission and stable readings in industrial environments. Its robust construction allows for operation in harsh conditions, including high vibration, temperature variations, and electromagnetic interference. The probe integrates seamlessly with Bently Nevada 3300 XL monitoring systems, providing real-time data for preventive maintenance, early fault detection, and improved operational safety.

Product Specifications

Applications

The 330104-00-14-15-02-05 3300 XL Probe is suitable for monitoring a wide range of industrial machinery, providing precise measurement for both protection and performance optimization:

• Steam and Gas Turbines – Measures shaft displacement to detect misalignment, vibration, and imbalance.

• Compressors – Monitors rotor position and vibration for operational safety.

• Pumps – Detects cavitation, bearing wear, and shaft deflection.

• Generators and Electric Motors – Ensures smooth operation and early fault detection.

• Petrochemical Plants and Refineries – Reliable performance in hazardous industrial environments.

• Machine Protection Systems – Integration into API 670-compliant monitoring systems.

Advantages

The Bently Nevada 330104-00-14-15-02-05 8 mm Probe offers multiple technical and operational advantages:

• High Accuracy – Provides precise measurement of displacement and vibration with excellent linearity.

• Rugged Design – Stainless steel probe and mineral-insulated cable resist harsh industrial environments.

• Wide Frequency Response – Capable of capturing both low- and high-speed shaft vibrations.

• Seamless Integration – Works directly with Bently Nevada 3300 XL monitoring systems for reliable data output.

• Maintenance-Free Operation – Non-contact design minimizes wear and reduces maintenance needs.

• Temperature and Vibration Tolerance – Performs reliably in extreme temperature ranges and high vibration conditions.

• Predictive Maintenance Support – Enables early detection of anomalies, reducing unplanned downtime.

• Flexible Installation – Cable length and mounting options accommodate various machinery layouts.

Frequently Asked Questions (FAQ)

1. Which monitoring systems is this probe compatible with?
   It is fully compatible with Bently Nevada 3300 XL Series monitoring systems, providing linearized signals for machine protection.

2. What is the nominal sensitivity of the probe?
   The nominal sensitivity is approximately 20 mV/µm when used with the 3300 XL monitoring system.

3. What frequency range can the probe detect?
   The probe supports DC to 10 kHz, suitable for low- and high-speed machinery vibration analysis.

4. What is the maximum operating temperature for the probe head?
   The probe can operate reliably from -40°C to +120°C while maintaining linearity.

5. Can this probe be used in high-humidity or industrial environments?
   Yes, the probe is designed to withstand 0–95% non-condensing humidity and harsh industrial conditions.

6. What is the linear measurement range of the probe?
   ±10% of the calibrated gap, ensuring accurate and proportional output.

7. Does the probe require external power?
   No, the probe receives power and signal conditioning through the 3300 XL monitoring system.

8. Is the probe suitable for API 670-compliant machine protection systems?
   Yes, it integrates seamlessly into API 670-compliant monitoring platforms for real-time machinery protection.

9. How important is cable length for accurate measurement?
   The probe is calibrated for its 1.5-meter cable; using the correct length ensures signal fidelity and accuracy.

10. What type of mounting is recommended for this probe?
    A threaded sleeve or custom machinery mounting is recommended to secure the probe while maintaining alignment and calibration.
