Product Description

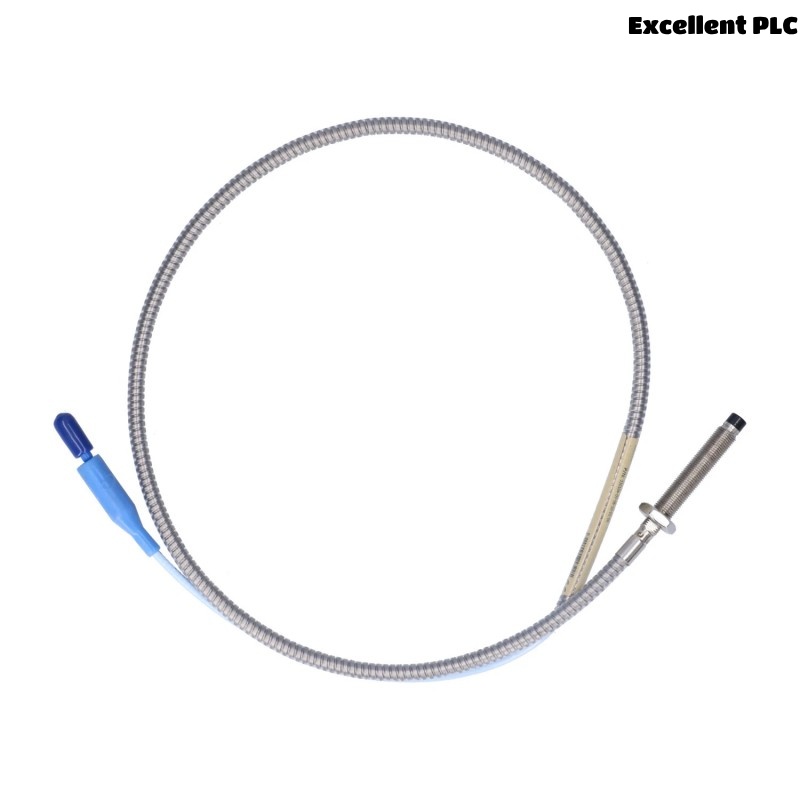

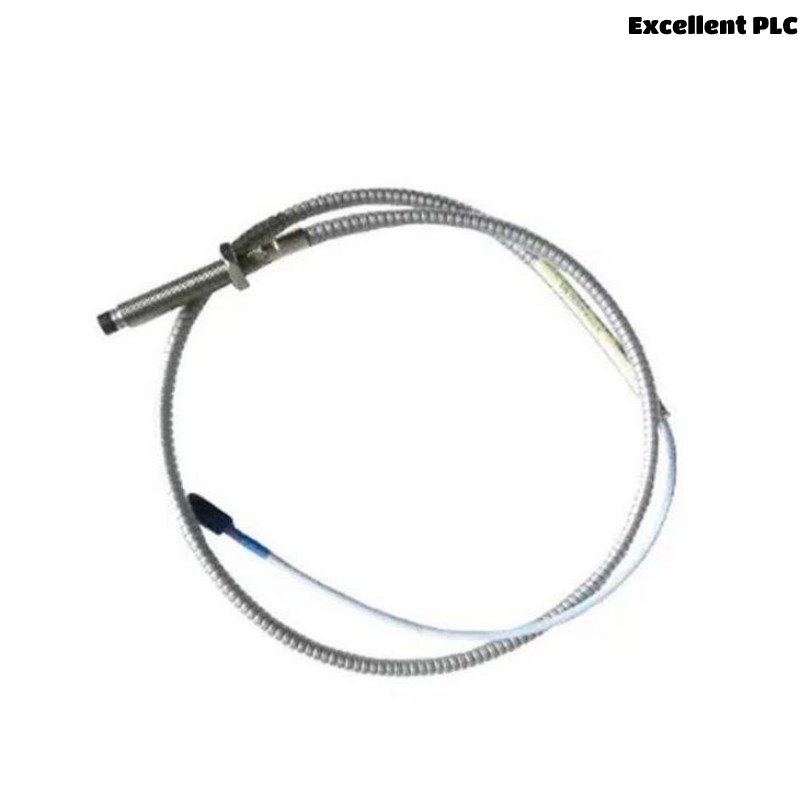

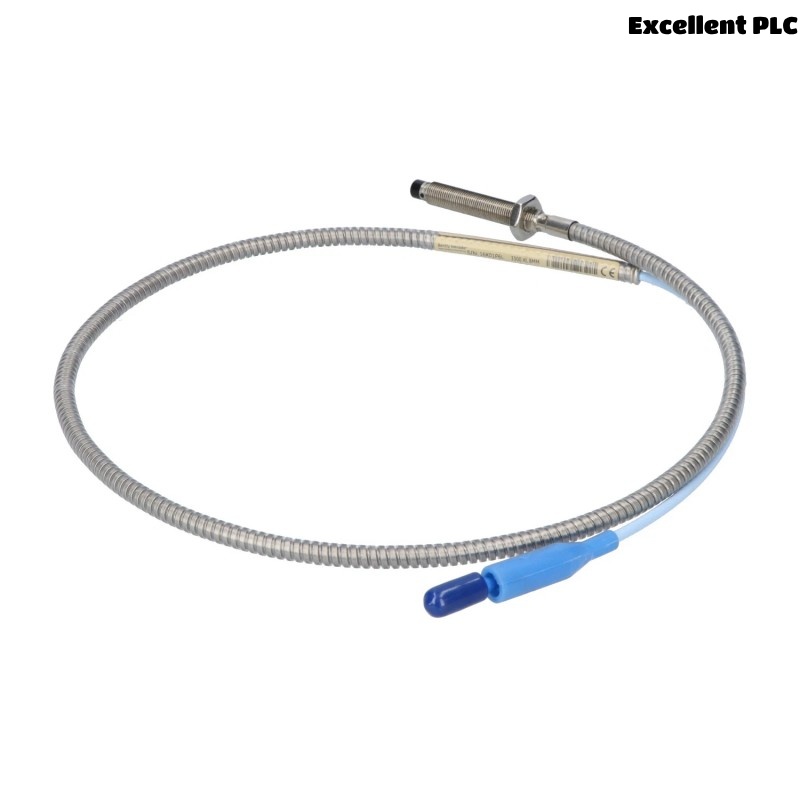

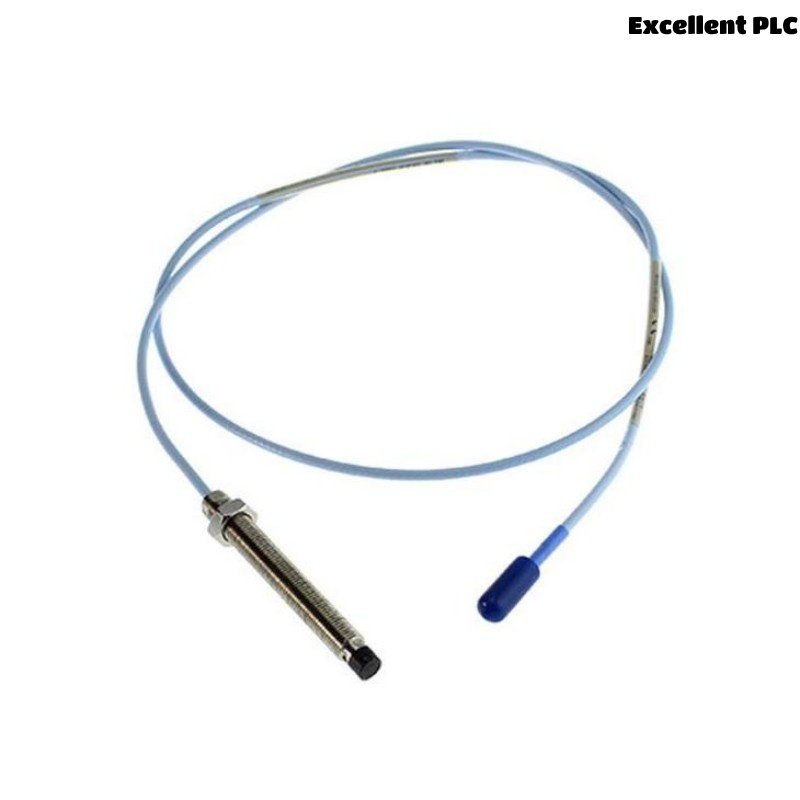

The Bently Nevada 330104-00-15-10-01-05 is part of the 3300 XL 8 mm Proximity Transducer System, designed for non-contact vibration and position measurement in rotating machinery. This specific probe features M10x1 thread, armor protection, a 1.5-meter length, and uses a standard coaxial ClickLoc connector.
Product Features
-
Fully compliant with API 670 standards
-
Interchangeable with non-XL 3300 series components
-
High resistance to EMI/RFI
-
Ruggedized with TipLoc and CableLoc construction
-
Finger-tight ClickLoc connectors with corrosion resistance
-
Compatible with harsh environments and high-density installations
Applications
-
Shaft vibration monitoring
-
Radial and axial position measurement
-
Keyphasor reference signal generation
-
Overspeed detection
-
Machinery protection in turbines, compressors, motors, and pumps
Advantages
-
High Accuracy: ±0.025 mm DSL with 5-meter systems
-
Long Lifespan: Durable mechanical and electrical design
-
Simplified Maintenance: Component interchangeability eliminates calibration requirements
-
Environmental Resilience: Withstands wide temperature and pressure ranges
-
Low Installation Cost: No need for special shielding due to advanced EMI immunity
Technical Specifications
Parameter | Specification |
---|---|
Part Number | 330104-00-15-10-01-05 |
Thread Size | M10x1 |
Total Length | 1.5 m (metric configuration) |
Probe Tip Diameter | 8 mm |
Linear Range | 2 mm (80 mils) |
Recommended Gap | 1.27 mm (50 mils) |
Material (Tip/Body) | PPS / Stainless Steel (AISI 304) |
Operating Temperature Range | -52°C to +177°C (Standard), up to +218°C (ETR version) |
Weight | 0.323 kg |
Output Sensitivity | 7.87 V/mm ±5% |
Minimum Target Diameter | 15.2 mm (0.6 in) |
Minimum Shaft Diameter | 50.8 mm (2 in) |
FAQs
Q1: What is the primary use of the 330104-00-15-10-01-05 probe?
A1: It is used for precise vibration and position measurement in rotating machinery.
Q2: Is this probe compatible with older Bently Nevada 3300 systems?
A2: Yes, it is backward compatible and interchangeable with non-XL 3300 8 mm and 5 mm systems.
Q3: What connector type does this model use?
A3: It uses a miniature coaxial ClickLoc connector with standard cable.
Q4: Can it be used in high-temperature applications?
A4: Yes, the standard version supports up to 177°C; the ETR version supports up to 218°C.
Q5: Does it meet API 670 standards?
A5: Yes, fully compliant for mechanical configuration and performance.
Q6: What makes the probe robust against vibration damage?
A6: The patented TipLoc and CableLoc designs enhance its mechanical durability.
Q7: What shaft size is recommended for radial measurement?
A7: A minimum of 76.2 mm (3 in) shaft diameter is recommended.
Q8: Is calibration needed when replacing components?
A8: No, components are fully interchangeable without requiring bench calibration.
Q9: What is the effect of humidity on probe accuracy?
A9: Less than 3% change in average scale factor in 93% humidity (IEC 68-2-3 standard).
Q10: What is the maximum thread engagement length?
A10: For M10x1 threads, the maximum is 15 mm.
Related Models (Same Series)
Model Number | Thread Type | Length | Armor | Temp Rating | Weight |
---|---|---|---|---|---|
330101-00-08-10-02-05 | 3/8-24 UNF | 1.0 m | Yes | Standard | 0.323 kg |
330102-00-20-10-02-05 | 3/8-24 UNF | 2.0 m | Yes | Standard | 0.430 kg |
330103-00-05-10-02-00 | M10x1 | 0.5 m | No | Standard | 0.210 kg |
330104-00-06-10-02-00 | M10x1 | 0.6 m | Yes | Standard | 0.250 kg |
330192-00-20-10-02-05 | 3/8-24 UNF | 2.0 m | Yes | ETR | 0.430 kg |
330194-00-20-10-02-05 | M10x1 | 2.0 m | Yes | ETR | 0.430 kg |
Popular Bently Nevada Models
Model Number | Description | Application | Weight |
---|---|---|---|
330104-00-15-10-01-05 | 8 mm Probe, M10x1, Armored, 1.5 m | General Vibration Monitoring | 0.323 kg |
330180-91-00 | Proximitor Sensor, 9 m System, DIN Mount | Vibration, Position, Keyphasor | 0.246 kg |
3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | 0.5 kg |
3500/22M | Transient Data Interface Module | System Interface | 0.8 kg |
3500/40M | Proximitor Monitor | Shaft Vibration Monitoring | 0.9 kg |
330130-040-00-05 | 4.0 m Extension Cable | Probe Extension Cable | 0.136 kg |
