Description

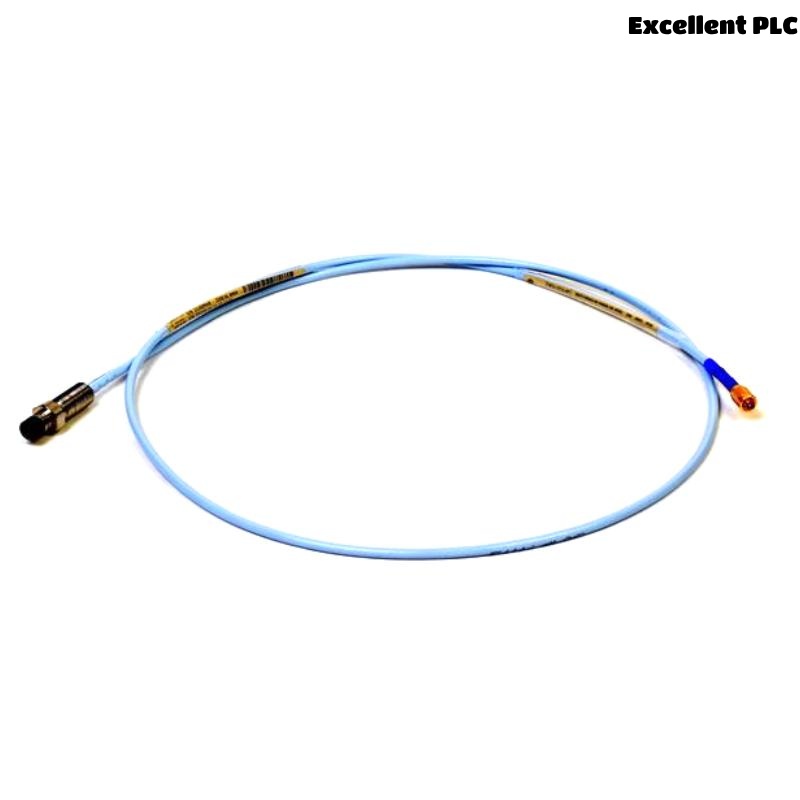

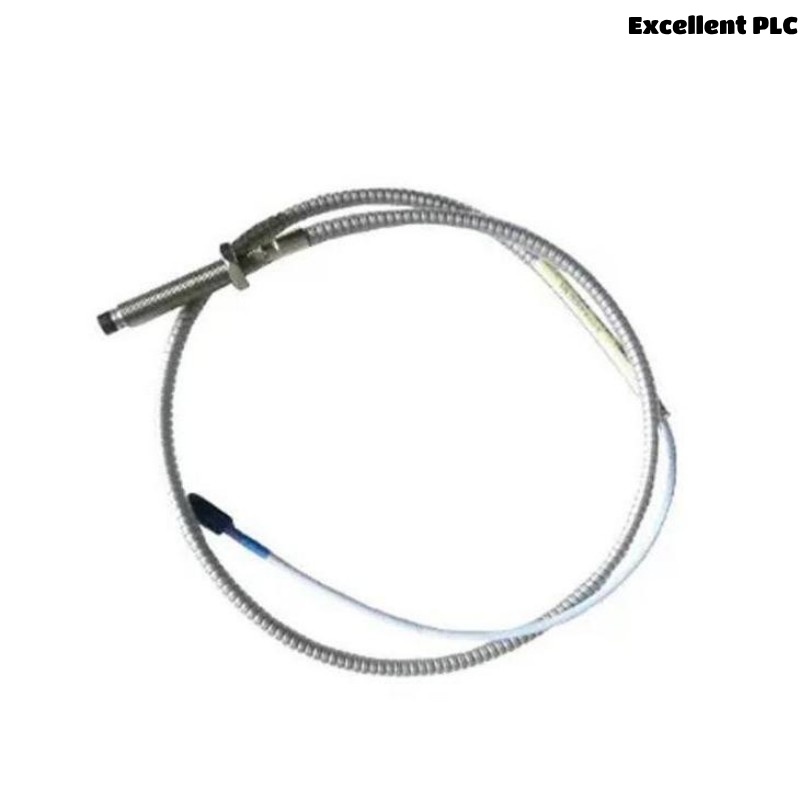

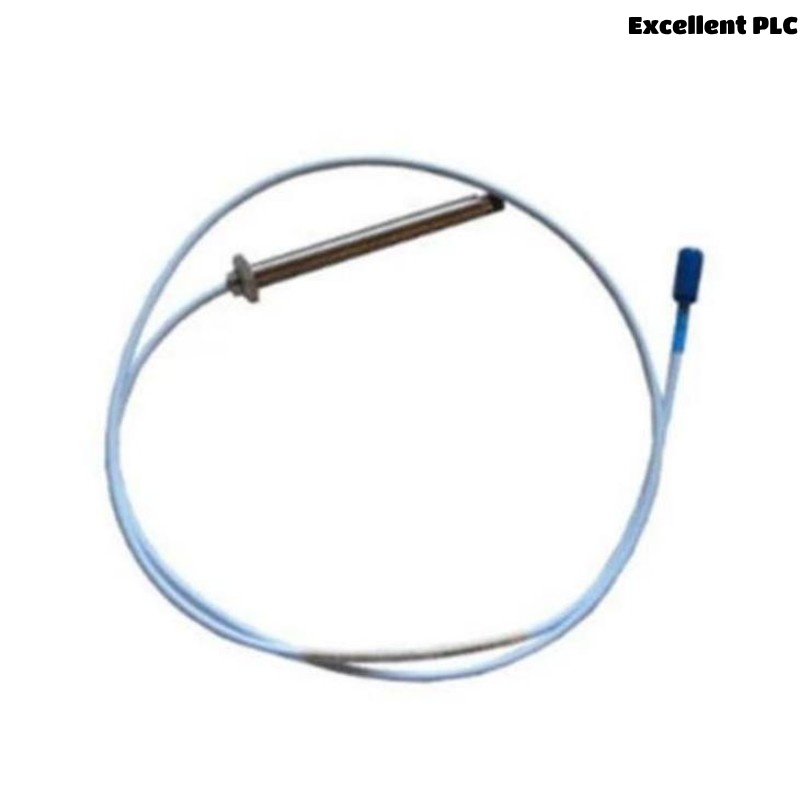

The Bently Nevada 330104-00-15-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It is designed for vibration and position measurements on rotating machinery with fluid-film bearings. The system outputs voltage proportional to the gap between the probe tip and the target surface. It includes robust mechanical features like armored cable and ClickLoc connectors for enhanced reliability.
Applications
-
Turbomachinery vibration monitoring
-
Shaft position and axial displacement detection
-
Keyphasor and speed monitoring
-
Equipment health diagnostics in petrochemical, power, and processing industries
Advantages
-
Fully compliant with API 670 standard
-
Interchangeable probe, cable, and sensor
-
Armor and FluidLoc cable options enhance durability
-
High EMI/RFI immunity without extra shielding
-
Extended temperature models up to 260°C available
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm, M10 x 1 thread, with armor |
| Total Length | 1.5 meters |
| Cable Type | Standard, ClickLoc connector with protector |
| Target Material | AISI 4140 steel (default calibration) |
| Operating Temperature | -52°C to +177°C (standard probe) |
| Pressure Seal | Viton® O-ring |
| Material | PPS tip, SST body, FEP insulated cable |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Linear Range | 2 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (1 or 5m system) |
| Weight | 0.323 kg (probe), system approx. 0.7 kg |
| Dimensions (Case Thread) | M10 x 1, Thread Engagement: 15 mm |
| Connector Type | Miniature coaxial, gold-plated, ClickLoc |
FAQs
Q1: What is the function of the 330104-00-15-10-02-05 probe?
A1: It measures both vibration and shaft position relative to a conductive target.
Q2: Is the probe compliant with API 670?
A2: Yes, it meets API 670 standards for mechanical and performance specifications.
Q3: Can the probe be used at high temperatures?
A3: The standard version handles up to +177°C; ETR versions can go up to +260°C.
Q4: What kind of target material is used for calibration?
A4: AISI 4140 steel is used by default.
Q5: Does this probe require field calibration?
A5: No, components are pre-calibrated and interchangeable without field calibration.
Q6: Can I replace just the probe without changing the sensor or cable?
A6: Yes, the components are designed for full interchangeability.
Q7: What is the connector type?
A7: Gold-plated ClickLoc connectors, requiring no tools for installation.
Q8: Is the system affected by EMI/RFI?
A8: No, it offers high immunity, even in fiberglass housings.
Q9: Is the probe armored?
A9: Yes, this version includes an armored cable for enhanced protection.
Q10: What is the linear measurement range?
A10: 2 mm (80 mils), starting at about 0.25 mm from the target.
Related Models in the Same Series
| Model Number | Thread Type | Total Length | Cable Type | Weight |
|---|---|---|---|---|
| 330104-00-10-10-02-05 | M10 x 1 | 1.0 m | Armored | 0.323 kg |
| 330104-00-20-10-02-05 | M10 x 1 | 2.0 m | Armored | 0.370 kg |
| 330104-00-50-10-02-05 | M10 x 1 | 5.0 m | Armored | 0.450 kg |
| 330104-00-90-10-02-05 | M10 x 1 | 9.0 m | Armored | 0.600 kg |
| 330103-00-15-10-02-05 | M10 x 1 | 1.5 m | No Armor | 0.290 kg |
| 330105-02-12-10-02-05 | 3/8-24 UNF | 1.0 m | No Armor | 0.310 kg |
