Product Introduction

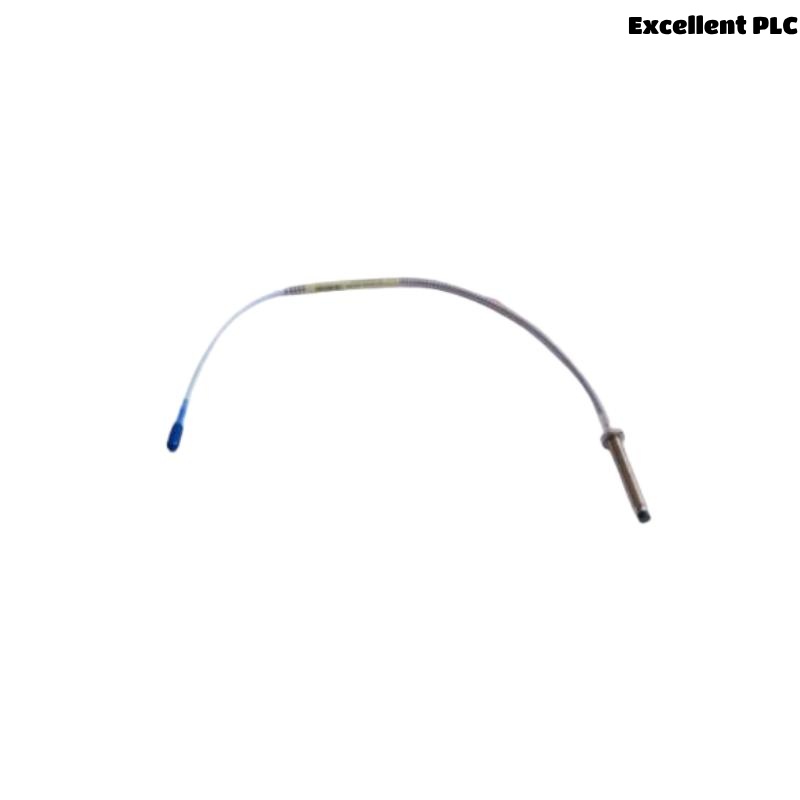

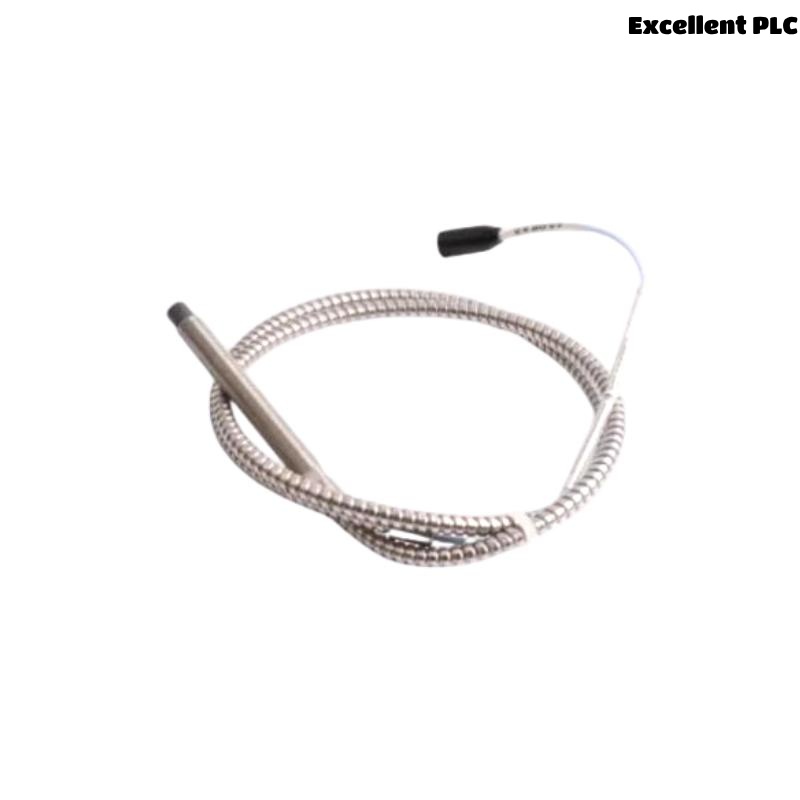

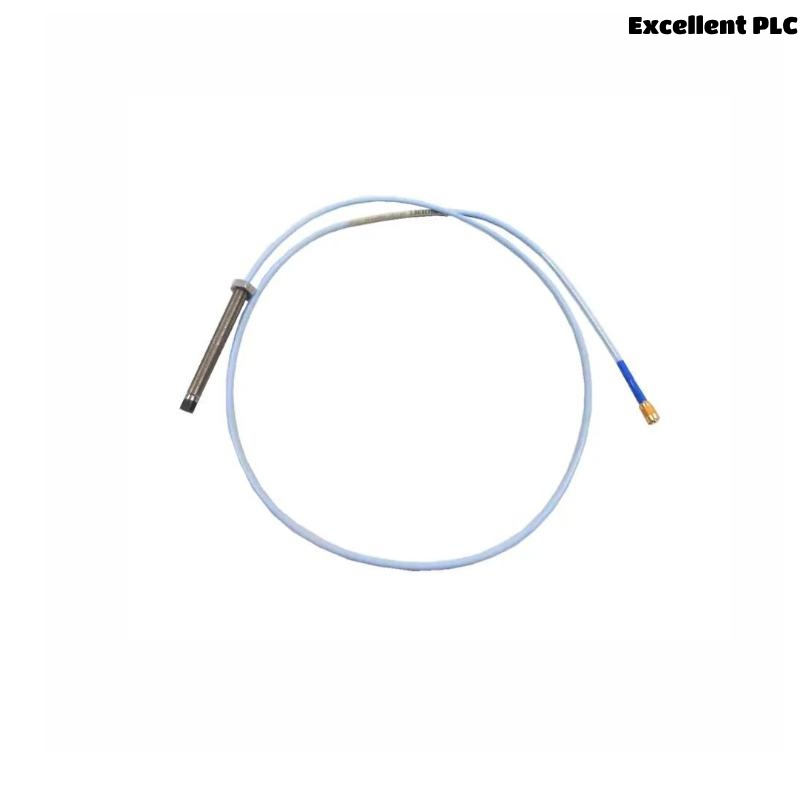

The Bently Nevada 330104-00-16-10-02-CN is a key component of the 3300 XL series, an advanced range of proximity probes designed for precise vibration and displacement monitoring in high-performance industrial machinery. This 8 mm proximity probe is specifically built to provide accurate, real-time measurements of shaft displacement in rotating machinery, helping to detect early signs of mechanical faults such as misalignment, imbalance, and wear.
The 3300 XL 8 mm proximity probe is part of Bently Nevada’s flagship product line, renowned for its high precision and durability in even the harshest industrial environments. It is typically used in industries like power generation, oil and gas, and heavy manufacturing, where continuous operation of rotating equipment is critical to minimizing downtime and maximizing efficiency.
Equipped with advanced sensing technology, the 3300 XL 8 mm proximity probe offers superior measurement capabilities, enabling predictive maintenance and reducing the risk of unexpected failures. With a measurement range up to 10 mm, the probe ensures reliable and accurate data collection, contributing to the effective management of equipment health and performance.
Product Parameters
Below are the key technical specifications of the Bently Nevada 330104-00-16-10-02-CN 3300 XL 8 mm proximity probe (metric version):
| Parameter | Specification |
|---|---|
| Model Number | 330104-00-16-10-02-CN |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | -40°C to 120°C |
| Probe Type | 8 mm, Proximity |
| Resolution | 0.1 µm |
| Measuring Range | 0-10 mm |
| Output | 4-20 mA (current loop) |
| Mounting Type | Integral mounting |
| Shielding | Electromagnetic interference (EMI) shielding |
Product Application
The Bently Nevada 330104-00-16-10-02-CN 3300 XL 8 mm proximity probe is widely used in industrial applications for monitoring critical machinery and ensuring operational reliability. Its main applications include:
-
Turbine Vibration Monitoring: The proximity probe is used to monitor turbine shafts for vibration, helping detect early signs of mechanical wear or misalignment.
-
Compressor and Pump Monitoring: The 3300 XL 8 mm probe is integral to ensuring that compressors and pumps are operating within safe parameters, minimizing the risk of damage and improving system reliability.
-
Power Generation Plants: Used to monitor large rotating machinery in power plants, the probe helps prevent failure by detecting abnormal vibrations or shaft displacement.
-
Oil and Gas Refineries: The probe helps ensure the efficient operation of refining equipment by continuously monitoring vibration and displacement, allowing for timely maintenance interventions.
-
Industrial Manufacturing: It is used in heavy manufacturing to monitor equipment such as motors and conveyors, ensuring that machinery continues to operate smoothly with minimal downtime.
-
Condition-Based Monitoring Systems: Integrated into broader condition monitoring systems, the probe provides real-time data that enables predictive maintenance and early detection of mechanical problems.
Product Advantages
-
High Precision: The 3300 XL 8 mm proximity probe offers exceptional measurement resolution (0.1 µm), providing highly accurate data for effective condition monitoring and fault detection.
-
Wide Temperature Range: With an operating temperature range from -40°C to 120°C, this probe can withstand harsh environments, ensuring reliable operation in extreme conditions.
-
Electromagnetic Interference (EMI) Shielding: The 3300 XL probe is equipped with EMI shielding, ensuring stable and reliable operation even in environments with significant electrical noise.
-
Durability: Built to last, this probe offers long-term reliability in harsh industrial settings, reducing the need for frequent maintenance or replacement.
-
Easy Integration: The 3300 XL probe is designed for simple installation and can be easily integrated into existing monitoring systems, making it ideal for both new installations and retrofits.
-
Predictive Maintenance: By providing early detection of issues like misalignment and imbalance, this probe plays a key role in predictive maintenance strategies, reducing unplanned downtime and maintenance costs.
-
Cost-Effective: The ability to detect issues before they escalate into failures means lower repair costs, less downtime, and ultimately a more cost-effective maintenance approach.
-
Real-Time Monitoring: The probe provides continuous, real-time monitoring of equipment conditions, allowing operators to make timely decisions and adjustments.
-
Versatility: With a measuring range of up to 10 mm, the probe is versatile and can be used in a wide range of industrial machinery, from small pumps to large turbines.
-
Proven Reliability: As part of the Bently Nevada 3300 XL series, the probe has a proven track record of reliable performance in critical industrial environments, making it a trusted choice for condition monitoring.
FAQ
-
Q: What is the total length of the Bently Nevada 3300 XL 8 mm proximity probe?
A: The total length is 1.0 meter. -
Q: How much does the Bently Nevada 3300 XL 8 mm proximity probe weigh?
A: The probe weighs 0.323 kg. -
Q: What is the resolution of the Bently Nevada 3300 XL 8 mm proximity probe?
A: The probe has a resolution of 0.1 µm. -
Q: What is the measurement range of the Bently Nevada 3300 XL 8 mm proximity probe?
A: The probe has a measurement range of 0-10 mm. -
Q: What type of output does the Bently Nevada 3300 XL 8 mm proximity probe use?
A: The probe uses a 4-20 mA current loop output. -
Q: What is the operating temperature range of the Bently Nevada 3300 XL 8 mm proximity probe?
A: The operating temperature range is from -40°C to 120°C. -
Q: Is the Bently Nevada 3300 XL 8 mm proximity probe suitable for use in power generation plants?
A: Yes, it is ideal for monitoring large rotating machinery in power plants. -
Q: Can the Bently Nevada 3300 XL 8 mm proximity probe detect early signs of equipment failure?
A: Yes, the probe helps detect issues like misalignment and imbalance before they cause serious failures. -
Q: Does the Bently Nevada 3300 XL 8 mm proximity probe have EMI shielding?
A: Yes, the probe is equipped with EMI shielding to ensure stable performance in noisy environments. -
Q: Can the Bently Nevada 3300 XL 8 mm proximity probe be integrated into existing condition monitoring systems?
A: Yes, the probe is designed for easy integration into both new and existing condition monitoring systems.
