Product Overview

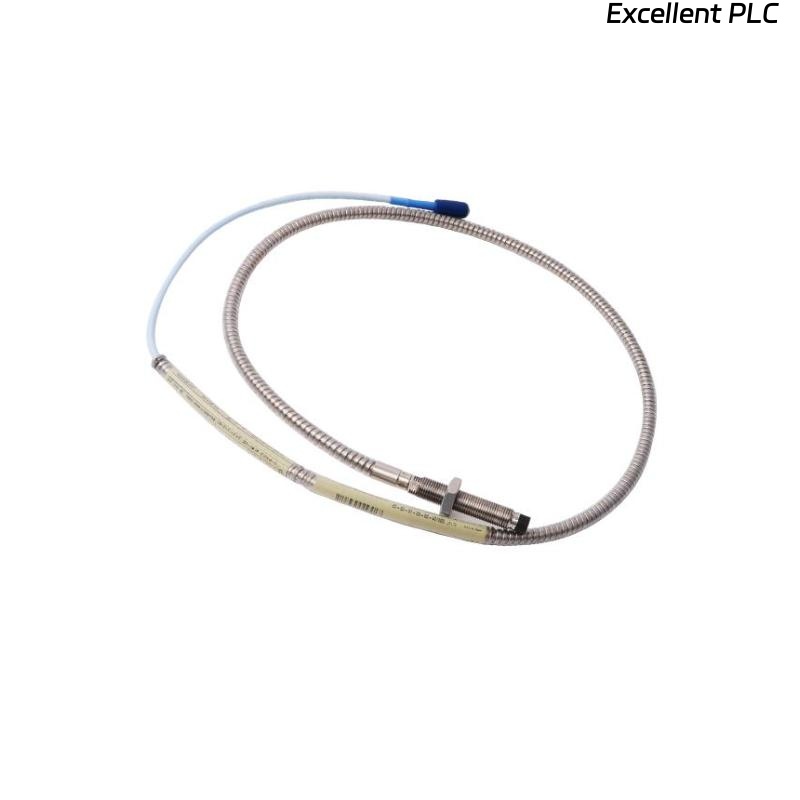

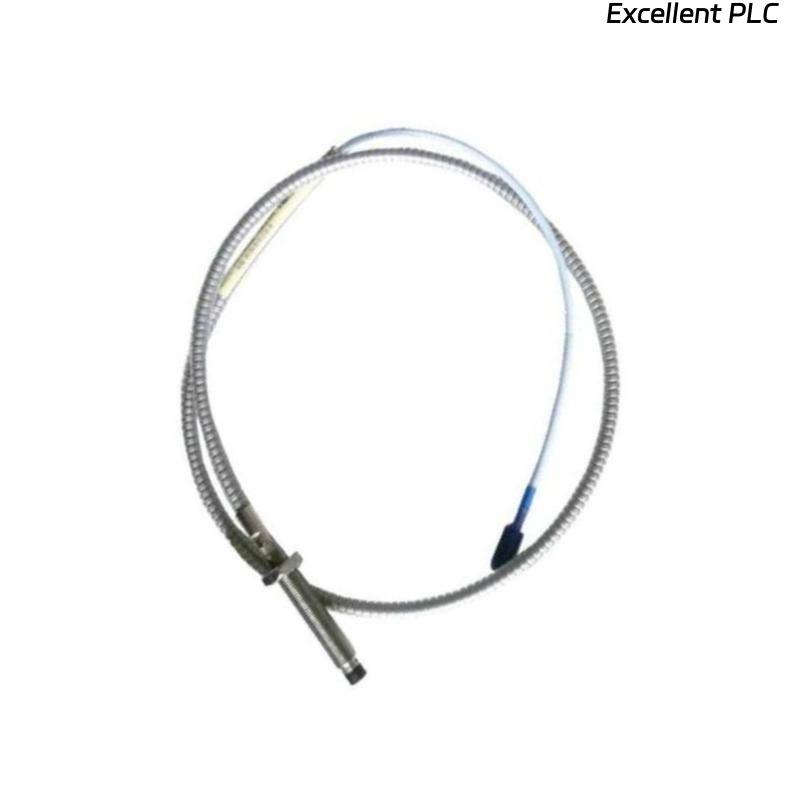

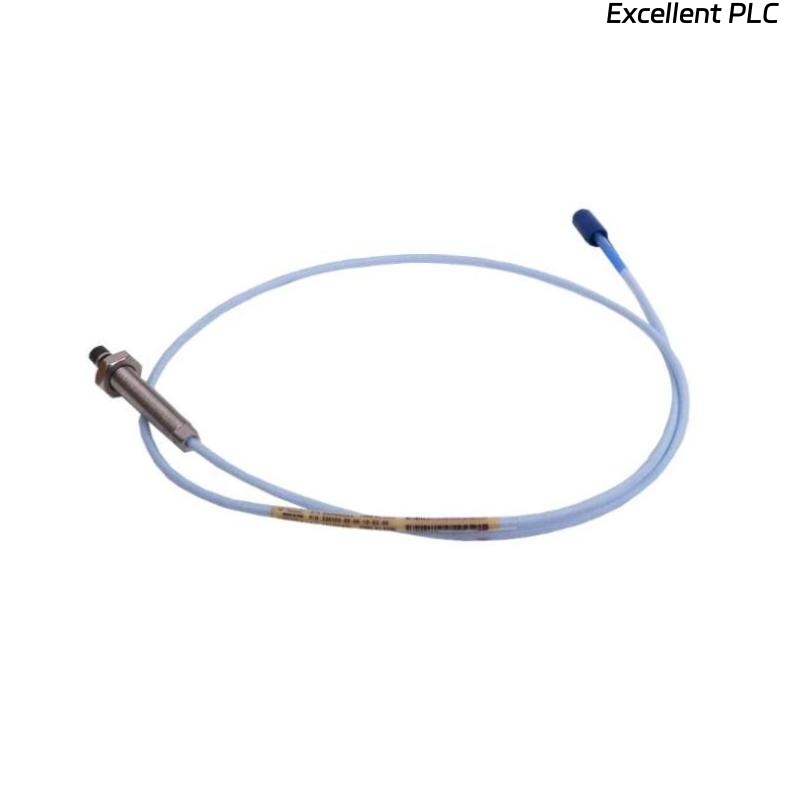

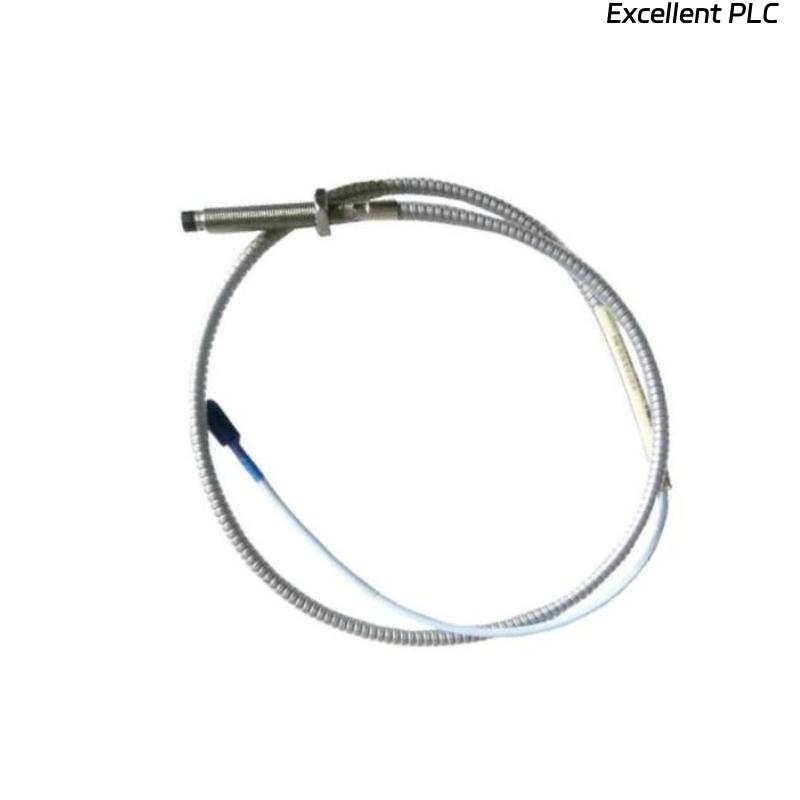

The Bently Nevada 330104-00-17-10-11-05 is a high-performance 8 mm proximity probe from the 3300 XL series, designed for precise displacement and vibration monitoring of critical rotating machinery. It provides accurate measurements of shaft position and vibration, helping to protect machinery, optimize performance, and prevent unplanned downtime.
Key Features
-
Measures shaft position and vibration in rotating machinery
-
Compatible with Bently Nevada 3300 XL monitoring systems
-
High sensitivity for precise displacement measurement
-
Rugged construction for harsh industrial environments
-
Interchangeable without need for bench calibration
-
Supports both static position and dynamic vibration monitoring
-
API 670 compliant (4th Edition) for mechanical configuration and performance
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330104-00-17-10-11-05 |
| Series | 3300 XL |
| Type | 8 mm Proximity Probe |
| Measurement | Shaft displacement and vibration |
| Probe Tip Diameter | 8 mm |
| Probe Length | 70 mm |
| Cable Length | 5 m (FluidLoc with ClickLoc connector) |
| Connector | Miniature coaxial ClickLoc connector with protector |
| Output | Eddy-current signal to Proximitor Sensor |
| Operating Temperature | -40 °C to +120 °C |
| Storage Temperature | -50 °C to +125 °C |
| Humidity | Up to 100% condensing |
| Case Material | Stainless Steel |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.323 kg |
| Mounting | Threaded or unthreaded depending on machine requirements |
| Compliance | API 670 (4th Edition), CE, RoHS |
Industry Applications
-
Power Generation – turbine and generator monitoring
-
Oil & Gas – compressors, pumps, and critical rotating machinery
-
Petrochemical & Chemical – axial position and vibration measurement for machinery protection
-
Manufacturing – large rotating equipment monitoring
-
Water & Wastewater – pump and motor shaft monitoring
Advantages
-
Provides precise displacement and vibration measurement for machinery protection
-
Rugged design ensures reliable operation in harsh industrial conditions
-
Easy integration with Bently Nevada 3300 XL monitoring systems
-
Interchangeable probe design reduces maintenance effort
-
Supports predictive maintenance to minimize downtime
-
Compliant with API 670 for safety and reliability
Frequently Asked Questions (FAQ)
Q1: What is the primary function of this probe?
It measures shaft displacement and vibration in critical rotating machinery.
Q2: Which monitoring systems is it compatible with?
It is compatible with Bently Nevada 3300 XL monitoring systems.
Q3: What is the probe diameter and length?
Probe diameter is 8 mm and length is 70 mm.
Q4: What is the cable length and connector type?
Cable length is 5 m with a Miniature coaxial ClickLoc connector and protector.
Q5: What is the operating temperature range?
-40 °C to +120 °C.
Q6: Can it operate in high humidity environments?
Yes, it is rated for up to 100% condensing humidity.
Q7: What material is the probe case made from?
Stainless steel for durability.
Q8: How is it mounted?
Mounting can be threaded or unthreaded depending on machine requirements.
Q9: Is it suitable for harsh industrial environments?
Yes, it is designed for rugged industrial conditions.
Q10: Which industries commonly use this probe?
Power Generation, Oil & Gas, Petrochemical & Chemical, Manufacturing, and Water & Wastewater.
