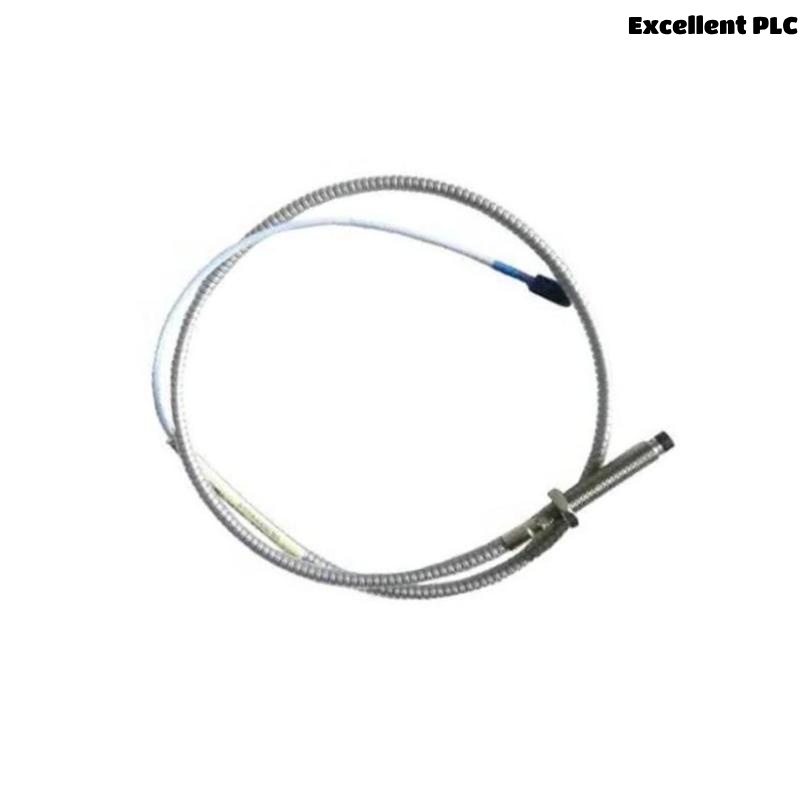

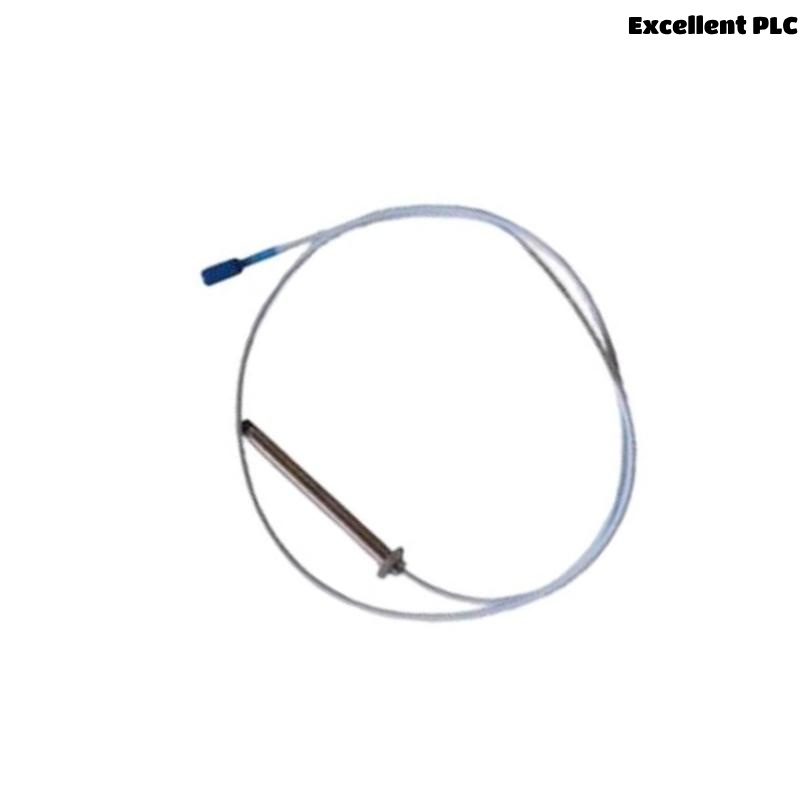

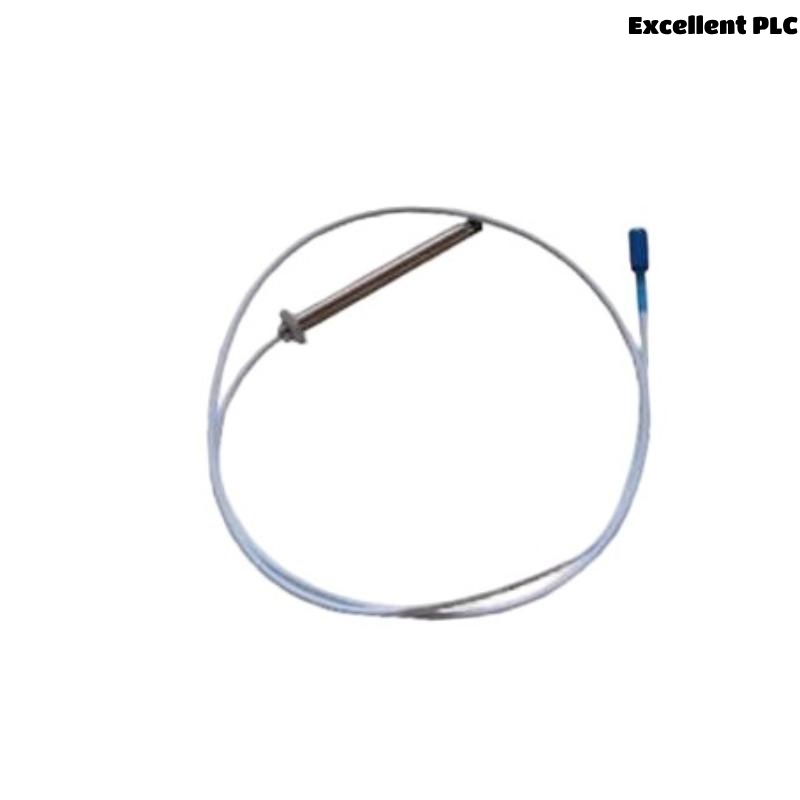

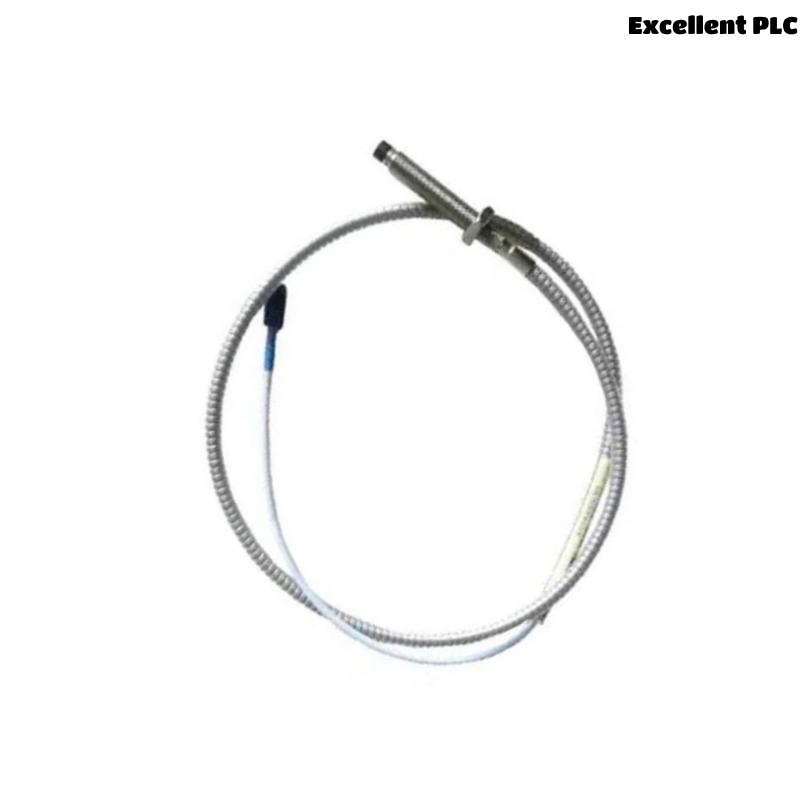

Bently Nevada 330104-00-22-10-02-CN 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330104-00-22-10-02-CN belongs to the trusted 3300 XL 8 mm Proximity Probe series, known for its durability, reliability, and precision in critical machinery monitoring. This model features an 8 mm tip and a total cable configuration comprising a 22-meter probe cable, a 10-meter extension cable, and a 2-meter connector cable. Designed to provide highly accurate, non-contact displacement and vibration measurements, it is calibrated for a 4140 steel target and is suitable for a broad range of industrial machinery monitoring applications.

The probe is hermetically sealed to offer high protection against dust, oil, and water ingress, making it ideal for use in harsh and hazardous industrial environments. The CN suffix indicates that this variant is manufactured or customized for operations in China.

Technical Specifications

Industry Applications

• Oil & Gas: Real-time shaft displacement monitoring in turbines, compressors, and pumps

• Power Generation: Accurate vibration analysis in gas and steam turbines

• Chemical Processing: Condition monitoring in high-speed rotating machinery

• Water Treatment: Monitoring pumps and motors for performance degradation

• Mining & Metals: High-precision monitoring in harsh, vibration-intensive settings

• Pulp & Paper: Ensures stability in large fans, motors, and gear-driven systems

Key Advantages

• Extended Dimensions: Designed for applications needing long cable runs (total 34 meters)

• High Sensitivity: Maintains consistent -200 mV/mm accuracy across operational range

• Built for Durability: IP68 sealing and stainless steel housing withstand tough environments

• Seamless Integration: Fully compatible with 3300 XL extension and monitoring systems

• Factory Calibrated: Optimized for 4140 steel targets, ensuring reliability

• Minimized Downtime: Proven performance in predictive maintenance strategies

• ATEX Options: Available in explosion-proof variants for hazardous zones

• Easy Installation: Modular plug-and-play design reduces installation time

• Temperature Resilience: Performs reliably across a wide temperature range

• Trusted by Industry: Backed by Bently Nevada’s legacy in machinery protection systems

Frequently Asked Questions (FAQ)

1. What does the ‘CN’ suffix indicate in this model?
   It signifies that the probe is intended for use in China or manufactured to Chinese market specifications.

2. What are the total cable lengths included?
   This model includes a 22 m probe cable, a 10 m extension cable, and a 2 m connector cable.

3. What is the sensing range of this probe?
   It operates linearly from 0.25 mm to 2.0 mm of displacement.

4. Is this probe suitable for use in wet environments?
   Yes, it has an IP68 rating and is hermetically sealed against moisture ingress.

5. What shaft material is this probe calibrated for?
   It is factory-calibrated for AISI 4140 steel shafts.

6. Is it compatible with legacy Bently Nevada monitoring systems?
   Yes, it is fully compatible with 3300 XL extension cables and monitoring setups.

7. Can this model be used in hazardous locations?
   Yes, ATEX-certified versions are available upon request for hazardous environments.

8. How does it connect to the monitoring system?
   It uses a 3-pin connector compatible with the 3300 XL series cabling architecture.

9. What is the typical weight of the unit?
   The approximate weight is 0.38 kg including the full cable set.

10. What is the expected lifespan of this probe in industrial use?
    With proper installation and normal operating conditions, it provides many years of reliable service.
