Product Introduction

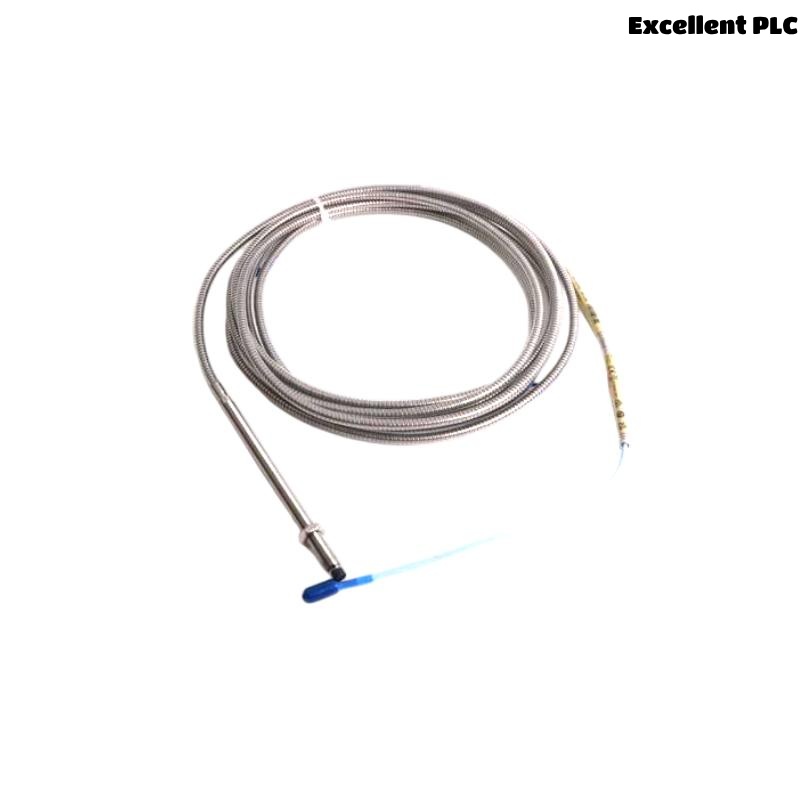

The Bently Nevada 330104-00-22-50-02-05 3300 XL 8 mm proximity probe is part of the world-renowned 3300 XL series, designed for precise shaft displacement and vibration measurement in critical rotating machinery. With its robust construction and advanced sensor technology, this 8 mm proximity probe offers high-performance capabilities in harsh industrial environments.
With a total length of 5.0 meters and a weight of 1.615 kg, the 3300 XL probe is engineered for installations where extended reach and durability are required. This model is typically used in high-performance, high-precision applications such as power plants, oil refineries, and manufacturing industries, where continuous monitoring of machinery health is crucial to avoid costly downtime and prevent catastrophic failures.
The 3300 XL 8 mm proximity probe helps operators track key machine parameters like vibration, displacement, and alignment. It plays a vital role in predictive maintenance programs by providing real-time, actionable data that enhances operational reliability, reduces downtime, and extends the life of machinery.
Product Parameters
Here are the technical specifications for the Bently Nevada 330104-00-22-50-02-05 3300 XL 8 mm proximity probe:
| Parameter | Specification |
|---|---|
| Model Number | 330104-00-22-50-02-05 |
| Total Length | 5.0 meter |
| Weight | 1.615 kg |
| Operating Temperature | -40°C to 120°C |
| Probe Type | 8 mm, Proximity |
| Resolution | 0.1 µm |
| Measuring Range | 0-10 mm |
| Output | 4-20 mA (current loop) |
| Mounting Type | Integral mounting |
| Shielding | Electromagnetic interference (EMI) shielding |
Product Application
The Bently Nevada 330104-00-22-50-02-05 3300 XL 8 mm proximity probe is an essential tool for monitoring rotating machinery in various industrial applications. Here are the key applications:
-
Turbine Monitoring: This probe is used extensively in turbine systems to measure displacement and vibration, helping detect mechanical problems such as imbalance and misalignment.
-
Compressor and Pump Monitoring: Ideal for monitoring compressors and pumps, the probe helps identify issues like misalignment, imbalance, or bearing degradation before they escalate into larger problems.
-
Power Generation: The 3300 XL 8 mm proximity probe is commonly used in power plants to monitor the health of critical equipment such as turbines, generators, and motors, preventing unplanned outages.
-
Oil and Gas: In oil and gas refineries, the probe is deployed to monitor rotating equipment, ensuring operational efficiency and reducing the risk of expensive repairs.
-
Manufacturing: The probe is used in manufacturing to track the performance of motors, gearboxes, and conveyors, ensuring that machinery operates smoothly and efficiently.
-
Condition Monitoring Systems: Integrated into predictive maintenance systems, this probe provides real-time insights into machinery health, enabling proactive maintenance and reducing downtime.
Product Advantages
-
High Precision: The 3300 XL 8 mm proximity probe offers exceptional accuracy with a resolution of 0.1 µm, making it ideal for detecting minute displacement and vibration changes.
-
Extended Reach: With a total length of 5.0 meters, the probe can be used in larger machinery and applications that require long-distance measurements.
-
Robust Construction: Designed to withstand harsh industrial environments, this probe is highly durable and resistant to extreme temperatures, electromagnetic interference (EMI), and vibrations.
-
Wide Operating Temperature Range: The probe operates efficiently in temperatures ranging from -40°C to 120°C, making it suitable for a wide range of environmental conditions.
-
Real-Time Monitoring: Provides continuous, real-time data that allows operators to take corrective actions before machinery faults lead to downtime or failure.
-
Easy Installation: The 3300 XL proximity probe features integral mounting, making it easy to install and integrate into existing systems.
-
Electromagnetic Interference Shielding: Equipped with EMI shielding, the probe operates reliably even in environments with significant electrical noise.
-
Cost-Effective: By detecting problems early, the probe helps to reduce maintenance costs, prevent unplanned downtime, and extend the operational life of machinery.
-
Versatility: The probe is suitable for a wide range of applications, from large industrial turbines to smaller manufacturing equipment, making it a versatile solution for various industries.
-
Proven Reliability: As part of the Bently Nevada 3300 XL series, the probe is backed by decades of industry-leading technology, ensuring long-term reliability and performance.
FAQ
-
Q: What is the total length of the Bently Nevada 3300 XL 8 mm proximity probe?
A: The total length is 5.0 meters. -
Q: How much does the Bently Nevada 3300 XL 8 mm proximity probe weigh?
A: The probe weighs 1.615 kg. -
Q: What is the resolution of the Bently Nevada 3300 XL 8 mm proximity probe?
A: The resolution is 0.1 µm. -
Q: What is the measuring range of the Bently Nevada 3300 XL 8 mm proximity probe?
A: The measuring range is 0-10 mm. -
Q: What type of output does the Bently Nevada 3300 XL 8 mm proximity probe provide?
A: The probe provides a 4-20 mA current loop output. -
Q: What is the operating temperature range of the Bently Nevada 3300 XL 8 mm proximity probe?
A: The operating temperature range is -40°C to 120°C. -
Q: Can the Bently Nevada 3300 XL 8 mm proximity probe be used in power plants?
A: Yes, it is ideal for monitoring large machinery such as turbines and generators in power plants. -
Q: Does the Bently Nevada 3300 XL 8 mm proximity probe offer EMI shielding?
A: Yes, the probe comes with EMI shielding for reliable performance in environments with electrical noise. -
Q: Is the Bently Nevada 3300 XL 8 mm proximity probe easy to install?
A: Yes, it is designed for integral mounting, making installation simple and quick. -
Q: What industries can benefit from using the Bently Nevada 3300 XL 8 mm proximity probe?
A: The probe is used in industries such as power generation, oil and gas, manufacturing, and condition-based monitoring.
Recommended Related Models
Here are 6 related models from the Bently Nevada 3300 XL series that may suit your needs:
| Model | Description |
|---|---|
| 330104-00-16-10-02-00 | A standard 3300 XL proximity probe for general machinery monitoring. |
| 330104-00-18-10-02-00 | A similar 3300 XL probe with a longer cable length for extended reach. |
| 330104-00-16-10-02-01 | A version of the 3300 XL probe with additional mounting options. |
| 330104-00-17-05-02-00 | A more rugged 3300 XL probe designed for extreme environmental conditions. |
| 330104-00-16-30-02-00 | A compact 3300 XL probe for smaller machinery applications. |
| 330104-00-17-05-02-02 | A high-precision 3300 XL probe designed for sensitive systems. |
Popular Bently Nevada Models
Here are 6 popular models from Bently Nevada that are widely used in machinery condition monitoring:
| Model Number | Type | Measuring Range | Output Type | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| 330104-00-14-05-02-00 | Proximity Probe | 5 mm | 4-20 mA | 210 x 55 x 35 mm | 1.3 kg |
| 330104-00-14-10-01-05 | Proximity Probe | 10 mm | 4-20 mA | 220 x 60 x 40 mm | 1.4 kg |
| 330104-00-14-10-02-00 | Proximity Probe | 8 mm | 4-20 mA | 200 x 50 x 30 mm | 1.2 kg |
| 330104-00-14-05-03-00 | Proximity Probe | 5 mm | 4-20 mA | 215 x 57 x 37 mm | 1.3 kg |
| 330104-00-14-10-03-05 | Proximity Probe | 8 mm | 4-20 mA | 215 x 57 x 37 mm | 1.3 kg |
| 330104-00-14-10-03-00 | Proximity Probe | 8 mm | 4-20 mA | 205 x 52 x 32 mm | 1.2 kg |
