Product Overview:

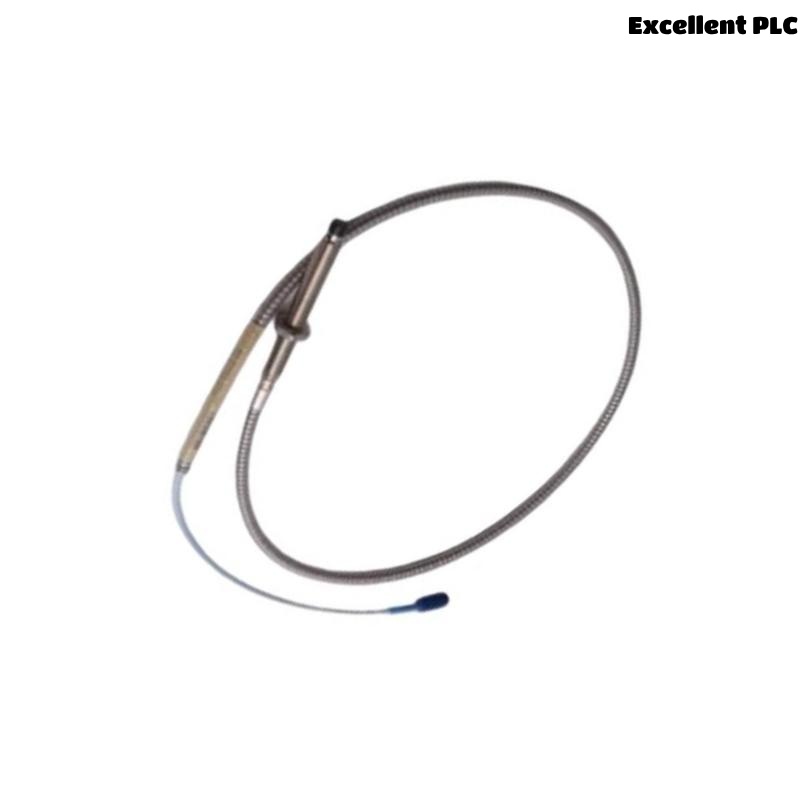

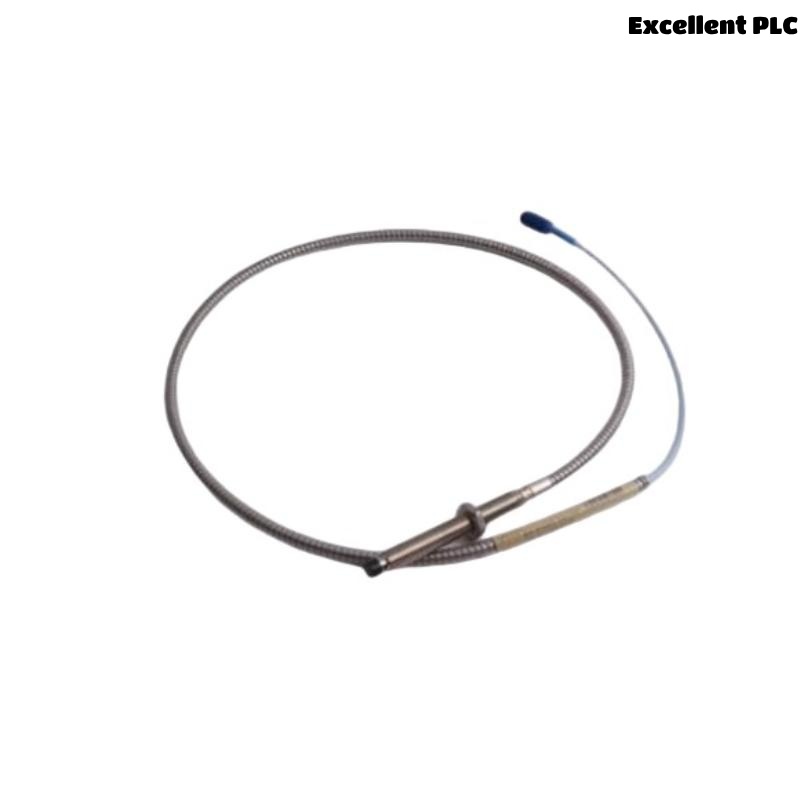

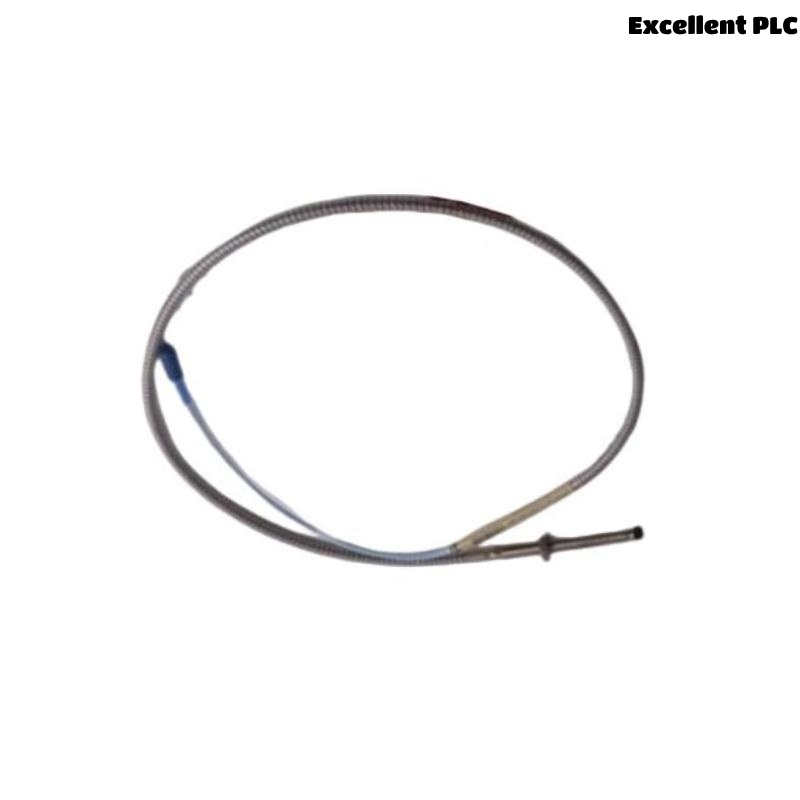

The Bently Nevada 330104-01-05-05-02-05 3300 XL 8 mm Proximity Probe is part of Bently Nevada’s industry-leading 3300 XL series, engineered for precise vibration and position monitoring in critical rotating machinery. Designed with durability and high sensitivity in mind, this probe supports accurate non-contact measurements, making it ideal for real-time condition monitoring and machinery protection applications. With robust construction and compatibility with Bently Nevada monitoring systems, this probe delivers excellent performance in demanding industrial environments such as power generation, petrochemicals, oil and gas, and heavy manufacturing.
Key Features:
-
Non-contact Measurement: Accurate shaft position and vibration measurement without physical contact.
-
Industrial Grade Durability: Stainless steel body and rugged design ensure performance in extreme conditions.
-
Consistent Performance: Engineered to maintain accuracy across a wide temperature and frequency range.
-
Integrated System Compatibility: Seamlessly integrates with 3300 XL extension cables and proximity sensor drivers.
-
Flexible Length Configurations: Probe cable and connector options for ease of installation in various equipment setups.
-
IECEx and ATEX Certified Options Available: Suitable for hazardous environment applications (depending on configuration).
Product Overview:
The Bently Nevada 330104-01-05-05-02-05 3300 XL 8 mm Proximity Probe is part of Bently Nevada’s industry-proven 3300 XL series, offering accurate and reliable non-contact vibration and position monitoring for critical rotating equipment. Engineered for rugged environments, this probe delivers consistent performance in demanding industrial settings such as oil and gas, power generation, and heavy manufacturing. Designed for integration into a full proximity transducer system, it supports high-resolution machinery diagnostics and protection.
Key Features:
-
Non-contact Measurement: Ensures precise shaft vibration and position readings without physical contact.
-
Rugged Design: Built to withstand high temperatures, mechanical stresses, and harsh environments.
-
High Compatibility: Seamlessly integrates with 3300 XL extension cables and proximity sensor drivers.
-
Accurate and Reliable: Maintains performance across a wide range of industrial conditions.
-
Field-proven Reliability: Thousands of installations globally with consistent monitoring performance.
-
IP66 Protection: Resistant to dust and water ingress when properly installed.
Technical Specifications:
| Specification | Value |
|---|---|
| Model | Bently Nevada 330104-01-05-05-02-05 |
| Series | 3300 XL |
| Connector Type | Miniature coaxial connector |
| Operating Temperature | -40°C to +177°C |
| Frequency Range | 0 to 4000 Hz |
| Measuring Range | 0 to 2 mm (typical) |
| Output Signal | Voltage signal proportional to distance |
| Mounting Thread | 3/8-24 UNF-2A |
| Material | Stainless Steel |
| Ingress Protection | IP66 (when properly installed) |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.161 kg |
Industry Applications:
The 330104-01-05-05-02-05 proximity probe is used across various industries for:
-
Steam and Gas Turbines: Continuous shaft vibration monitoring to prevent catastrophic failure.
-
Compressors: Measurement of rotor position and dynamic behavior under load.
-
Pumps and Blowers: Detect imbalance, misalignment, or mechanical looseness.
-
Electric Motors: Monitor bearing conditions and prevent unplanned outages.
-
Industrial Fans: Ensure smooth operations and detect early signs of faults.
-
Gearboxes and Gear Trains: Analyze gear mesh patterns and detect gear damage.
Advantages:
-
Early Fault Detection: Helps identify machine anomalies before serious damage occurs.
-
Minimized Downtime: Enables predictive maintenance and reduces unexpected shutdowns.
-
Enhanced Safety: Ensures compliance with safety standards by providing reliable monitoring in critical operations.
-
High Interchangeability: Compatible with other 3300 XL components, reducing spare parts inventory.
-
Stable Performance in Harsh Environments: Maintains accuracy across temperature and vibration extremes.
-
Low Maintenance Requirement: Long life expectancy and robust design reduce the need for frequent replacements.
Frequently Asked Questions (FAQ):
-
What is the total system length for this probe configuration?
The system length is 5 meters, which includes the probe, extension cable, and driver.
-
Can this probe be used in high-temperature applications?
Yes, it can operate in environments up to +177°C.
-
What is the sensing principle of this proximity probe?
It uses eddy current sensing for non-contact distance measurement.
-
Does this probe require calibration?
The probe is factory calibrated, but system calibration is recommended during setup.
-
Is it compatible with older Bently Nevada systems?
Yes, it is backward-compatible with many legacy Bently Nevada monitors and systems.
-
What material is used in the probe body?
The probe is constructed with high-grade stainless steel for durability.
-
What mounting options are available?
The standard configuration supports 3/8-24 UNF threaded mounting.
-
What is the output signal type?
The probe provides a voltage signal proportional to the gap (distance).
-
Is the system IP rated?
Yes, when properly installed, it meets IP66 protection standards.
-
Can this probe be installed in hazardous areas?
Certain configurations with appropriate certifications can be used in ATEX/IECEx environments.
Recommended Models
| Model | Description |
|---|---|
| 330104-01-05-05-02-00 | Standard 8 mm Probe, 5 m system, no connector boot |
| 330104-00-07-10-02-00 | 8 mm Probe with longer cable, for deep installations |
| 330104-01-05-20-02-00 | High-temperature version of the 8 mm probe |
| 330104-01-05-50-02-00 | Extended range proximity probe variant |
| 330104-01-05-05-02-CN | China region variant with standard specs |
| 330130-080-00-00 | Matching 3300 XL extension cable |
