Product Introduction

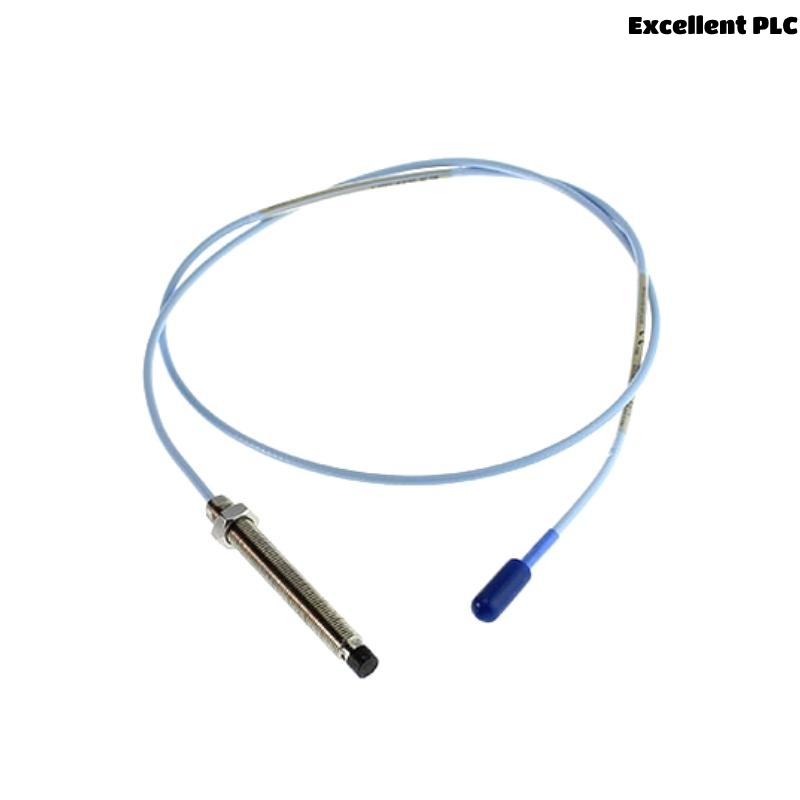

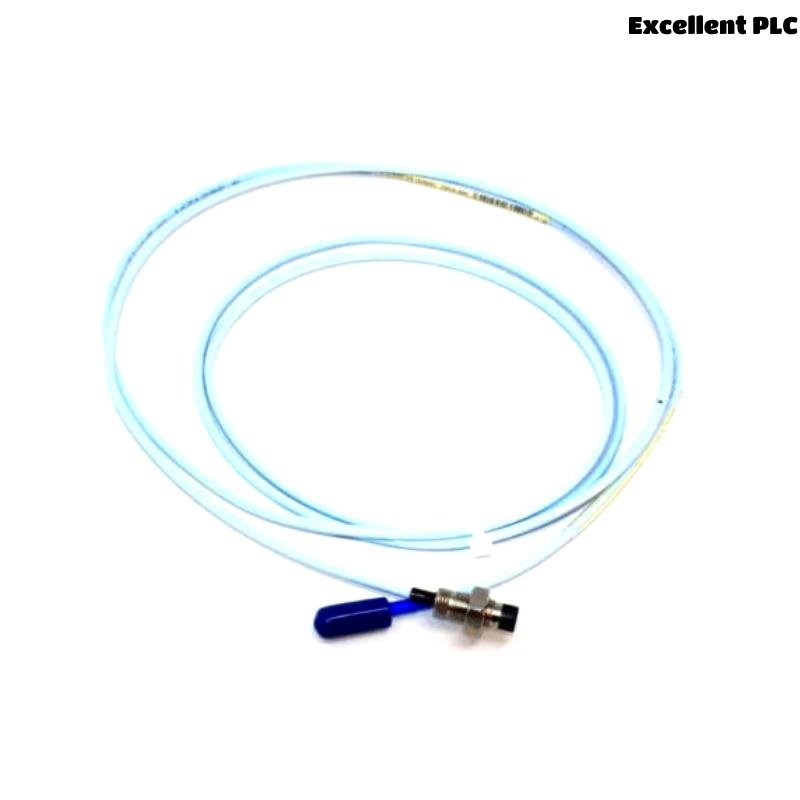

The Bently Nevada 330104-01-05-50-01-RU is a robust and precise proximity probe from the acclaimed 3300 XL series, designed for continuous shaft position and vibration monitoring in rotating machinery. This model, featuring an 8mm sensing distance, offers dependable and accurate measurement critical for predictive maintenance and condition monitoring in a wide range of industrial sectors.
Known for its durability and consistent performance, the 3300 XL probe series is a preferred solution for protecting vital machinery such as turbines, compressors, generators, and pumps. Bently Nevada’s advanced engineering ensures that this probe provides reliable data, helping prevent unexpected downtime and costly repairs.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 330104-01-05-50-01-RU |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Sensing Distance | 8 mm |
| Probe Tip Diameter | 12.7 mm (0.5 inches) |
| Probe Body Diameter | 12.7 mm (0.5 inches) |
| Total Length | 5 meters |
| Weight | 1.615 kg |
| Operating Temperature | -40°C to +120°C |
| Connector Type | MIL-C-26482 or equivalent |
| Output Signal | AC variable voltage proportional to gap |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Mounting Method | Threaded mounting (M12 x 1.5) |
Applications
-
Power Generation: Used for monitoring turbine and generator shaft positions and vibration.
-
Oil & Gas: Condition monitoring for compressors and pumps in upstream and downstream processes.
-
Heavy Industry: Real-time shaft displacement and vibration measurement in motors, fans, and pumps.
-
Hydroelectric Facilities: Monitoring shaft movement to ensure operational safety and reliability.
-
Aerospace and Defense: Equipment testing and monitoring of rotating machinery.
-
Mining: Monitoring critical rotating equipment in harsh environments.
Advantages
-
High Accuracy: The 8 mm sensing distance ensures precise measurement of shaft position and vibration.
-
Rugged Design: Stainless steel housing and IP67 rating protect the probe in tough industrial conditions.
-
Wide Operating Range: Capable of operating from -40°C up to +120°C, suitable for extreme environments.
-
Reliable Connections: Equipped with MIL-C-26482 connectors for secure and vibration-resistant interfacing.
-
Easy Installation: Threaded M12 x 1.5 mounting simplifies setup and replacement.
-
Flexible Cable Lengths: Custom cable options allow adaptation to various installation needs.
-
Proven Field Performance: Part of the trusted 3300 XL family with a long-standing reputation.
-
Consistent Signal Output: Provides an AC voltage signal directly proportional to probe-to-target distance for accurate condition monitoring.
Frequently Asked Questions (FAQ)
-
What sensing distance does this proximity probe have?
It features an 8 mm sensing distance for accurate measurement. -
What types of machinery is this probe suited for?
Suitable for turbines, compressors, generators, pumps, and other rotating machinery. -
What is the total length supplied?
The standard total length is 5 meters, with options for custom lengths. -
What output signal type does the probe generate?
An AC voltage signal proportional to the probe-to-target gap. -
How is the probe mounted?
The probe uses a threaded M12 x 1.5 mount for installation. -
Can this probe withstand harsh environmental conditions?
Yes, it is rated IP67 and operates reliably from -40°C to +120°C. -
Is the probe compatible with all Bently Nevada 3300 XL monitoring systems?
Yes, it integrates fully with the 3300 XL system platform. -
What maintenance is needed for this proximity probe?
Regular visual inspection and cleaning of the probe tip are recommended to maintain accuracy. -
Are longer cable options available?
Yes, custom cable lengths can be provided upon request. -
Is the probe suitable for hazardous or explosive environments?
With appropriate certification and protective installation, it can be used in hazardous areas.
Recommended Related Models (Same Series or Related Proximity Probes)
| Model Number | Sensing Distance | Probe Diameter | Cable Length | Weight (kg) | Notes |
|---|---|---|---|---|---|
| 330101-00-40-10-12-05 | 8 mm | 12.7 mm | 2 m | 0.3 | Standard 8 mm proximity probe |
| 330103-00-40-10-12-05 | 12 mm | 12.7 mm | 2 m | 0.32 | Extended sensing distance |
| 330106-00-40-10-12-05 | 8 mm | 8 mm | 2 m | 0.28 | Smaller probe diameter |
| 330120-00-40-10-12-05 | 10 mm | 12.7 mm | 3 m | 0.35 | Longer cable option |
| 330130-00-40-10-12-05 | 8 mm | 12.7 mm | 5 m | 0.4 | Extended cable length |
| 330140-00-40-10-12-05 | 15 mm | 12.7 mm | 2 m | 0.36 | Maximum sensing distance in series |
Popular Bently Nevada Models (Widely Used Proximity Probes and Monitoring Equipment)
| Model Number | Product Type | Sensing Distance | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|---|
| 330101-00-40-10-12-01 | Proximity Probe | 8 mm | 150 x 12.7 mm | 0.3 | Standard 3300 XL probe |
| 330103-00-40-10-12-01 | Proximity Probe | 12 mm | 150 x 12.7 mm | 0.32 | Extended sensing distance |
| 330141-00-40-10-12-01 | Proximity Probe | 20 mm | 150 x 12.7 mm | 0.38 | High sensing distance |
| 330200-00-00-00-00-01 | Vibration Transducer | N/A | 40 x 25 x 25 mm | 0.15 | Vibration measurement |
| 3500/05-00-00-00-00-00 | 3500 Series Monitor | N/A | 440 x 600 x 220 mm | 15 | Machinery protection system |
| 330106-00-40-10-12-01 | Proximity Probe | 8 mm | 150 x 8 mm | 0.28 | Smaller diameter probe |
