Product Overview

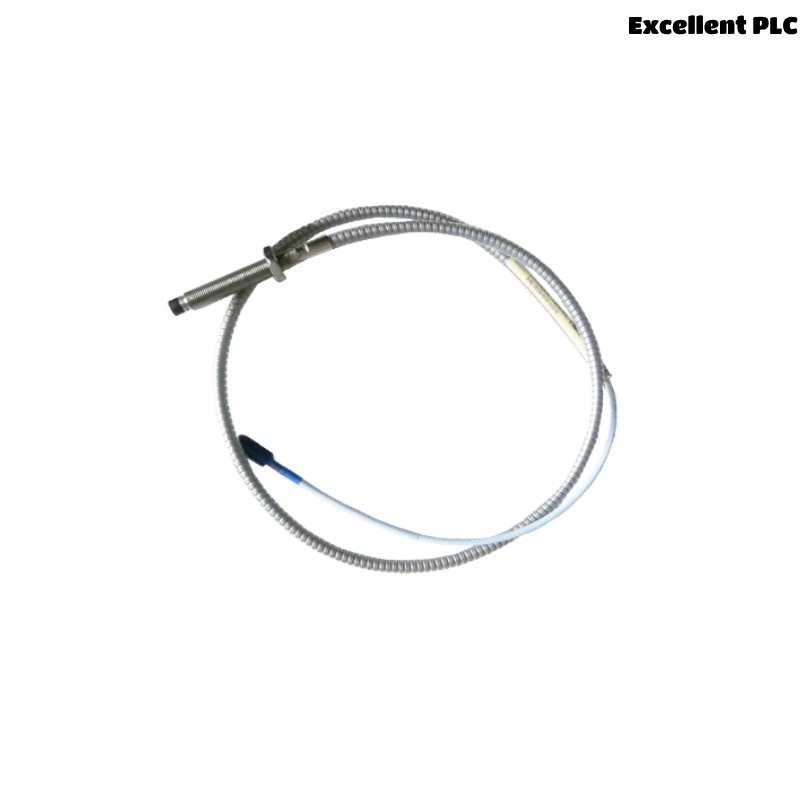

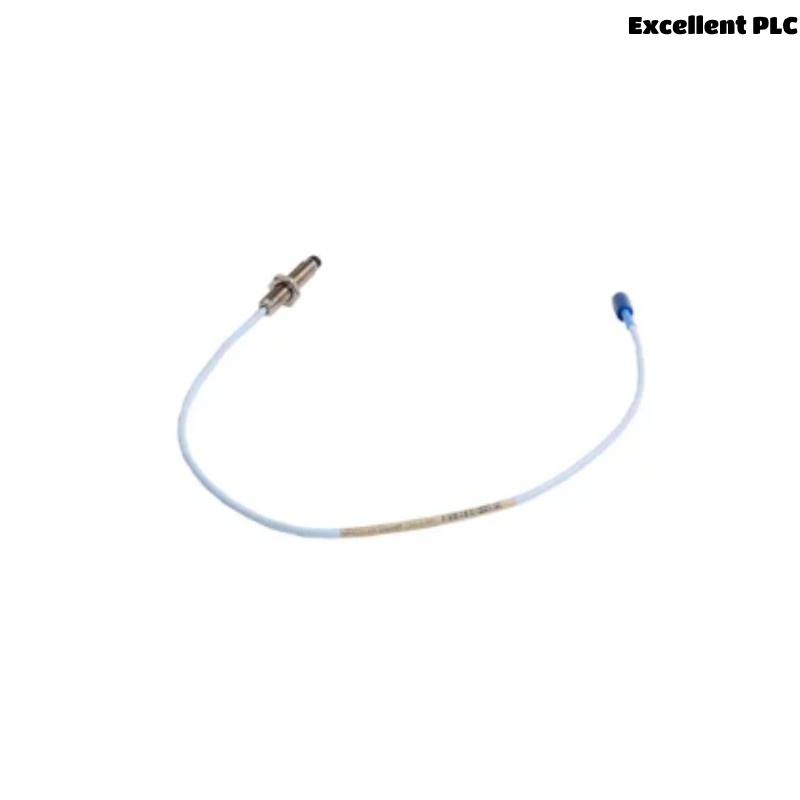

The Bently Nevada 330104-01-08-50-01-CN is a precision 3300 XL 8 mm Proximity Probe designed to monitor shaft position and vibration in industrial machinery. It operates using eddy current technology, which enables non-contact measurement, eliminating wear and ensuring long-term accuracy. This probe is designed for integration with Bently Nevada’s 3300 XL Proximitor Sensor and is compatible with their 3500 Series Monitoring Systems, which makes it a key component in predictive maintenance programs for rotating equipment.
The 330104-01-08-50-01-CN probe is engineered to meet the demands of the most challenging industrial environments, offering high reliability, accuracy, and durability. It is ideal for use in applications requiring continuous condition monitoring, from turbines and motors to compressors and pumps.
Key Features
-
8 mm Sensing Tip for high sensitivity and precision measurement of shaft displacement and vibration.
-
Eddy Current Technology provides non-contact, high-accuracy measurement with minimal wear and maintenance.
-
Stainless Steel Housing ensures robustness and long service life in harsh environments.
-
Wide Temperature Range supports operation from –40°C to +177°C (–40°F to +350°F).
-
CE, RoHS, and ATEX Certified for global industrial standards.
-
Laser-Welded Construction guarantees mechanical strength and protection from environmental factors.
-
Threaded Design for easy installation into standard mounting locations.
-
Miniature Coaxial Connector for reliable signal transmission.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330104-01-08-50-01-CN |
| Series | 3300 XL |
| Sensing Type | Eddy Current (Non-contact) |
| Tip Diameter | 8 mm |
| Unthreaded Length | 50 mm |
| Thread Type | 3/8-24 UNF |
| Total Probe Length | 120 mm |
| Cable Length | 8 feet (approx. 2.44 meters) |
| Connector Type | Miniature coaxial connector |
| Operating Temperature | –40°C to +177°C (–40°F to +350°F) |
| Vibration Limit | 50 g pk-pk, 10 to 2,000 Hz |
| Compliance | CE, RoHS, ATEX |
| Material | Stainless steel |
| Weight | 1.615 kg |
| Dimensions | Total Length: 5.0 meters |
Industry Applications
The 330104-01-08-50-01-CN proximity probe is widely used in industries that require continuous, real-time monitoring of rotating equipment. Common applications include:
-
Power Generation – Monitoring turbine shafts, generators, and compressors.
-
Oil & Gas – Integrated in critical machinery such as pumps and compressors in refineries and offshore facilities.
-
Petrochemical – Ensures the safety and efficiency of process equipment by monitoring rotating machinery.
-
Mining and Metals – Used on crushers, mills, and conveyors to monitor vibrations and position.
-
Aerospace – Precision measurement of high-speed rotating components.
-
Manufacturing – Used to monitor motors, conveyors, and other machinery in automated production lines.
Product Advantages
-
Non-Contact Measurement – The use of eddy current technology ensures there is no mechanical wear, reducing maintenance costs.
-
High Accuracy and Sensitivity – The 8 mm tip provides accurate readings of shaft position and vibration, crucial for predictive maintenance.
-
Durable and Robust Construction – The stainless steel housing and laser-welded design make it suitable for extreme environments.
-
Temperature Range – The probe can operate in temperatures from –40°C to +177°C, ensuring reliable performance in a variety of conditions.
-
Easy Installation – The threaded design allows for quick and straightforward integration into existing setups.
-
Global Compliance – The probe is CE, RoHS, and ATEX certified, making it suitable for international use in compliance with safety standards.
-
Integration with Bently Nevada Systems – Seamlessly integrates with the 3300 XL Proximitor Sensor and the 3500 Series Monitoring System for comprehensive machinery monitoring.
Frequently Asked Questions (FAQ)
-
Q: What is the primary use of the Bently Nevada 330104-01-08-50-01-CN probe?
A: It is used to monitor the position and vibration of rotating machinery to ensure the health of industrial equipment. -
Q: Can this probe be used in high-temperature environments?
A: Yes, it operates in temperatures ranging from –40°C to +177°C, making it suitable for demanding industrial environments. -
Q: How does the probe connect to the monitoring system?
A: The probe uses a miniature coaxial connector to transmit signals to the 3300 XL Proximitor Sensor and integrates with the 3500 Series Monitoring System. -
Q: What are the advantages of using this proximity probe over traditional contact-based probes?
A: This probe uses eddy current technology, which is non-contact, reducing mechanical wear and the need for frequent maintenance. -
Q: Is the probe compatible with all Bently Nevada monitoring systems?
A: Yes, it is compatible with 3300 XL Proximitor Sensors and the 3500 Series Monitoring System. -
Q: What is the maximum vibration limit of the probe?
A: The maximum vibration limit is 50 g pk-pk, suitable for monitoring high-vibration environments. -
Q: Can the probe be installed in confined spaces?
A: Yes, its compact design and threaded mounting system make it ideal for installation in confined or hard-to-reach spaces. -
Q: What is the weight of the 330104-01-08-50-01-CN proximity probe?
A: The probe weighs approximately 1.615 kg. -
Q: Does the probe need regular calibration?
A: The probe maintains its calibration over time due to its non-contact design and high stability, requiring minimal recalibration. -
Q: What industries typically use the 330104-01-08-50-01-CN probe?
A: This probe is widely used in industries such as power generation, oil and gas, petrochemical, mining, aerospace, and manufacturing.
