Product Introduction

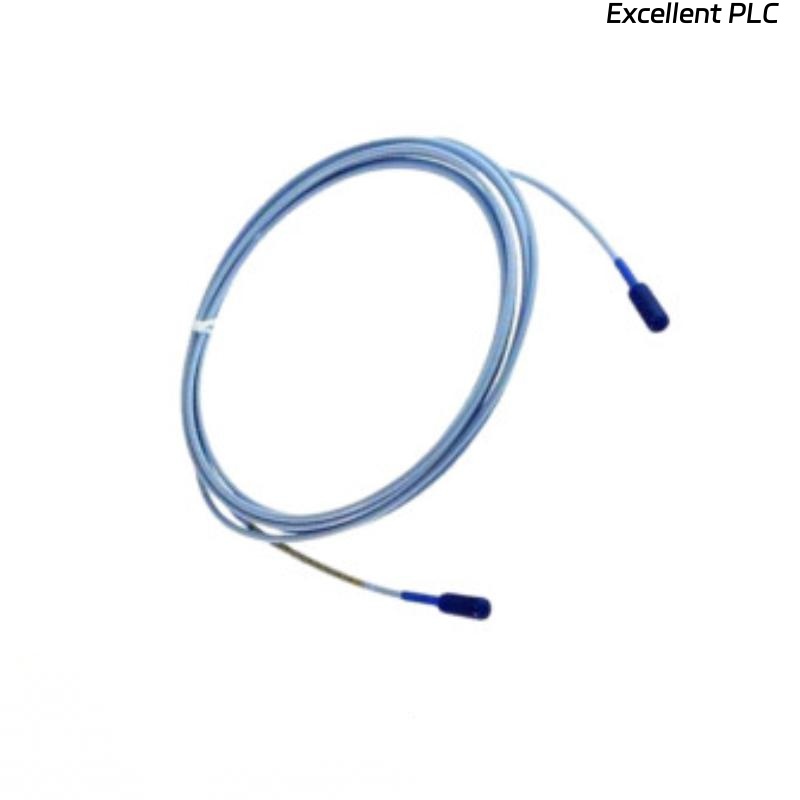

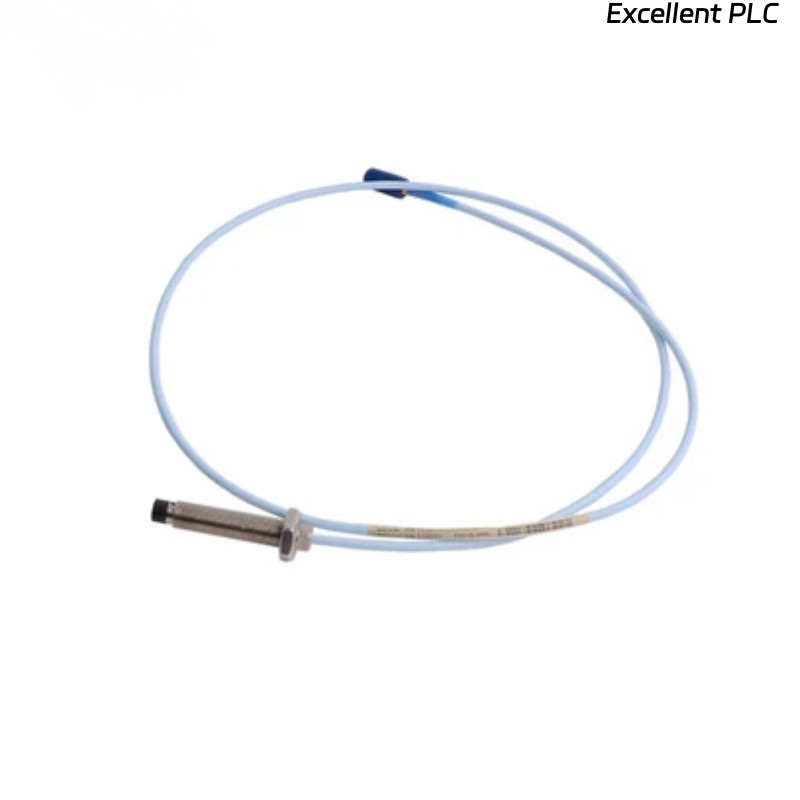

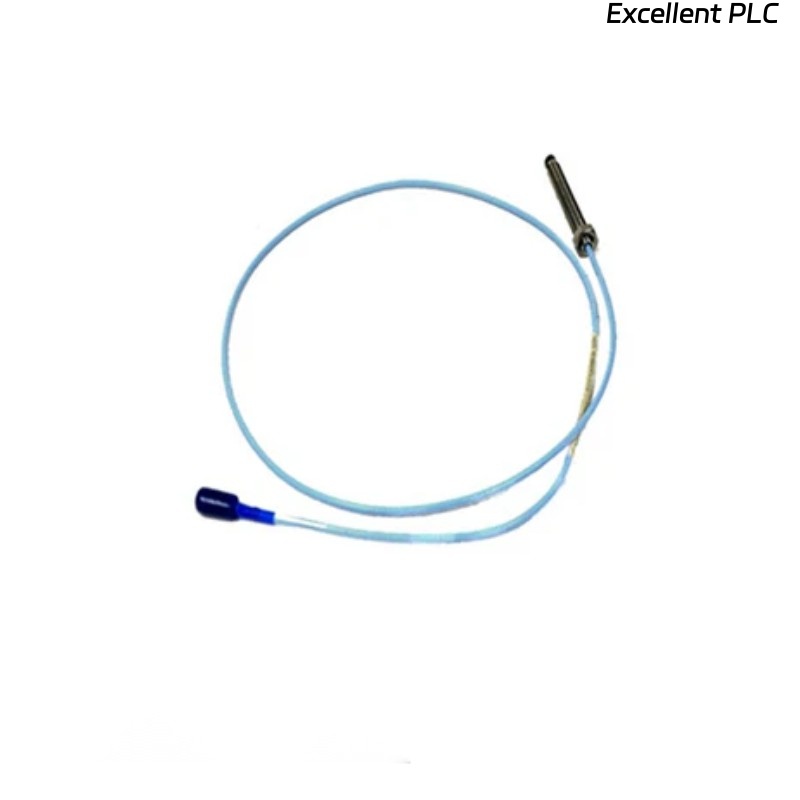

The Bently Nevada 330104-02-08-10-01-00 is a high-precision 3300 XL 8 mm Proximity Probe designed for reliable measurement of shaft vibration and position in critical rotating machinery. Known for its robust construction and industry-standard performance, this probe delivers accurate, repeatable, and high-resolution signals, making it an ideal choice for monitoring turbines, compressors, pumps, and other industrial machinery. The 8 mm probe tip ensures precise measurement while maintaining long-term stability under demanding operational conditions.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 330104-02-08-10-01-00 |
| Probe Type | 8 mm Proximity Probe |
| Measurement Range | ±0.127 mm (±5 mils) typical |
| Output Type | AC/DC Variable Inductance |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Operating Temperature Range | -40°C to 121°C (-40°F to 250°F) |
| Tip Material | Stainless Steel |
| Sensor Housing | Stainless Steel |
| Connector Type | Integral connector or customer-specified |
| Linearity | ≤ 1% of full scale |
| Frequency Response | 0–10 kHz typical |
| Supply Voltage | 24 VDC nominal |
Product Applications
-
Real-time vibration monitoring of turbines, compressors, generators, and pumps.
-
Shaft position and runout detection in high-speed rotating machinery.
-
Industrial and power plant condition monitoring systems.
-
Integration with Bently Nevada 3300 XL monitoring systems for machinery protection.
-
Detection of misalignment, imbalance, or mechanical looseness in machinery.
Product Advantages
-
High Accuracy: Provides precise displacement measurement with minimal signal drift.
-
Durable Design: Stainless steel construction ensures resistance to harsh environments and vibration.
-
Wide Operating Range: Suitable for extreme temperatures and industrial environments.
-
Compatibility: Fully compatible with Bently Nevada 3300 XL series monitoring systems.
-
Reliable Output: Stable signal output ensures accurate machinery protection and diagnostics.
-
Easy Installation: Standardized connector and probe design simplify setup and replacement.
FAQ
-
Q1: What is the typical output signal of this proximity probe?
A: The probe generates an AC voltage signal proportional to the displacement of the target. -
Q2: Can this probe be used in high-speed turbine applications?
A: Yes, the probe is designed for high-frequency response suitable for turbine and generator monitoring. -
Q3: What is the linearity tolerance of the probe?
A: The probe maintains linearity within ±1% of the full-scale measurement. -
Q4: How should the probe be grounded for accurate measurements?
A: The probe housing should be electrically connected to machine ground to minimize noise. -
Q5: What is the recommended cable length for standard installations?
A: The probe comes with a total cable length of 1 m; longer lengths may require signal conditioning. -
Q6: Can this probe measure both AC and DC signals?
A: The probe is primarily AC-coupled but works with variable inductance systems compatible with DC signal conditioning. -
Q7: What is the operating temperature range for this probe?
A: The probe operates effectively between -40°C and 121°C (-40°F to 250°F). -
Q8: Is this probe compatible with non-Bently monitoring systems?
A: It can be used with other systems that accept AC variable inductance probes, but optimal performance is with 3300 XL systems. -
Q9: What is the frequency response of this probe?
A: The typical frequency response is 0–10 kHz, suitable for high-speed machinery monitoring. -
Q10: How does the probe handle vibration or shock in industrial environments?
A: Its robust stainless steel construction and precision assembly ensure minimal measurement deviation under vibration or mechanical shock.
