Product Introduction

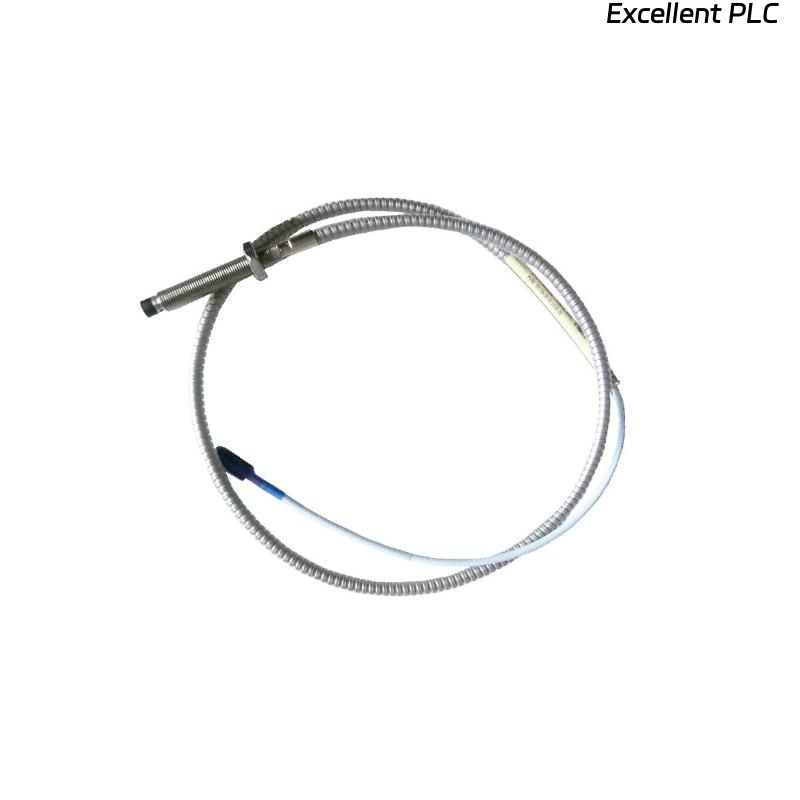

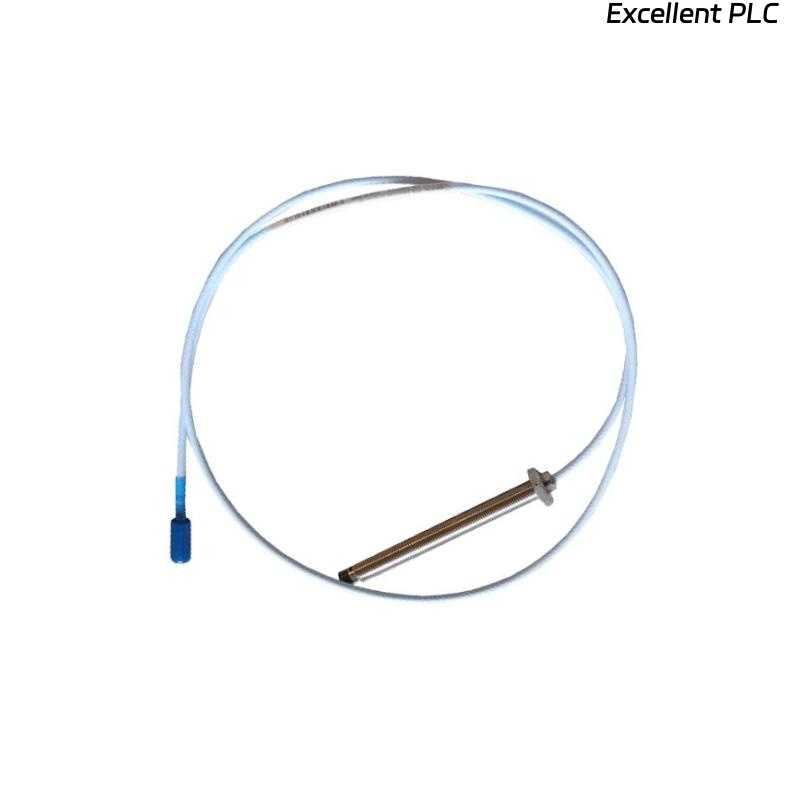

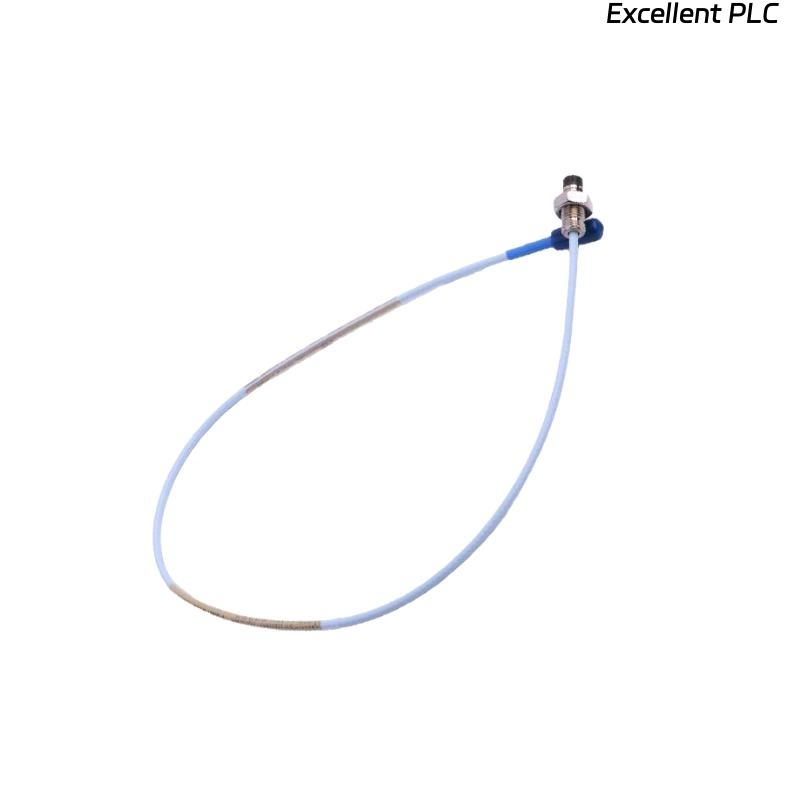

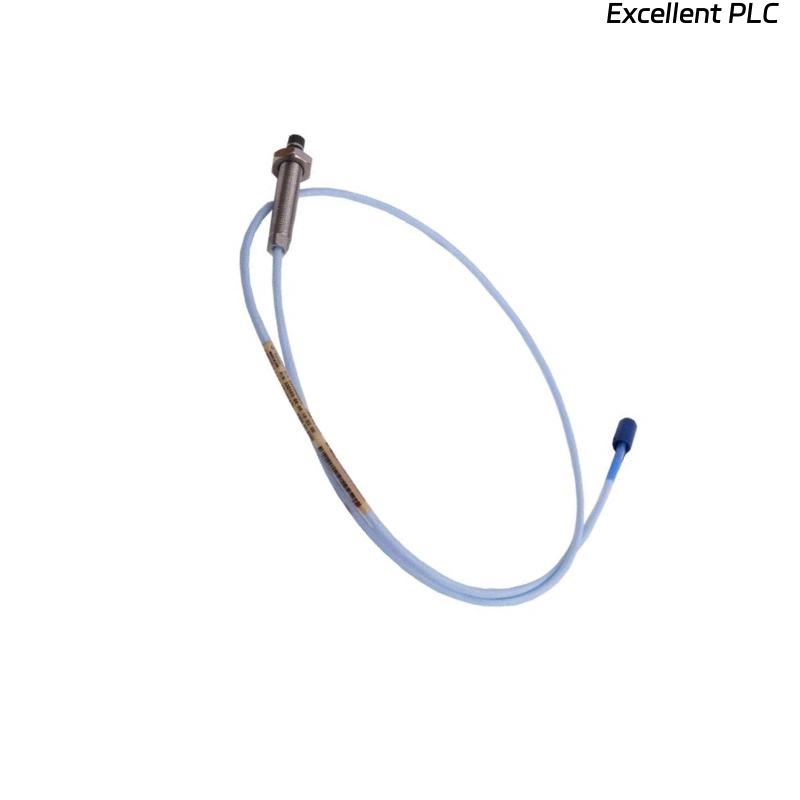

The Bently Nevada 330104-02-10-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current sensor designed for industrial machinery monitoring. This probe offers reliable measurement of shaft vibration and displacement, supporting predictive maintenance and enhancing machinery reliability. Its robust construction ensures accurate performance in harsh industrial environments, making it suitable for critical rotating equipment such as turbines, compressors, and generators.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 330104-02-10-10-02-00 |
| Sensor Type | Eddy-Current Proximity Probe |
| Sensing Range | 8 mm |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Operating Temperature | -40°C to 120°C |
| Output | AC Differential Signal |
| Housing Material | Stainless Steel |
| Cable Type | Shielded, flexible |
| Connector Type | 2-pin or compatible connector |
| Frequency Response | DC to 10 kHz |
| Maximum Vibration Tolerance | 50 g |
| Electrical Insulation | >100 MΩ |
| Shock Resistance | 100 g, 11 ms |
Product Applications
-
Monitoring shaft vibration in turbines, generators, and motors.
-
Detecting misalignment, unbalance, or bearing wear in high-speed rotating equipment.
-
Industrial predictive maintenance and condition monitoring programs.
-
Integration with Bently Nevada 3300 XL monitoring systems for real-time data acquisition.
-
Critical machinery in oil & gas, power generation, and petrochemical industries.
Product Advantages
-
High Accuracy: Provides precise displacement and vibration measurements for critical machinery.
-
Robust Design: Stainless steel housing ensures durability in high-vibration, high-temperature environments.
-
Wide Frequency Range: Captures both low- and high-frequency signals for comprehensive monitoring.
-
Easy Integration: Compatible with the 3300 XL monitoring system for streamlined installation.
-
Reduced Downtime: Enables predictive maintenance, minimizing unexpected equipment failures.
-
Flexible Mounting: Multiple cable lengths and mounting options for different industrial setups.
FAQ
-
Q1: What type of signal does this probe output?
A1: The probe provides an AC differential signal compatible with Bently Nevada 3300 XL systems. -
Q2: Can this probe operate in high-temperature environments?
A2: Yes, it can operate reliably in temperatures ranging from -40°C to 120°C. -
Q3: Is this probe compatible with other Bently Nevada monitoring systems?
A3: It is specifically designed for the 3300 XL system but can be adapted for other systems with proper signal conditioning. -
Q4: What is the maximum vibration the probe can tolerate?
A4: The probe can withstand vibrations up to 50 g. -
Q5: How is electrical insulation ensured?
A5: The probe provides electrical insulation greater than 100 MΩ for safe operation. -
Q6: Can this probe detect high-frequency vibration signals?
A6: Yes, the frequency response covers DC to 10 kHz. -
Q7: What materials are used in the probe housing?
A7: The housing is made of stainless steel, offering resistance to corrosion and mechanical stress. -
Q8: Is the cable shielded to prevent interference?
A8: Yes, the cable is shielded and flexible to minimize electromagnetic interference. -
Q9: Does the probe require calibration before use?
A9: It is factory-calibrated, but periodic calibration is recommended to maintain measurement accuracy. -
Q10: Can the probe be used in oil-lubricated machinery environments?
A10: Yes, it is compatible with oil, water, and vapor environments typical in industrial machinery.
Recommended 6 Same-Series or Related Models
| Model Number | Sensing Range | Total Length | Weight | Notes |
|---|---|---|---|---|
| 330104-02-10-05-02-00 | 5 mm | 1 m | 0.318 kg | 3300 XL compatible |
| 330104-02-10-15-02-00 | 15 mm | 1 m | 0.330 kg | High displacement range |
| 330104-02-10-08-01-00 | 8 mm | 0.5 m | 0.210 kg | Short cable version |
| 330104-02-10-12-02-00 | 12 mm | 1 m | 0.340 kg | Medium displacement range |
| 330104-02-10-10-01-00 | 10 mm | 0.75 m | 0.310 kg | Compact installation version |
| 330104-02-10-08-03-00 | 8 mm | 2 m | 0.450 kg | Extended cable version |
Recommended 6 Popular Models from Bently Nevada
| Model Number | Sensing Range | Total Length | Weight | Notes |
|---|---|---|---|---|
| 330104-00-10-08-02-00 | 8 mm | 1 m | 0.320 kg | Standard 3300 XL probe |
| 330104-01-10-10-02-00 | 10 mm | 1 m | 0.325 kg | High-accuracy version |
| 330104-03-10-12-02-00 | 12 mm | 1 m | 0.335 kg | Wide range sensing |
| 330104-02-10-08-02-01 | 8 mm | 1 m | 0.323 kg | Enhanced signal stability |
| 330104-02-10-05-02-01 | 5 mm | 1 m | 0.318 kg | Compact and precise |
| 330104-01-10-15-02-00 | 15 mm | 1 m | 0.340 kg | High displacement measurement |
