Product Introduction

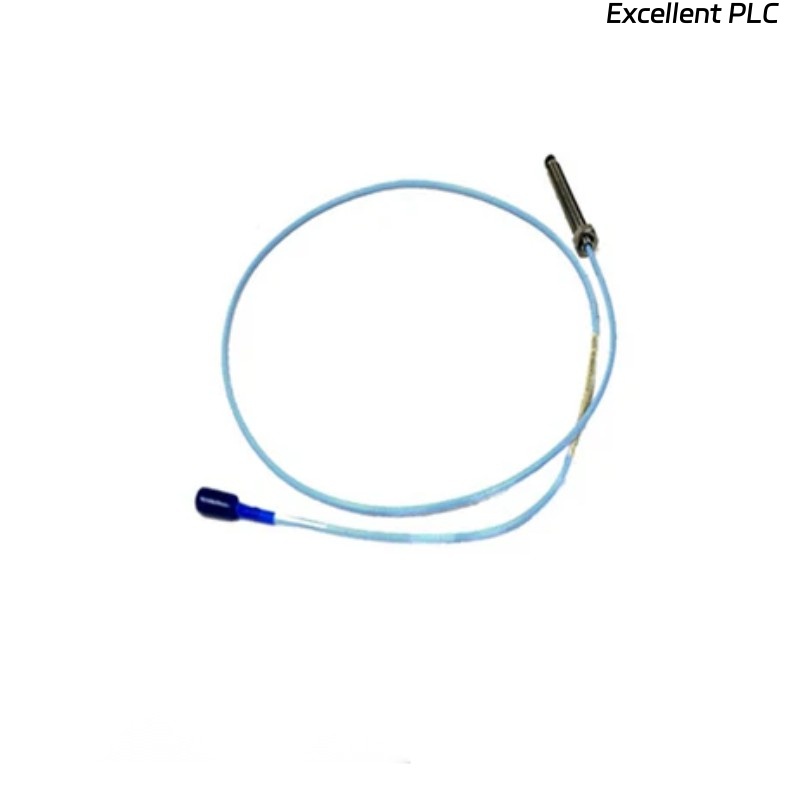

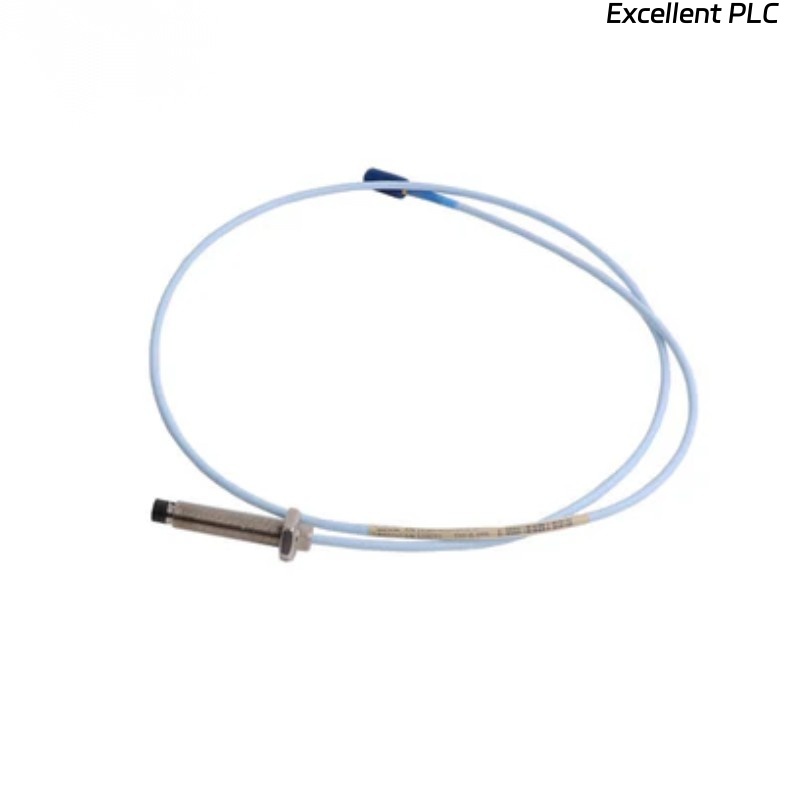

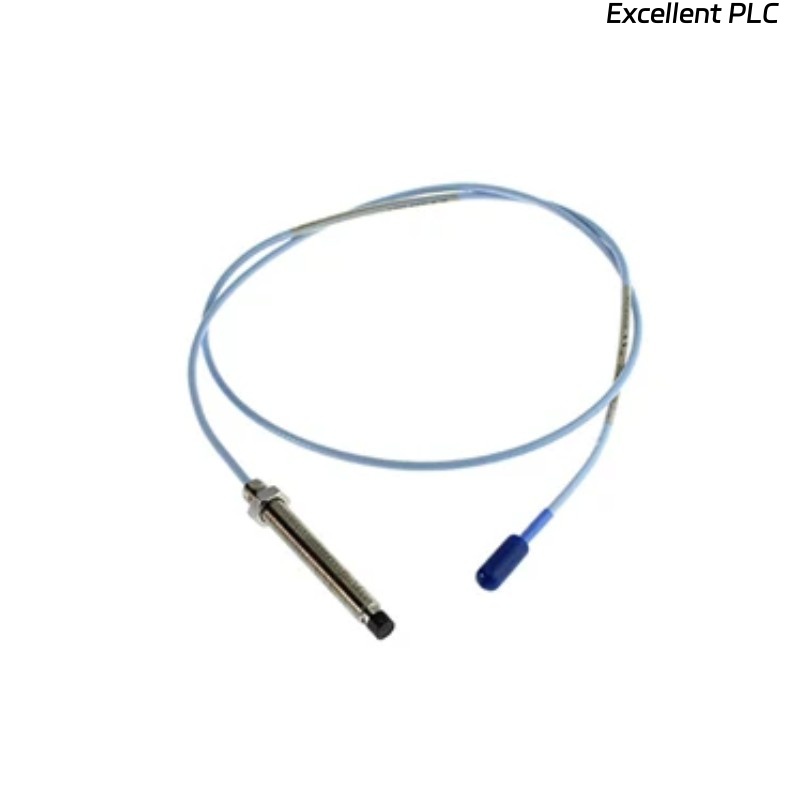

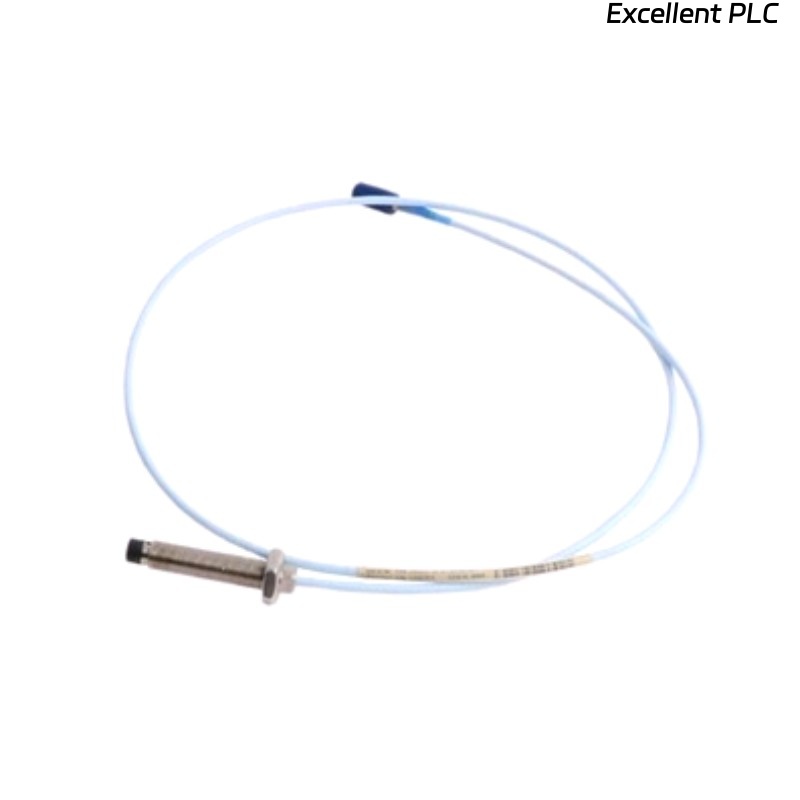

The Bently Nevada 330104-02-13-10-02-00 3300 XL 8 mm Proximity Probe is a precision measurement device designed to monitor the position, vibration, and alignment of rotating machinery. It is part of the trusted 3300 XL series, known for high reliability and durability in critical industrial applications. This probe is widely used in power generation, petrochemical, and heavy industrial facilities to ensure machinery operates efficiently and safely.
The probe works by detecting variations in the distance between the probe tip and the rotating target, providing real-time feedback to vibration monitoring systems for predictive maintenance and protection against machinery failure.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330104-02-13-10-02-00 |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Probe Type | Proximity Probe |
| Measurement Range | Typically 0–0.127 mm (0–5 mils) |
| Output Type | AC differential |
| Operating Temperature | -40°C to 120°C |
| Housing Material | Stainless Steel |
| Electrical Connection | Coaxial cable with standard connector |
| Weight | 0.323 kg |
| Total Length | 1 m |
Product Applications
-
Vibration monitoring of turbines, compressors, pumps, and generators
-
Alignment verification of rotating machinery
-
Real-time condition monitoring for predictive maintenance
-
Integration with 3300 XL monitoring systems for protection and diagnostics
-
Industrial machinery diagnostics in petrochemical, power generation, and heavy manufacturing facilities
Product Advantages
-
High Accuracy: Provides precise position and vibration measurements for critical machinery.
-
Durability: Designed for extreme industrial environments with high temperature and vibration tolerance.
-
Compatibility: Seamlessly integrates with 3300 XL monitoring systems and controllers.
-
Maintenance Optimization: Enables early detection of potential issues, reducing unplanned downtime.
-
Easy Installation: Standardized connectors and mounting options simplify deployment.
-
Reliable Signal Transmission: Coaxial cable minimizes electrical noise interference for accurate data.
FAQ
-
Q1: What type of output does this probe provide?
A1: It provides an AC differential output compatible with 3300 XL monitoring systems. -
Q2: Can the probe be used in high-temperature environments?
A2: Yes, it operates effectively in temperatures ranging from -40°C to 120°C. -
Q3: What is the standard cable length?
A3: The standard cable length is 10 ft (3 m), with options for custom lengths. -
Q4: Is the probe compatible with non-3300 XL systems?
A4: While designed for 3300 XL systems, it can function with other systems if compatible signal conditioning is provided. -
Q5: How is the probe mounted to machinery?
A5: The probe is typically mounted using a threaded stud or bracket for stable positioning near the rotating target. -
Q6: What maintenance is required for the probe?
A6: Periodic inspection for cable integrity and probe tip cleanliness is recommended; no regular calibration is typically needed. -
Q7: Can the probe detect misalignment in rotating equipment?
A7: Yes, it can detect shaft displacement and provide early indications of misalignment issues. -
Q8: What is the probe tip material?
A8: The tip is made of stainless steel to resist wear and corrosion. -
Q9: How does the probe handle electrical interference?
A9: The coaxial cable design reduces electrical noise, ensuring accurate signal transmission. -
Q10: Can multiple probes be connected to a single 3300 XL module?
A10: Yes, the system can accommodate multiple probes for multi-point vibration monitoring.
