Product Overview

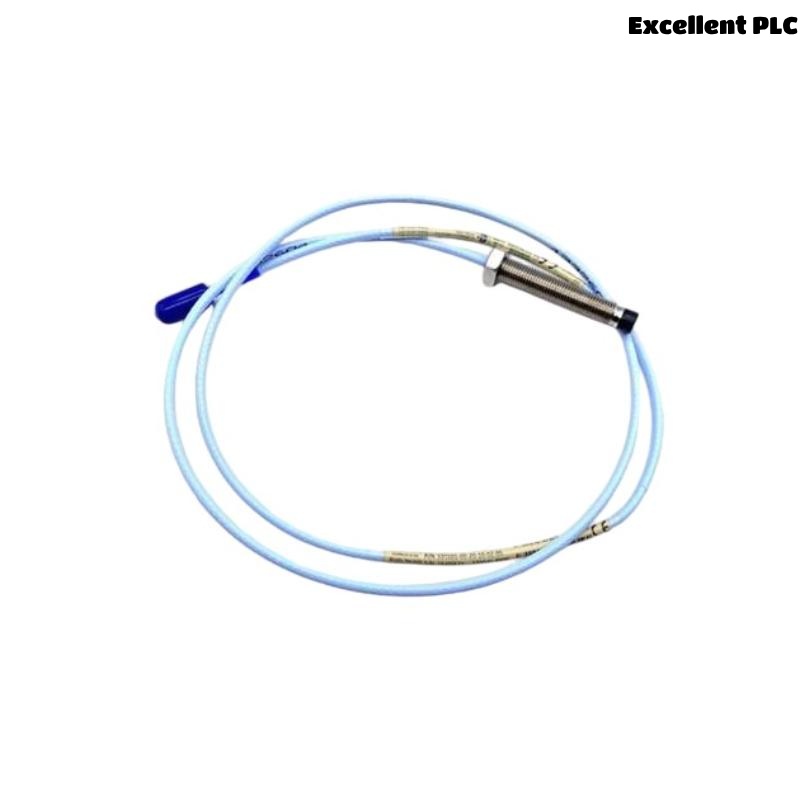

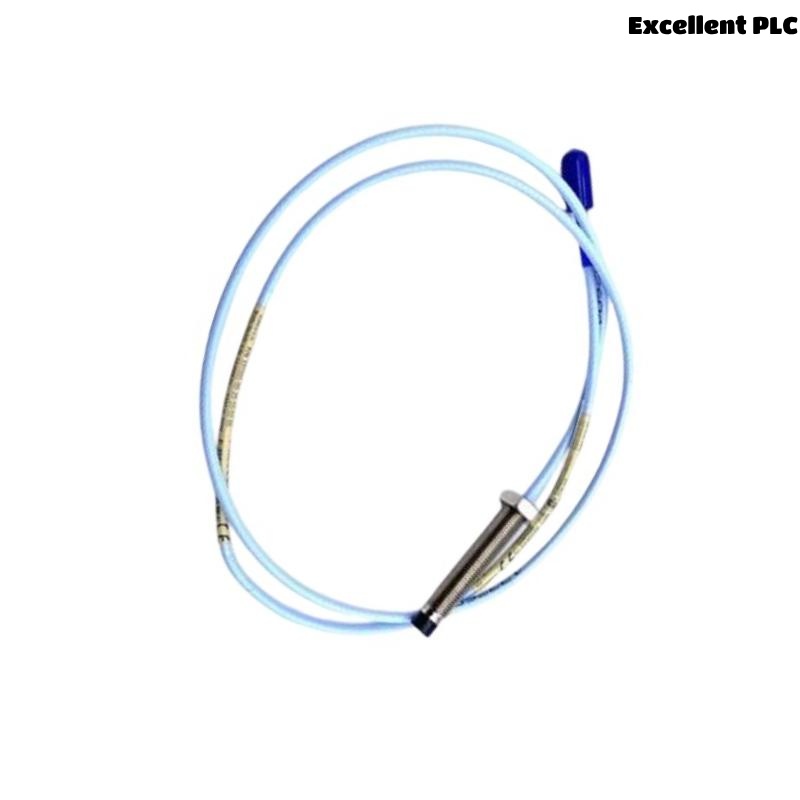

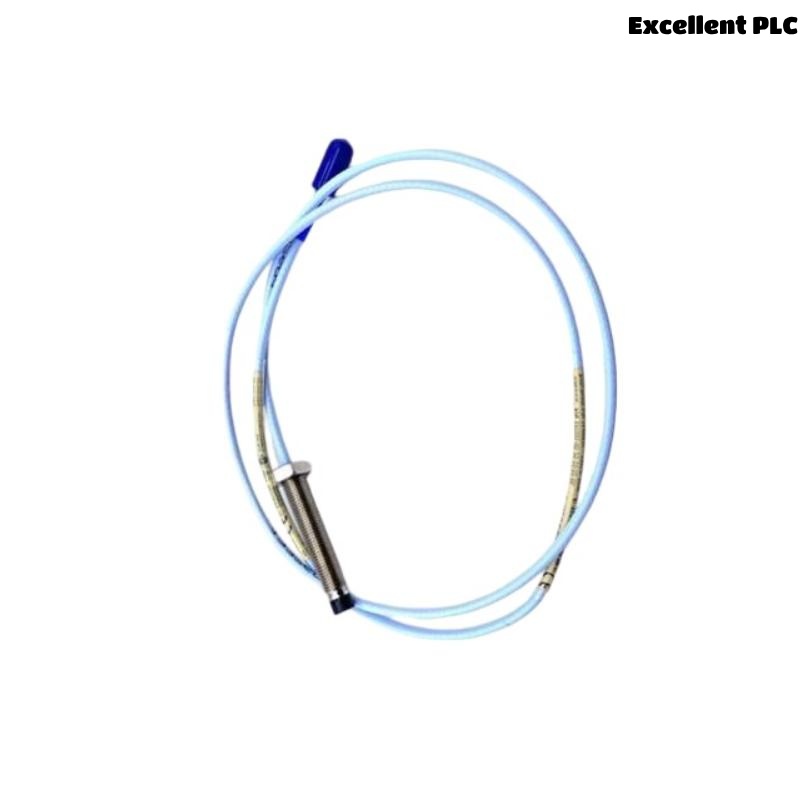

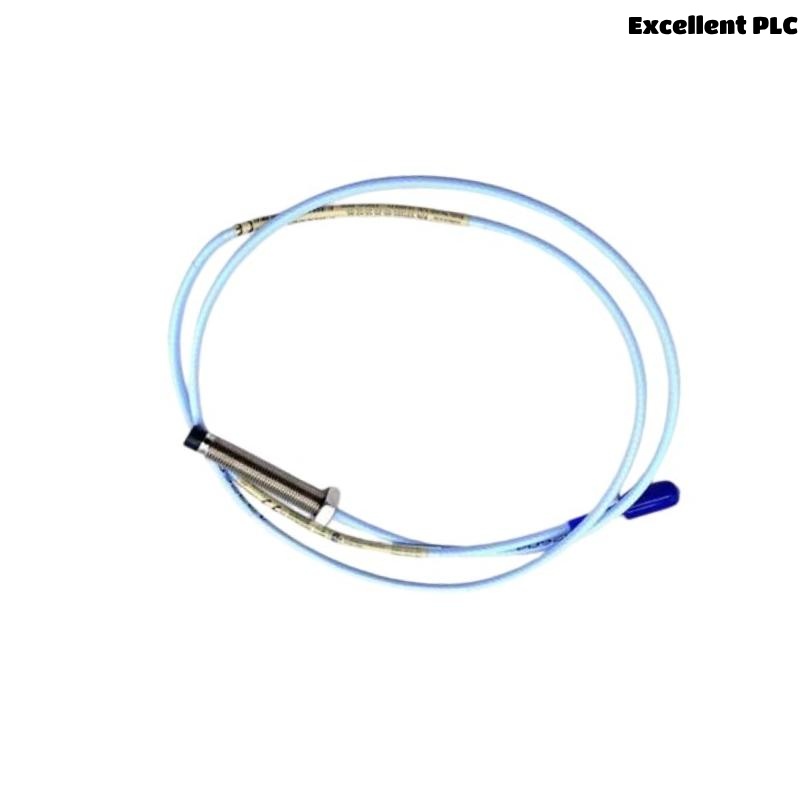

The Bently Nevada 330104-02-18-10-01-00 is a high-precision non-contact proximity probe from the renowned 3300 XL 8 mm series. Designed for robust and accurate monitoring of shaft vibration and position, this probe offers long-term reliability and consistent performance in harsh industrial conditions.
Featuring an 8 mm tip and built-in ruggedization, this probe is fully compatible with Bently Nevada’s 3300 XL extension cables and Proximitor sensors. It delivers precise measurements across a wide frequency and temperature range, making it ideal for API 670-compliant protection and condition monitoring systems used in critical rotating machinery.
Key Features
-
Non-contact eddy current sensing technology for precise measurements
-
8 mm diameter tip ideal for a wide range of industrial applications
-
Factory-matched probe and cable ensure system accuracy
-
Stainless steel construction for corrosion resistance
-
High temperature and vibration tolerance for critical machinery environments
-
Wide compatibility with 3300 XL monitoring systems
-
CE and API 670 compliance
-
No field calibration required
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330104-02-18-10-01-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Sensing Technology | Eddy current (non-contact) |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Tip Material | PPS (Polyphenylene sulfide) |
| Body Material | AISI 304 Stainless Steel |
| Thread Type | 3/8-24 UNF-2A |
| Target Material | AISI 4140 Steel |
| Sensitivity | 7.87 mV/μm (200 mV/mil) ±5% |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 – 10 kHz |
| Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Vibration Limit (Probe) | 50 g pk-pk @ 5–2000 Hz |
| Weight | 0.323 kg |
| Dimensions | Total Length : 1.0 meter |
| Connector Type | Miniature coaxial |
| Cable Type | Armored |
| Compliance | API 670, CE, RoHS |
Industry Applications
The 330104-02-18-10-01-00 proximity probe is widely used in industries requiring precision vibration and position monitoring, including:
-
Steam and gas turbines
-
Compressors
-
Centrifugal pumps
-
Electric motors and generators
-
Gearboxes and rotating shafts
-
Oil & gas, petrochemical, and power generation facilities
-
Condition monitoring and predictive maintenance systems
Product Advantages
-
High reliability for long-term critical equipment monitoring
-
Fast response time and wide frequency range
-
Durable stainless-steel housing for industrial-grade protection
-
Interchangeable with 3300 XL cables and Proximitor sensors
-
Wide operating temperature range suitable for various environments
-
Excellent linearity and sensitivity for precise readings
-
Certified to meet global standards (API 670, CE)
-
Minimal installation complexity with factory calibration
Frequently Asked Questions (FAQ)
-
What is the probe tip size?
The tip diameter is 8 mm (0.315 in), suitable for a variety of shaft sizes. -
Is this probe suitable for API 670 applications?
Yes, it is fully compliant with API 670 specifications. -
Does this probe support armored cabling?
Yes, this model comes with an armored cable for added mechanical protection. -
What temperature extremes can this probe withstand?
It operates between -35°C and +177°C (-31°F to +351°F). -
Is the probe factory calibrated?
Yes, it comes factory-matched with its cable and sensor—no field calibration needed. -
What is the linear measuring range?
It provides a linear range of 2 mm (80 mils). -
What kind of material is the target calibrated for?
It is calibrated for AISI 4140 steel as the standard target material. -
What is the maximum vibration it can handle?
It can withstand up to 50 g peak-to-peak in the 5–2000 Hz frequency range. -
What kind of connector is used?
It uses a miniature coaxial connector for signal integrity. -
Can I use this with any 3300 XL Proximitor Sensor?
Yes, it is compatible with all standard 3300 XL extension cables and Proximitor sensors.
