Product Introduction

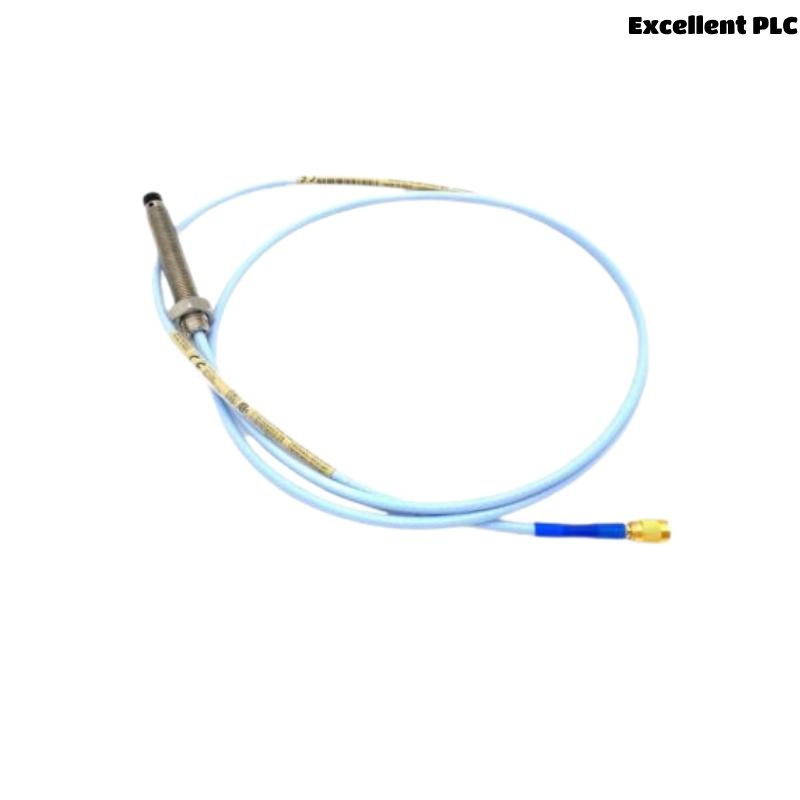

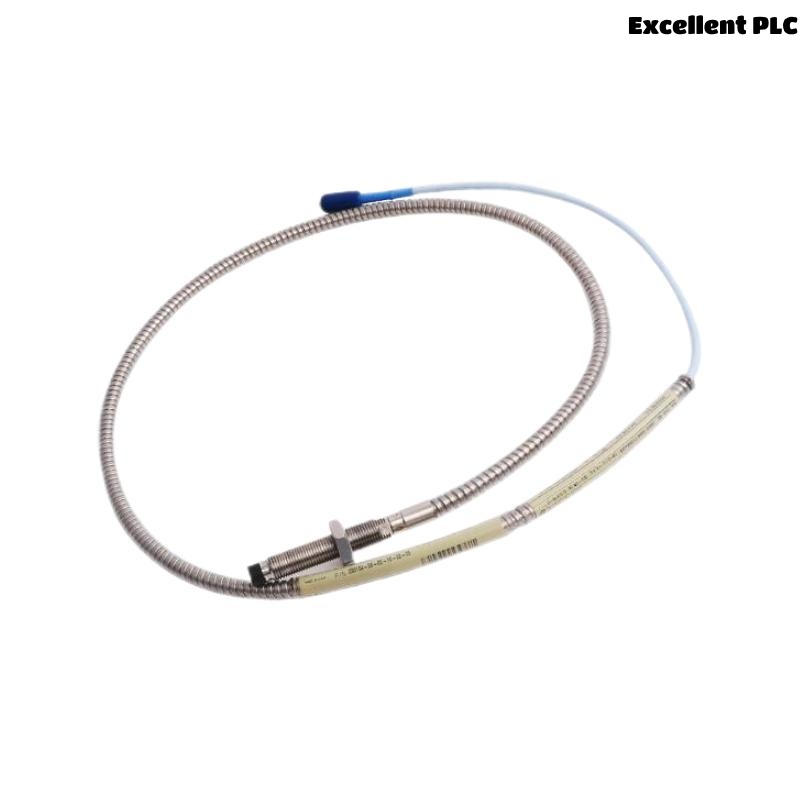

The Bently Nevada 330104-03-07-05-02-05 3300 XL 8 mm Proximity Probe is a highly accurate, industrial-grade sensor used for measuring shaft displacement and vibration in rotating machinery. As part of the 3300 XL Series, it is engineered for high reliability and precision, designed to operate under extreme conditions in various industrial applications. The probe uses eddy-current technology to provide precise, non-contact measurements, ensuring minimal wear and maximum service life.
This proximity probe is typically used in industries that rely on rotating machinery, such as power generation, oil and gas, mining, and manufacturing. The 3300 XL series probes are renowned for their ability to detect early signs of equipment failure, such as misalignment, bearing wear, and imbalance, before they result in costly breakdowns or downtime. With its 8 mm sensing range, this model is ideal for precise measurements on equipment requiring moderate displacement monitoring.
The 330104-03-07-05-02-05 proximity probe is easy to install and maintain, reducing operational interruptions while providing consistent and accurate data for condition monitoring systems. It also offers robust protection against harsh environmental factors like dust, moisture, and chemicals, making it suitable for a wide range of applications.
Product Parameters
The following table summarizes the key parameters of the Bently Nevada 330104-03-07-05-02-05 3300 XL 8 mm Proximity Probe:
| Parameter | Value |
|---|---|
| Model | 330104-03-07-05-02-05 |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Sensing Range | ±8 mm |
| Probe Type | Eddy-current proximity probe |
| Temperature Range | -40°C to 120°C |
| Probe Diameter | 8 mm |
| Mounting Type | Fixed mount |
| Connector Type | 4-pin |
| Pressure Resistance | Up to 10 MPa |
| Vibration Resistance | High (suitable for harsh environments) |
| Operating Environment | Dust, moisture, and chemical resistant |
| Installation | Quick and easy, no calibration needed |
| Protection Class | IP65 (dust and water resistant) |
Product Applications
The Bently Nevada 330104-03-07-05-02-05 3300 XL 8 mm Proximity Probe is versatile and well-suited for numerous industrial applications. It is primarily used to monitor the health of rotating machinery by measuring shaft displacement and vibration. Below are the primary applications for this probe:
-
Power Generation: The probe plays a vital role in power plants by monitoring critical machinery such as turbines, generators, and compressors. It helps detect early signs of mechanical issues that can lead to costly failures.
-
Oil and Gas: In the oil and gas industry, the 3300 XL 8 mm Proximity Probe is used to monitor rotating equipment like pumps, compressors, and turbines, ensuring smooth operation in harsh and high-risk environments.
-
Mining: Mining operations often use the probe to monitor large machinery such as crushers and mills, where it is crucial to detect imbalance or wear that could lead to catastrophic failure.
-
Manufacturing: The 3300 XL is used in manufacturing plants to monitor motors, conveyors, and other rotating machinery. Its precision helps in minimizing downtime and optimizing machine performance.
-
Chemical and Petrochemical Industries: Given its resistance to harsh chemicals and extreme conditions, the probe is widely used in chemical processing plants to monitor critical equipment.
-
HVAC Systems: In HVAC systems, this probe is used to monitor compressors, fans, and pumps, ensuring operational efficiency and helping avoid unexpected breakdowns.
By continuously measuring vibration and displacement, the 3300 XL Proximity Probe provides early fault detection, which allows for proactive maintenance and extends the lifespan of machinery.
Product Advantages
The Bently Nevada 330104-03-07-05-02-05 3300 XL 8 mm Proximity Probe offers several advantages that make it an excellent choice for industries relying on rotating machinery. Here are the key benefits:
-
Non-Contact Measurement: Using eddy-current technology, the probe ensures precise and reliable displacement measurement without physical contact, reducing wear on the sensor and ensuring longer operational life.
-
High Sensitivity: With an 8 mm sensing range, the probe is sensitive enough to detect even small changes in displacement, which helps in early detection of issues such as misalignment or imbalance.
-
Wide Temperature Range: The 3300 XL Proximity Probe operates effectively in temperatures ranging from -40°C to 120°C, making it suitable for a wide range of industrial environments.
-
Durable and Reliable: The probe is designed to withstand harsh operating conditions, including high vibration, moisture, dust, and chemical exposure, ensuring consistent performance in industrial settings.
-
Easy Installation and Maintenance: The probe can be easily installed without requiring complex calibration, which minimizes downtime during setup and reduces operational interruptions.
-
Long-Term Accuracy: With its high precision and non-contact nature, the probe delivers reliable measurements over long periods, which helps in reducing costly unplanned downtime.
-
Preventive Maintenance: Early detection of mechanical issues allows for proactive maintenance, reducing the risk of catastrophic failures and avoiding expensive repairs or replacements.
-
Corrosion and Dust Resistance: The probe is built to withstand the challenges of dusty, humid, or chemically aggressive environments, ensuring it operates reliably even in the toughest conditions.
-
Compact Design: The compact design of the 3300 XL makes it suitable for a wide variety of machinery, from large industrial machines to smaller rotating systems.
-
Cost-Effective: By identifying problems early and preventing major failures, the probe helps save money on repairs and downtime, offering a strong return on investment.
Frequently Asked Questions (FAQs)
-
What is the function of the Bently Nevada 330104-03-07-05-02-05 3300 XL 8 mm Proximity Probe?
The probe is used to measure shaft displacement and vibration in rotating machinery, helping to detect early signs of mechanical issues such as misalignment and imbalance. -
How does the 3300 XL Proximity Probe work?
The probe uses eddy-current technology to measure displacement without physical contact, ensuring accurate and reliable readings without wear on the sensor. -
What is the sensing range of this proximity probe?
The 3300 XL 8 mm Proximity Probe has a sensing range of ±8 mm, which is suitable for many industrial applications. -
What is the temperature range of the 3300 XL probe?
The probe operates in temperatures from -40°C to 120°C, making it ideal for a wide range of industrial environments. -
How easy is it to install the 3300 XL Proximity Probe?
The probe is designed for easy installation, requiring no complex calibration, which reduces setup time and minimizes operational interruptions. -
What materials is the 3300 XL Proximity Probe resistant to?
The probe is resistant to dust, moisture, and chemicals, making it highly durable and suitable for harsh environments. -
What is the weight of the 3300 XL Proximity Probe?
The probe weighs 0.162 kg, which makes it lightweight and easy to handle during installation. -
What are the benefits of using non-contact measurement technology?
Non-contact measurement helps reduce wear and tear on the sensor, leading to longer service life and more consistent performance. -
Can the 3300 XL 8 mm Proximity Probe be used in high-vibration environments?
Yes, the probe is designed to withstand high vibration levels, making it suitable for industrial environments where equipment is subject to constant movement and stress. -
In which industries is the 3300 XL 8 mm Proximity Probe commonly used?
It is commonly used in industries such as power generation, oil and gas, mining, manufacturing, chemical processing, and HVAC systems.
