Product Introduction

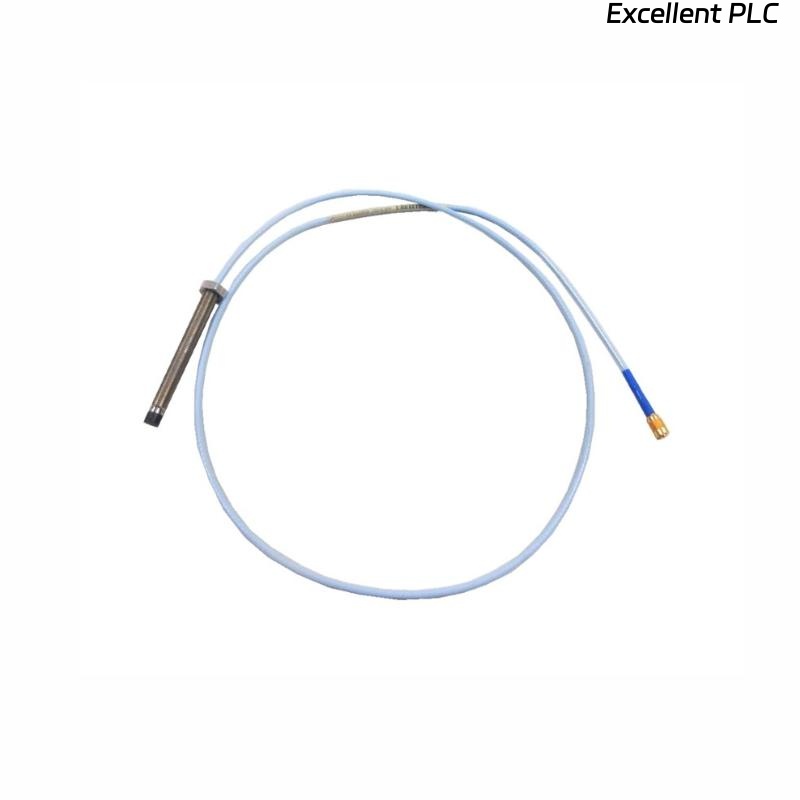

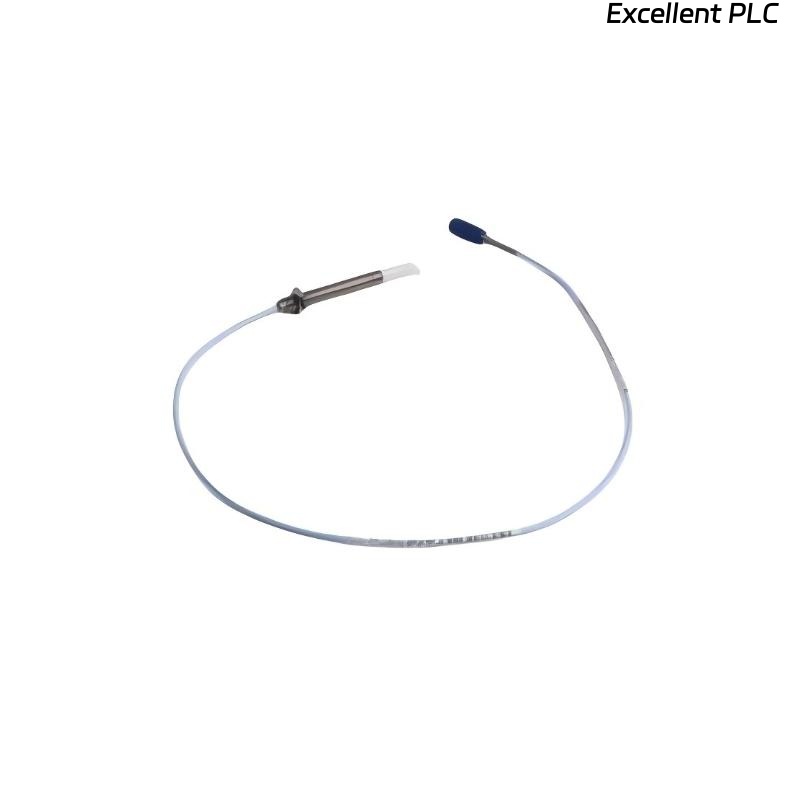

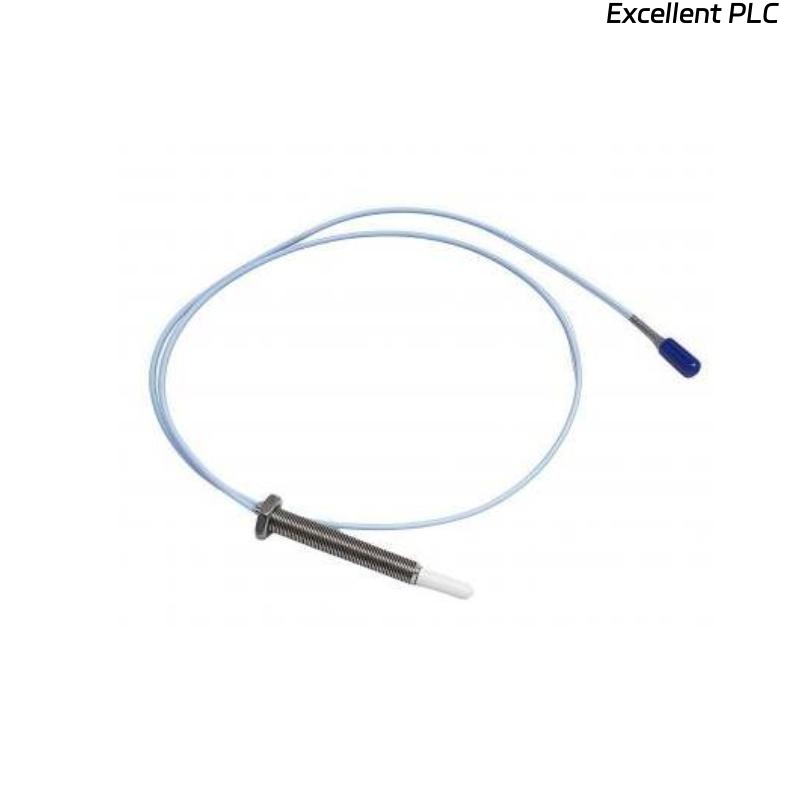

The Bently Nevada 330104-03-12-10-02-00 3300 XL 8mm Proximity Probe, Metric is a high-performance, precision device designed for reliable vibration and position measurement in industrial applications. As part of Bently Nevada’s 3300 XL Series, this probe offers enhanced accuracy, stability, and durability in harsh operating conditions. It is widely used for monitoring the health and performance of rotating equipment such as turbines, compressors, motors, and pumps, where precise proximity measurements are critical.
This proximity probe utilizes a high-quality inductive technology that provides reliable, real-time data on the position of a target object. Its rugged design, coupled with its exceptional sensitivity, makes it ideal for continuous monitoring and early detection of mechanical issues such as misalignment, imbalance, and bearing wear. The 3300 XL series is specifically engineered for industries that demand high accuracy and dependability, such as power generation, oil and gas, and manufacturing.
Product Parameters
| Parameter | Specification |
|---|---|
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Diameter | 8 mm |
| Measurement Range | 0 to 25 mm |
| Temperature Range | -40°C to +120°C |
| Output Signal | Linear, 4-20mA |
| Mounting Type | Threaded |
| Mounting Hole Diameter | 8 mm |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 (Ingress Protection) |
| Resolution | 0.001 mm |
Product Applications
The 3300 XL 8mm Proximity Probe is primarily used in applications that require precise measurement of machine components’ proximity. Key applications include:
-
Vibration Monitoring: Used to measure vibrations in rotating machinery such as turbines, motors, and pumps, helping to detect potential issues like imbalance, misalignment, and bearing wear.
-
Rotor and Shaft Position Monitoring: The proximity probe measures the position of rotating components, such as shafts or rotors, ensuring that they operate within acceptable parameters and preventing damage due to excessive displacement.
-
Predictive Maintenance: By providing continuous, real-time measurements of machinery movement, the probe allows for early identification of issues, which helps in implementing predictive maintenance strategies and reducing unplanned downtime.
-
Turbine Monitoring: It is commonly employed to monitor turbines, providing accurate readings of rotor displacement to avoid over-speed or other issues that may cause mechanical failure.
-
Compressor Monitoring: In compressors, the probe ensures the correct positioning of rotating elements and aids in identifying any abnormal behavior that could lead to failure.
-
Industrial Applications: The 3300 XL 8mm Proximity Probe is also used in industrial control systems for monitoring the position and movement of components in a variety of machinery.
Product Advantages
-
High Sensitivity and Precision: The 3300 XL series proximity probe offers superior sensitivity, capable of detecting minute changes in proximity, ensuring high accuracy in measurement and early fault detection.
-
Durable and Rugged Construction: Designed to withstand harsh industrial environments, the probe features stainless steel housing and an IP67 rating, making it resistant to dust, water, and extreme conditions.
-
Wide Temperature Range: The sensor can operate in temperatures ranging from -40°C to +120°C, making it ideal for use in both cold and high-temperature environments.
-
Flexible Output Options: The probe outputs a linear 4-20mA signal, making it compatible with a wide range of monitoring and control systems for easy integration.
-
Easy Installation: The threaded mounting design allows for easy and secure installation, ensuring that the probe stays in place and delivers consistent measurements.
-
Compact and Lightweight: With a total length of 1 meter and a weight of just 0.323 kg, the proximity probe is easy to handle and install, even in tight spaces.
FAQ
1. What is the output signal of the 3300 XL 8mm Proximity Probe?
The 3300 XL 8mm Proximity Probe provides a linear 4-20mA output signal, which is widely used in industrial monitoring systems.
2. What is the maximum measurement range of the 3300 XL 8mm Proximity Probe?
The probe has a measurement range of 0 to 25 mm, allowing it to monitor small displacements and vibrations effectively.
3. What is the temperature range for the 3300 XL 8mm Proximity Probe?
The sensor operates within a temperature range of -40°C to +120°C, which is suitable for most industrial environments.
4. How is the 3300 XL 8mm Proximity Probe mounted?
The probe features a threaded mounting design with an 8 mm mounting hole diameter, making installation simple and secure.
5. What is the protection rating of the 3300 XL 8mm Proximity Probe?
The probe is rated IP67, providing full protection against dust and water, making it reliable for use in harsh environments.
6. What materials are used in the construction of the 3300 XL 8mm Proximity Probe?
The probe is made with high-quality stainless steel housing, ensuring durability and resistance to corrosion.
7. How sensitive is the 3300 XL 8mm Proximity Probe?
The probe offers excellent resolution, with a minimum detectable displacement of 0.001 mm, providing precise measurements for monitoring machine health.
8. What is the weight of the 3300 XL 8mm Proximity Probe?
The proximity probe weighs 0.323 kg, making it lightweight and easy to handle during installation.
9. What is the diameter of the 3300 XL Proximity Probe?
The 3300 XL Proximity Probe has a diameter of 8 mm, making it compact and suitable for a variety of machine applications.
10. Can the 3300 XL 8mm Proximity Probe be used for predictive maintenance?
Yes, the probe’s continuous monitoring capabilities and precise measurements make it an essential tool for predictive maintenance, allowing operators to detect early signs of potential failures.
