Product Overview

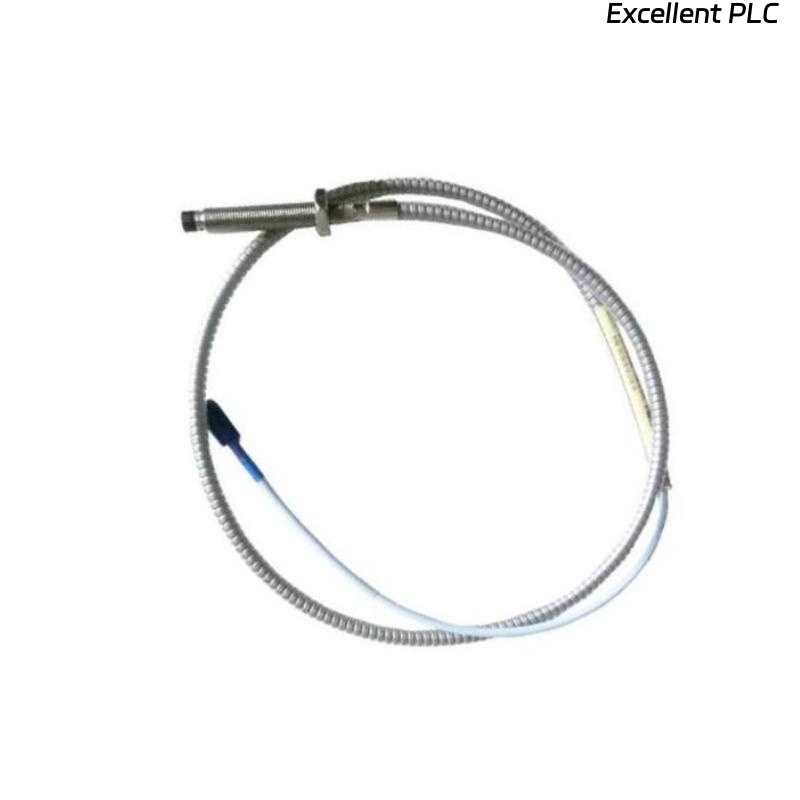

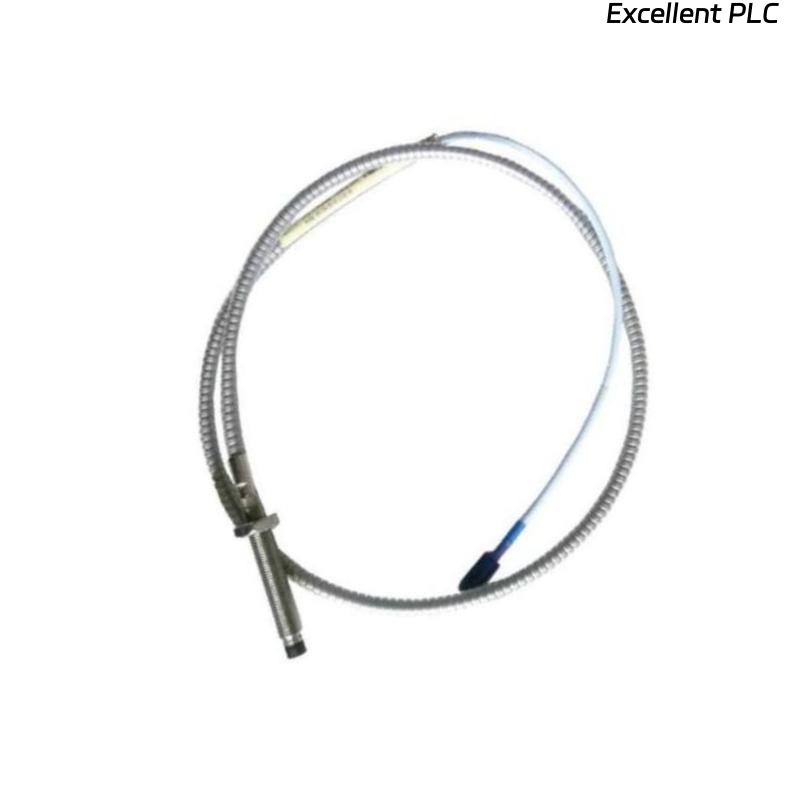

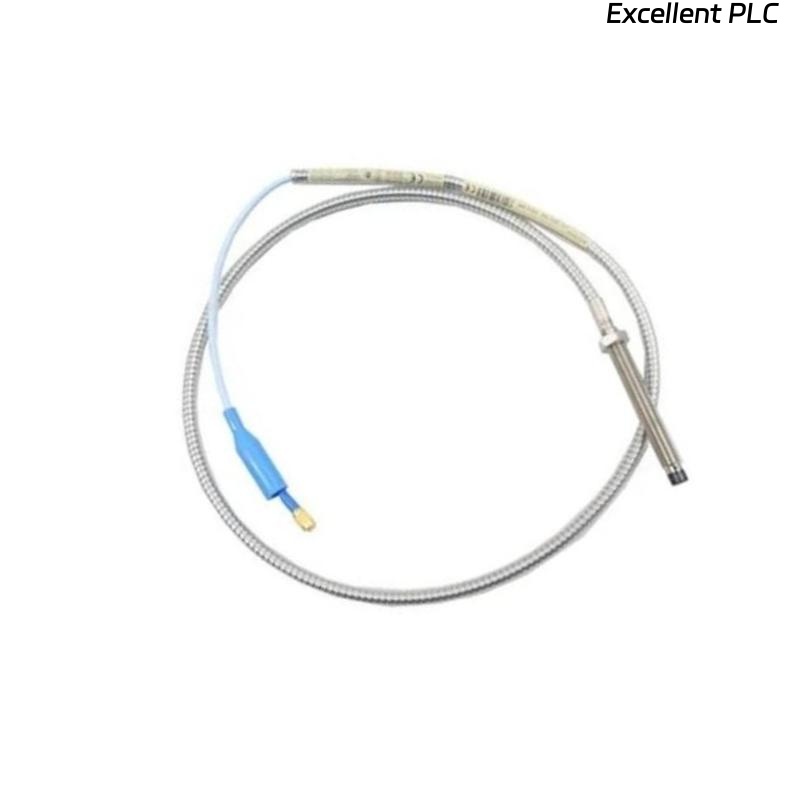

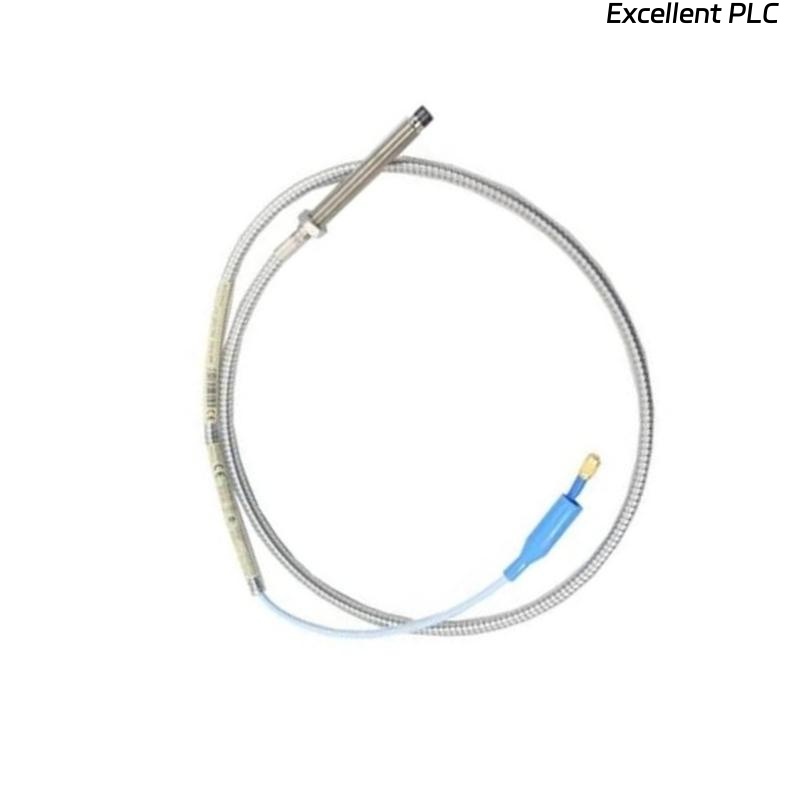

The Bently Nevada 330104-03-15-10-01-05 3300 XL 8 mm Proximity Probe is a high-precision eddy-current sensor designed for continuous machinery monitoring. It provides non-contact measurement of shaft vibration and axial displacement, delivering accurate and reliable signals for machinery protection systems.
Key Features
-
8 mm tip diameter for versatile measurement applications
-
Non-contact measurement of shaft vibration and axial displacement
-
Excellent linearity across operating range
-
Resistant to oil, dust, and other contaminants
-
Wide operating temperature range
-
Compact and durable construction for long service life
-
Compatible with 3300 XL monitoring systems
-
Ideal for rotating machinery monitoring and protection
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330104-03-15-10-01-05 |
| Series | 3300 XL |
| Product Type | Proximity Probe |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.323 kg |
| Tip Diameter | 8 mm |
| Measurement Range | Up to ±2 mm (depending on setup) |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 5.0–8.0 mV/µm (typical, depending on preamplifier) |
| Operating Temperature | –52 °C to +177 °C |
| Storage Temperature | –55 °C to +200 °C |
| Humidity | 0–100%, condensing |
| Compatible Driver | 3300 XL Preamplifier |
| Applications | Shaft vibration, axial displacement, and machinery monitoring |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Electric motors and generators
-
Industrial pumps and fans
-
Gearboxes and heavy-duty rotating equipment
-
Oil, gas, and power generation sectors
Frequently Asked Questions (FAQ)
Q1: What is the tip diameter of this probe?
It features an 8 mm tip diameter.
Q2: What type of measurements does it perform?
Non-contact measurement of shaft vibration and axial displacement.
Q3: Which monitoring systems is it compatible with?
It works with Bently Nevada 3300 XL monitoring systems.
Q4: What is the operating temperature range?
It operates from –52 °C to +177 °C.
Q5: Is it suitable for harsh environments?
Yes, it is resistant to oil, dust, and industrial contaminants.
Q6: What is the typical sensitivity?
5.0–8.0 mV/µm depending on the connected preamplifier.
Q7: Can it be used in turbines?
Yes, it is widely used in turbines, compressors, and pumps.
Q8: What are the physical dimensions of the probe?
Total Length : 1.0 meter with a weight of 0.323 kg.
