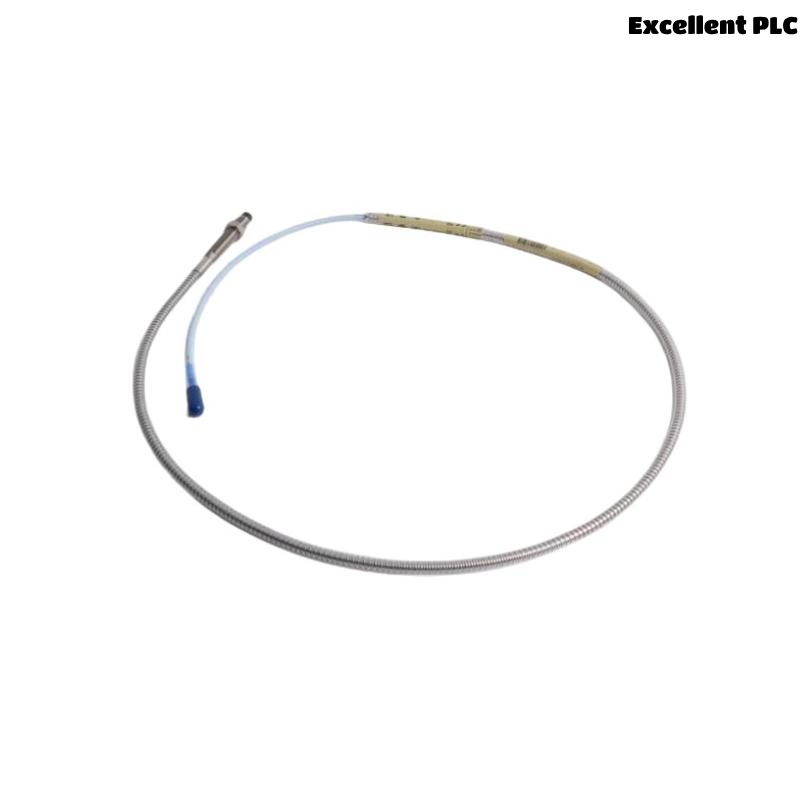

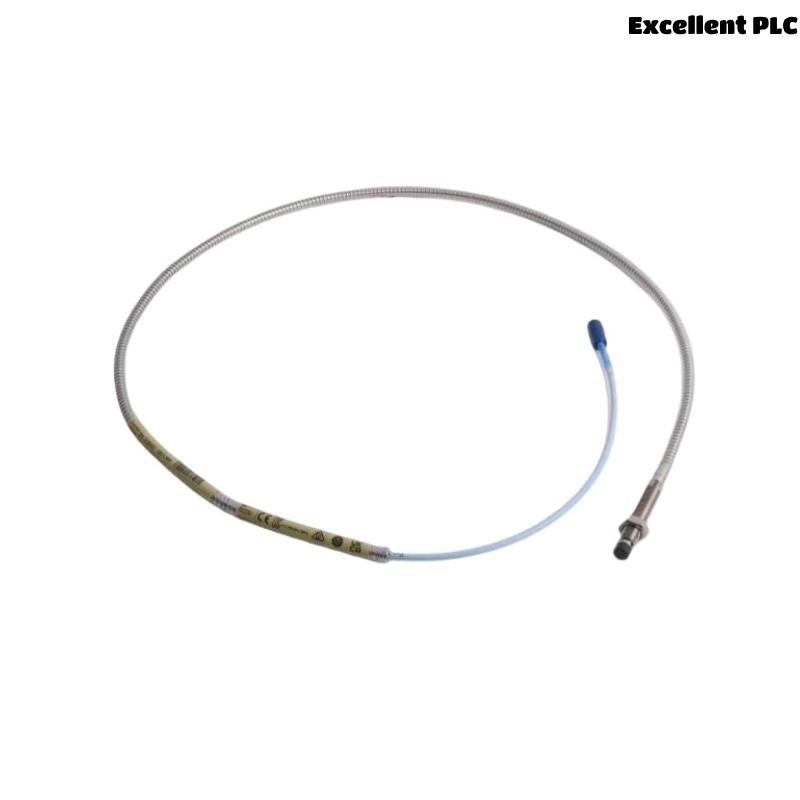

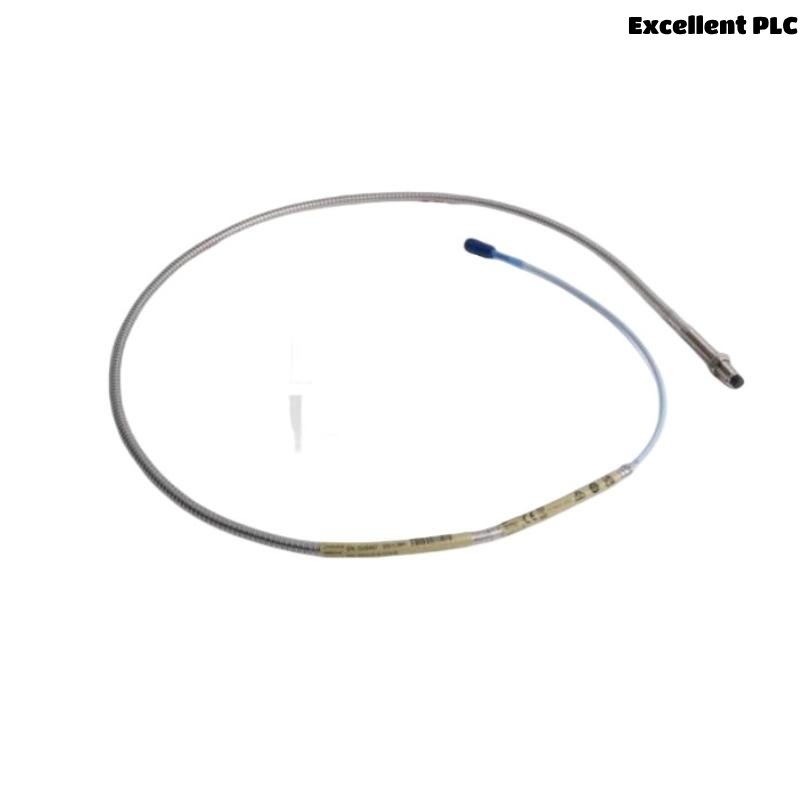

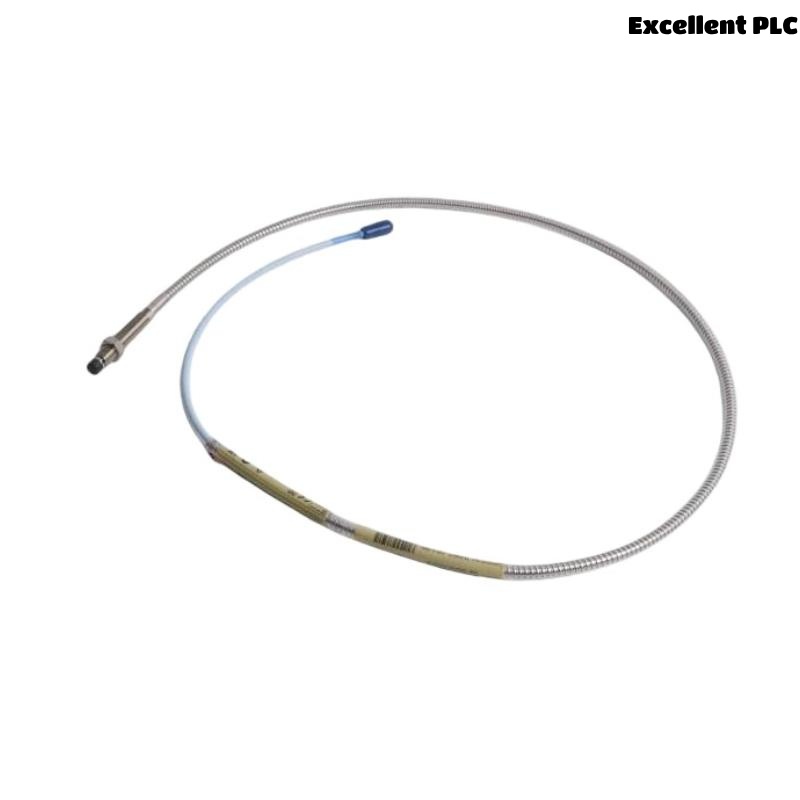

Bently Nevada 330104-04-10-10-02-00 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330104-04-10-10-02-00 is part of the trusted 3300 XL 8 mm Proximity Transducer System, specifically engineered to deliver accurate, non-contact displacement measurements of rotating machinery. This model is commonly used in industrial equipment like turbines, compressors, motors, and pumps to monitor shaft vibration and position, ensuring machine protection and predictive maintenance.

The 330104-04-10-10-02-00 features an 8 mm tip, a rugged construction, and a system length of 10 meters. As part of a complete system with an extension cable and Proximitor sensor, it offers high precision and full compliance with API 670 standards. This ensures compatibility with industry-standard monitoring systems and makes it a reliable solution for critical rotating equipment.

---

Key Features

• Precision eddy-current proximity sensing for non-contact shaft monitoring

• 8 mm diameter probe tip optimized for steel targets (e.g., AISI 4140)

• API 670 compliant system for critical rotating machinery protection

• Shielded stainless-steel body for robust industrial use

• Supports 10-meter system length (probe + extension cable)

• Excellent thermal performance up to 177°C

• Factory-calibrated and matched components for plug-and-play setup

• Compatible with 3300 XL Proximitor sensors and extension cables

---

Technical Specifications

---

Industry Applications

The 330104-04-10-10-02-00 proximity probe is widely implemented across industries requiring precision monitoring of rotating assets. Key applications include:

• Gas and steam turbines

• Large compressors and blowers

• Centrifugal and reciprocating pumps

• Electric motors and generators

• Gearboxes and transmission shafts

• High-speed machine trains

• Thrust position detection

• Shaft radial vibration and runout monitoring

---

Product Advantages

• High reliability in demanding environments: Designed for rugged industrial use with resistance to heat, oil, and vibration

• Accurate, real-time monitoring: Enables continuous vibration and position feedback to support machine protection systems

• Ease of integration: Fully compatible with 3300 XL extension cables and Proximitor sensors

• API 670 compliant design: Ensures compatibility with standard protection systems in refineries, power plants, and petrochemical industries

• Reduced downtime: Supports predictive maintenance strategies by detecting faults before failure

• Factory matched components: Simplifies installation and reduces the need for field calibration

• Long lifecycle: Built for long-term performance in harsh operating conditions

• Enhanced EMI protection: Designed to operate reliably in electrically noisy environments

---

Frequently Asked Questions (FAQ)

1. What does the 330104-04-10-10-02-00 probe measure?
   It measures the non-contact displacement of a metallic target, such as a rotating shaft, used for vibration and position monitoring.

2. Is the 10-meter system length fixed or configurable?
   The system length is fixed at 10 meters, including both the probe and the extension cable. The system must use matched components.

3. Is this probe suitable for high-temperature environments?
   Yes, it supports operating temperatures up to 177°C (351°F), making it ideal for turbines and compressors.

4. Does this model comply with API 670?
   Yes, the 3300 XL series, including this model, is fully API 670 compliant.

5. Is calibration required in the field?
   No, when used as a matched set with its designated cable and Proximitor sensor, no field calibration is required.

6. What is the sensing accuracy of this probe?
   It offers a sensitivity of 7.87 mV/μm (±5%) across its linear range, ensuring high measurement accuracy.

7. What materials is it compatible with?
   It is factory-calibrated for AISI 4140 steel but can be adapted for other conductive metals.

8. What torque is recommended for installation?
   Mounting torque should be between 28 to 34 in·lb (3.2 to 3.8 N·m).

9. What kind of connector is used?
   The probe uses a miniature coaxial connector, compatible with standard 3300 XL extension cables.

10. Can this probe be used in hazardous areas?
    The probe itself is not intrinsically safe, but it can be used in hazardous locations if installed with appropriate protective barriers or certified systems.

---
