Product Introduction

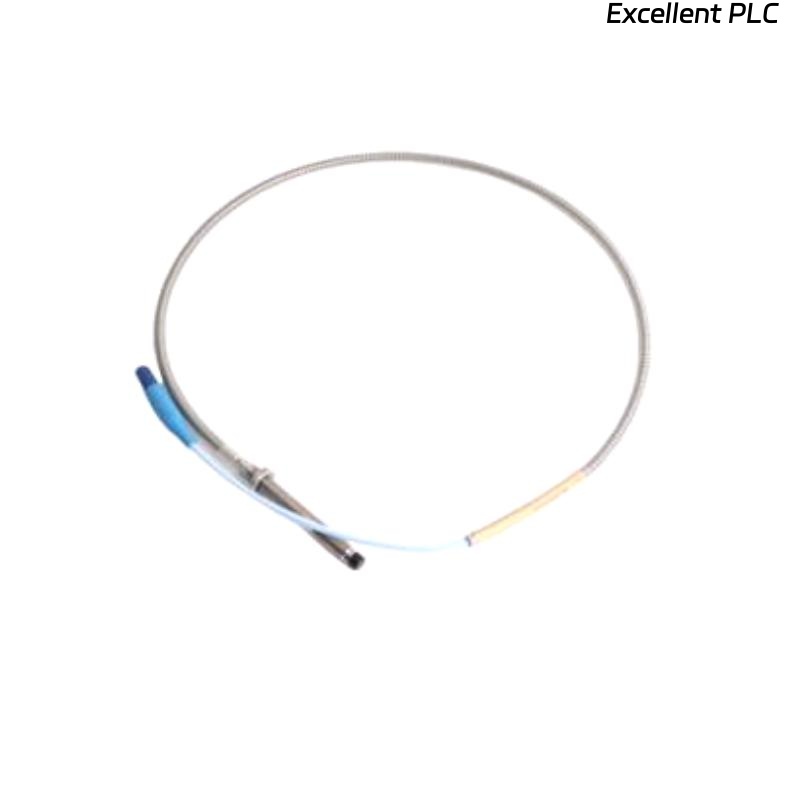

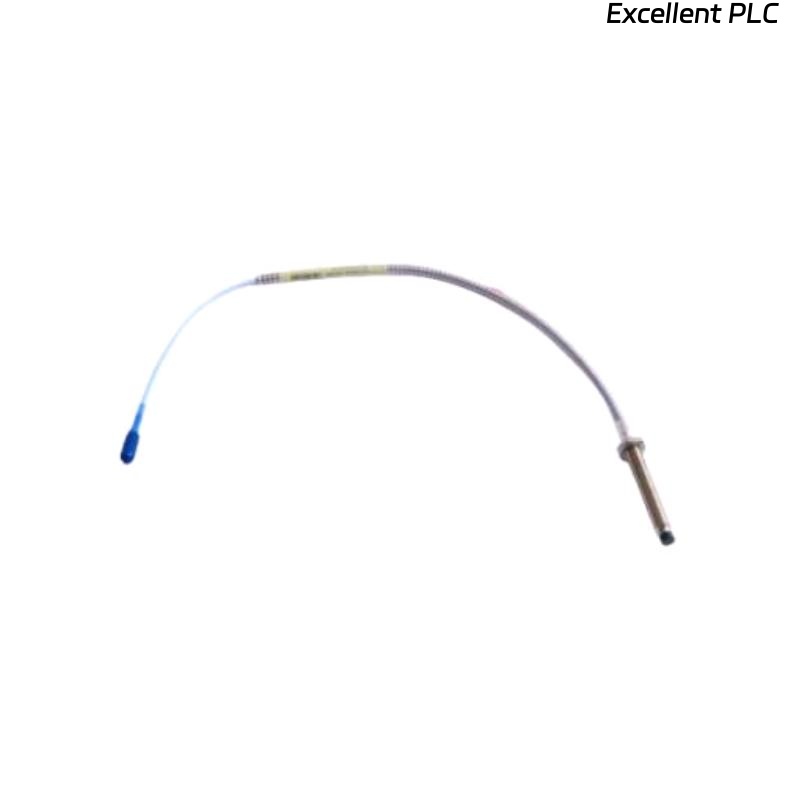

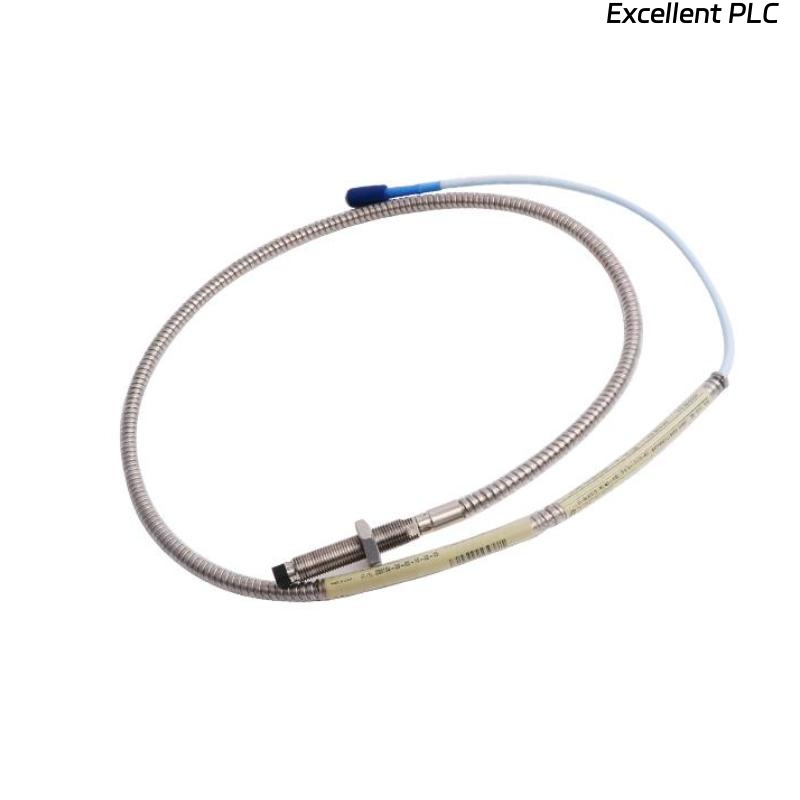

The Bently Nevada 330104-04-12-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for industrial machinery monitoring. Part of the 3300 XL series, this probe delivers accurate measurements of shaft vibration, displacement, and position in rotating equipment. Engineered for reliability and longevity, it is widely used in turbines, compressors, motors, and pumps, ensuring machinery performance and preventing unexpected failures.
Product Advantages
-
High Accuracy: Provides precise vibration and displacement measurements, critical for early fault detection.
-
Robust Design: Engineered to withstand harsh industrial conditions, including high temperatures and contamination.
-
Long Cable Length: 1-meter total length allows flexible installation in complex machinery layouts.
-
Low Maintenance: Durable materials reduce the need for frequent replacements and downtime.
-
Compatibility: Fully compatible with the 3300 XL monitoring system and related Bently Nevada components.
-
Enhanced Safety: Enables early detection of machinery anomalies, minimizing risks of catastrophic failures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | Proximity Probe |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Measurement Type | Vibration, Displacement, Position |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Operating Temperature Range | -40°C to +120°C |
| Cable Type | Shielded coaxial cable |
| Connector Type | 2-pin or 4-pin (depending on system) |
| System Compatibility | 3300 XL Monitoring System |
| Housing Material | Stainless Steel |
| Response Time | <1 ms |
| Environmental Protection | IP65 |
Product Applications
-
Turbines and generators
-
Centrifugal and reciprocating compressors
-
Large industrial pumps
-
Electric motors in heavy-duty applications
-
Gearboxes and high-speed rotating machinery
-
Condition monitoring and predictive maintenance systems
FAQ
Q1: What is the minimum detectable displacement of this probe?
A1: The probe can detect shaft displacements in the micrometer range, providing highly accurate vibration and position data.
Q2: Can this probe be used in high-speed turbine applications?
A2: Yes, it is designed to operate in high-speed rotating machinery and provides reliable measurements at high rotational speeds.
Q3: What is the output signal type of this probe?
A3: The probe outputs an AC signal proportional to the gap between the probe tip and the target shaft.
Q4: Is the probe compatible with older Bently Nevada 3300 systems?
A4: It is optimized for the 3300 XL series but can be adapted for older 3300 systems with appropriate signal conditioning.
Q5: How does temperature affect the probe’s performance?
A5: The probe operates reliably within -40°C to +120°C. Extended operation outside this range may affect signal stability.
Q6: Can the probe be used in explosive or hazardous environments?
A6: It is not intrinsically safe; use only in hazardous areas with certified protective barriers or enclosures.
Q7: What is the recommended probe gap for optimal measurement?
A7: The recommended probe-to-shaft gap is typically 0.25–1 mm, depending on shaft speed and target diameter.
Q8: Does the cable length affect signal accuracy?
A8: The 1-meter cable length provided is ideal; longer cables may require signal conditioning to prevent attenuation.
Q9: How resistant is the probe to vibration and mechanical shock?
A9: The stainless steel housing and rugged design allow the probe to withstand industrial vibration and shock without performance degradation.
Q10: Can the probe measure both static and dynamic shaft positions?
A10: Yes, it provides data for both static alignment and dynamic vibration monitoring.
Related or Same-Series Models
| Model Number | Description |
|---|---|
| 330104-04-12-10-01-00 | 3300 XL 8 mm Standard Proximity Probe |
| 330104-04-12-10-03-00 | 3300 XL 12 mm Proximity Probe |
| 330105-04-12-10-02-00 | 3300 XL 5 mm Proximity Probe |
| 330106-04-12-10-02-00 | 3300 XL 8 mm High-Temperature Probe |
| 330107-04-12-10-02-00 | 3300 XL 8 mm Low-Noise Probe |
| 330108-04-12-10-02-00 | 3300 XL 8 mm Explosion-Proof Probe |
