Product Introduction

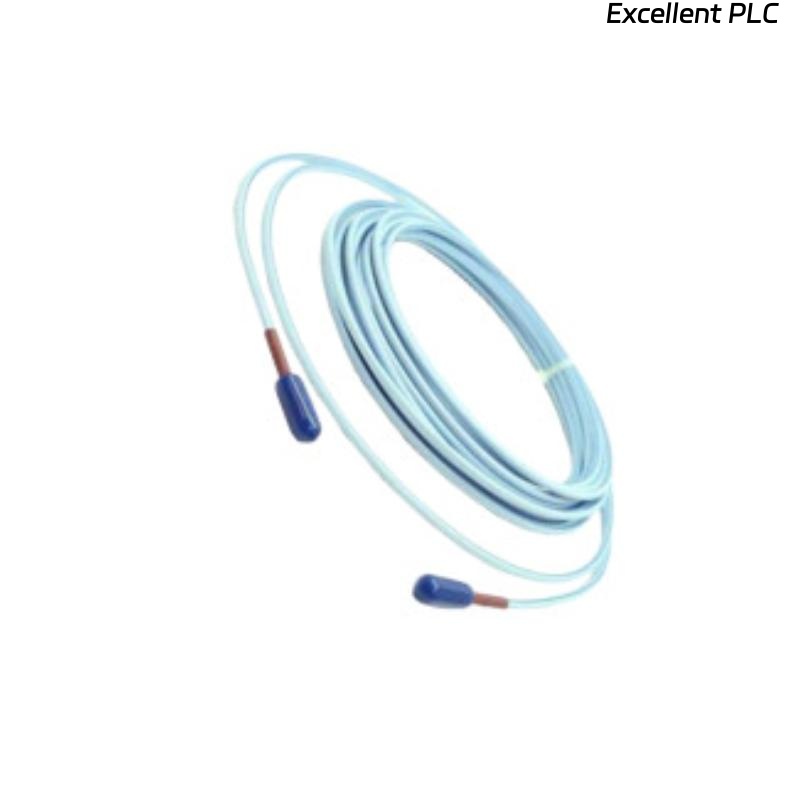

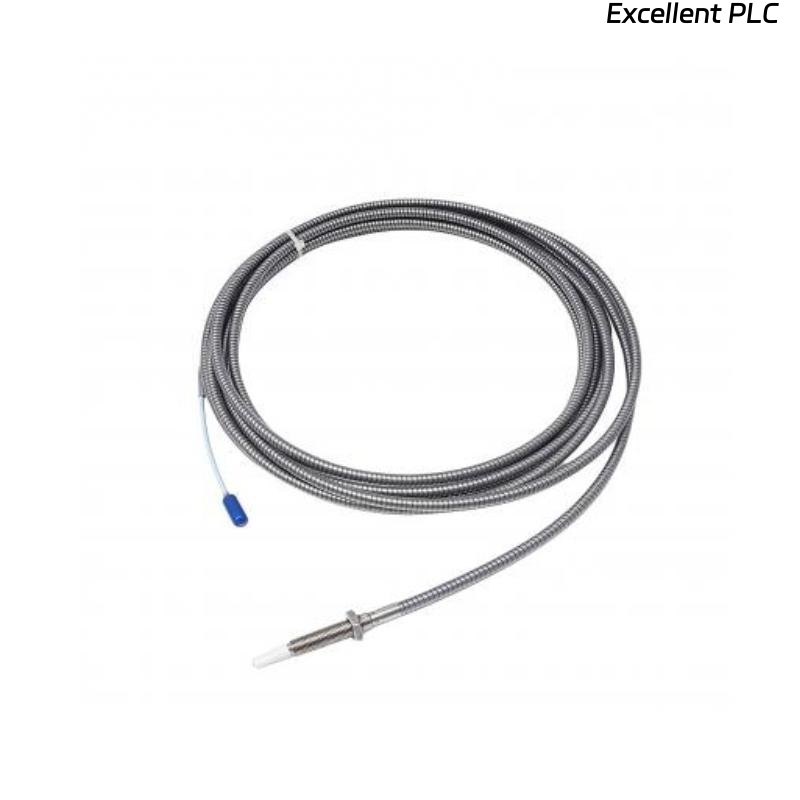

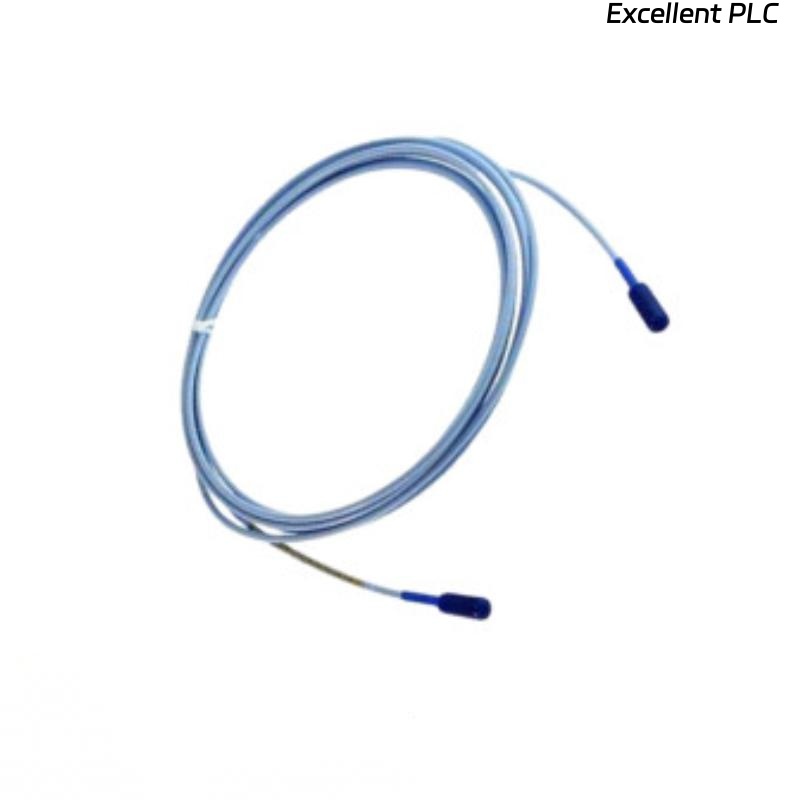

The Bently Nevada 330104-05-10-50-02-00 is part of the 3300 XL series of proximity probes designed for high-precision vibration measurement in critical rotating machinery. It provides reliable, continuous monitoring of shaft position and vibration, enabling predictive maintenance and enhancing machinery reliability. This 8 mm probe offers robust construction suitable for harsh industrial environments, including high temperatures, chemical exposure, and high vibration zones. Its design ensures accurate measurements with minimal drift over time, supporting critical applications in power generation, oil & gas, and heavy industry.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-05-10-50-02-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Cable Length | 2 m (standard) |
| Operating Temperature | -40°C to +120°C |
| Material | Stainless steel probe body |
| Probe Tip Style | Flat |
| Connector Type | Flying lead |
| Total Length | 5 m |
| Weight | 1.615 kg |
| Output Type | AC sine wave |
| Mounting Type | Threaded or press-fit |
Product Applications
-
Continuous monitoring of turbine, compressor, and pump shafts.
-
Early detection of imbalance, misalignment, or bearing wear.
-
Critical machinery in power plants, petrochemical facilities, and refineries.
-
High-speed rotating equipment where precise shaft position feedback is required.
-
Integration with 3300 XL monitoring systems for vibration analysis and machinery protection.
Product Advantages
-
High precision measurement for critical rotating machinery.
-
Robust design suitable for harsh industrial environments.
-
Wide operating temperature and environmental tolerance.
-
Long-term stability with minimal calibration drift.
-
Easy integration with 3300 XL monitoring systems.
-
Reduces unplanned downtime through predictive maintenance.
FAQ
Q1: What is the typical measurement range for this probe?
A1: The standard range is 0–2.5 mm, depending on the 3300 XL monitor configuration.
Q2: What type of output signal does the probe provide?
A2: The probe provides an AC sine wave output compatible with Bently Nevada 3300 XL monitors.
Q3: Can this probe operate in high-vibration environments?
A3: Yes, the probe is designed for high-vibration industrial machinery and maintains measurement accuracy under such conditions.
Q4: What is the maximum operating temperature for this probe?
A4: The probe can operate safely between -40°C and +120°C.
Q5: Is the probe compatible with all 3300 XL monitoring systems?
A5: Yes, it is fully compatible with the 3300 XL series monitors.
Q6: What type of connector does the probe use?
A6: This probe comes with a flying lead for direct wiring to the monitor.
Q7: Can the probe detect misalignment as well as vibration?
A7: Yes, it measures shaft displacement and vibration, allowing misalignment detection indirectly through vibration analysis.
Q8: What kind of maintenance does the probe require?
A8: Minimal maintenance is required; routine inspection of cable integrity and cleaning the probe tip are recommended.
Q9: Is the probe resistant to chemical exposure?
A9: The probe body is made of stainless steel, providing resistance to most industrial chemicals.
Q10: Can this probe be used in high-speed rotating equipment?
A10: Yes, it is specifically designed for high-speed turbines, compressors, and pumps.
