Product Introduction

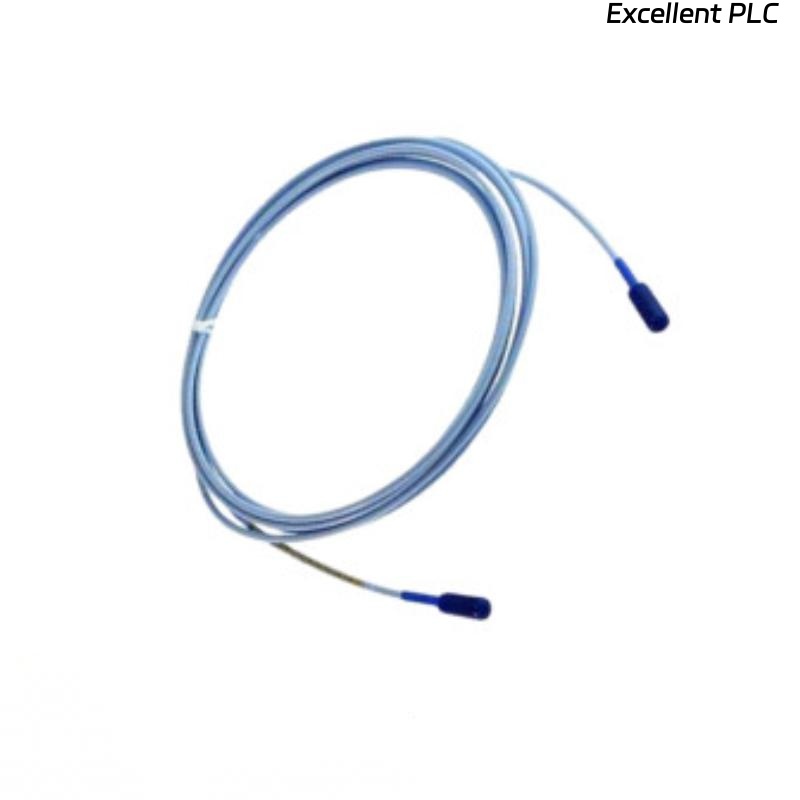

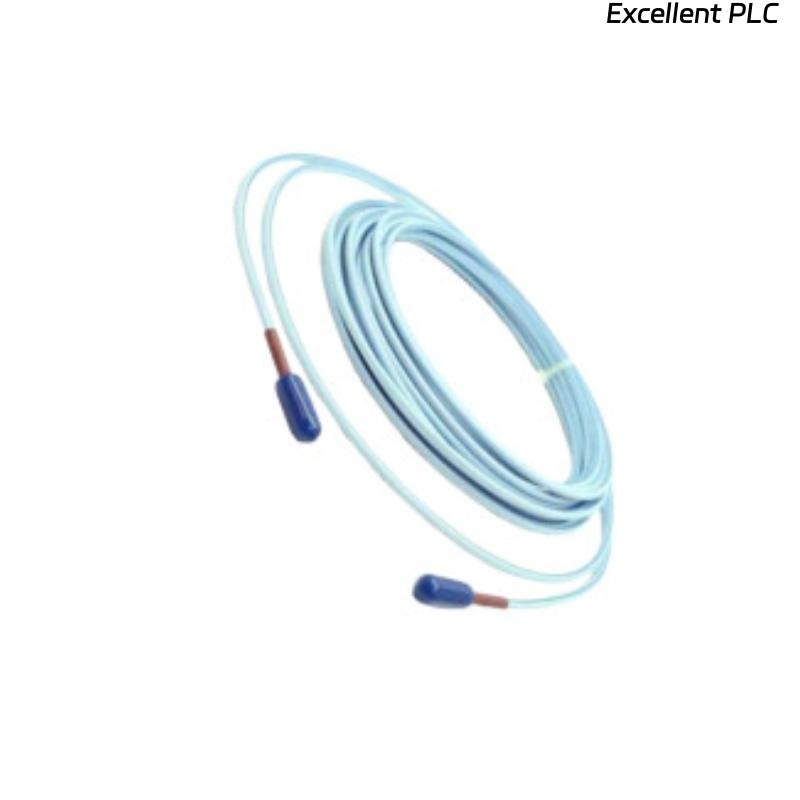

The Bently Nevada 330104-05-10-50-11-00 3300 XL 8 mm Proximity Probe is a high-precision displacement sensor designed for monitoring rotating machinery. It forms part of the 3300 XL series, providing reliable vibration and position measurements for critical industrial equipment. This probe is engineered to detect minute changes in shaft position and vibration, enabling predictive maintenance and ensuring operational safety.
The probe’s robust design allows it to operate in demanding industrial environments, including turbines, compressors, pumps, and generators, offering consistent performance over a wide range of temperatures and operating conditions.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330104-05-10-50-11-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Sensor Type | Eddy Current |
| Total Length | 5 m |
| Weight | 1.615 kg |
| Operating Temperature | -40 °C to 120 °C |
| Measurement Range | 0-2.5 mm |
| Linearity | ±1% |
| Output Impedance | 100 Ω nominal |
| Housing Material | Stainless Steel |
| Connector Type | M12 Connector or equivalent |
| Compatible System | 3300 XL Series Monitoring System |
Product Applications
-
Real-time monitoring of turbine shafts and bearings
-
Vibration analysis of compressors, pumps, and generators
-
Critical machinery protection in power plants, oil & gas, and industrial facilities
-
Condition-based maintenance to prevent unplanned downtime
-
Shaft position monitoring for alignment and stability checks
Product Advantages
-
High Accuracy: Delivers precise measurements for early detection of mechanical issues.
-
Robust Design: Withstands harsh industrial environments, including high temperature, vibration, and contaminants.
-
Compatibility: Fully compatible with the Bently Nevada 3300 XL monitoring system for seamless integration.
-
Reliable Performance: Stable output and low noise ensure dependable long-term monitoring.
-
Ease of Installation: Standardized connectors and mounting reduce installation time.
-
Predictive Maintenance Support: Enables predictive analytics for machinery health, minimizing downtime.
FAQ
Q1: What type of signal output does this probe provide?
A1: The 3300 XL 8 mm probe provides a linear voltage signal proportional to the gap between the probe and the target.
Q2: Can this probe operate in high-temperature environments?
A2: Yes, it is rated for continuous operation between -40 °C and 120 °C.
Q3: Is this probe compatible with older Bently Nevada monitoring systems?
A3: It is specifically designed for the 3300 XL series; compatibility with older systems may require interface adjustments.
Q4: How do I calibrate the probe?
A4: Calibration is performed using a standard calibration fixture or the 3300 XL monitoring system’s built-in functions.
Q5: Can the probe measure vibration as well as displacement?
A5: Yes, when connected to the appropriate 3300 XL monitoring system, it can provide displacement, velocity, and vibration analysis.
Q6: What is the maximum cable length for accurate measurement?
A6: The total cable length can reach up to 5 meters without signal degradation.
Q7: Does the probe require a special target material?
A7: Targets should be made of conductive material, typically steel, for eddy current operation.
Q8: How resistant is the probe to electrical noise?
A8: The probe is designed with shielding to minimize electromagnetic interference in industrial environments.
Q9: Can this probe be used in hazardous areas?
A9: Yes, but it must be installed following the hazardous area certification and system requirements.
Q10: How does the probe handle misalignment or shaft eccentricity?
A10: The probe’s linear range and high accuracy allow it to track small misalignments and eccentricity reliably within its measurement range.
