Product Overview

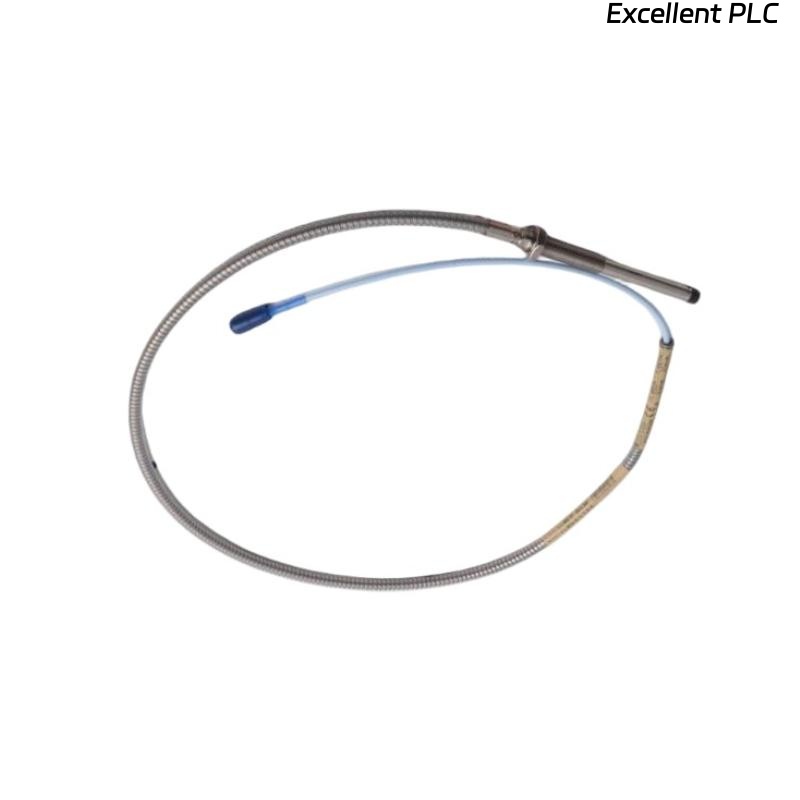

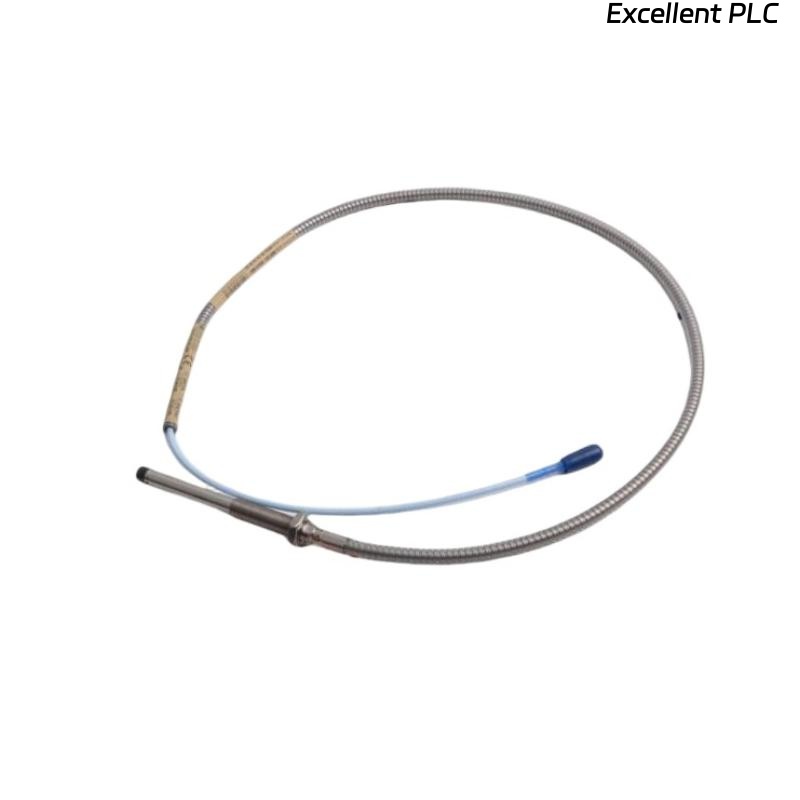

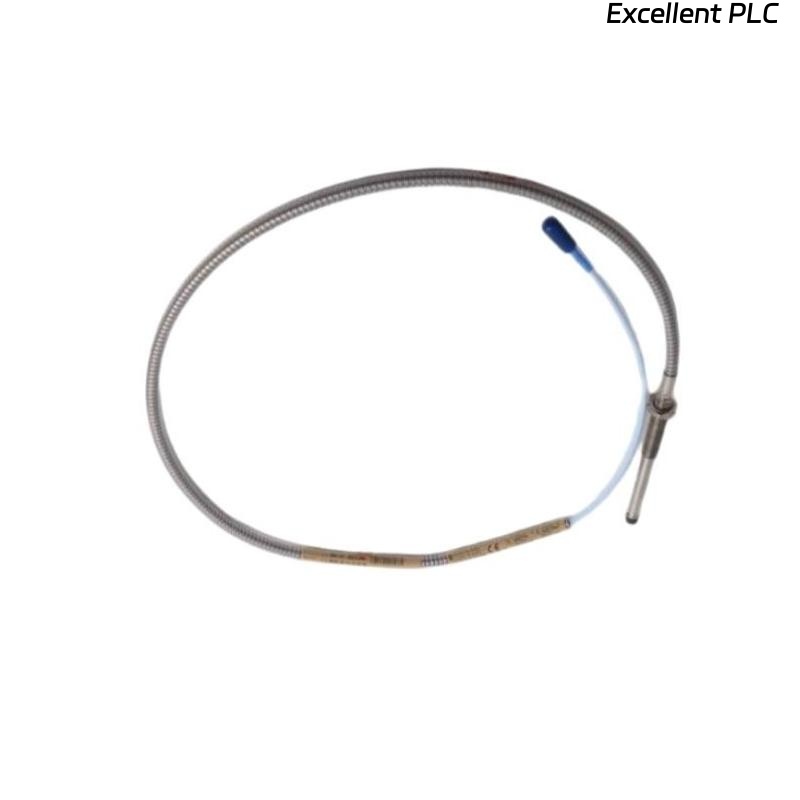

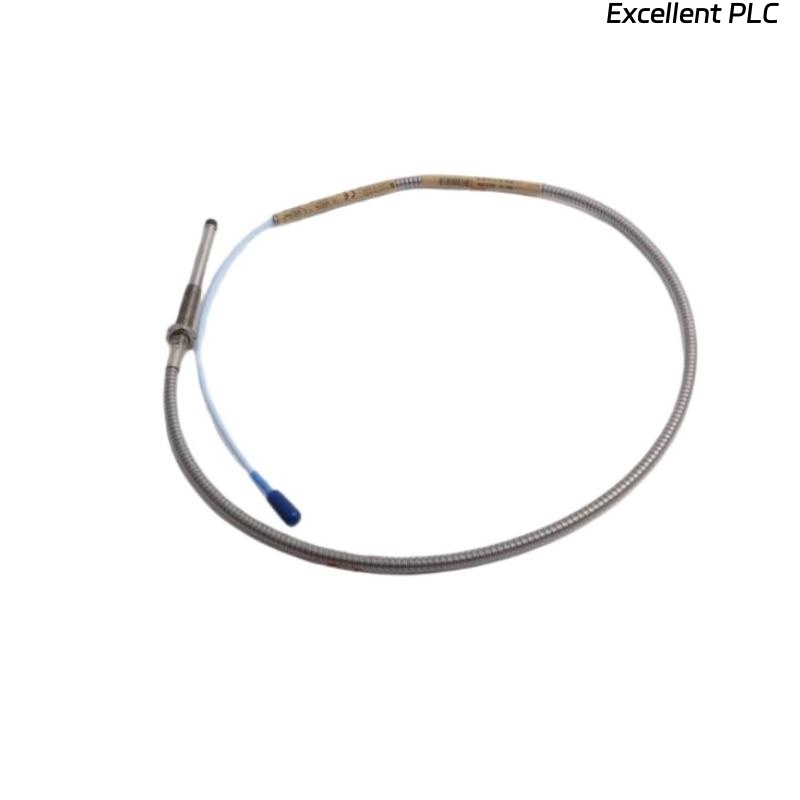

The Bently Nevada 330104-05-12-05-02-05 3300 XL 8 mm Proximity Probe is engineered for precise, non-contact monitoring of shaft vibration and axial displacement in rotating equipment. As a key component of the 3300 XL Proximity Transducer System, it provides dependable measurements for machine protection and condition monitoring applications.
Key Features
-
8 mm probe tip for accurate vibration/displacement monitoring
-
Non-contact measurement for continuous machinery health tracking
-
API 670 compliant for standardized machine protection
-
Threaded mounting for secure and stable installation
-
Designed for durability in extreme operating conditions
-
Full compatibility with Bently Nevada 3300 XL system
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330104-05-12-05-02-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Tip Diameter | 8 mm |
| System Compatibility | Bently Nevada 3300 XL systems |
| Application | Shaft vibration and axial displacement monitoring |
| Dimensions | Total Length : 0.5 meter |
| Compliance | API 670 |
| Operating Temperature | -35 °C to +180 °C (probe only) |
| Weight | 0.161 kg |
| Connector Type | Coaxial connector |
| Mounting | Threaded mounting |
Industry Applications
-
Power Generation – Turbines, generators, and large motors
-
Oil & Gas – Compressors, pumps, and critical rotating assets
-
Petrochemical – Refinery and process machinery monitoring
-
Industrial Manufacturing – Gearboxes, drives, and rotating systems
-
Water & Wastewater – High-performance pumping applications
Advantages
-
High accuracy in displacement and vibration detection
-
Enhances reliability of critical machinery
-
Built to last in demanding environments
-
API 670 compliance ensures global standardization
-
Supports predictive maintenance strategies
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330104-05-12-05-02-05 probe?
It measures shaft vibration and displacement in rotating equipment.
Q2: What is the tip size of this probe?
It has an 8 mm tip diameter.
Q3: Is it compatible with all 3300 XL systems?
Yes, it is designed for full compatibility with Bently Nevada 3300 XL systems.
Q4: What is the weight of this probe?
It weighs approximately 0.161 kg.
Q5: Does this model meet API 670 requirements?
Yes, it complies with API 670 standards.
Q6: What is the operating temperature range?
It operates between -35 °C and +180 °C.
Q7: How is it mounted?
It uses threaded mounting for secure installation.
Q8: Can it be used in the oil & gas industry?
Yes, it is widely applied in compressors, pumps, and turbines.
Q9: What accessories are required?
It must be used with Proximitor sensors and extension cables.
Q10: Which industries typically use this probe?
Industries include power generation, petrochemical, oil & gas, and manufacturing.
