Product Introduction

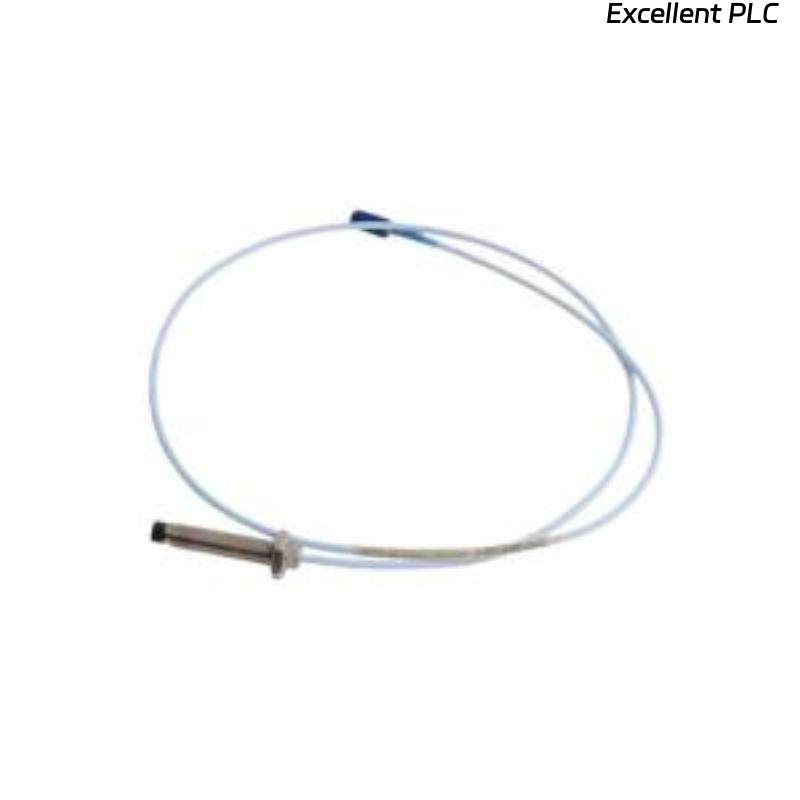

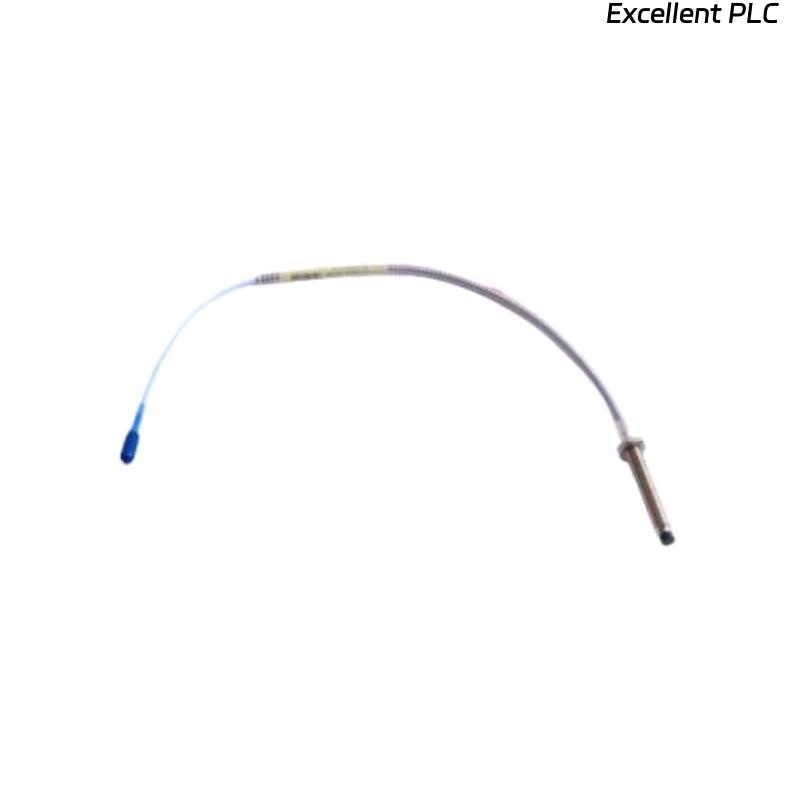

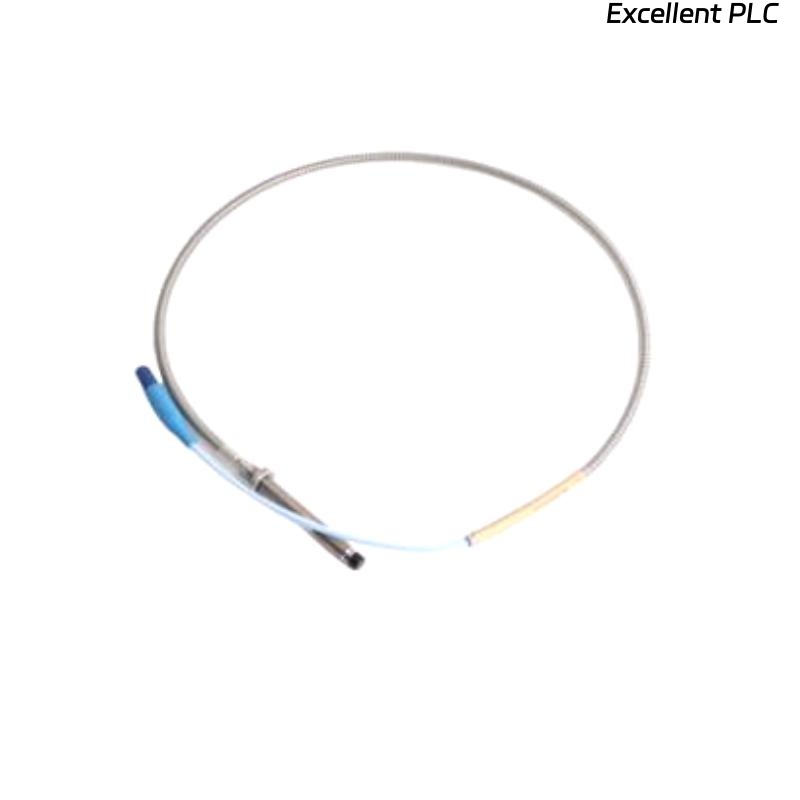

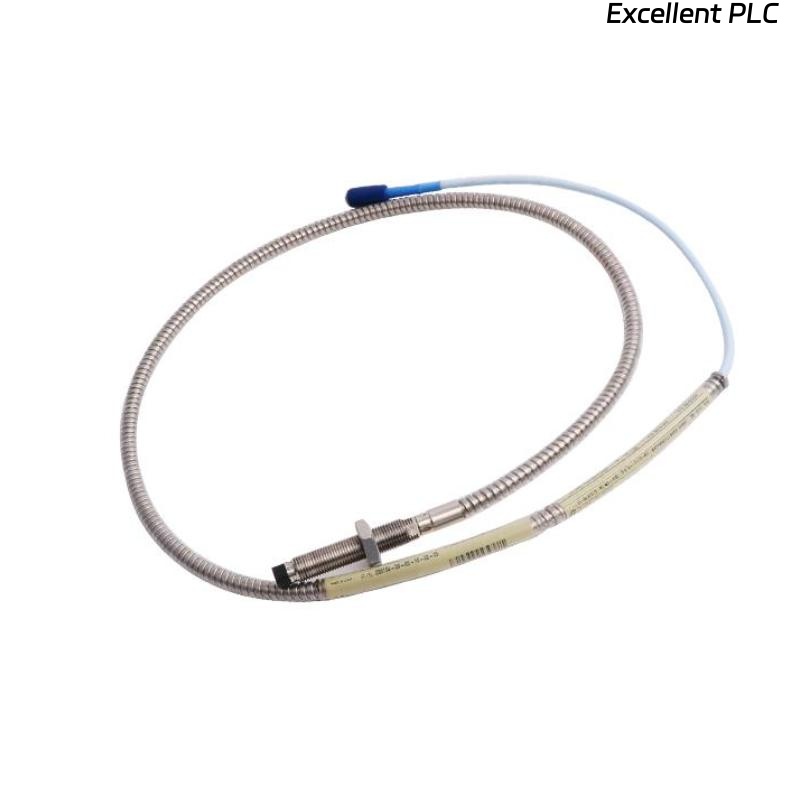

The Bently Nevada 330104-05-12-05-02-CN 3300 XL 8 mm Proximity Probe is an industrial-grade, high-precision sensor designed for vibration monitoring of rotating machinery. This probe is part of the 3300 XL series, known for its reliability and robust performance in critical machinery protection applications. With a sensing range of 8 mm, the probe delivers accurate displacement measurements and ensures early detection of machinery misalignment, imbalance, or wear.
Product Advantages
-
High Accuracy: Delivers precise displacement measurements with minimal signal noise.
-
Robust Construction: Designed to withstand high temperatures, vibration, and harsh industrial conditions.
-
Wide Compatibility: Works seamlessly with the Bently Nevada 3300 XL monitoring system and other vibration monitoring platforms.
-
Maintenance-Friendly: Non-contact sensing reduces wear and extends the maintenance interval.
-
Early Fault Detection: Supports predictive maintenance strategies by detecting imbalance, misalignment, and other mechanical issues early.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330104-05-12-05-02-CN |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Sensing Range | 8 mm |
| Output Type | AC/DC displacement signal |
| Cable Length | Standard 0.5 m |
| Total Length | 0.5 m |
| Weight | 0.162 kg |
| Operating Temperature | -40°C to 120°C |
| Mounting Type | Threaded stud / flush mount |
| Compatible Systems | Bently Nevada 3300 XL series |
Product Applications
-
Turbines: Real-time monitoring of shaft vibration to prevent catastrophic failures.
-
Compressors: Ensures operational stability by detecting misalignment and imbalance.
-
Generators: Supports protection and diagnostic systems to maintain efficiency and safety.
-
Pumps: Monitors shaft movement to prevent bearing wear and unexpected downtime.
-
Industrial Rotating Machinery: Suitable for diverse industries, including power generation, petrochemical, and process plants.
FAQ
Q1: What type of signal does the 3300 XL 8 mm Proximity Probe output?
A1: It outputs an AC/DC displacement signal compatible with the 3300 XL monitoring system.
Q2: Can this probe operate in high-temperature environments?
A2: Yes, it is rated for operation between -40°C and 120°C.
Q3: Is the probe compatible with other Bently Nevada systems besides 3300 XL?
A3: Primarily designed for 3300 XL, it may work with other systems using the correct signal conditioning.
Q4: What is the sensing range of this probe?
A4: The probe has a nominal sensing range of 8 mm.
Q5: How is the probe mounted?
A5: It can be mounted using a threaded stud or flush mounting, depending on the application.
Q6: What is the total length of the probe including cable?
A6: The total length is 0.5 meters.
Q7: Does the probe require calibration before installation?
A7: Factory calibration is provided; field calibration may be required to match specific system requirements.
Q8: Can this probe detect both radial and axial vibration?
A8: It primarily measures shaft displacement in the radial direction; axial vibration may require additional sensors.
Q9: How resistant is the probe to electrical noise?
A9: It is designed with robust shielding to minimize electrical interference.
Q10: What is the weight of the probe?
A10: The probe weighs 0.162 kg.
