Product Introduction

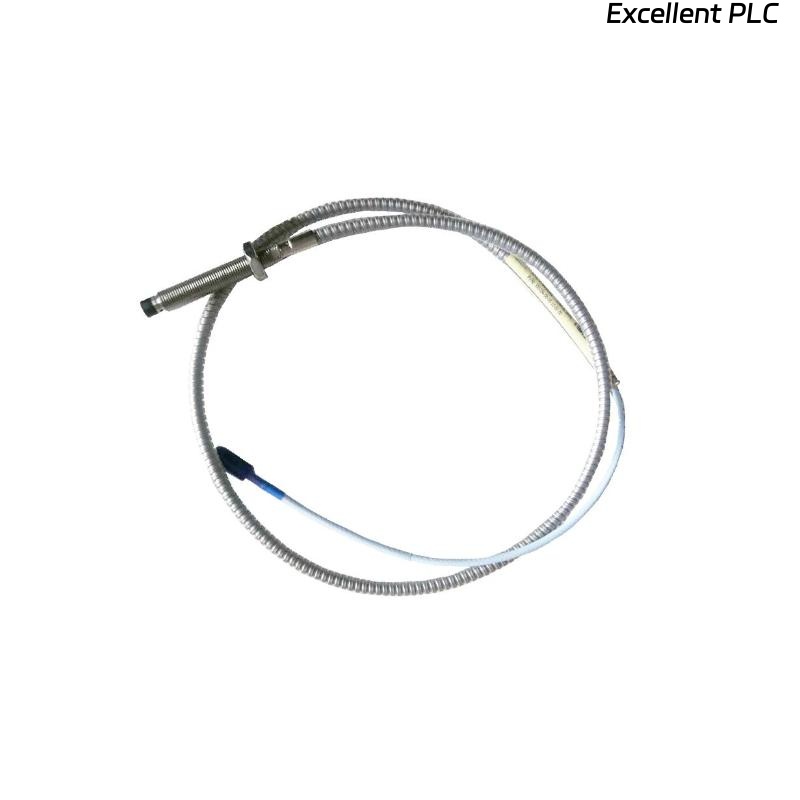

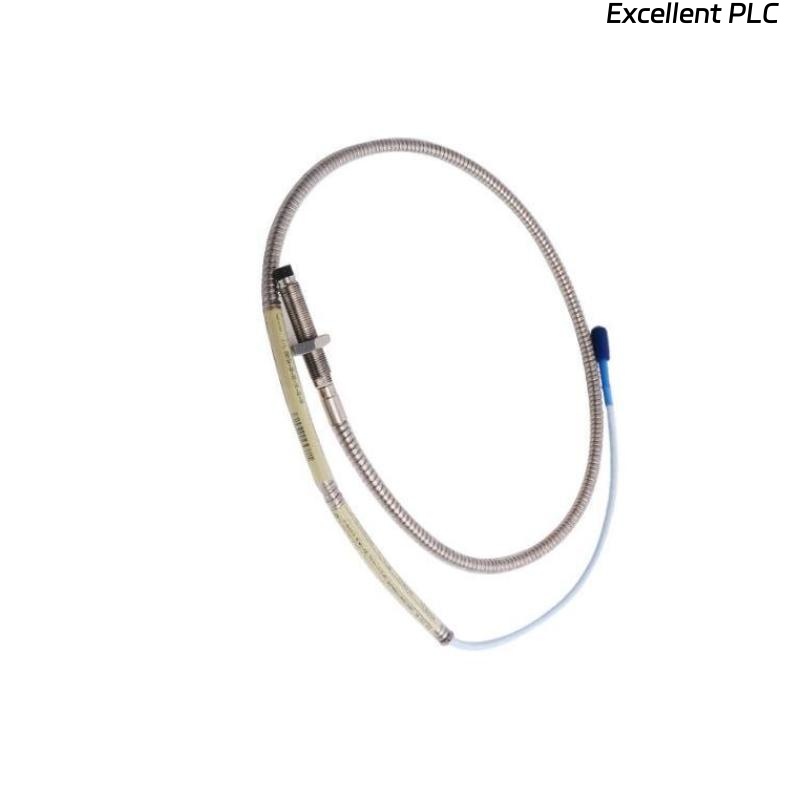

The Bently Nevada 330104-05-17-10-11-05 (3300 XL 8 mm Proximity Probe) is part of the industry-proven 3300 XL proximity transducer system. It is designed to provide highly accurate, stable, and reliable measurement of shaft vibration, axial position, and rotor dynamics in critical rotating machinery. With advanced signal integrity and durability, this probe is built to perform under harsh industrial environments, ensuring optimal performance in condition monitoring and protection systems.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | 330104-05-17-10-11-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Cable Type | Coaxial, integral cable |
| Connection | Compatible with 3300 XL Extension Cable and Proximitor |
| Operating Temperature | -35 °C to +177 °C |
| Insulation Resistance | > 10^9 Ω at 500 VDC |
| Linear Range | 2 mm to 4 mm (typical) |
| Output Signal | Proportional to shaft displacement |
| Standard Compliance | API 670 compliant |
Product Applications
-
Steam turbines, gas turbines, and hydro turbines for shaft vibration monitoring
-
Compressors and pumps for bearing protection and alignment monitoring
-
Electric motors and generators for shaft displacement and dynamic condition analysis
-
Gearboxes and rotating equipment for detecting unbalance, misalignment, and mechanical looseness
-
Industrial process plants where predictive maintenance is required to avoid downtime
Product Advantages
-
High Accuracy and Reliability – Delivers stable measurements under temperature variations and electrical noise conditions.
-
API 670 Compliant – Meets the industry standard for machinery protection systems.
-
Rugged Design – Resistant to oil, dust, and vibration, ensuring long operational life in demanding environments.
-
Interchangeability – Fully compatible with other 3300 XL probes, extension cables, and proximitor modules without recalibration.
-
Wide Temperature Range – Operates reliably across extreme industrial environments.
-
Proven Technology – Part of Bently Nevada’s trusted 3300 XL series, used globally for critical asset monitoring.
FAQ
Q1: What is the linear range of the 330104-05-17-10-11-05 probe?
A1: The linear range is typically 2 mm to 4 mm, depending on installation and shaft material.
Q2: Is this probe interchangeable with other 3300 XL probes?
A2: Yes, it is designed for full interchangeability with other probes of the 3300 XL 8 mm series without recalibration.
Q3: What proximitor modules are compatible with this probe?
A3: It is compatible with 3300 XL Proximitor sensors, ensuring consistent system performance.
Q4: How does temperature variation affect probe accuracy?
A4: The probe is engineered to minimize thermal drift, maintaining accurate measurements across -35 °C to +177 °C.
Q5: Can the probe be used in hazardous area installations?
A5: Yes, it can be installed in hazardous areas if used with certified proximitor modules and accessories.
Q6: What is the effect of cable length on signal accuracy?
A6: The probe must be matched with the correct extension cable length and proximitor for calibrated accuracy.
Q7: How does this probe handle electrical noise interference?
A7: The integral coaxial cable and shielding design ensure superior noise immunity.
Q8: Can it detect both vibration and shaft position?
A8: Yes, it is capable of measuring both dynamic shaft vibration and static shaft position.
Q9: What type of machinery protection standard does it comply with?
A9: It fully complies with API 670 standards for machinery protection systems.
Q10: Is recalibration needed when replacing the probe with another of the same model?
A10: No, recalibration is not required when replacing with the same model, ensuring fast maintenance.
