Product Introduction

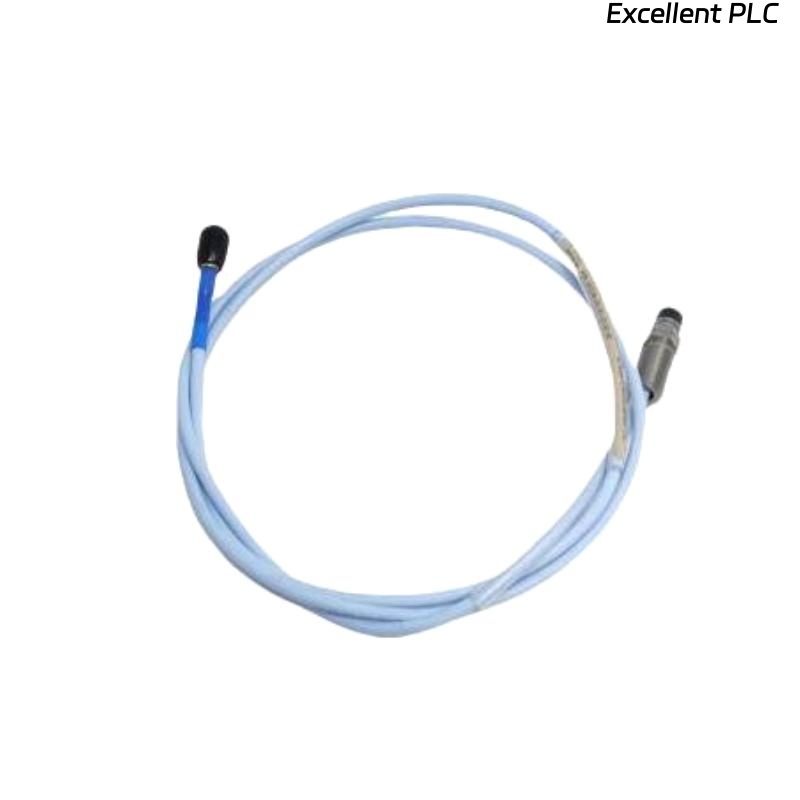

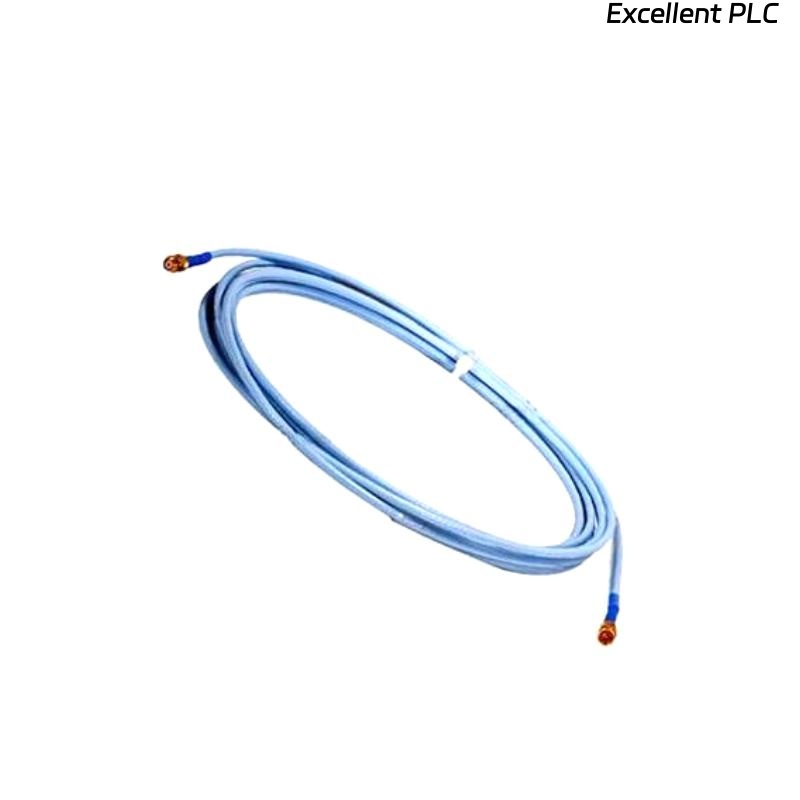

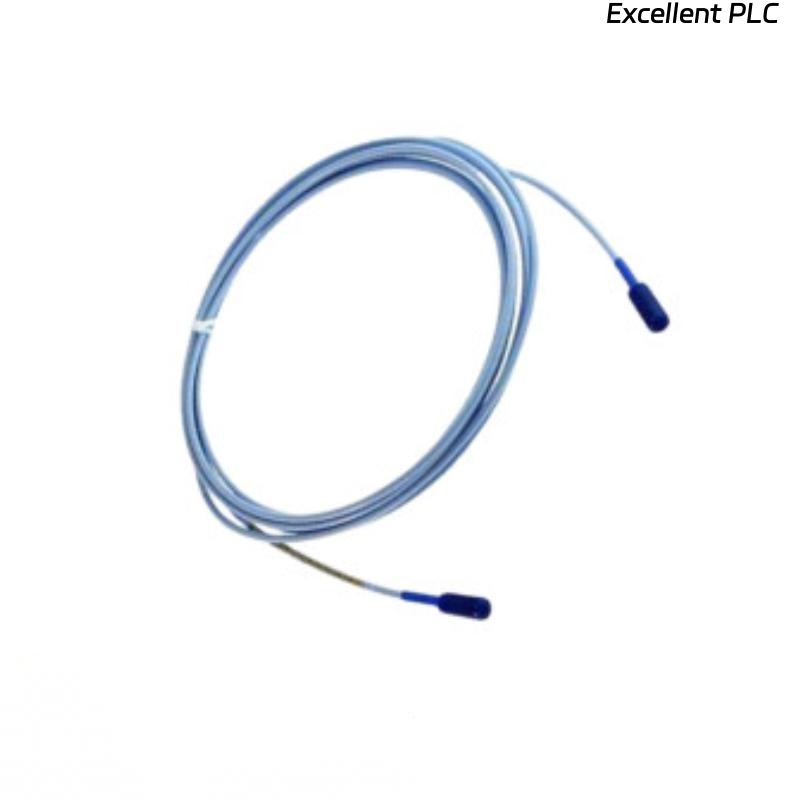

The Bently Nevada 330104-05-18-50-02-CN 3300 XL 8 mm Proximity Probe is part of the trusted 3300 XL series, designed for highly accurate and reliable measurement of shaft vibration and position in rotating machinery. This probe delivers precise proximity signals and ensures stable operation under demanding industrial environments, such as power generation, oil & gas, petrochemical, and heavy machinery applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330104-05-18-50-02-CN |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 5 m |
| Weight | 1.615 kg |
| Linearity | ±0.25% over ±2.0 mm |
| Sensitivity | 7.87 mV/μm nominal |
| Usable Gap | 0.25 mm to 2.0 mm |
| Operating Temperature | –35 °C to +177 °C |
| Probe Thread Size | M10 × 1 |
| Connection Type | Standard coaxial connector |
| Compliance | API 670, CE, RoHS |
Product Applications
-
Monitoring shaft vibration in turbines, compressors, and pumps.
-
Measuring axial position and radial vibration of rotating shafts.
-
Integrating with Bently Nevada monitoring systems for machinery protection and diagnostics.
-
Supporting predictive maintenance strategies to minimize unplanned downtime.
-
Providing reliable measurement signals even in high-temperature and harsh industrial environments.
Product Advantages
-
High Accuracy – Provides consistent and precise vibration and position measurements.
-
Wide Compatibility – Fully compatible with Bently Nevada 3300 XL systems and associated monitoring modules.
-
Rugged Design – Built to withstand harsh operating conditions, temperature variations, and mechanical stress.
-
Stable Performance – Designed for long-term stability and minimal calibration requirements.
-
API 670 Compliant – Meets stringent global industry standards for machinery protection.
-
Proven Reliability – Trusted by industries worldwide with decades of successful field performance.
FAQ
Q1: What is the sensitivity of the 330104-05-18-50-02-CN probe?
A1: The nominal sensitivity is 7.87 mV/μm, ensuring accurate shaft vibration measurements.
Q2: Can this probe be used with non-Bently Nevada monitoring systems?
A2: It is optimized for Bently Nevada systems but may integrate with third-party equipment if properly calibrated.
Q3: What is the usable gap range for accurate measurements?
A3: The probe maintains accuracy within a gap range of 0.25 mm to 2.0 mm.
Q4: Does the probe meet API 670 standards?
A4: Yes, the 3300 XL 8 mm probe is API 670 compliant.
Q5: How is electrical noise minimized in this probe?
A5: The probe uses shielded coaxial cable and high-quality connectors to reduce noise interference.
Q6: Can the probe operate reliably in high-temperature conditions?
A6: Yes, it operates within –35 °C to +177 °C, suitable for extreme environments.
Q7: What is the effect of cable length on calibration?
A7: Calibration is based on the probe, extension cable, and Proximitor sensor as a matched set. Changing cable length affects system calibration.
Q8: How does the probe ensure linearity across its measurement range?
A8: It maintains ±0.25% linearity over a ±2.0 mm range, verified during manufacturing.
Q9: What type of thread connection does the probe use?
A9: The probe uses an M10 × 1 threaded connection for secure installation.
Q10: Is this probe suitable for high-speed rotating machinery?
A10: Yes, it is specifically designed for turbines, compressors, and pumps where high-speed shaft monitoring is required.
