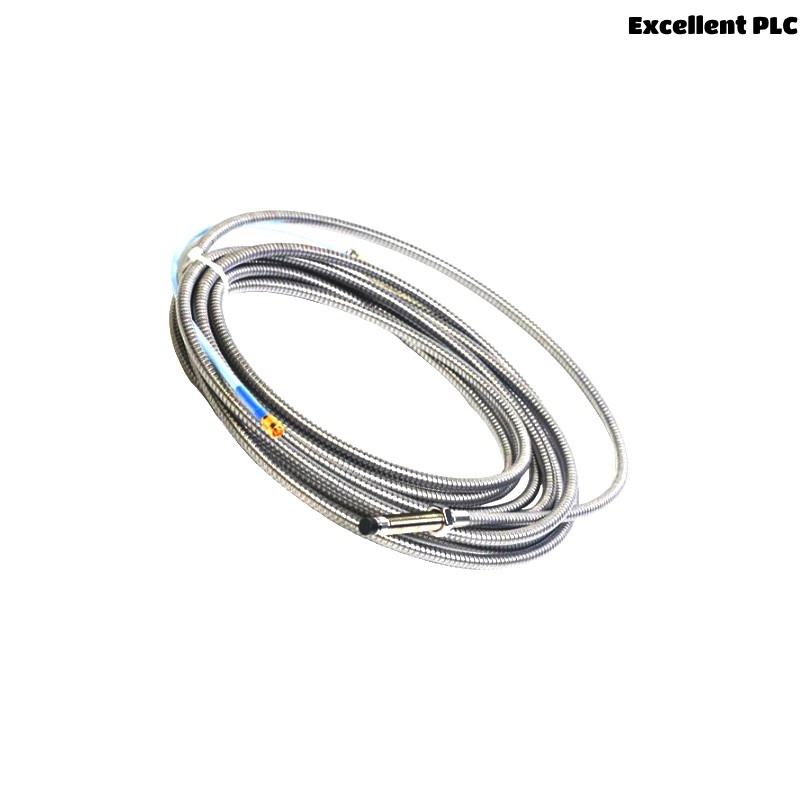

The Bently Nevada 330104-06-13-90-02-CN is a 3300 XL 8 mm proximity probe designed for machinery vibration and position monitoring. It provides precise, non-contact measurements of shaft displacement and position changes. The probe is part of the 3300 XL series, known for its high reliability in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330104-06-13-90-02-CN |
| Series | 3300 XL |
| Tip Diameter | 8 mm |
| Total Cable Length | 9.0 meters |
| System Length | 9.0 meters |
| Extension Cable | Yes (included in system length) |
| Connector Type | Miniature coaxial |
| Case Material | AISI 303 Stainless Steel |
| Mounting Thread | 1/4-28 UNF-2A |
| Weight | 2.907 kg |
| Operating Temperature | -35°C to +177°C |
| Protection Rating | IP68 |
Applications
-
Turbine shaft vibration monitoring
-
Rotating machinery radial position detection
-
Axial thrust position measurement
-
Condition monitoring systems in power generation
-
Petrochemical and refinery rotating equipment
Advantages
-
High resistance to electromagnetic interference
-
Robust design for harsh environments
-
Accurate measurements across wide temperature range
-
Industry-proven reliability
-
Fully compatible with 3300 XL proximity transducer system
Frequently Asked Questions (FAQ)
Q1: What is the length of the 330104-06-13-90-02-CN probe system?
A1: The total system length is 9.0 meters, including probe and extension cable.
Q2: Is this probe compatible with older 7200 series monitors?
A2: No, it is designed to work specifically with the 3300 XL series monitors.
Q3: Can this probe be used in submerged applications?
A3: Yes, with its IP68 protection rating, it can operate in submerged environments.
Q4: What is the mounting thread of the probe?
A4: It has a 1/4-28 UNF-2A threaded mounting.
Q5: What material is used for the probe housing?
A5: The probe is constructed from AISI 303 stainless steel.
Q6: What is the maximum operating temperature for this probe?
A6: It supports up to +177°C.
Q7: Is the extension cable included with the probe?
A7: Yes, it is integrated into the total 9.0 m system length.
Q8: What is the output signal type of this probe?
A8: It provides a voltage signal proportional to shaft displacement.
Q9: Can this model be used for axial displacement measurements?
A9: Yes, it is suitable for both radial and axial position detection.
Q10: Does the probe require external calibration?
A10: It is factory calibrated and ready for use, though field verification is recommended.
