Product Introduction

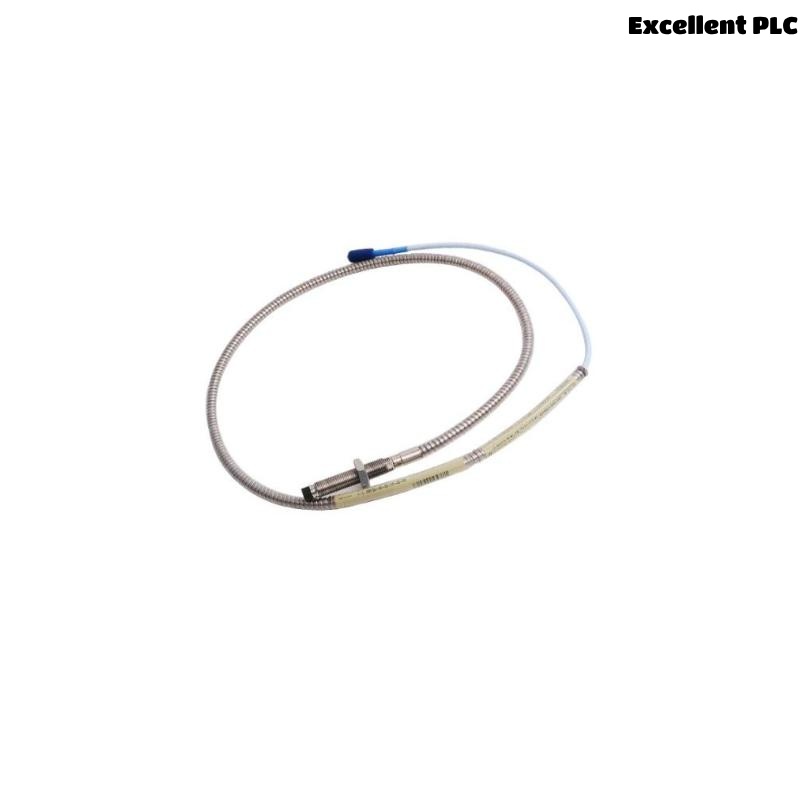

The Bently Nevada 330104-06-14-05-02-05 is a highly reliable 3300 XL 8 mm Proximity Probe designed specifically for accurate shaft vibration and position monitoring in rotating machinery. This probe is part of the renowned 3300 XL series, known worldwide for its ruggedness, precision, and long-lasting performance in industrial environments.
With an 8 mm sensing gap and a total length of 0.5 meter, this probe provides precise measurement of rotor displacement and vibration, which is critical for early detection of mechanical faults such as shaft misalignment, imbalance, and bearing deterioration. Its construction follows rigorous standards to ensure consistent operation under extreme conditions including high temperatures, vibrations, and contaminants commonly found in heavy industrial settings.
The probe weighs only 0.162 kg, offering a lightweight yet robust solution that can be installed easily without adding significant load to the monitored equipment. Its compatibility with Bently Nevada’s monitoring systems ensures seamless integration and dependable data acquisition for condition-based maintenance strategies.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330104-06-14-05-02-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Sensing Gap | 8 mm |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Operating Temperature | -40°C to +120°C |
| Cable Type | Shielded stainless steel armored cable |
| Cable Length | 0.5 meter (standard) |
| Housing Material | Stainless steel |
| Output Signal | AC voltage proportional to gap distance |
| Connector Type | PT02A-10-6P (MIL-C-5015) |
| Mounting Thread | 1/2-28 UNF |
| Vibration Resistance | Up to 200 g |
| Shock Resistance | Up to 1000 g |
Product Applications
The 330104-06-14-05-02-05 proximity probe is designed to be used in a broad spectrum of industrial machinery for vibration and position monitoring:
-
Gas and steam turbines: Enables continuous monitoring of rotor vibrations for predictive maintenance.
-
Centrifugal and reciprocating compressors: Detects shaft movement and helps prevent catastrophic failures.
-
Electric motors and generators: Provides critical rotor position data to ensure operational safety and efficiency.
-
Industrial pumps: Early warning on bearing wear and shaft misalignment.
-
Fans and blowers: Controls vibration to avoid damage and reduce noise.
-
Power generation plants: Maintains high reliability of critical rotating components.
-
Petrochemical and oil & gas facilities: Robust sensor performance in harsh environments.
-
Manufacturing machinery: Supports continuous monitoring to minimize downtime and maintenance costs.
Product Advantages
-
High Accuracy: The 8 mm sensing gap allows precise detection of rotor displacement and vibration.
-
Durable Design: Stainless steel housing and armored cable ensure resistance to mechanical damage and environmental hazards.
-
Wide Temperature Range: Reliable operation between -40°C and +120°C fits most industrial conditions.
-
Excellent Shock and Vibration Resistance: Designed to withstand up to 1000 g shock and 200 g vibration levels.
-
Standardized Installation: Compatible with common mounting threads and connectors for easy integration.
-
Lightweight and Compact: Total length of 0.5 meter and weight of 0.162 kg allow flexible mounting without significant weight addition.
-
Stable Signal Output: Produces consistent AC voltage signals proportional to gap distance for accurate condition monitoring.
-
Proven Industry Standard: Part of the widely trusted 3300 XL family with decades of service history.
-
Low Maintenance: Built for long operational life with minimal need for service.
-
Enhances Equipment Reliability: Early fault detection helps reduce unplanned outages and repair expenses.
Frequently Asked Questions (FAQ)
-
What is the sensing gap of the 330104-06-14-05-02-05 probe?
The sensing gap is 8 mm. -
What are the probe’s dimensions and weight?
The total length is 0.5 meter, and the weight is 0.162 kg. -
What temperature range can this probe operate in?
It operates between -40°C and +120°C. -
What type of signal output does this probe provide?
The output is an AC voltage signal proportional to the distance from the target. -
What connector does this probe use?
It uses a PT02A-10-6P (MIL-C-5015) connector. -
Is the probe resistant to shock and vibration?
Yes, it can resist shocks up to 1000 g and vibrations up to 200 g. -
What materials are used in the probe and cable construction?
The housing is stainless steel, and the cable is shielded with stainless steel armor. -
What mounting thread does this probe use?
The mounting thread is 1/2-28 UNF. -
Can this probe be used with all 3300 XL series monitoring systems?
Yes, it is fully compatible with the standard 3300 XL monitoring systems. -
How does this probe improve machinery maintenance?
It provides early warning of shaft displacement or vibration problems, helping prevent costly failures and downtime.
Recommended Related Models
| Model | Description | Sensing Gap | Cable Length |
|---|---|---|---|
| 330101-00-37-05-02-05 | 3300 XL 8 mm Proximity Probe | 8 mm | 0.5 meter |
| 330102-00-37-05-02-05 | 3300 XL 12 mm Proximity Probe | 12 mm | 0.5 meter |
| 330103-00-37-05-02-05 | 3300 XL 5 mm Proximity Probe | 5 mm | 0.5 meter |
| 330106-00-37-05-02-05 | 3300 XL 20 mm Proximity Probe | 20 mm | 0.5 meter |
| 330104-06-14-05-01-05 | 3300 XL 8 mm Proximity Probe | 8 mm | 1 meter |
| 330105-06-14-05-02-05 | 3300 XL 12 mm Proximity Probe | 12 mm | 1 meter |
