Product Overview

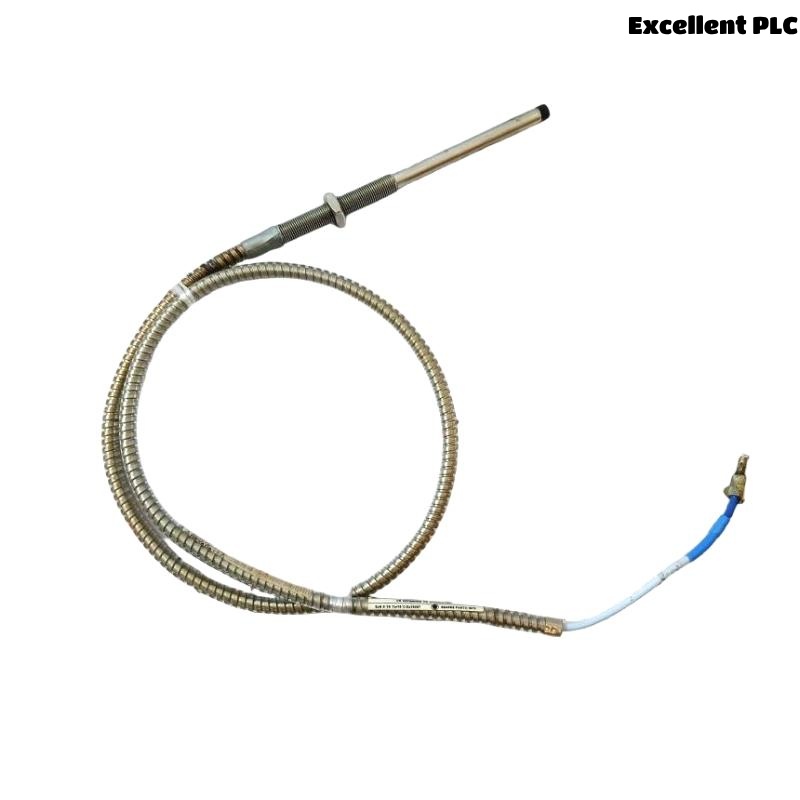

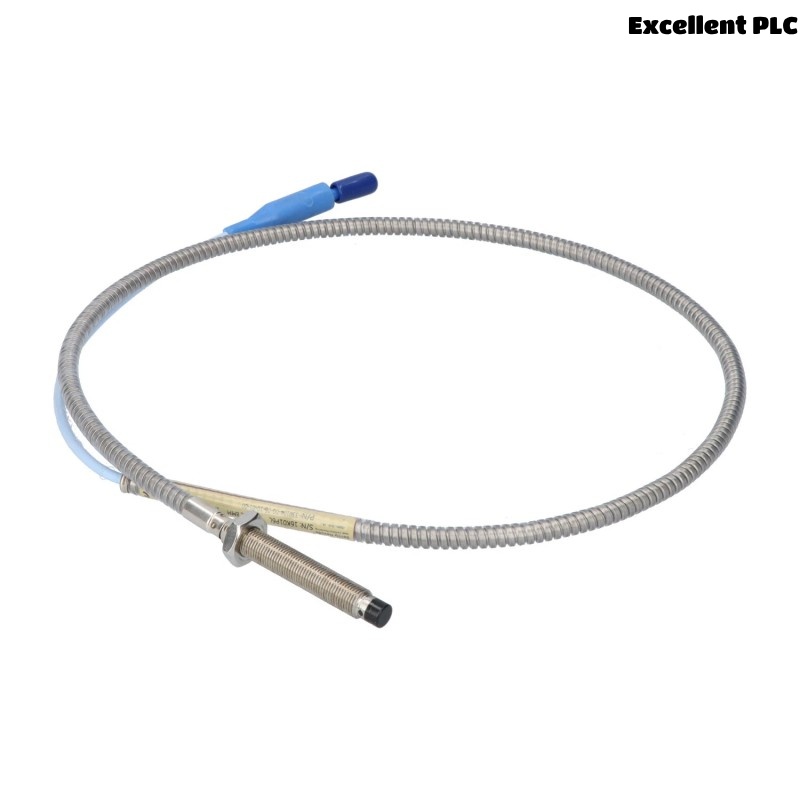

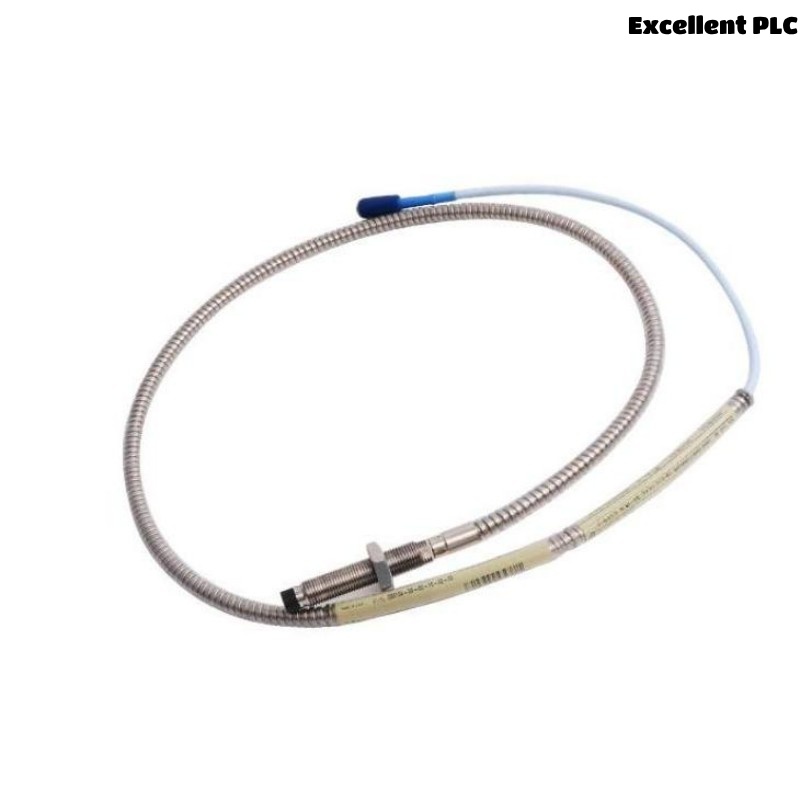

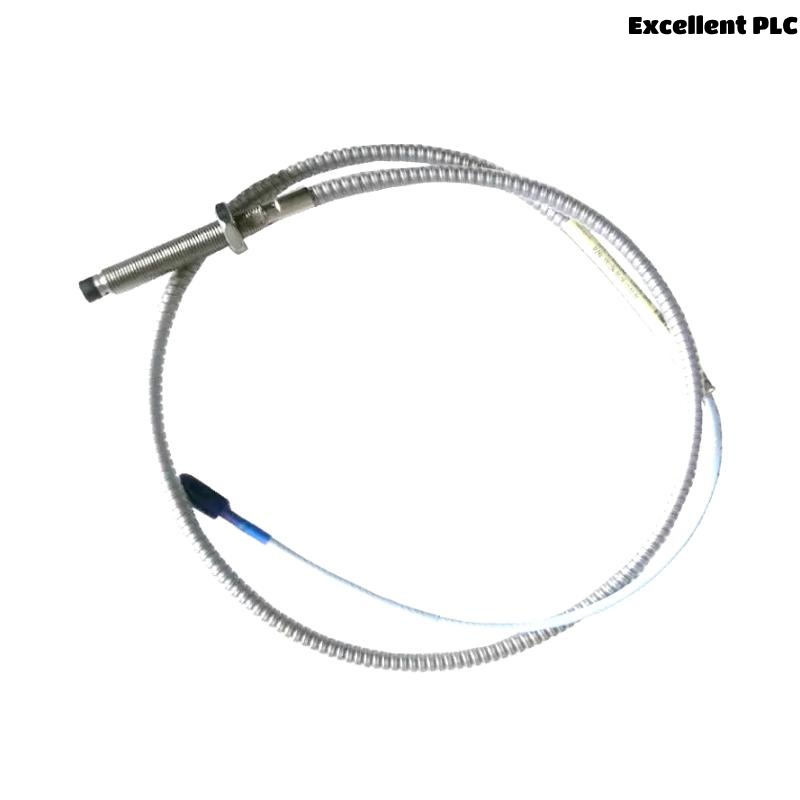

The Bently Nevada 330104-06-15-10-01-00 is a 3300 XL 8 mm Proximity Probe designed for critical machinery vibration and displacement monitoring. It delivers accurate, stable measurements in harsh industrial environments, ensuring the reliability of rotating equipment.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330104-06-15-10-01-00 |
| Series | 3300 XL 8 mm |
| Sensing Range | 2 mm (80 mils) |
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Body Material | AISI 303 Stainless Steel |
| Mounting Thread | 3/8-24 UNF-2A |
| Connector Type | Standard ClickLoc connector |
| System Compatibility | Works with 3300 XL extension cable and Proximitor Sensor |
| Operating Temperature | –51°C to +177°C (–60°F to +350°F) |
| Vibration Limit | 10 g pk, 58–500 Hz |
Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Motors and generators
-
Gearboxes
-
Centrifugal machines
-
Industrial rotating machinery in petrochemical, power generation, and manufacturing sectors
Product Advantages
-
High accuracy and linearity in vibration and position measurements
-
Durable stainless steel construction for harsh environments
-
Compatible with all 3300 XL systems
-
Secure ClickLoc connector minimizes disconnection risks
-
Extended temperature range for high-demand operations
-
Designed to meet API 670 requirements
FAQ
Q1: What is the sensing range of this proximity probe?
A1: It has a typical sensing range of 2 mm (80 mils).
Q2: Is the 330104-06-15-10-01-00 probe compatible with older Bently Nevada systems?
A2: It is compatible with the 3300 XL extension cable and Proximitor sensor systems.
Q3: What type of connector does this probe use?
A3: It features a standard ClickLoc connector for secure connections.
Q4: Can the probe be used in high-temperature environments?
A4: Yes, it supports operating temperatures from –51°C to +177°C.
Q5: What is the thread type for mounting?
A5: The mounting thread is 3/8-24 UNF-2A.
Q6: What is the total length and weight of the probe?
A6: The probe is 1.0 meter in length and weighs 0.323 kg.
Q7: Is the probe resistant to vibration?
A7: Yes, it can handle up to 10 g peak within 58–500 Hz.
Q8: What materials are used in the probe body and tip?
A8: The body is made of AISI 303 stainless steel, and the tip is PPS.
Q9: Can this probe be used in compliance with API 670?
A9: Yes, it meets API 670 requirements for machinery protection.
Q10: What are the main industrial applications of this probe?
A10: It is used in turbines, compressors, pumps, and other rotating machinery.
Related Models (Same Series)
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm XL Probe, 0.6 m | 0.6 m | 0.298 kg |
| 330104-00-06-50-01-00 | 8 mm XL Probe, 0.6 m, shielded | 0.6 m | 0.302 kg |
| 330104-00-10-10-01-00 | 8 mm XL Probe, 1.0 m | 1.0 m | 0.323 kg |
| 330104-00-12-10-01-00 | 8 mm XL Probe, 2.0 m | 2.0 m | 0.355 kg |
| 330104-06-20-10-01-00 | 8 mm XL Probe, 5.0 m | 5.0 m | 0.470 kg |
| 330104-00-05-10-01-00 | 8 mm XL Probe, 0.5 m | 0.5 m | 0.290 kg |
