Product Overview

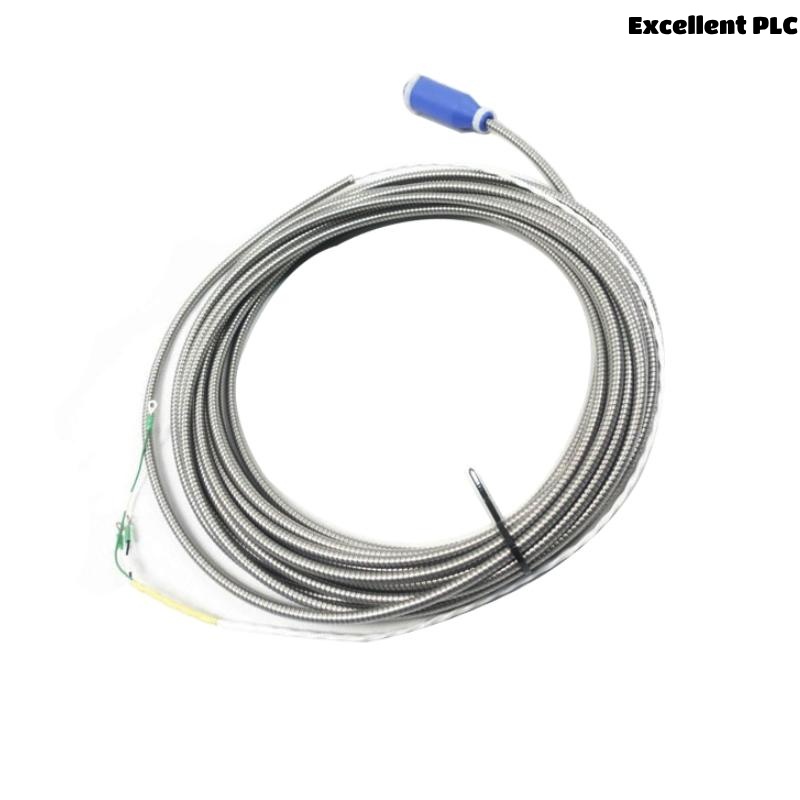

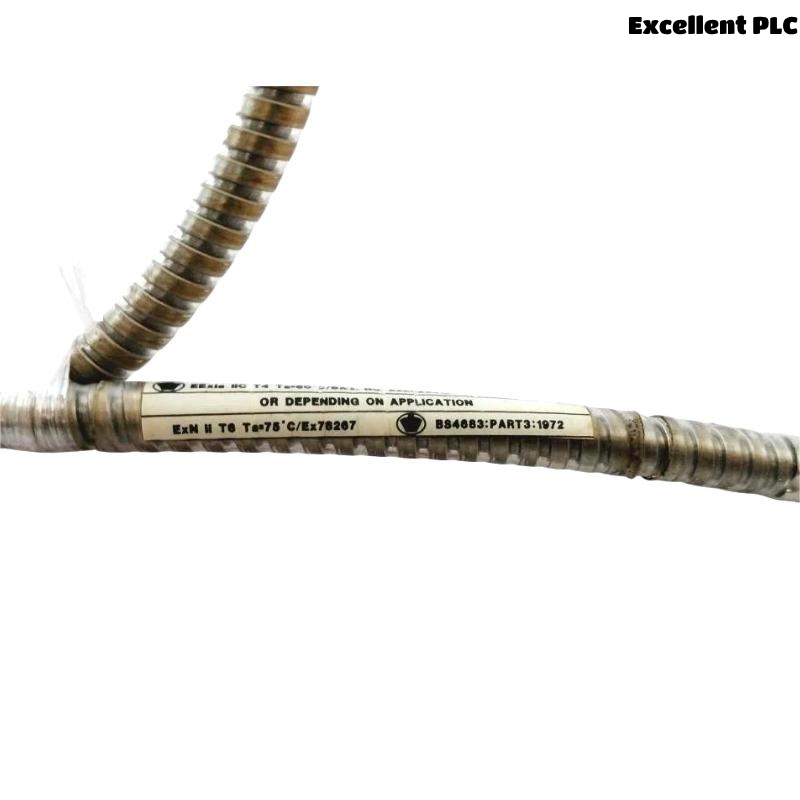

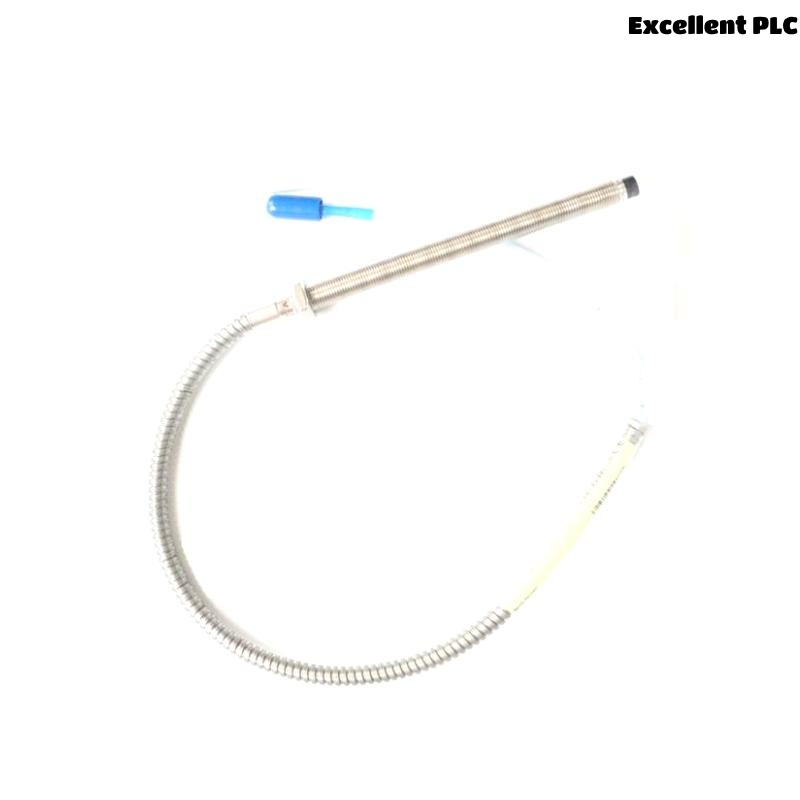

The Bently Nevada 330104-06-25-05-02-00 is a proximity probe from the 3300 XL 8 mm series, designed for precise non-contact vibration and position measurements in industrial machinery. It is used with compatible Proximitor sensors and extension cables in monitoring systems for critical rotating equipment.
Technical Specifications
Parameter | Description |
---|---|
Model Number | 330104-06-25-05-02-00 |
Series | 3300 XL 8 mm |
Tip Diameter | 8 mm |
Thread Size | 1/4-28 UNF |
Mounting Thread Length | 0.5 inch |
Cable Length | 0.5 meter |
Total Length | 0.5 meter |
Weight | 0.162 kg |
Connector Type | Miniature coaxial |
Case Material | AISI 303 stainless steel |
Operating Temperature | −51°C to +177°C |
Vibration Sensitivity | Non-contact, displacement measurement |
Typical Applications | Shaft vibration, axial position, phase reference |
Applications
-
Monitoring shaft vibration in turbines, compressors, and pumps
-
Measuring axial shaft position in rotating machinery
-
Used in condition-based maintenance systems
-
Ideal for predictive diagnostics in hazardous or standard environments
Advantages
-
High reliability in harsh industrial environments
-
Precise and repeatable measurements
-
Easy installation with standard probe configurations
-
Compatible with 3300 XL extension cables and Proximitor sensors
-
Field-proven for vibration monitoring in critical equipment
FAQ
Q1: What is the function of this proximity probe?
A1: It measures the distance between the probe tip and a rotating shaft, enabling vibration and position monitoring.
Q2: Is the probe compatible with other systems?
A2: It is designed to be used with Bently Nevada’s 3300 XL Proximitor and extension cable only.
Q3: What is the total length of the cable?
A3: The total length is 0.5 meter.
Q4: Can this probe operate in high-temperature environments?
A4: Yes, it supports temperatures from −51°C to +177°C.
Q5: What is the thread size for mounting?
A5: The probe uses a 1/4-28 UNF mounting thread.
Q6: How is the probe typically installed?
A6: It is mounted in a probe holder or bracket with direct contact to the machine housing.
Q7: What is the sensing technology used?
A7: It uses non-contact eddy current sensing for displacement.
Q8: Is it suitable for use in hazardous areas?
A8: Yes, when used with certified components from the same series.
Q9: What is the weight of the probe?
A9: The weight is 0.162 kg.
Q10: What material is used for the probe case?
A10: The housing is made from AISI 303 stainless steel.
Related Models (Same Series or Function)
Model Number | Cable Length | Thread Size | Weight |
---|---|---|---|
330104-00-05-10-02-00 | 5.0 m | 1/4-28 UNF | 0.180 kg |
330104-00-06-10-11-00 | 6.0 m | 1/4-28 UNF | 0.185 kg |
330104-00-06-10-15-00 | 6.0 m | 1/4-28 UNF | 0.185 kg |
330104-00-10-10-02-00 | 10.0 m | 1/4-28 UNF | 0.190 kg |
330104-06-05-10-02-00 | 0.5 m | 1/4-28 UNF | 0.162 kg |
330104-06-05-05-02-00 | 0.5 m | 1/4-28 UNF | 0.162 kg |
