Product Overview

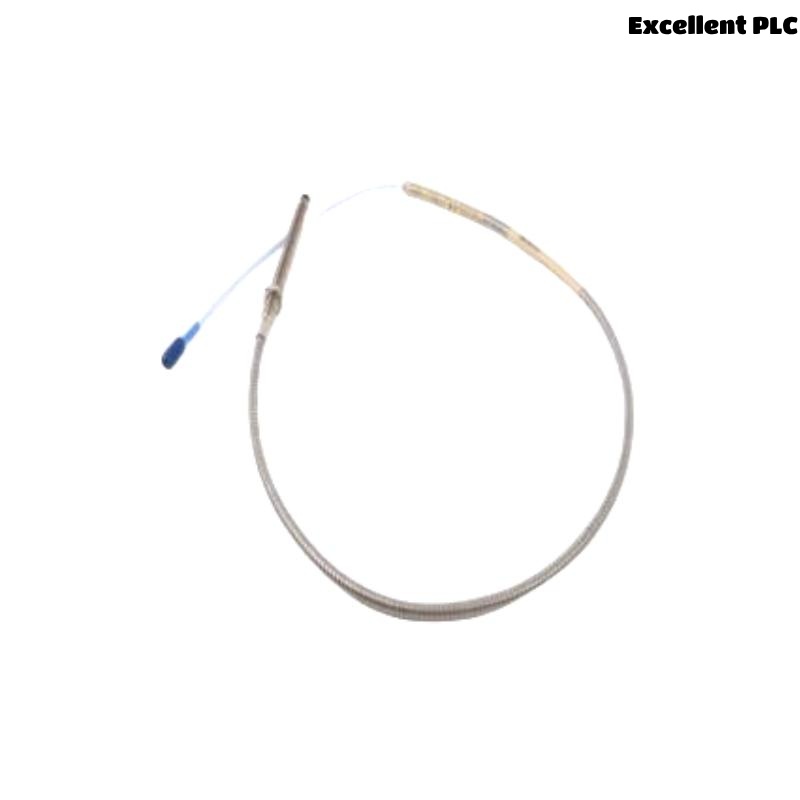

The Bently Nevada 330104-07-12-10-02-CN is part of the 3300 XL series of proximity probes, widely used for measuring shaft displacement and vibration in rotating machinery. This probe features an 8 mm tip and is engineered to deliver precise and reliable data in harsh industrial environments, including hazardous areas.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-07-12-10-02-CN |
| Series | 3300 XL 8 mm Proximity Probe |
| Sensing Element | Non-contact eddy current |
| Tip Diameter | 8 mm |
| Body Style | Unthreaded (Smooth) |
| Cable Length | 1.0 meter |
| Connector Type | Miniature coaxial connector |
| Temperature Range | −51°C to +177°C |
| Pressure Rating | Up to 500 psi |
| Material | AISI 304 Stainless Steel |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Compliance | API 670, CE, ATEX certified |
Applications
-
Turbine shaft vibration monitoring
-
Compressor displacement measurement
-
Motor and generator shaft alignment diagnostics
-
Monitoring radial and axial position of rotating equipment
-
Condition monitoring in petrochemical plants
-
Integration into machinery protection systems
Product Advantages
-
High resistance to environmental conditions (temperature, pressure, oil exposure)
-
Accurate non-contact vibration measurement
-
Compatible with 3300 XL extension cables and Proximitor modules
-
Long service life and stable calibration
-
Suitable for API 670-compliant installations
-
Enhanced EMI/RFI immunity
Frequently Asked Questions (FAQ)
Q1: What is the sensing technology used in this probe?
A1: It uses eddy current non-contact sensing for measuring proximity and vibration.
Q2: Is the 330104-07-12-10-02-CN compatible with other 3300 XL components?
A2: Yes, it is fully compatible with 3300 XL extension cables and Proximitor modules.
Q3: Can this probe operate in hazardous environments?
A3: Yes, it is certified for use in hazardous areas with ATEX and CE compliance.
Q4: What is the tip size of this proximity probe?
A4: The tip diameter is 8 mm, ideal for standard vibration measurement applications.
Q5: What is the weight of this probe?
A5: The total weight is 0.323 kg.
Q6: What is the typical installation scenario for this probe?
A6: It is installed near rotating shafts to monitor vibration and position.
Q7: What type of connector is used?
A7: It uses a miniature coaxial connector for signal integrity.
Q8: Can the probe withstand oil and dust exposure?
A8: Yes, it is constructed from stainless steel and sealed for industrial use.
Q9: Is this probe API 670 compliant?
A9: Yes, it meets the API 670 standard for machinery protection.
Q10: What is the operating temperature range?
A10: It operates from −51°C to +177°C.
Related Models from the Same Series
| Model Number | Cable Length | Tip Diameter | Weight |
|---|---|---|---|
| 330104-00-05-10-02-CN | 0.5 m | 8 mm | 0.310 kg |
| 330104-00-06-10-11-00 | 1.0 m | 8 mm | 0.323 kg |
| 330104-00-07-10-01-00 | 1.5 m | 8 mm | 0.335 kg |
| 330104-00-08-10-02-00 | 2.0 m | 8 mm | 0.340 kg |
| 330104-00-10-10-01-00 | 3.0 m | 8 mm | 0.355 kg |
| 330104-00-12-10-02-00 | 5.0 m | 8 mm | 0.370 kg |
