Product Overview

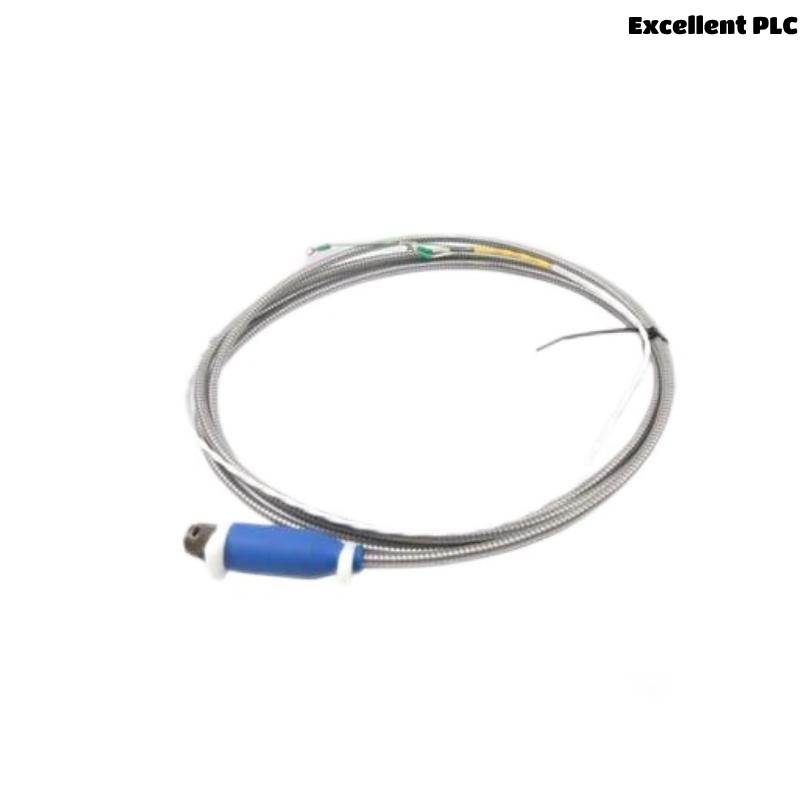

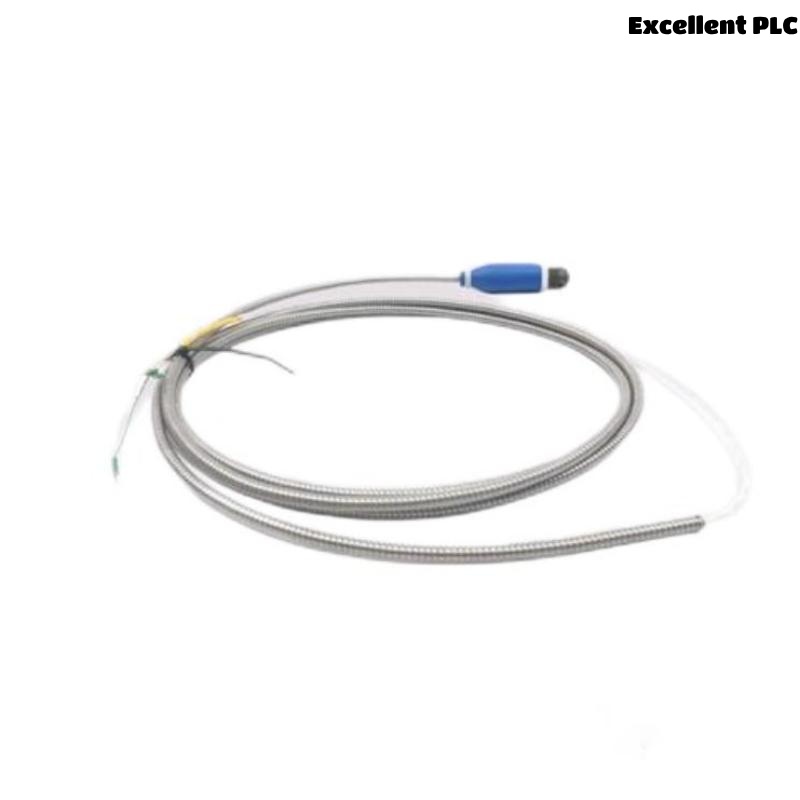

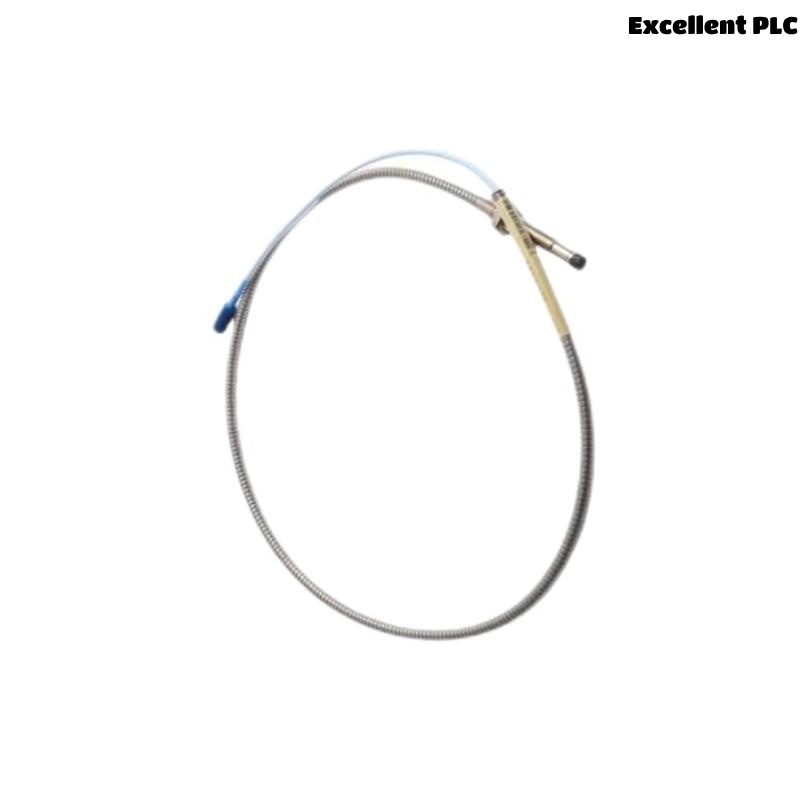

The Bently Nevada 330104-10-16-05-01-00 3300 XL 8 mm Proximity Probe is a precision industrial sensor designed for reliable vibration and displacement monitoring in rotating machinery. The 3300 XL series, known for its advanced technology and superior accuracy, is widely used in applications requiring high performance in harsh environments. This probe offers 8 mm diameter measurement, ideal for proximity detection in turbines, compressors, pumps, and other critical machinery.
Engineered for precision and durability, the 3300 XL Proximity Probe is highly regarded in the field of machinery condition monitoring. It plays a crucial role in detecting early signs of mechanical failure, allowing for timely maintenance and reducing the risk of unplanned downtime. Its robust construction and excellent temperature tolerance make it an ideal choice for industries where reliability and precision are critical, including power generation, petrochemicals, and manufacturing.
Key Features
-
High Precision Measurement: Delivers accurate displacement and vibration data, ensuring early detection of potential machinery issues.
-
8 mm Sensing Diameter: Specifically designed for high-precision proximity measurements in critical rotating machinery.
-
Durable Construction: Built with high-quality materials to withstand harsh industrial environments such as extreme temperatures and vibrations.
-
Easy Installation: Designed for simple integration with Bently Nevada’s 3300 series system, ensuring smooth and quick installation.
-
Wide Measurement Range: Capable of measuring a wide range of displacement, providing versatility in different applications.
-
Long-Term Reliability: Engineered for long-term use with minimal maintenance, reducing operational costs over time.
-
Low Maintenance Requirements: The probe requires very little maintenance, making it a cost-effective solution for continuous monitoring.
-
Enhanced Vibration Detection: Perfect for monitoring critical machines, ensuring efficient performance and reducing the risk of unplanned downtime.
Technical Specifications
| Specification | Description |
|---|---|
| Product Model | 330104-10-16-05-01-00 |
| Product Type | 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Measurement Range | 0.050 mm to 10 mm |
| Probe Material | Stainless Steel |
| Operating Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Operating Voltage | 10 V to 30 V DC (Nominal) |
| Output Type | 4-20 mA Analog Output |
| Power Supply | 24 V DC (Nominal) |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.161 kg |
| Certifications | CE, UL, RoHS, ISO 9001 |
Typical Applications
The Bently Nevada 330104-10-16-05-01-00 3300 XL 8 mm Proximity Probe is used in a variety of critical applications, particularly in industries where continuous monitoring of machinery health is required:
-
Power Generation: Used in monitoring turbines, generators, and other rotating machinery critical for power plants.
-
Petrochemical & Chemical Plants: Monitors pumps, compressors, and motors, helping to ensure continuous operation of processing units.
-
Oil & Gas: Ideal for offshore and onshore applications, monitoring rotating equipment to detect early signs of failure.
-
Manufacturing: Utilized in CNC machines, presses, and other high-precision manufacturing equipment to ensure smooth operation.
-
Water Treatment Plants: Monitors pumps and motors used in water filtration and distribution systems.
-
Mining & Metals: Helps monitor crushers, mills, and other machinery used in the extraction and processing of materials.
-
HVAC Systems: Monitors fans, pumps, and compressors in HVAC applications, ensuring optimal system performance and energy efficiency.
-
Automotive Manufacturing: Provides vibration monitoring for robotic arms and automated assembly lines, preventing unexpected breakdowns.
Product Advantages
-
Superior Accuracy: Offers high precision in vibration and displacement measurements, ensuring reliable condition monitoring.
-
Durability in Harsh Environments: Designed to operate in environments with high temperatures, vibrations, and contaminants, ensuring longevity and reliable performance.
-
Easy Integration: The 3300 XL series probes are easily integrated with existing Bently Nevada machinery monitoring systems, reducing setup time.
-
Reduced Downtime: Early detection of mechanical faults reduces the likelihood of unplanned downtime, improving overall system efficiency.
-
Cost-Effective: With minimal maintenance requirements and a long operational life, the probe offers excellent value over time.
-
Flexible Applications: Suitable for a wide range of industrial applications, providing versatility across different industries.
-
Robust Design: Resistant to damage from mechanical stress, ensuring long-term use even in challenging industrial conditions.
-
Accurate Vibration Detection: Ideal for preventing catastrophic failures by providing real-time monitoring of machinery vibrations and displacement.
Frequently Asked Questions (FAQ)
-
What is the primary purpose of the Bently Nevada 330104-10-16-05-01-00 Proximity Probe?
The probe is used for precise vibration and displacement measurement in rotating machinery, helping to detect early signs of mechanical failure. -
What is the diameter of the probe?
The probe has an 0.5 meter diameter, specifically designed for high-precision proximity measurement. -
What is the measurement range of the 3300 XL 8 mm Proximity Probe?
It can measure displacements from 0.050 mm to 10 mm, providing flexibility for various monitoring applications. -
What type of output does the 3300 XL Proximity Probe provide?
The probe provides a 4-20 mA analog output, which is compatible with many industrial monitoring systems. -
How does the probe handle extreme environments?
The probe is built to withstand harsh industrial conditions, with an operating temperature range from -40°C to +120°C (-40°F to +248°F). -
What industries use the Bently Nevada 3300 XL Proximity Probe?
It is used in industries such as power generation, petrochemical, oil & gas, manufacturing, and more for monitoring critical rotating machinery. -
Is the 3300 XL 8 mm Proximity Probe easy to install?
Yes, the probe is designed for easy installation and integration with existing Bently Nevada monitoring systems. -
What certifications does the 3300 XL 8 mm Proximity Probe have?
The probe is CE, UL, RoHS certified, ensuring it meets international safety and environmental standards. -
What is the power requirement for the 3300 XL Proximity Probe?
It requires a nominal 24 V DC power supply to operate. -
What is the weight of the 3300 XL 8 mm Proximity Probe?
The probe weighs approximately 0.161kg, making it lightweight and easy to handle during installation.
