Product Overview

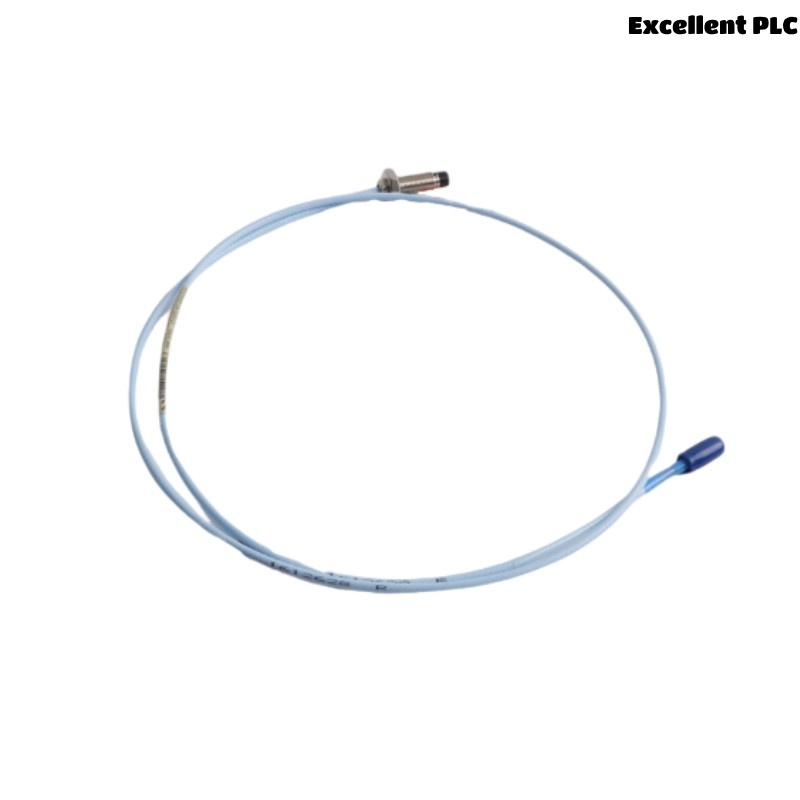

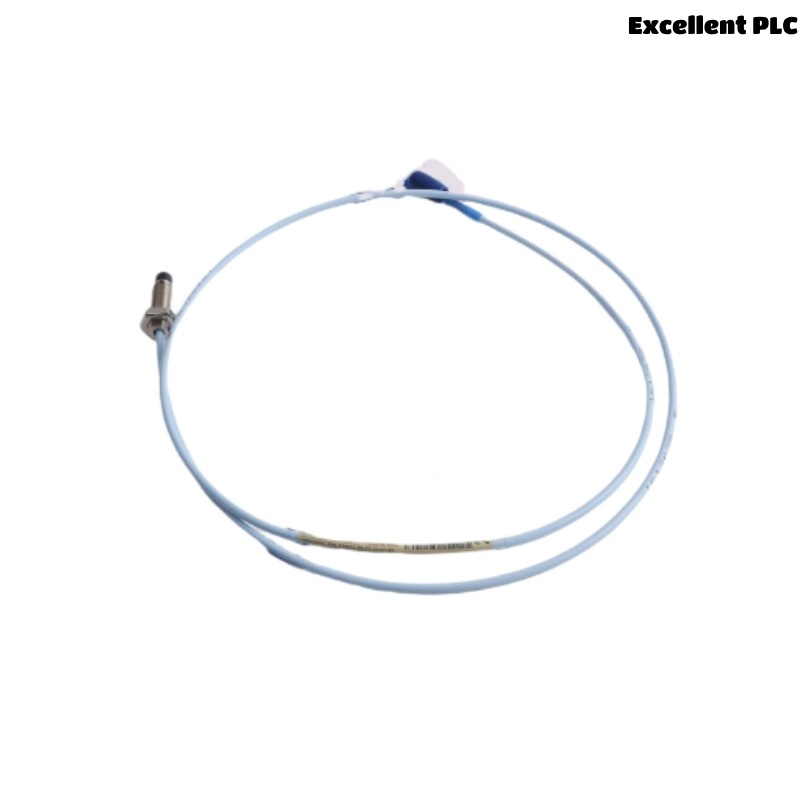

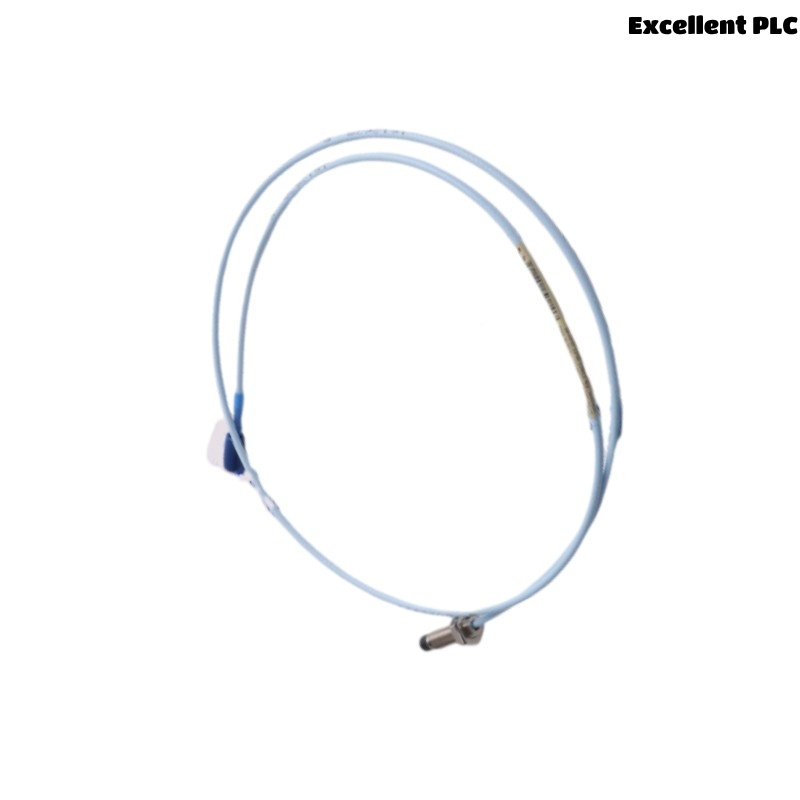

The Bently Nevada 330104-10-20-05-02-00 3300 XL 8 mm Proximity Probe is a high-performance, non-contact sensor designed to accurately measure the displacement of rotating machinery components. This probe is part of the 3300 XL Series and is typically used in vibration monitoring systems, where precise displacement readings are required for predictive maintenance and condition monitoring.
The 8 mm probe provides excellent performance in harsh industrial environments, offering high sensitivity and reliability for measuring shaft displacement, bearing health, and overall machinery condition. Its compact design allows for easy integration into a wide range of industrial applications, making it an ideal choice for vibration analysis systems.
Key Features
-
8 mm probe diameter for accurate and reliable measurements
-
High precision and sensitivity for enhanced vibration monitoring
-
Durable construction designed to withstand extreme operating conditions
-
Designed for integration with Bently Nevada vibration monitoring systems
-
Non-contact measurement technology for enhanced safety and accuracy
-
Industry-standard compatibility with 3300 XL extension cables
-
Compact and easy to install for use in tight spaces
-
Available with multiple cable lengths to suit different installation requirements
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | 8 mm Proximity Probe |
| Model Number | 330104-10-20-05-02-00 |
| Probe Diameter | 8 mm |
| Dimensions | Total Length : 0.5 meter |
| Measurement Range | 0 to 1.5 mm displacement (typically) |
| Operating Temperature | -40°C to +85°C |
| Operating Voltage | 24 VDC |
| Material | Stainless steel, high-grade materials for extreme durability |
| Mounting Type | Directly mounted to the housing or via a mounting bracket |
| Compatibility | Compatible with 3300 XL extension cords and Bently Nevada monitoring systems |
| Weight | 0.161 kg |
| Certifications | CE, RoHS compliant |
| Protection Rating | IP65 |
Industry Applications
-
Power Generation – Vibration monitoring of turbines, generators, and motors
-
Oil & Gas – Shaft displacement monitoring in pumps, compressors, and gas turbines
-
Chemical Processing – Monitoring rotating equipment like mixers and agitators
-
Aerospace – Detecting mechanical displacement in turbine engines and propulsion systems
-
Mining – Vibration analysis of mining equipment and crushers
-
Water Treatment – Condition monitoring of pumps and filtration systems
Advantages
-
High accuracy and precision for enhanced predictive maintenance
-
Compact and rugged design ensures reliable performance in harsh industrial environments
-
Non-contact measurement technology reduces wear and tear, extending probe lifespan
-
Easily integrates with Bently Nevada systems for seamless operation
-
Low maintenance requirements due to durable construction
-
Wide operating temperature range suitable for a variety of industrial settings
-
Proven reliability in high-vibration and extreme environmental conditions
Frequently Asked Questions (FAQ)
-
What is the Bently Nevada 330104-10-20-05-02-00 used for?
It is used for measuring the displacement of rotating machinery components in vibration monitoring systems. -
What is the probe diameter?
The probe diameter is 8 mm, ideal for accurate displacement measurements. -
What is the maximum measurement range of the probe?
The probe typically measures displacement up to 1.5 mm. -
What type of materials is the probe made from?
It is made of stainless steel, providing high durability and resistance to wear. -
Can this probe be used in extreme temperatures?
Yes, it operates in temperatures ranging from -40°C to +85°C. -
How does this probe work?
The probe uses non-contact measurement technology, detecting the displacement of rotating parts without physical contact. -
What voltage does the probe operate on?
It operates on 24 VDC. -
Is the probe easy to install?
Yes, it is designed for easy installation and can be mounted directly to the housing or with a bracket. -
What is the protection rating of this probe?
It has an IP65 protection rating, making it resistant to dust and water. -
Can the probe be used with other Bently Nevada systems?
Yes, it is fully compatible with Bently Nevada’s 3300 XL series extension cords and vibration monitoring systems.
