Product Overview

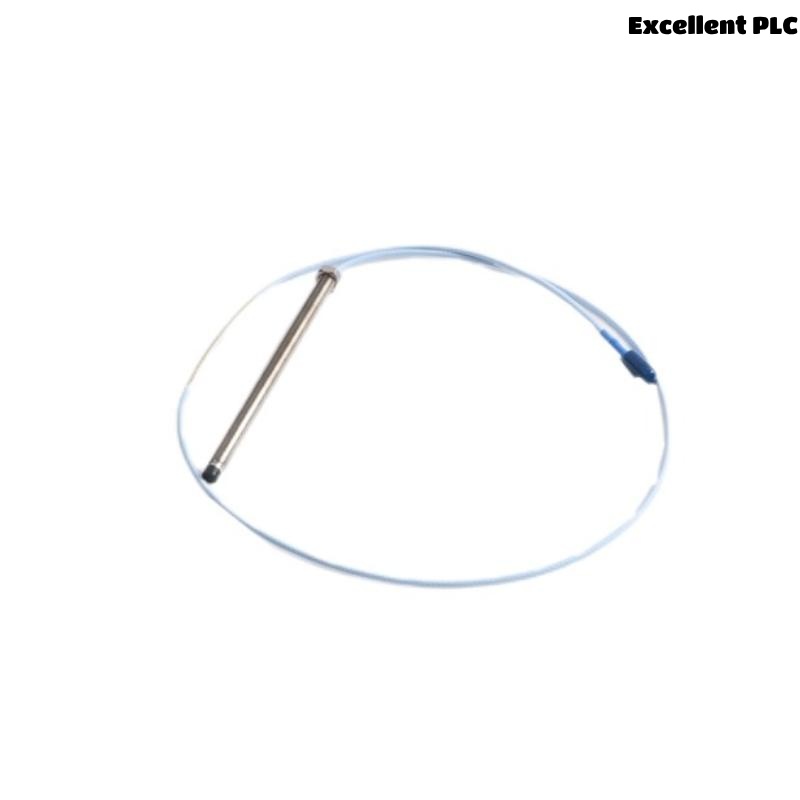

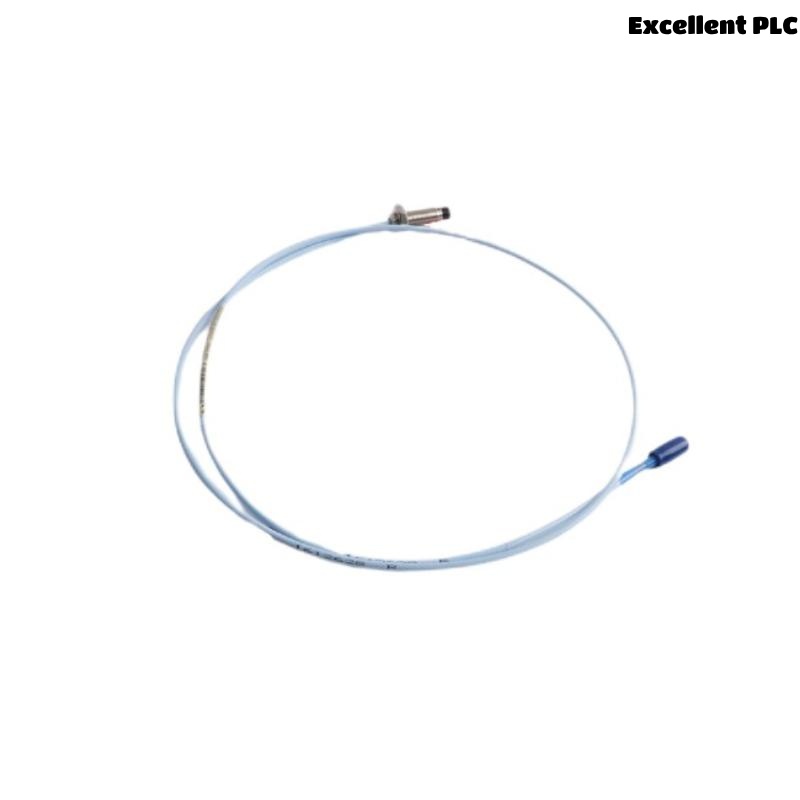

The Bently Nevada 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe is part of the advanced 3300 XL series, offering high-precision vibration and displacement measurements for critical rotating machinery. Designed for monitoring machinery in a wide variety of industrial applications, this probe features a robust and durable design, providing reliable operation even in harsh environments. It is particularly used in power generation, petrochemical, oil & gas, and manufacturing industries, where the early detection of mechanical faults is essential for maintaining uptime and avoiding costly downtime.
The 3300 XL Proximity Probe operates on the principle of electromagnetic inductance, providing non-contact measurement of machinery displacement. Its 8 mm diameter allows for highly accurate proximity sensing, and its superior temperature tolerance and vibration resistance make it an ideal choice for machines that require continuous monitoring in extreme industrial environments.
Key Features
-
Precision Measurement: Provides accurate displacement and vibration measurements to detect faults in rotating machinery early.
-
8 mm Sensing Diameter: Specifically designed to handle high-precision measurements for proximity monitoring in rotating machinery.
-
Durable Design: Built to withstand extreme conditions, including high vibration, high temperatures, and harsh industrial environments.
-
Excellent Vibration Detection: Ideal for critical machines like turbines, compressors, and pumps, helping to identify issues that could lead to failure.
-
Easy Integration: Designed for seamless integration with Bently Nevada’s 3300 series vibration monitoring systems.
-
Low Maintenance: Offers long-term durability with minimal maintenance requirements, providing a cost-effective monitoring solution.
-
Wide Measurement Range: Suitable for a broad range of displacement and vibration monitoring applications.
-
Robust Construction: Built with high-quality materials for durability and long operational life, even under the toughest conditions.
Technical Specifications
| Specification | Description |
|---|---|
| Product Model | 330104-13-20-10-02-00 |
| Product Type | 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Measurement Range | 0.050 mm to 10 mm |
| Probe Material | Stainless Steel |
| Operating Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Operating Voltage | 10 V to 30 V DC (Nominal) |
| Output Type | 4-20 mA Analog Output |
| Power Supply | 24 V DC (Nominal) |
| Dimensions | Total Length: 1.0 meter |
| Weight | 0.323kg |
| Certifications | CE, UL, RoHS, ISO 9001 |
Typical Applications
The Bently Nevada 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe is designed for critical applications where the early detection of machine faults is essential for operational safety and efficiency:
-
Power Generation: Monitoring turbines, generators, and motors to detect potential faults before they cause downtime.
-
Petrochemical & Chemical Plants: Ensuring the safe and efficient operation of pumps, compressors, and other rotating equipment in chemical processing.
-
Oil & Gas: Used in offshore and onshore facilities for monitoring critical machinery like pumps, motors, and compressors.
-
Manufacturing: Perfect for monitoring industrial machines, including CNC machines, presses, and conveyor systems, to prevent production delays.
-
Water Treatment: Monitors critical pumps and motors in water filtration and distribution systems, ensuring continuous operation.
-
Mining & Metals: Used to monitor crushers, mills, and other heavy machinery involved in material extraction and processing.
-
HVAC Systems: Provides reliable monitoring of fans, pumps, and compressors in HVAC systems, optimizing performance and energy efficiency.
-
Automotive Manufacturing: Vibration monitoring in automated assembly lines and robotic systems to prevent equipment failure.
Product Advantages
-
Precision and Accuracy: The 3300 XL probe offers highly accurate proximity measurements, making it ideal for detecting early signs of machine malfunction.
-
Durable for Harsh Environments: With a robust construction, it’s designed to operate under extreme environmental conditions such as high vibrations and temperatures.
-
Seamless Integration: Compatible with Bently Nevada’s 3300 series monitoring systems, ensuring easy installation and reliable performance.
-
Minimized Downtime: The early detection of mechanical faults reduces the risk of unplanned downtime and expensive repairs.
-
Long Service Life: Designed to last for extended periods with minimal maintenance, making it a cost-effective solution.
-
Wide Application Range: Can be used in various industries, offering flexibility for numerous applications across different machinery types.
-
Rugged Construction: Built to handle mechanical stress, electrical noise, and environmental extremes, ensuring continuous performance in demanding conditions.
-
High Performance: Delivers real-time monitoring, allowing for immediate corrective action to prevent equipment failure.
Frequently Asked Questions (FAQ)
-
What is the primary function of the Bently Nevada 330104-13-20-10-02-00 Proximity Probe?
The primary function is to measure the displacement and vibration of rotating machinery, providing critical data for early fault detection and proactive maintenance. -
What is the diameter of the 3300 XL 8 mm Proximity Probe?
The probe has an 8 mm diameter, ideal for precise proximity measurements in rotating machinery. -
What is the measurement range of this proximity probe?
The probe has a measurement range from 0.050 mm to 10 mm, allowing for accurate monitoring of displacement and vibration. -
What type of output does the 3300 XL Proximity Probe provide?
The probe provides a 4-20 mA analog output, which is standard for vibration monitoring systems. -
How does the probe handle harsh environments?
The probe is built to withstand extreme conditions such as high temperatures, vibrations, and contamination, making it ideal for use in industrial settings. -
What industries use the Bently Nevada 3300 XL Proximity Probe?
It is used in industries like power generation, petrochemical, oil & gas, manufacturing, water treatment, and automotive for machinery monitoring. -
What is the power requirement for the 3300 XL Proximity Probe?
The probe requires a nominal 24 V DC power supply to operate. -
What is the temperature range for the 3300 XL 8 mm Proximity Probe?
It operates within a temperature range of -40°C to +120°C (-40°F to +248°F), making it suitable for demanding environments. -
How easy is it to install the 3300 XL Proximity Probe?
The probe is designed for easy integration with Bently Nevada’s 3300 series monitoring systems, simplifying installation and configuration. -
What certifications does the 3300 XL Proximity Probe have?
The probe is CE, UL, and RoHS certified, ensuring compliance with international safety and environmental standards.
