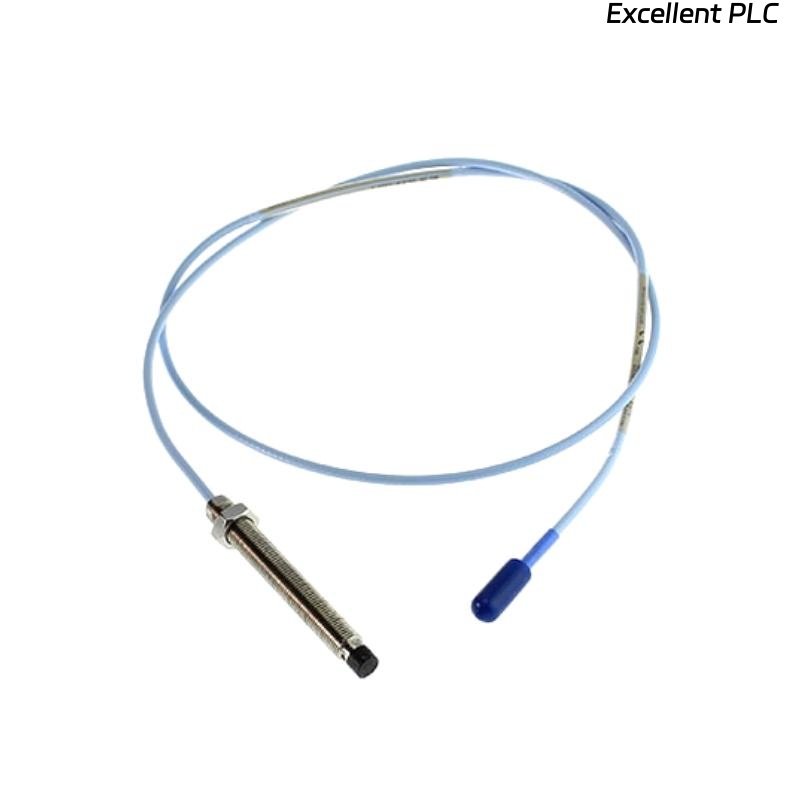

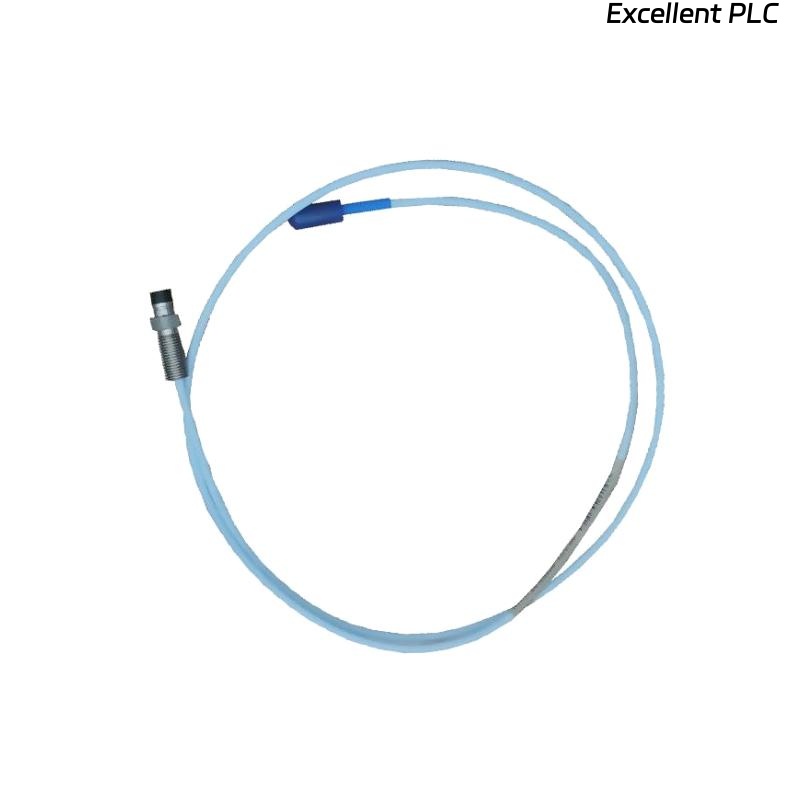

Bently Nevada 330104-15-25-05-02-05-00 3300 XL 8 mm Proximity Probes

Manufacturer:Bently Nevada

Product Number:330104-15-25-05-02-05-00

Product Type:3300 XL 8 mm Proximity Probes

Origin:USA

Total Length:0.5 meter

Weight:0.162 kg

Views:277

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Bently Nevada 330104-15-25-05-02-05-00 3300 XL 8 mm Proximity Probes

Product Introduction

The Bently Nevada 330104-15-25-05-02-05-00 is a high-precision 8 mm proximity probe from the 3300 XL series, designed for non-contact measurement of shaft vibration and displacement in critical rotating machinery. Known for its robust performance, this probe is widely deployed in turbines, compressors, motors, and pumps where accurate and reliable monitoring is essential.

With a total cable length of 0.5 meters and a compact probe diameter, this sensor provides rapid response, low noise, and stable output even in demanding industrial environments. Its design ensures compatibility with Bently Nevada 3300 XL monitoring systems, offering seamless integration into advanced machinery protection and condition monitoring setups.


Product Parameters

Parameter Specification
Model 330104-15-25-05-02-05-00
Series 3300 XL
Sensor Type Proximity / Eddy Current
Probe Diameter 8 mm
Measuring Range Typically up to 1 mm (target dependent)
Frequency Response DC to 20 kHz
Linearity ≤ ±1% of full scale
Total Length 0.5 meter
Operating Temperature Range -35 °C to +120 °C
Storage Temperature Range -40 °C to +150 °C
Housing Material Stainless steel
Mounting Thread Metric / UNF options
Output Signal Voltage proportional to shaft displacement
Protection Class IP65 or higher
Weight 0.162 kg

Product Applications

The 3300 XL 8 mm Proximity Probe is suitable for high-reliability applications in critical rotating machinery:

  • Steam and Gas Turbines – Monitoring rotor displacement, shaft vibration, and thrust position to prevent catastrophic failures.

  • Compressors – Measuring shaft dynamics, detecting imbalance, misalignment, or oil whirl conditions.

  • Motors and Generators – Ensuring continuous monitoring of high-speed rotors for safe operation.

  • Pumps – Detecting shaft movement, vibration patterns, and early signs of mechanical wear.

  • Bearings – Assessing lubrication film stability and monitoring rotor-to-bearing clearances.

  • Condition Monitoring Systems – Integrated with 3300 XL monitoring systems for predictive maintenance and machinery protection.


Product Advantages

  • High Accuracy: Maintains linearity within ±1% of full-scale displacement.

  • Non-Contact Measurement: Eliminates mechanical wear and supports long-term reliability.

  • Compact and Robust Design: Stainless-steel housing ensures durability in industrial environments.

  • Thermal Stability: Operates reliably from -35 °C to +120 °C, suitable for turbines and compressors.

  • Wide Frequency Response: Captures both low-frequency displacement and high-frequency vibration signals.

  • Seamless Integration: Designed for compatibility with Bently Nevada 3300 XL monitoring systems.

  • Low Noise Output: Provides clean signals for precise vibration and displacement monitoring.

  • Proven Performance: Trusted solution in power generation, oil & gas, and heavy industrial applications.


FAQ

  1. What is the working principle of the 330104-15-25-05-02-05-00 probe?
    It uses the eddy current principle, generating a voltage proportional to the distance between the probe tip and the conductive shaft.

  2. What shaft materials are suitable for this probe?
    It is optimized for conductive metals, with steel shafts being the most common application.

  3. What is the frequency response range of this probe?
    The probe operates from DC up to 20 kHz, suitable for both static and dynamic monitoring.

  4. Can it measure both radial and axial displacement?
    Yes, the probe can be mounted to monitor either radial vibration or axial movement depending on installation.

  5. How does it maintain signal linearity?
    The probe’s design and the 3300 XL system linearization ensure measurement within ±1% of full-scale displacement.

  6. Is the probe compatible with other Bently Nevada systems?
    It is specifically designed for the 3300 XL series, but can interface with other compatible systems that accept standard voltage outputs.

  7. How does the probe handle electrical noise?
    Shielded cabling and robust electronics minimize interference from electromagnetic and radio-frequency sources.

  8. Can it operate in high-temperature environments?
    Yes, it can reliably operate up to +120 °C at the probe tip.

  9. Is recalibration needed after installation?
    Factory calibration ensures accurate output; periodic verification may be conducted per standard maintenance procedures.

  10. How does it contribute to predictive maintenance?
    By providing real-time shaft displacement and vibration data, the probe allows early detection of imbalance, misalignment, bearing wear, or lubrication issues, reducing unplanned downtime.


Recommended Related Models (Same Series / Family)

Model Description
330104-15-25-05-02-05-01 8 mm XL probe with extended cable
330104-15-25-05-02-05-02 Standard 8 mm probe for general monitoring
330104-15-25-10-02-05-00 8 mm probe with high-temperature variant
330104-15-25-05-02-10-00 XL probe with integrated mounting options
330104-15-25-05-02-05-03 Probe with shielded cable for EMI environments
330104-15-25-05-02-05-04 Standard 8 mm proximity probe, short cable

Popular Models from the Same Brand (Bently Nevada)

Model Description
330106-15-25-05-02-05-00 12 mm XL proximity probe
330108-15-25-05-02-05-00 14 mm XL proximity probe
330104-15-25-05-02-06-00 8 mm XL probe with extended range
330104-15-25-05-02-07-00 8 mm XL probe for high-speed applications
3500/05-05-05-02-05-00 Monitoring module for 3300 XL probes
330104-15-25-05-02-08-00 8 mm XL probe with high-temperature cable
