Product Description

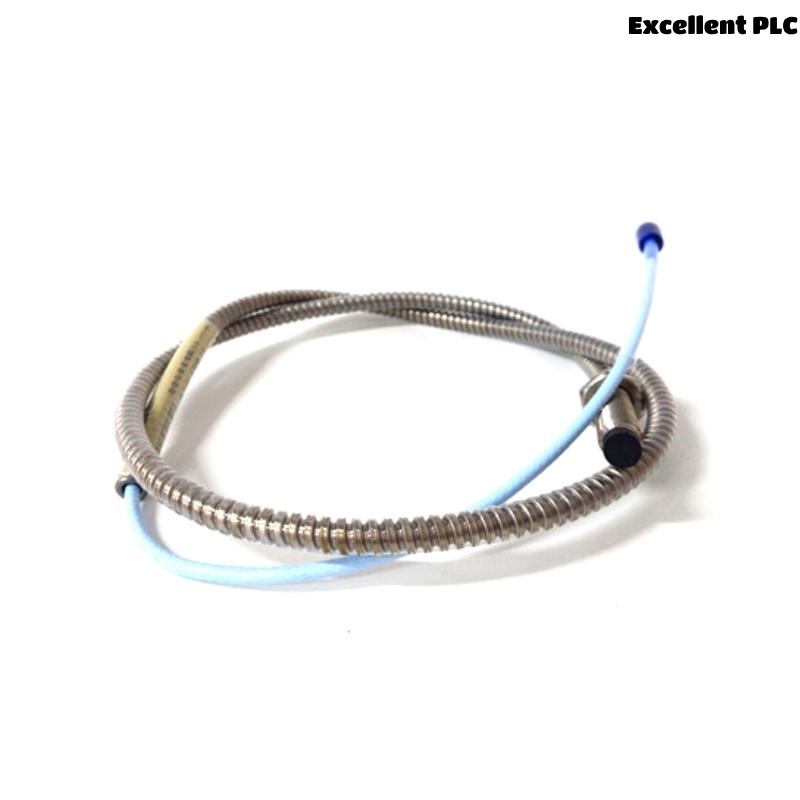

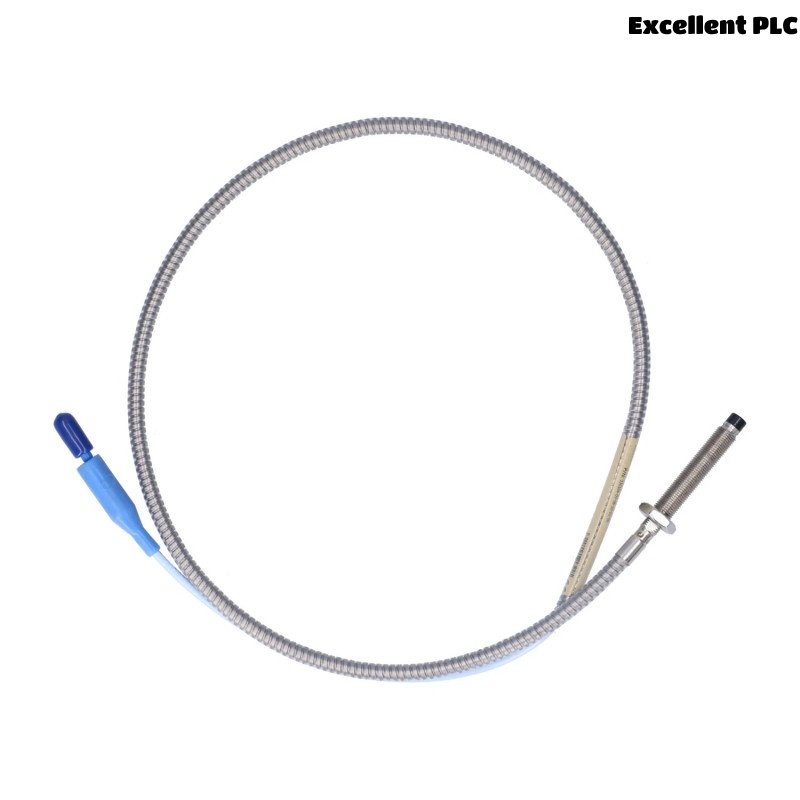

The Bently Nevada 330104-15-25-05-02-CN is part of the 3300 XL 8 mm Proximity Transducer System. It is a robust eddy current proximity probe used primarily in vibration and position measurements on rotating machinery such as turbines, compressors, and motors. This model features an M10 x 1 thread, armor for protection, and a 0.5-meter total length, making it suitable for compact and high-vibration environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8.0 mm |
| Thread Size | M10 x 1 |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless Steel (AISI 304) |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature | -52°C to +177°C |
| Pressure Seal | Viton® O-ring |
| Environmental Rating | IP54 with proper mounting |
| Compliance | API 670, CE, RoHS, FCC, SIL 2/3 |
Applications
-
Radial vibration monitoring on fluid-film bearing machines
-
Shaft position and axial thrust monitoring
-
Keyphasor reference signal generation
-
Turbine and compressor health diagnostics
-
Industrial condition monitoring systems
Advantages
-
Compliant with API 670 standards
-
Backward compatible with non-XL systems
-
Features TipLoc and CableLoc technologies for enhanced durability
-
Immune to RFI/EMI interference
-
Quick installation with SpringLoc terminal strips
-
High-temperature tolerance up to +177°C standard / +218°C extended
Frequently Asked Questions (FAQ)
Q1: What type of machines is this probe suited for?
A1: It is ideal for turbines, compressors, and pumps with fluid-film bearings.
Q2: What is the thread type of this model?
A2: The 330104-15-25-05-02-CN has an M10 x 1 metric thread.
Q3: Is this probe compatible with older 3300 series components?
A3: Yes, it is fully backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q4: What is the operating temperature range?
A4: Standard operation is -52°C to +177°C.
Q5: Does it require calibration before installation?
A5: No bench calibration is needed if using standard AISI 4140 steel targets.
Q6: How is the connector secured?
A6: It uses a gold-plated ClickLoc connector that clicks when fully engaged.
Q7: Can this probe be used in hazardous areas?
A7: Yes, with proper barriers or isolators, it is certified for ATEX, IECEx, and CSA.
Q8: What kind of cable is used?
A8: It includes a standard FEP insulated, triaxial 75Ω cable.
Q9: What is the probe’s linear measurement range?
A9: The linear range is from 0.25 mm to 2.3 mm (10 to 90 mils).
Q10: What makes this probe more robust than others?
A10: Its armored design and rugged encapsulated tip provide superior mechanical strength.
Related Models (Same Series)
| Model Number | Thread Type | Length | Armor | Weight |
|---|---|---|---|---|
| 330104-15-25-05-02-CN | M10 x 1 | 0.5 m | Yes | 0.162 kg |
| 330104-10-25-05-02-CN | M10 x 1 | 1.0 m | Yes | 0.182 kg |
| 330104-20-25-05-02-CN | M10 x 1 | 2.0 m | Yes | 0.210 kg |
| 330104-50-25-05-02-CN | M10 x 1 | 5.0 m | Yes | 0.295 kg |
| 330104-90-25-05-02-CN | M10 x 1 | 9.0 m | Yes | 0.410 kg |
| 330106-05-30-05-02-CN | M10 x 1 (Reverse Mount) | 5.0 m | Yes | 0.310 kg |
Popular Bently Nevada Models
| Model Number | Description | Application | Key Feature | Weight |
|---|---|---|---|---|
| 3300/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | 4-channel monitor | 0.54 kg |
| 3300/20 | Dual Vibration Monitor | Rotating Equipment | Proximitor-based | 0.70 kg |
| 3500/22M | Transient Data Interface | System Interface | TDI + Config Port | 0.55 kg |
| 3500/42M | Proximitor I/O Module | Shaft Vibration | API 670 compliant | 0.56 kg |
| 3500/05 | System Rack | Mounting Backplane | Houses 14 modules | 2.4 kg |
| 330180-91-CN | Proximitor Sensor | Shaft Position | For 8 mm probes | 0.246 kg |
