Product Overview

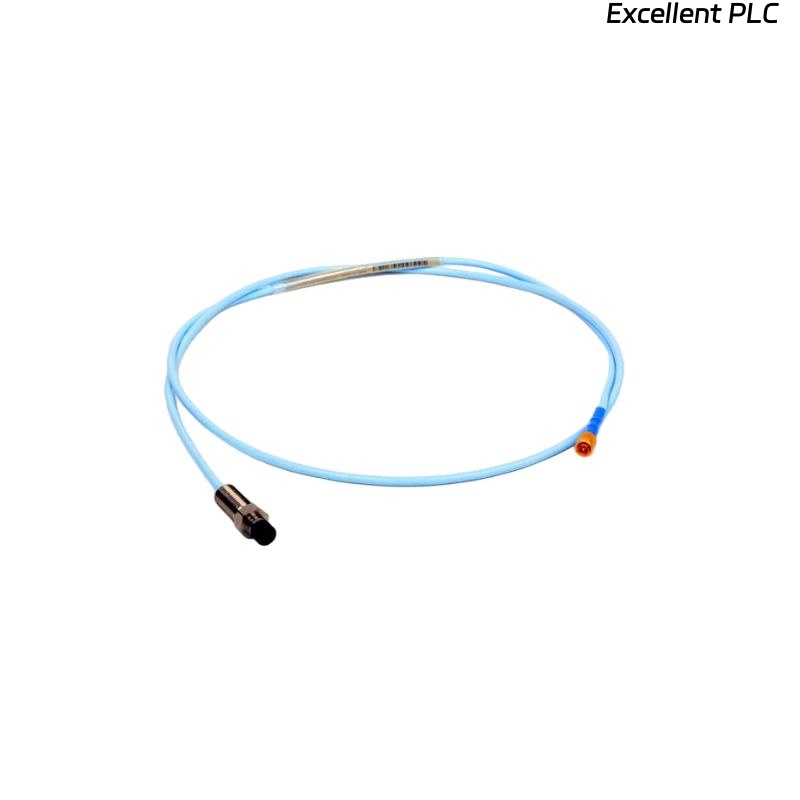

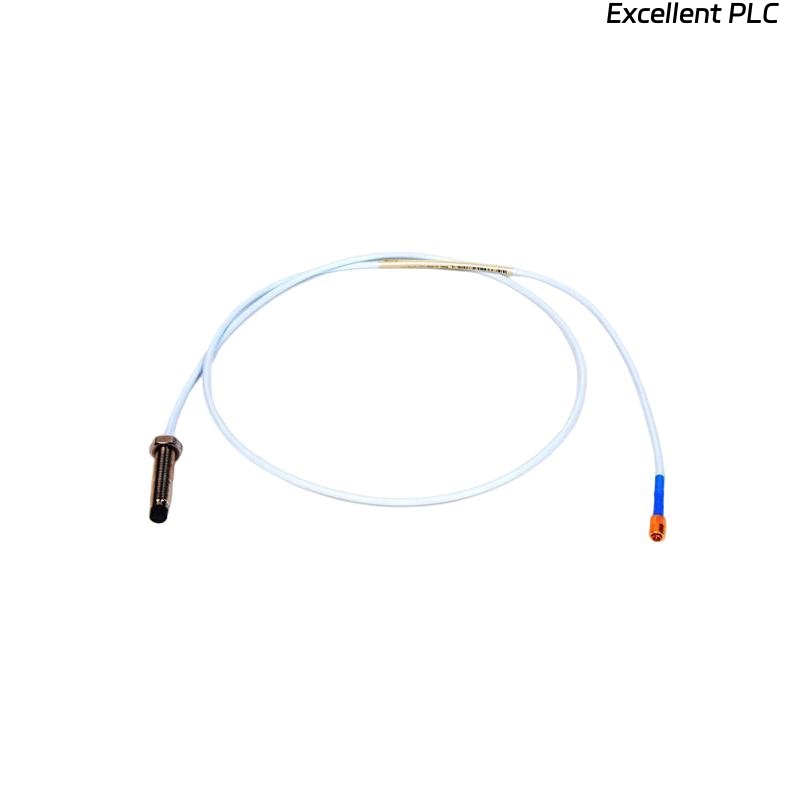

The Bently Nevada 330104-16-23-10-02-00 is part of the 3300 XL series of proximity probes, designed to monitor displacement, vibration, and position in critical machinery. Specifically, this 8mm probe (metric version) is highly valued for its precision in industrial machinery protection systems. It is used in industries such as power generation, oil and gas, and manufacturing, where machinery condition monitoring is critical for operational safety and reliability.
This probe is part of the Bently Nevada 3300 series, recognized for high sensitivity and robust design that can withstand harsh operating environments. The 3300 XL 8mm probe is a go-to choice for systems requiring accurate and reliable data on vibration and displacement.
Key Features
-
Precision Measurement: Provides precise measurements of vibration, displacement, and position in critical rotating machinery.
-
Durable Construction: Designed to endure extreme conditions, it can withstand high-vibration environments and harsh industrial settings.
-
Easy Integration with Bently Nevada Systems: It seamlessly integrates with Bently Nevada’s 3300 and 3500 series systems, making it a perfect choice for users of these systems.
-
High Sensitivity: Capable of detecting small variations in vibration or displacement, essential for early fault detection in industrial equipment.
-
Metric Version: The metric configuration ensures compatibility with metric measurement systems commonly used in global industries.
-
Low Maintenance: Features a low-maintenance design that minimizes the need for frequent calibration or adjustment.
-
Flexible Mounting: Offers easy installation and compatibility with a wide range of equipment.
-
Environmentally Resistant: Engineered to operate under extreme environmental conditions, including high temperatures and exposure to dust or water.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-16-23-10-02-00 |
| Type | Proximity Probe |
| Measurement Type | Vibration, Displacement, Position |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature Range | -40°C to +85°C |
| Measurement Range | 0.5 to 100 mils (12.7 µm to 2.54 mm) |
| Output | 4-20 mA (depending on system configuration) |
| Compatibility | Bently Nevada 3300, 3500 series systems |
| Electrical Connection | 2-wire or 4-wire |
| Protection Class | IP67 (dust and water resistant) |
| Mounting | Flexible for a wide range of industrial applications |
| Operating Pressure | Up to 1000 psi |
Applications
The 3300 XL 8mm Proximity Probe is widely used in various industries for monitoring the health of critical machinery. Some common applications include:
-
Power Generation: Monitoring turbine shafts, generators, and motors to ensure smooth operations and prevent failures.
-
Oil and Gas: Used in offshore platforms, refineries, and gas processing units to monitor pumps, compressors, and turbines.
-
Manufacturing: Applied in industrial equipment like motors, conveyors, and pumps to detect early signs of malfunction or wear.
-
Mining: Ensures that heavy machinery like crushers, mills, and conveyors operate efficiently and without unexpected failures.
-
Aerospace: Used in aircraft engines and other critical rotating machinery to monitor displacement and vibration.
-
Chemical Processing: Monitors pumps, mixers, and reactors in chemical plants, ensuring safe and efficient operations.
Advantages
-
High Precision and Sensitivity: Capable of detecting even the smallest deviations in displacement and vibration, allowing for early warning signs of potential issues.
-
Robust and Reliable: Built to withstand extreme industrial conditions, ensuring reliability and long-term performance in challenging environments.
-
Seamless Integration: Fully compatible with Bently Nevada’s 3300 and 3500 systems, facilitating easy integration into existing condition monitoring systems.
-
Low Maintenance Requirements: The durable design requires minimal upkeep, reducing operational costs over time.
-
Flexible Mounting and Installation: Easy to install and use with various types of equipment and machinery in different industries.
-
Environmentally Resistant: Withstands exposure to dust, water, high temperatures, and high-vibration environments, making it versatile for diverse applications.
-
Cost-Effective: By enabling the detection of faults early, it helps prevent expensive repairs and costly downtime, contributing to overall operational savings.
-
Improved Safety and Reliability: Provides crucial insights into equipment health, helping operators avoid accidents and ensuring safe operation in high-risk environments.
FAQ
-
What type of measurements does the 3300 XL 8mm probe provide?
Answer: The probe measures displacement, vibration, and position in industrial machinery. -
What is the compatibility of this probe with Bently Nevada systems?
Answer: It is fully compatible with Bently Nevada’s 3300 and 3500 series systems for seamless integration. -
How sensitive is the 3300 XL 8mm probe?
Answer: The probe offers high sensitivity, capable of detecting small changes in vibration or displacement, which helps in early fault detection. -
What is the measurement range of the 3300 XL 8mm probe?
Answer: The probe’s measurement range spans from 0.5 to 100 mils (12.7 µm to 2.54 mm). -
Is the 3300 XL 8mm probe suitable for harsh environments?
Answer: Yes, the probe is designed to operate in extreme conditions, with an IP67 rating for dust and water resistance. -
What is the temperature range in which the probe operates?
Answer: The probe can operate within a temperature range of -40°C to +85°C. -
Can the 3300 XL 8mm probe be used in offshore or high-vibration applications?
Answer: Yes, it is built for high-vibration and harsh environmental conditions, making it ideal for offshore platforms and industrial machinery. -
What type of electrical connection does the probe use?
Answer: The probe uses either a 2-wire or 4-wire connection, depending on the system configuration. -
Does the probe provide real-time output data?
Answer: Yes, it provides a 4-20 mA output for real-time monitoring and diagnostics. -
How easy is it to install the 3300 XL 8mm probe?
Answer: The probe is designed for flexible mounting and easy installation, making it compatible with a wide range of industrial equipment.
Related / Same-Series Model Recommendations
| Model | Description |
|---|---|
| 330104-16-11-10-02-00 | 10mm version for higher displacement and vibration measurement ranges. |
| 330104-05-21-10-02-00 | 5mm proximity probe for more sensitive applications where fine displacement measurements are required. |
| 330104-17-23-10-02-00 | Another 8mm version optimized for high-speed machinery. |
| 330104-16-21-10-02-00 | 8mm proximity probe suitable for general-purpose machinery monitoring. |
| 330104-12-21-10-02-00 | Dual-channel 8mm probe for simultaneous displacement and vibration monitoring. |
| 330104-18-23-10-02-00 | Upgraded 8mm probe for severe environments and high-performance machinery. |
