Product Overview

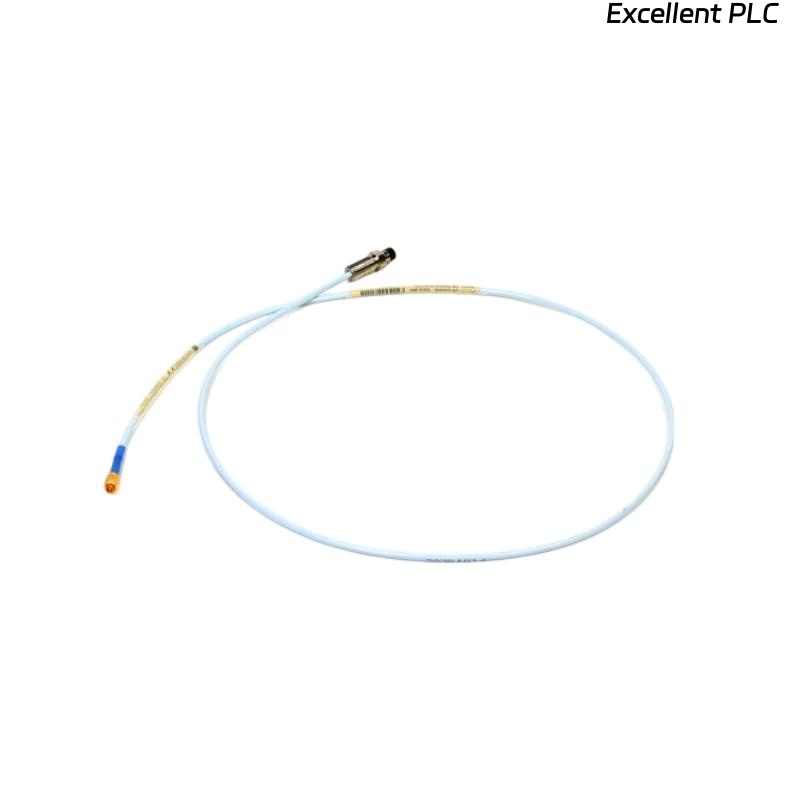

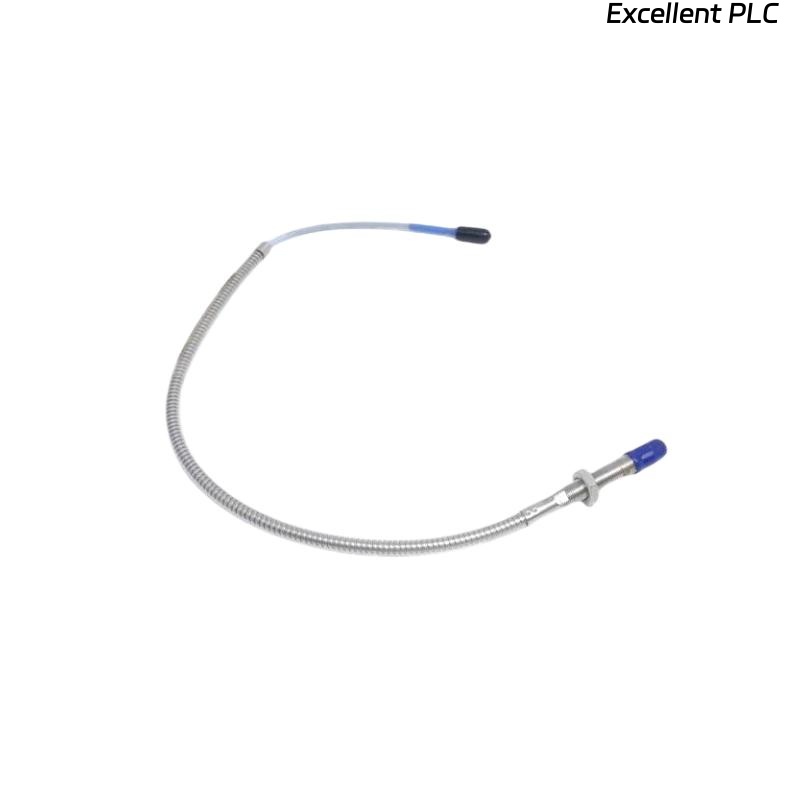

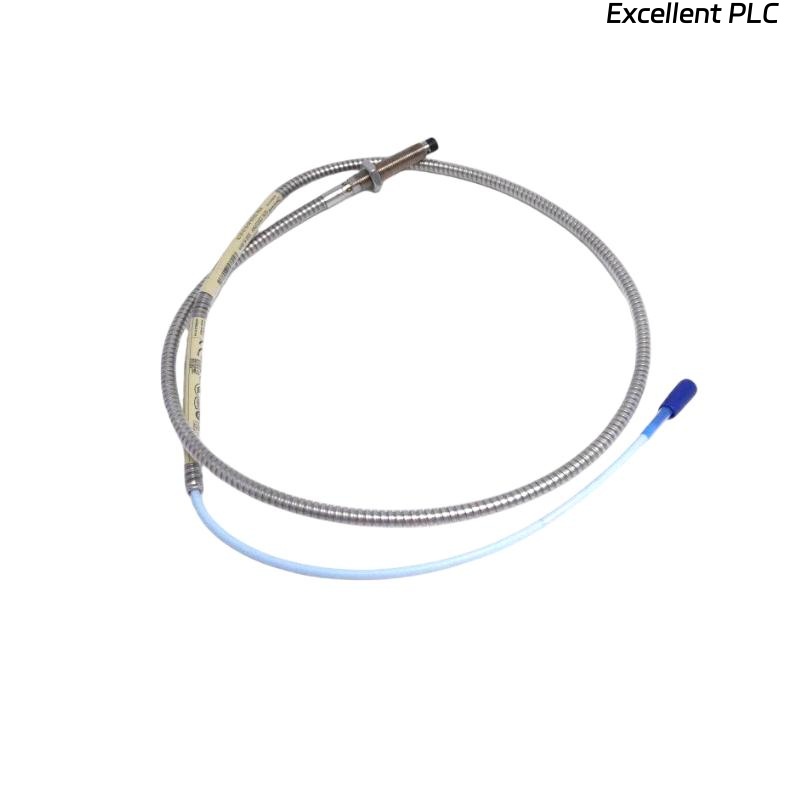

The Bently Nevada 330104-17-23-10-02-00 3300 XL 8mm proximity probe (metric version) is a high-precision displacement, vibration, and position monitoring solution used in critical machinery protection applications. As part of the 3300 XL series, it is engineered to monitor machinery such as turbines, motors, compressors, and other rotating equipment.
This metric version of the probe is designed to provide precise measurements in industrial environments where accurate displacement or vibration data is needed. Whether it’s for power generation, oil & gas, or chemical processing, the 3300 XL 8mm probe offers reliable performance under harsh conditions, helping prevent equipment failure and optimize maintenance schedules.
Key Features
-
High Precision Measurement: Provides accurate displacement, vibration, and position readings for critical rotating machinery.
-
Durable Construction: Designed to endure extreme vibration and harsh environments, ensuring long-term reliability.
-
Seamless Integration: Easily integrates with Bently Nevada’s 3300 and 3500 series systems, offering plug-and-play compatibility.
-
Sensitive Measurement Range: Capable of detecting even small deviations in displacement and vibration, ideal for sensitive applications.
-
Compact and Rugged Design: Built for compact installation spaces while withstanding the most demanding operating environments.
-
Low Maintenance: Requires minimal maintenance due to its robust construction and long operational life.
-
Wide Temperature Range: Designed to work within a wide operating temperature range to ensure functionality across different industrial settings.
-
IP67 Rating: Waterproof and dustproof design, making it suitable for use in harsh, wet, and dirty environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-17-23-10-02-00 |
| Type | Proximity Probe |
| Measurement Type | Displacement, Vibration, Position |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Measurement Range | 0.5 to 100 mils (12.7 µm to 2.54 mm) |
| Output | 4-20 mA (depending on system configuration) |
| Operating Temperature Range | -40°C to +85°C |
| Electrical Connection | 2-wire or 4-wire |
| Compatibility | Bently Nevada 3300, 3500 series systems |
| Protection Class | IP67 (dust and water resistant) |
| Mounting | Flexible for easy integration into various industrial machinery |
| Operating Pressure | Up to 1000 psi |
Applications
The 3300 XL 8mm Proximity Probe is used across various industries where continuous monitoring of machinery performance is crucial:
-
Power Generation: Ideal for monitoring turbines, generators, and motors to prevent failures and ensure optimal performance.
-
Oil and Gas: Used in offshore platforms and refineries for vibration and displacement monitoring of critical equipment such as pumps, compressors, and turbines.
-
Manufacturing: Applied in high-precision manufacturing machinery such as motors, conveyors, and industrial mixers.
-
Mining: Helps monitor large mining equipment like crushers, mills, and conveyors for early detection of mechanical issues.
-
Chemical Processing: Monitors reactors, mixers, and pumps, ensuring that vital processes continue smoothly and efficiently.
-
Aerospace: Used in aircraft engines and other aerospace applications where precise displacement measurements are required.
Advantages
-
High Sensitivity: Detects even the smallest deviations in machinery vibration, which is critical for preventing costly downtime and repairs.
-
Durability and Reliability: Built to last, withstanding high-vibration environments and harsh industrial conditions.
-
Seamless Integration: Designed to work flawlessly with Bently Nevada’s 3300 and 3500 systems, reducing setup time and improving system functionality.
-
Compact Design: Ideal for space-limited applications while still maintaining excellent performance and measurement accuracy.
-
Cost-Effective: Prevents costly downtime and equipment failures by enabling early detection of mechanical issues.
-
Low Maintenance: Requires less maintenance due to robust engineering and high-quality components, saving time and money in the long run.
-
Water and Dust Resistance: With IP67 rating, the probe is ideal for environments exposed to moisture, dust, and extreme conditions.
-
Wide Operational Range: Can function in extreme temperatures, providing versatility across diverse industrial applications.
FAQ
-
What is the primary use of the 3300 XL 8mm proximity probe?
Answer: It is primarily used for vibration, displacement, and position measurement in critical rotating machinery to monitor their health and performance. -
Is the 3300 XL 8mm proximity probe compatible with Bently Nevada’s monitoring systems?
Answer: Yes, it is designed to be fully compatible with Bently Nevada’s 3300 and 3500 series systems, ensuring easy integration into existing setups. -
What types of equipment can be monitored with this probe?
Answer: It can monitor turbines, motors, compressors, pumps, and other rotating machinery in industries such as power generation, oil & gas, and manufacturing. -
How does the 3300 XL 8mm probe detect vibration and displacement?
Answer: The probe detects displacement and vibration through electromagnetic sensors that measure the proximity of the target surface. -
What is the measurement range of the 3300 XL 8mm probe?
Answer: The measurement range of this probe is from 0.5 to 100 mils (12.7 µm to 2.54 mm). -
What is the output signal of the 3300 XL 8mm probe?
Answer: The probe provides an 4-20 mA output signal, which can be read by the connected Bently Nevada system for monitoring. -
Is the 3300 XL 8mm probe suitable for use in offshore environments?
Answer: Yes, the probe is designed for harsh environments, including offshore platforms and high-vibration industrial settings. -
What type of electrical connection does the probe use?
Answer: The probe uses 2-wire or 4-wire electrical connections depending on the configuration of the connected system. -
How does the probe handle exposure to dust and moisture?
Answer: The 3300 XL 8mm probe has an IP67 rating, making it resistant to dust and moisture, suitable for tough industrial environments. -
Can this probe be used for both displacement and vibration monitoring?
Answer: Yes, the probe is designed for both displacement and vibration monitoring, providing comprehensive machinery health data.
Related / Same-Series Model Recommendations
| Model | Description |
|---|---|
| 330104-16-21-10-02-00 | 8mm proximity probe with similar features, suitable for general-purpose applications. |
| 330104-17-23-10-02-00 | Another 8mm probe for industrial machinery protection with enhanced performance in high-speed applications. |
| 330104-05-21-10-02-00 | 5mm proximity probe, ideal for fine vibration and displacement monitoring. |
| 330104-16-11-10-02-00 | 11mm version of the probe, designed for more extensive displacement measurements. |
| 330104-12-21-10-02-00 | Dual-channel 8mm proximity probe for simultaneous vibration and displacement measurements. |
| 330104-18-23-10-02-00 | 8mm probe with advanced features for harsh operational environments. |
