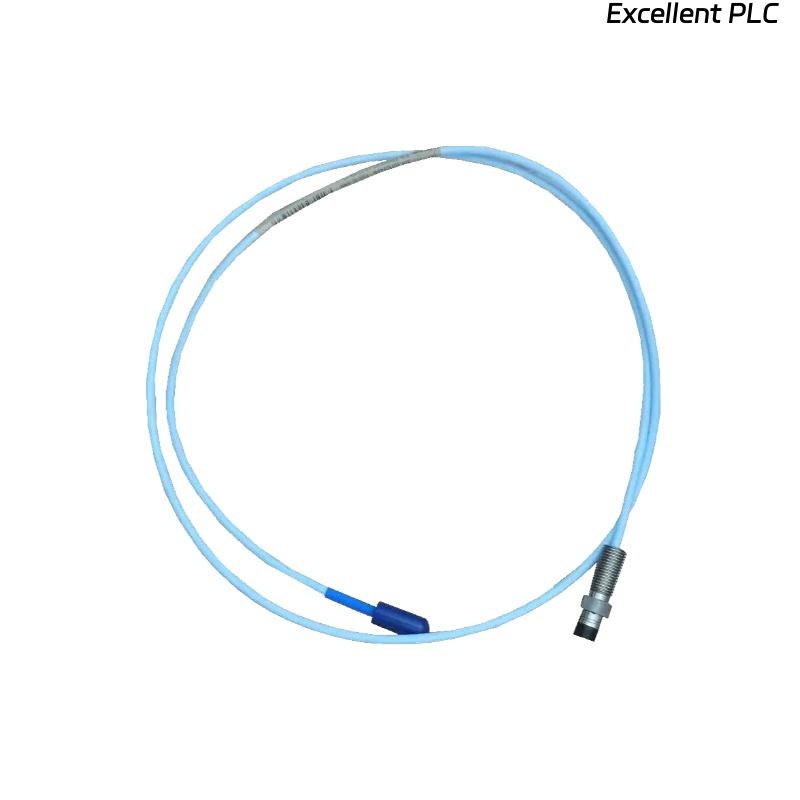

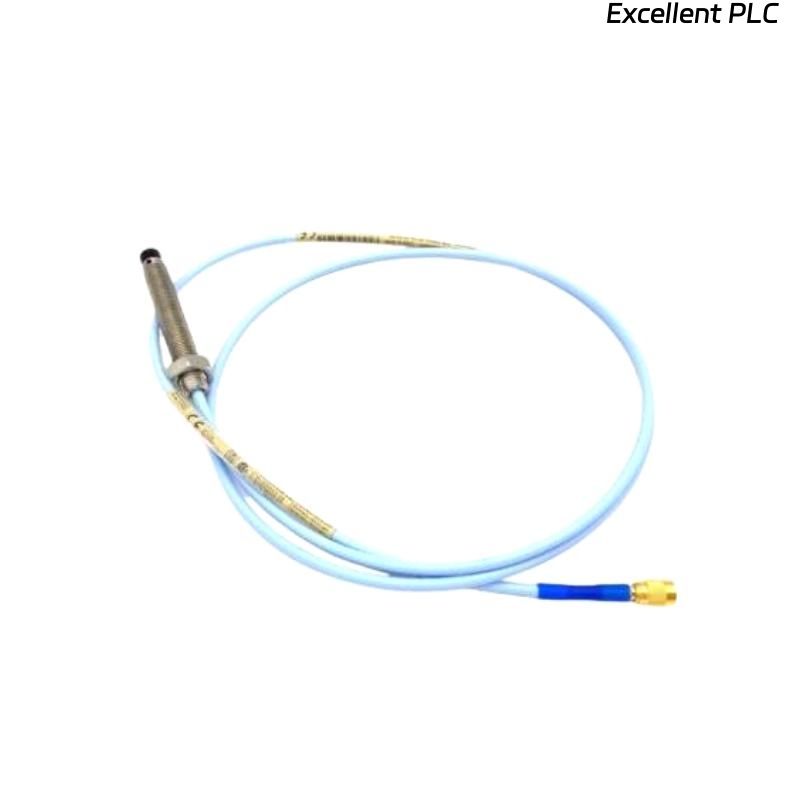

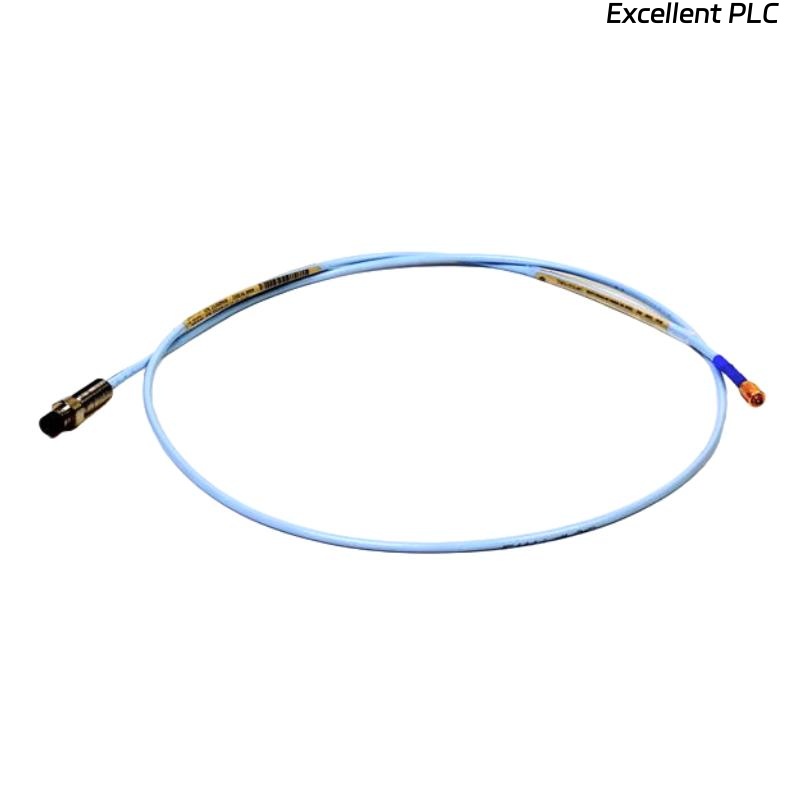

Bently Nevada 330105-02-12-02-05-00 3300 XL 8 mm Reverse Mount Probe

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 330105-02-12-02-05-00 3300 XL 8mm Reverse Mount Probe is a high-performance non-contact sensor designed for precise vibration and position measurement in rotating machinery. As part of the 3300 XL series, this probe represents the industry standard for reliability and accuracy in proximity sensing applications. Unlike standard forward-mount probes, the reverse mount configuration allows installation from the back of the mounting bracket or machine housing, which is ideal for confined or high-vibration areas.

This probe operates based on eddy current technology, providing accurate, stable measurements of the distance between the probe tip and a conductive target surface, typically a rotating shaft. The 330105-02-12-02-05-00 is engineered to deliver consistent performance in demanding industrial environments such as power generation, oil & gas, and heavy manufacturing. Its design ensures long-term stability and immunity to electromagnetic interference and contamination.

---

Technical Specifications

---

Product Applications

The Bently Nevada 330105-02-12-02-05-00 Reverse Mount Probe is extensively used in vibration monitoring, shaft position detection, and condition monitoring of critical rotating equipment. Its rugged construction and reverse-mount design make it particularly effective for:

• Gas and Steam Turbines – For shaft vibration and axial displacement monitoring.

• Compressors – For detecting imbalance, misalignment, and bearing wear.

• Motors and Generators – For real-time shaft vibration and position feedback.

• Pumps and Fans – For monitoring dynamic motion and early fault detection.

• Gearboxes and Industrial Drives – For assessing gear mesh conditions and misalignment.

• Petrochemical Machinery – For continuous condition monitoring in hazardous zones.

Its reverse mount capability ensures secure installation in applications where space or accessibility is limited, without compromising signal quality or mechanical integrity.

---

Product Advantages

The Bently Nevada 330105-02-12-02-05-00 offers several outstanding advantages that make it one of the most reliable probes for industrial monitoring systems:

1. Reverse-Mount Design – Enables flexible installation from the back of the mounting location, ideal for tight or vibration-sensitive areas.

2. Exceptional Measurement Precision – Provides accurate readings across wide temperature and vibration ranges.

3. Rugged Construction – Stainless steel body ensures resistance to corrosion, oil, and industrial contaminants.

4. High Reliability in Harsh Environments – Performs consistently even in extreme temperature, pressure, or electromagnetic conditions.

5. Fully Interchangeable Components – Compatible with all 3300 XL Proximitor sensors and cables.

6. Electromagnetic Shielding – Coaxial cable design minimizes interference and noise pickup.

7. IP67 Environmental Protection – Fully sealed to withstand oil, dust, and humidity.

8. Factory Calibration – Ensures plug-and-play functionality with no need for field calibration.

9. Extended Temperature and Frequency Capability – Maintains stability and sensitivity even under dynamic load conditions.

10. Proven Industrial Reliability – Part of the globally trusted Bently Nevada machinery protection ecosystem.

---

FAQ

1. What is the primary difference between the reverse mount and forward mount probe configurations?
   The reverse mount probe installs from the rear of the mounting location, making it ideal for applications with limited front access or higher vibration levels, while maintaining identical sensing characteristics to forward mount probes.

2. How does the 330105-02-12-02-05-00 detect shaft vibration?
   It uses eddy current sensing to detect variations in the electromagnetic field between the probe tip and the conductive target, translating these variations into voltage signals proportional to displacement.

3. Can this probe be used with other Bently Nevada extension cables?
   Yes, it is fully compatible with 3300 XL extension cables, ensuring accurate calibration when used as part of the complete system.

4. What type of material is recommended for the target surface?
   The probe is designed for conductive materials, typically steel, and is calibrated specifically for AISI 4140 steel targets for best accuracy.

5. How does the probe maintain accuracy in contaminated environments?
   The probe’s stainless steel body and sealed design prevent oil and dust ingress, maintaining measurement accuracy even in challenging environments.

6. Does temperature variation affect probe output?
   The system compensates for temperature changes with less than ±5% signal deviation across its full operating range.

7. Can the probe withstand high mechanical vibrations?
   Yes. It is rated for continuous vibration exposure up to 20 g peak and short-duration shocks up to 500 g, ensuring reliable operation in rotating machinery.

8. How should the gap between the probe and target be adjusted?
   The gap should be set according to the manufacturer’s specified target distance (typically around 1.0 mm), verified using the Proximitor calibration output.

9. Is the probe electrically isolated from the machine frame?
   Yes, it is internally isolated, eliminating ground loops and minimizing electrical interference in the monitoring system.

10. Can the probe be integrated into a Bently Nevada 3500 system?
    Absolutely. It is fully compatible with the 3500 Monitoring System, providing precise displacement and vibration inputs for advanced condition monitoring.

---
