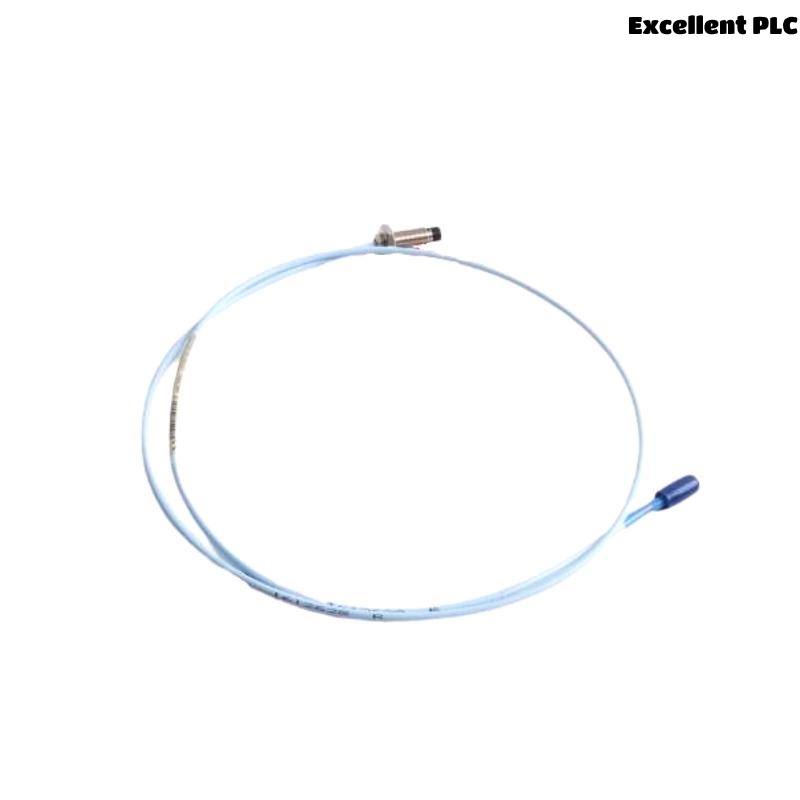

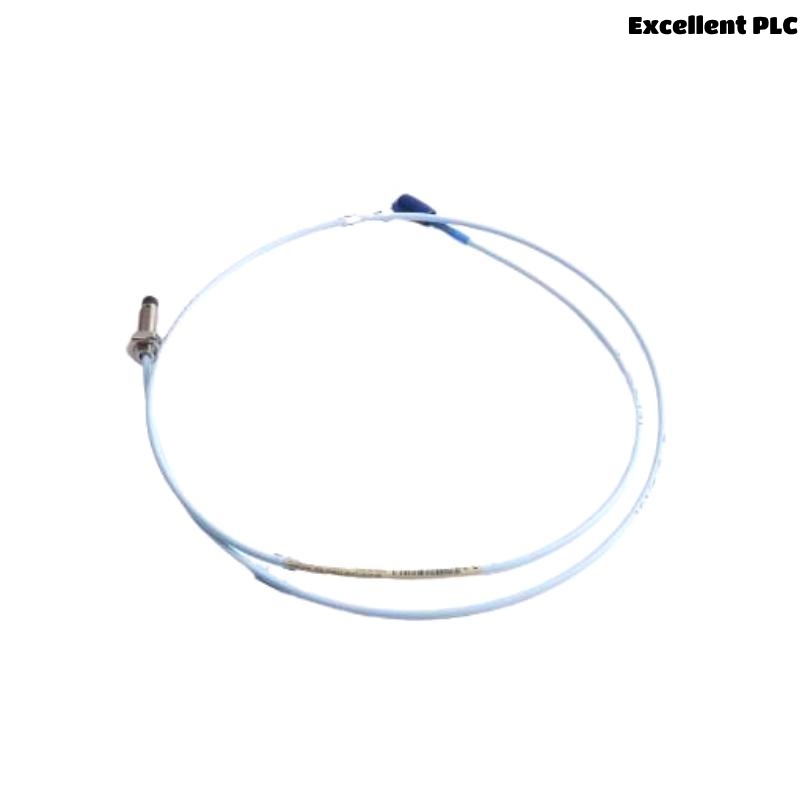

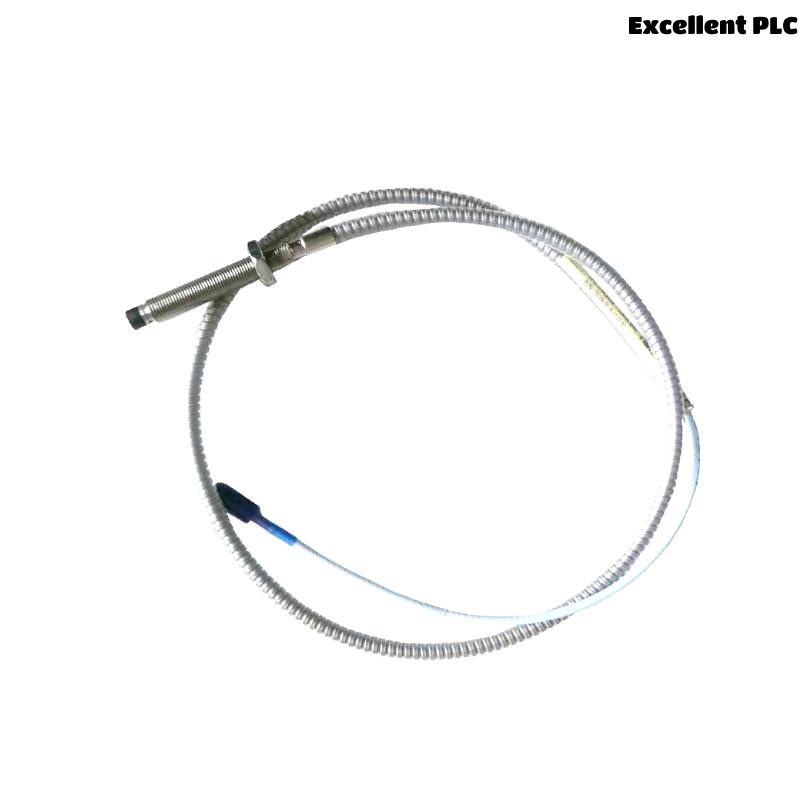

Bently Nevada 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probes

Product Overview

The Bently Nevada 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Probes are high-precision, non-contact eddy current sensors used to measure the displacement of rotating machinery. These probes are specifically designed for shaft vibration and position monitoring in critical industrial applications. A part of Bently Nevada’s 3300 XL series, these probes are built to provide accurate, real-time data to monitor the health of machines and prevent costly downtime caused by unexpected failures.

What sets the 3300 XL Reverse Mount Probes apart is their unique reverse-mount design, which offers greater installation flexibility, especially in tight spaces or difficult-to-reach areas. The 8mm measurement range allows for high sensitivity and precision, detecting even minor displacement changes, which are essential for identifying potential faults early. These probes integrate seamlessly with Bently Nevada’s machinery protection systems, allowing for predictive maintenance and advanced monitoring.

Designed for use in extreme conditions, the probes feature a robust, stainless-steel construction and are capable of withstanding harsh industrial environments. The reverse mount configuration is particularly useful in machines with limited mounting space, providing an efficient solution for monitoring machinery without sacrificing accuracy or reliability.

Technical Specifications

Applications

The 3300 XL 8 mm Reverse Mount Probes are versatile and suitable for a variety of industrial applications where shaft vibration and displacement monitoring are crucial. Some key areas of application include:

• Turbines: These probes are used to monitor vibration and position in steam and gas turbines, helping prevent failures due to misalignment, imbalance, or bearing wear.

• Compressors: The probes are deployed in compressors to measure displacement and vibrations, ensuring that the machinery remains within safe operating limits.

• Pumps: Installed on pump shafts, the probes detect issues such as shaft movement, imbalance, or excessive vibrations, preventing mechanical damage and optimizing performance.

• Motors and Generators: The probes are essential for monitoring the health of motors and generators, providing early warnings of mechanical issues before they result in costly failures.

• Fan Systems: In industrial fans, the probes help monitor shaft displacement to identify misalignment, unbalance, and other mechanical issues that can cause damage or efficiency loss.

• Heavy Machinery: These probes are used for the precise monitoring of heavy machinery such as grinders, mills, and conveyors to ensure reliable operation and reduce maintenance costs.

Key Advantages

• Reverse Mount Design: The reverse-mount configuration allows for flexible installation in tight spaces, which is often necessary in large or complex machinery where traditional mounting options may not be feasible.

• Non-contact Measurement: The eddy current sensing technology enables non-contact measurement, reducing wear and tear on the probe and ensuring long-lasting performance.

• High Precision: With an 8mm measurement range, the probe offers high precision, making it ideal for detecting even small changes in shaft displacement, which is crucial for predictive maintenance.

• Durable Construction: The probe’s stainless steel body and ceramic tips provide excellent durability and corrosion resistance, ensuring reliable performance in harsh industrial environments.

• Flexible Integration: The 3300 XL probes integrate seamlessly with Bently Nevada’s monitoring systems, providing continuous, real-time data for predictive maintenance and machinery protection.

• Wide Temperature Range: With an operating temperature range of -40°C to +120°C, the probes can function in a wide variety of environments, from freezing conditions to high-heat applications.

• Hazardous Location Certification: The probes come with ATEX certification, making them suitable for use in hazardous environments where explosive gases or dust may be present.

• Cost-Effective Maintenance: By detecting issues early, the probes help reduce downtime and minimize repair costs, ultimately extending the lifespan of the machinery they monitor.

• Corrosion Resistance: The robust construction ensures that the probe can withstand harsh environments, including exposure to chemicals, moisture, and high temperatures, making it a reliable choice for industries such as oil & gas and power generation.

• Easy Installation: The reverse mount design, along with customizable cable lengths, simplifies the installation process, even in hard-to-reach spaces, saving time and effort during setup.

Frequently Asked Questions (FAQ)

1. What is the measurement range of the 3300 XL Reverse Mount Probes?
   The 3300 XL Reverse Mount Probes have a measurement range of 8mm, providing high precision for monitoring shaft displacement.

2. What is the advantage of the reverse-mount design?
   The reverse-mount design offers greater flexibility for installation in tight or hard-to-reach spaces, where conventional mounting may be difficult or impossible.

3. What technology does the 3300 XL probe use to measure displacement?
   The 3300 XL probe uses eddy current sensing technology, which allows for non-contact, highly accurate measurement of shaft displacement.

4. What are the key applications for these probes?
   The probes are used in turbines, compressors, pumps, motors, fan systems, and heavy machinery for vibration and position monitoring.

5. What is the operating temperature range of the probe?
   The 3300 XL Reverse Mount Probe operates within a temperature range of -40°C to +120°C, making it suitable for use in various industrial environments.

6. What certifications do the 3300 XL probes have?
   The probes are CE, UL, ATEX, and RoHS certified, ensuring they meet international safety and environmental standards.

7. How does the eddy current sensing technology work?
   Eddy current sensing technology detects changes in the displacement of a metallic shaft by generating an electromagnetic field, allowing for non-contact measurement with high precision.

8. Can the 3300 XL probes be used in hazardous locations?
   Yes, the probes are ATEX certified for use in hazardous locations, including environments with explosive gases or dust.

9. What is the weight of the 3300 XL probe?
   The 3300 XL Reverse Mount Probe weighs 0.161 kg,making it lightweight and easy to handle.

10. How is the probe mounted?
    The 3300 XL probe is mounted using a reverse-mount configuration, which provides flexibility for installation in confined or hard-to-reach spaces.
