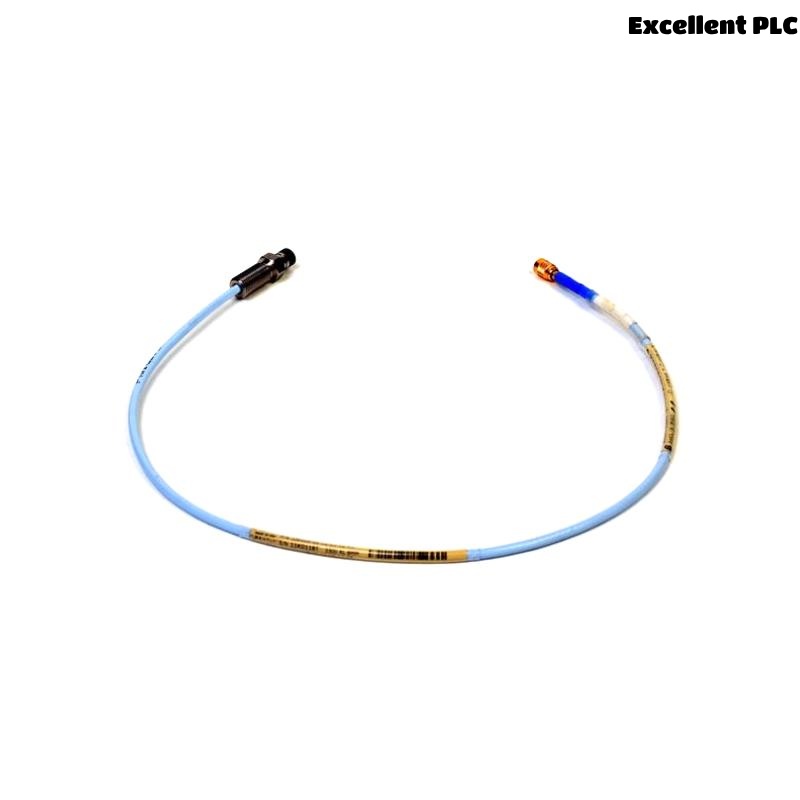

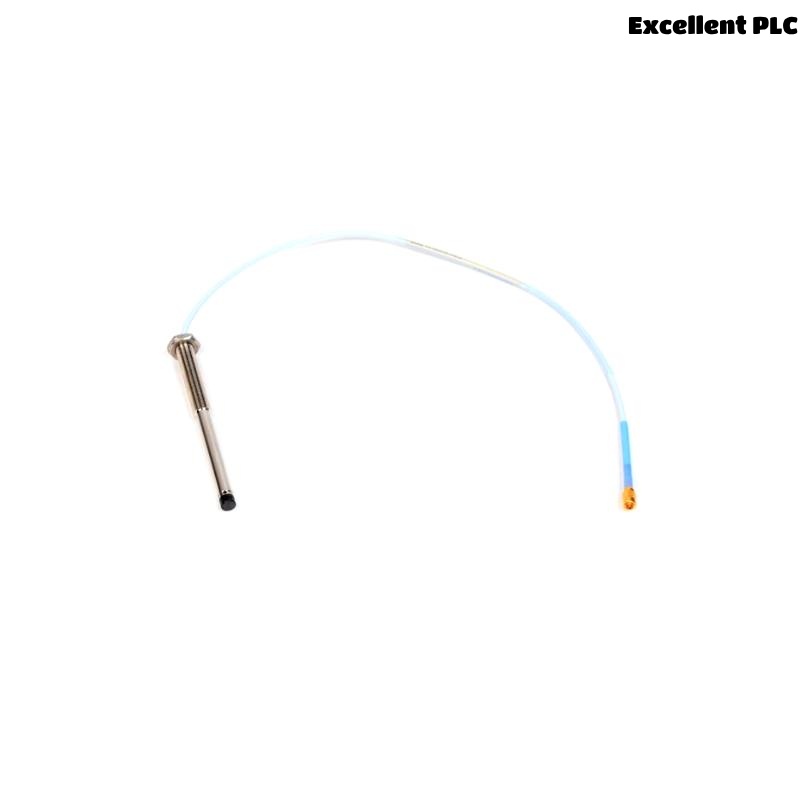

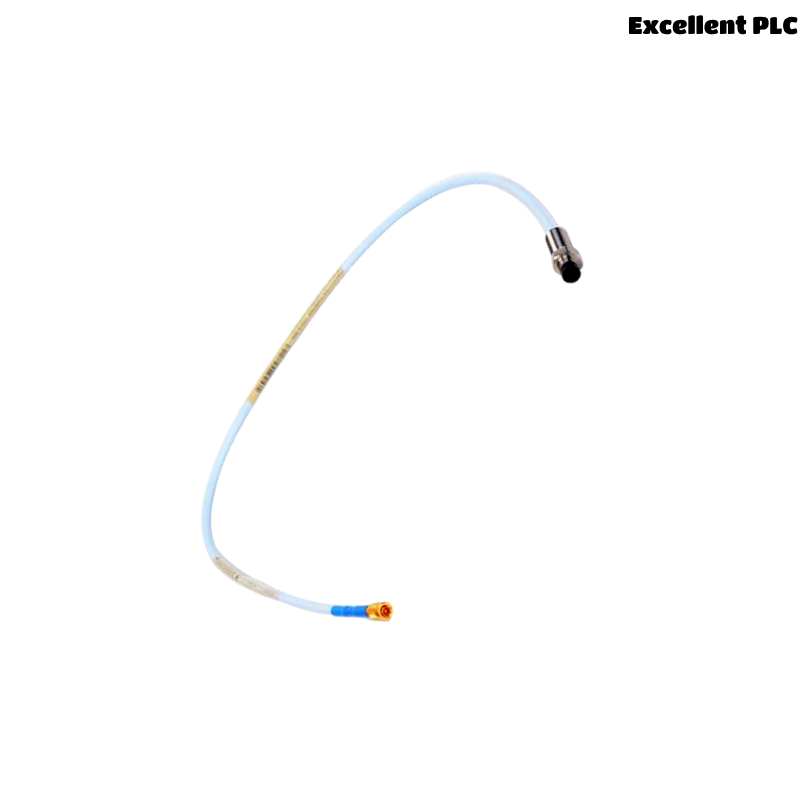

Bently Nevada 330105-02-12-05-02-05 Product Introduction
The Bently Nevada 330105-02-12-05-02-05 is a high-performance vibration monitoring sensor designed for industrial applications. It is part of the Bently Nevada 3300 series, renowned for its reliability and precision in machinery protection and condition monitoring. This sensor is specifically engineered to detect and measure vibration in rotating equipment, ensuring optimal performance and preventing catastrophic failures.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 330105-02-12-05-02-05 |
| Type | Proximity Vibration Sensor |
| Measurement Range | 0 to 10 mm (peak-to-peak) |
| Frequency Response | 0.5 to 10,000 Hz |
| Output Signal | -4 to -20 VDC (linear to vibration) |
| Power Supply | -18 to -26 VDC |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Stainless Steel |
| Cable length | 0.5 m |
| Weight | 0.7 kg |
| Ingress Protection | IP67 |
| Certifications | ATEX, IECEx, CSA, CE |
Product Applications
The Bently Nevada 330105-02-12-05-02-05 is widely used in critical industrial environments, including:
-
Oil & Gas: Monitoring turbines, compressors, and pumps.
-
Power Generation: Protecting generators and steam turbines.
-
Chemical Plants: Ensuring safe operation of rotating machinery.
-
Mining: Vibration monitoring in heavy-duty equipment.
-
Water Treatment: Safeguarding pumps and motors.
-
Aerospace: Testing and monitoring aircraft components.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Durability: Stainless steel housing ensures resistance to harsh environments.
-
Wide Compatibility: Integrates seamlessly with Bently Nevada monitoring systems.
-
Certified Safety: Complies with ATEX and IECEx standards for hazardous areas.
-
Low Maintenance: Robust design reduces downtime and servicing needs.
-
Versatile: Suitable for a wide range of industrial applications.
Frequently Asked Questions (FAQ)
-
What is the operating voltage range for this sensor?
The sensor operates on -18 to -26 VDC. -
Can this sensor be used in explosive environments?
Yes, it is ATEX and IECEx certified for hazardous areas. -
What is the measurement range of the sensor?
It measures vibration from 0 to 10 mm (peak-to-peak). -
What is the frequency response of the sensor?
The frequency response is 0.5 to 10,000 Hz. -
Is the sensor waterproof?
Yes, it has an IP67 rating for dust and water resistance. -
What is the weight of the sensor?
The sensor weighs 0.7 kg. -
Can this sensor be used with non-Bently Nevada systems?
Yes, but optimal performance is achieved with Bently Nevada monitors. -
What is the operating temperature range?
It operates from -40°C to +85°C. -
How do I calibrate the sensor?
Calibration requires specialized equipment; refer to the manual or contact support. -
What is the typical lifespan of the sensor?
With proper maintenance, it can last over 5 years.
