Product Introduction

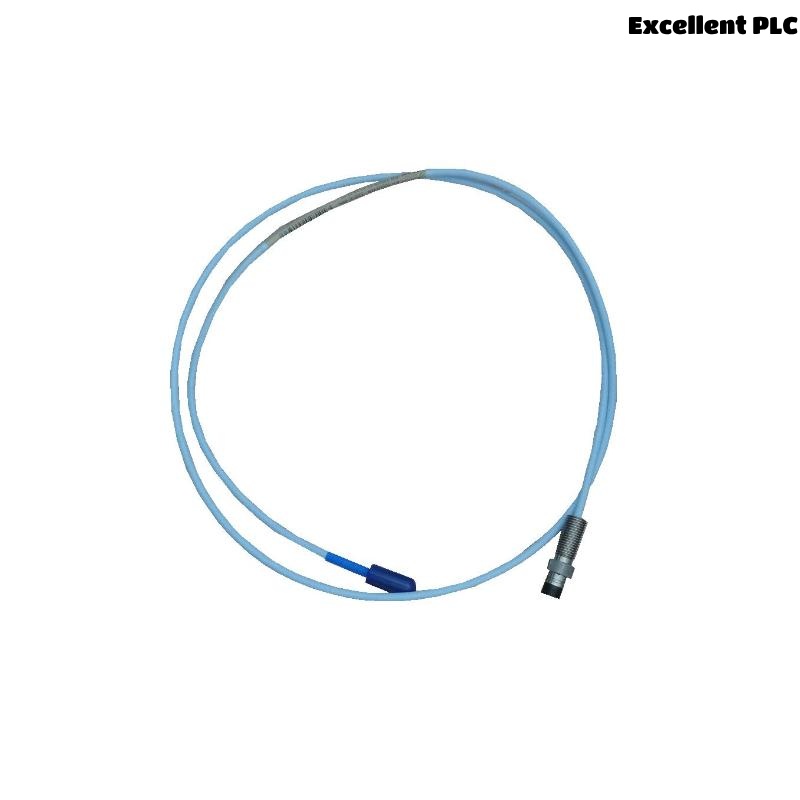

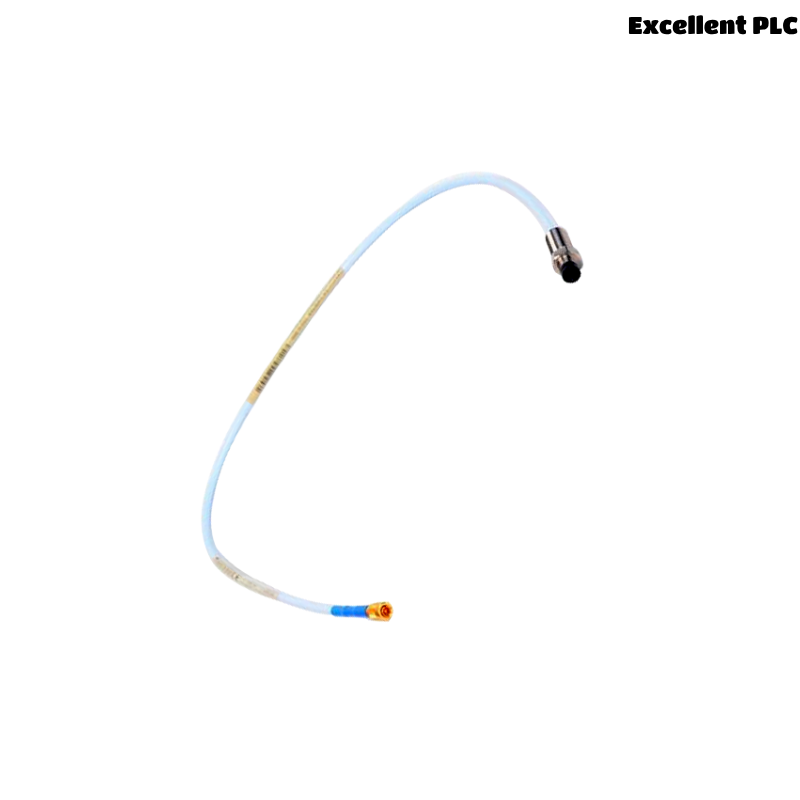

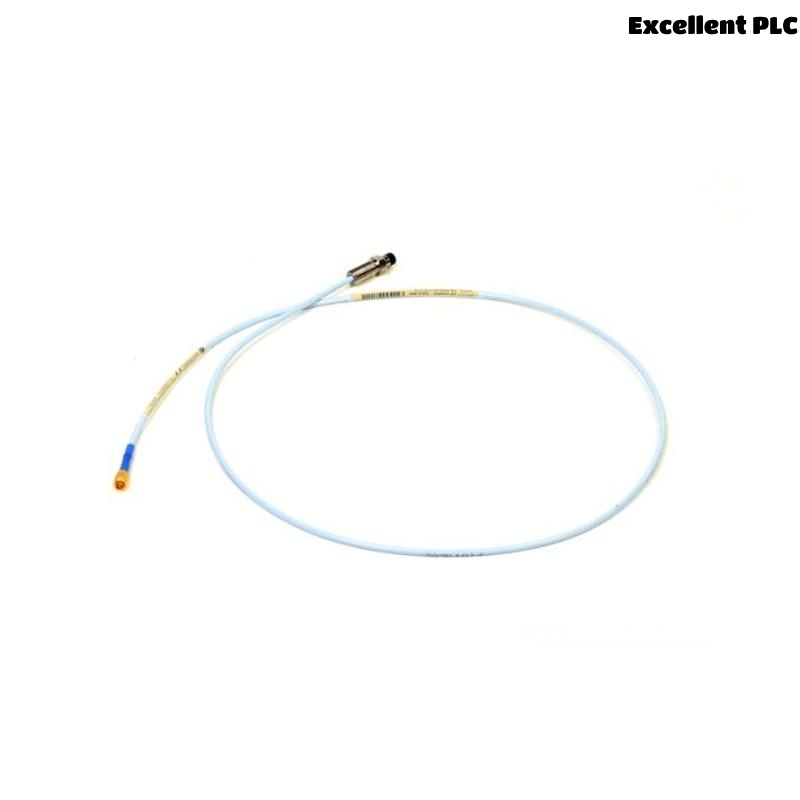

The Bently Nevada 330105-02-12-10-02-05 is a high-performance extension cable used in proximity transducer systems, specifically part of the 3300 XL series from Bently Nevada. This model is designed to transmit signals between the proximity probe and the Proximitor® sensor. Known for its durability, signal integrity, and robust shielding against electromagnetic interference (EMI), the 330105 series cable plays a vital role in the accurate monitoring of rotating machinery.

This extension cable is constructed with a rugged outer jacket and is engineered for industrial environments involving high vibration, temperature variation, and electrical noise. The “-05” suffix indicates a 5-meter length, ensuring flexible installation while maintaining signal quality over distance.

---

Product Advantages

• Superior Signal Integrity: Maintains signal accuracy over long distances, reducing the risk of false readings or drift.

• Rugged Industrial Build: Built for demanding field conditions, with durable shielding and insulation layers.

• EMI Shielding: Features advanced shielding to protect sensitive signals from external electrical interference.

• Plug-and-Play Compatibility: Designed to work seamlessly with other 3300 XL series components without special calibration.

• Wide Operating Temperature Range: Performs reliably in extreme temperatures commonly found in industrial applications.

• Field-Proven Reliability: Backed by Bently Nevada’s extensive track record in condition monitoring systems worldwide.

---

Technical Specifications

---

Product Applications

The 330105-02-12-10-02-05 is primarily used in proximity transducer systems for monitoring critical rotating machinery in:

• Steam and gas turbines

• Compressors and centrifugal pumps

• Motors and generators

• Gearboxes and fans

• Industrial process equipment

• Petrochemical plants and refineries

It enables accurate vibration and position monitoring by delivering clean, noise-free signals from the probe to the sensor module.

---

Installation Notes

1. Ensure that the cable connectors are clean and free of debris before installation.

2. Connect the female end to the proximity probe and the male end to the Proximitor sensor.

3. Route the cable away from high-voltage lines or EMI sources to prevent interference.

4. Secure the cable using cable ties at intervals to prevent mechanical strain.

5. Do not exceed the specified bend radius during installation.

6. Verify system readings after installation to confirm correct signal transmission.

---

Frequently Asked Questions (FAQ)

Q1: What is the purpose of the 330105-02-12-10-02-05 extension cable?
A1: It transmits signals between the proximity probe and Proximitor sensor, maintaining signal quality and minimizing electrical noise.

Q2: Is this cable compatible with other proximity probe models?
A2: It is designed specifically for the Bently Nevada 3300 XL system but may be compatible with certain older models with matching connectors.

Q3: Can the cable be used outdoors?
A3: Yes, but it should be protected from direct exposure to moisture or corrosive chemicals to preserve the insulation.

Q4: Does the cable require calibration?
A4: No, it is plug-and-play and does not require calibration if installed correctly with compatible probes and sensors.

Q5: What happens if the cable length is extended beyond 5 meters?
A5: Signal attenuation may occur. Bently Nevada recommends not exceeding approved cable lengths for the system.

Q6: What is the difference between “-05” and other suffixes?
A6: The suffix denotes cable length in meters. “-05” means 5 meters. Other versions like “-10” or “-15” offer longer lengths.

Q7: Can this cable operate at high temperatures?
A7: Yes, it operates reliably up to 177°C, making it suitable for high-temperature industrial environments.

Q8: What kind of shielding does the cable use?
A8: It uses a double-shielded coaxial design to protect the signal from electromagnetic interference.

Q9: What maintenance does the cable require?
A9: Periodic inspection for physical damage or wear. Replace if the outer jacket is cracked or connectors are corroded.

Q10: How should I store unused cables?
A10: Store in a dry, cool environment away from direct sunlight and chemicals. Avoid tight bending during storage.

---
