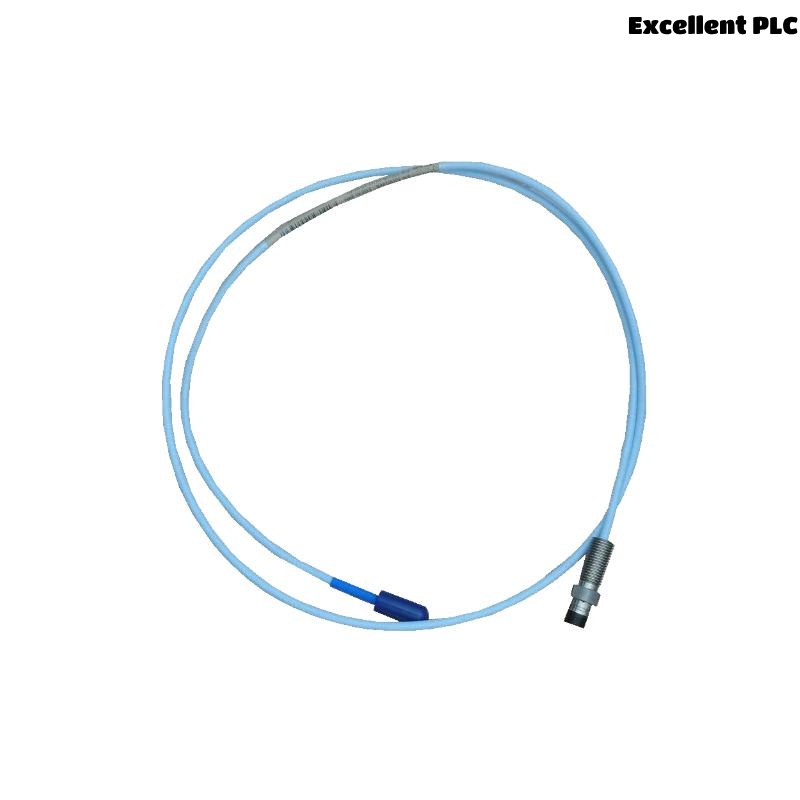

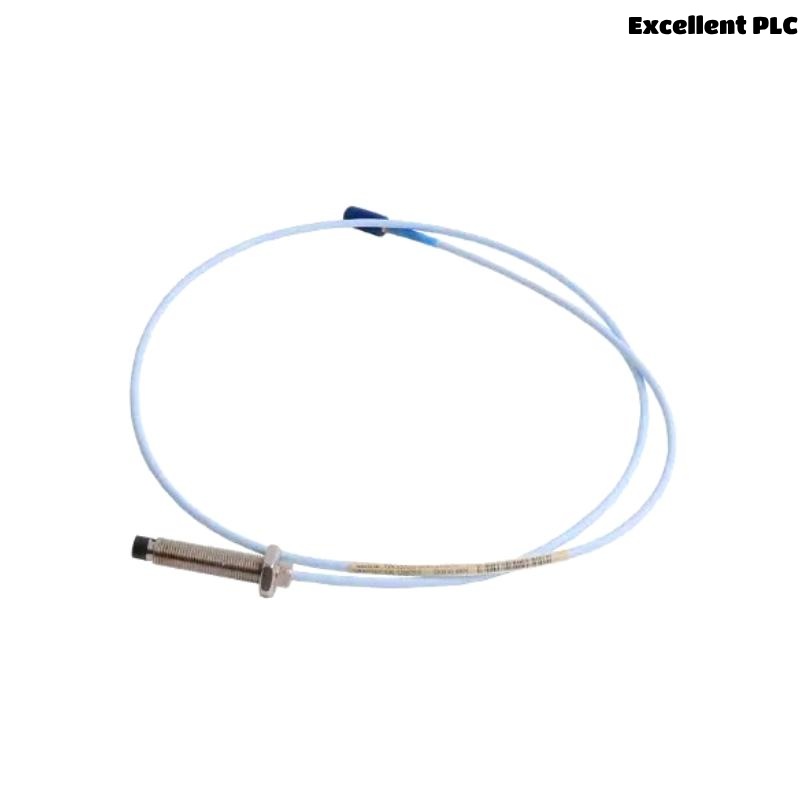

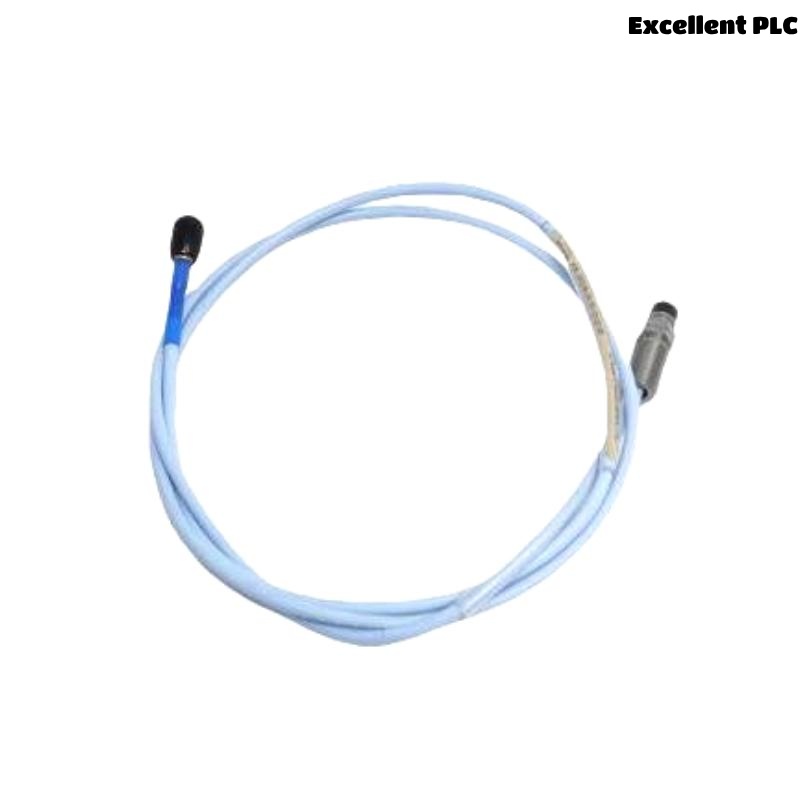

Bently Nevada 330106-05-30-10-02-00 3300 XL 8 mm Reverse Mount Probes

Product Overview

The Bently Nevada 330106-05-30-10-02-00 3300 XL 8 mm Reverse Mount Probes are high-performance displacement sensors specifically designed for precision measurement of shaft vibration and position in critical industrial applications. This product is part of the 3300 XL Series of proximity probes, which are known for their reliability, ease of use, and durability in harsh industrial environments. The 8mm reverse-mount probe offers high sensitivity, capable of detecting minute displacement changes, crucial for predictive maintenance and machine health monitoring.

These probes utilize eddy current sensing technology, which provides highly accurate measurements without direct contact with the rotating shaft. The reverse-mount design allows installation in tight spaces or hard-to-reach locations, making it ideal for use in machinery with limited mounting options. The probes’ robust construction ensures long-term durability, and they are designed to withstand challenging environmental conditions such as extreme temperatures, vibrations, and corrosion.

This probe integrates seamlessly with Bently Nevada’s 3500 Machinery Protection System and other monitoring systems, enabling continuous real-time monitoring of machinery, helping to reduce downtime and prevent catastrophic failures in turbines, compressors, motors, and other critical machinery.

Technical Specifications

Applications

The Bently Nevada 330106-05-30-10-02-00 3300 XL 8 mm Reverse Mount Probes are essential for precision vibration and position monitoring in a wide variety of critical industrial applications. These probes are used across many sectors, including:

• Turbines: The probes monitor the position and vibration of turbine shafts, ensuring that any misalignment, imbalance, or other issues are detected early before they lead to catastrophic failure.

• Compressors: Installed in compressors, the probes monitor shaft displacement and vibration to identify potential issues such as misalignment, imbalance, and bearing wear.

• Pumps: The probes are also installed in pumps to measure vibration and displacement, which helps detect problems such as misalignment, mechanical faults, or wear, preventing costly downtime.

• Motors and Generators: The probes are used in motors and generators to measure shaft vibration and displacement, ensuring smooth operation and early detection of faults.

• Fan Systems: These probes are employed in large fan systems, where they measure shaft displacement and vibrations, preventing failures due to imbalance or mechanical wear.

• Heavy Machinery: The probes are used in heavy machinery such as grinders, mills, and crushers, providing real-time monitoring of shaft movement and helping to prevent damage and downtime.

Key Advantages

• Reverse Mount Design: The reverse mount design allows the probe to be installed in tight, confined spaces or locations with limited mounting options, offering flexibility for challenging installations.

• Non-contact Measurement: The eddy current sensing technology enables non-contact measurement, reducing wear and tear on the probe and ensuring long-term durability and accuracy.

• High Precision: The 8mm measurement range provides high precision, making it ideal for detecting even small changes in shaft position, which is critical for predictive maintenance.

• Durable and Corrosion-Resistant: The stainless steel body and ceramic tips ensure that the probes are highly resistant to corrosion and wear, allowing them to operate effectively in harsh environments.

• Real-time Monitoring: By continuously measuring shaft displacement, the probes provide real-time data, enabling predictive maintenance strategies and reducing the likelihood of unexpected equipment failures.

• Wide Operating Temperature Range: With a temperature range of -40°C to +120°C, the 3300 XL probes can operate in extreme environmental conditions, making them versatile for various industrial applications.

• Hazardous Location Certification: The probes are ATEX certified, making them suitable for use in hazardous locations where explosive gases or dust are present, ensuring safe operation in such environments.

• Ease of Integration: The probes integrate easily with Bently Nevada’s 3500 Series and other monitoring systems, providing seamless connectivity and data acquisition for predictive maintenance programs.

• Longer Probe Lifespan: With non-contact technology and durable construction, these probes have a longer lifespan, reducing the need for replacements and maintenance costs.

• Cost-Effective: By detecting potential issues early, the probes reduce downtime, maintenance costs, and the risk of catastrophic failures, ultimately providing a cost-effective solution for machinery monitoring.

Frequently Asked Questions (FAQ)

1. What is the measurement range of the 3300 XL Reverse Mount Probe?
   The 3300 XL Reverse Mount Probe has a measurement range of 8mm, providing high-precision displacement measurement.

2. What is the benefit of the reverse-mount design?
   The reverse-mount design allows installation in tight or confined spaces, offering more flexibility for mounting in machinery with limited space.

3. How does the eddy current sensing technology work?
   The probe uses eddy current sensing technology to generate an electromagnetic field that detects changes in the position of the shaft without direct contact.

4. What applications are suitable for the 3300 XL probes?
   These probes are used in turbines, compressors, pumps, motors, fan systems, and heavy machinery for vibration and displacement monitoring.

5. What is the operating temperature range of the probe?
   The probe operates within a temperature range of -40°C to +120°C, making it suitable for a wide variety of industrial environments.

6. Is the 3300 XL Reverse Mount Probe suitable for hazardous environments?
   Yes, the probe is ATEX certified, ensuring that it can be used safely in hazardous locations with explosive gases or dust.

7. What certifications does the 3300 XL probe have?
   The 3300 XL probe is CE, UL, ATEX, and RoHS certified, ensuring compliance with international safety and environmental standards.

8. How is the probe mounted?
   The 3300 XL Reverse Mount Probe features a reverse-mount design, which allows installation in challenging spaces or locations with limited mounting options.

9. What is the weight of the probe?
   The 3300 XL Reverse Mount Probe weighs 0.323 kg, making it lightweight and easy to handle.

10. What data does the probe provide?
    The 3300 XL probe provides real-time displacement data, which can be used for predictive maintenance, fault detection, and machinery protection.
