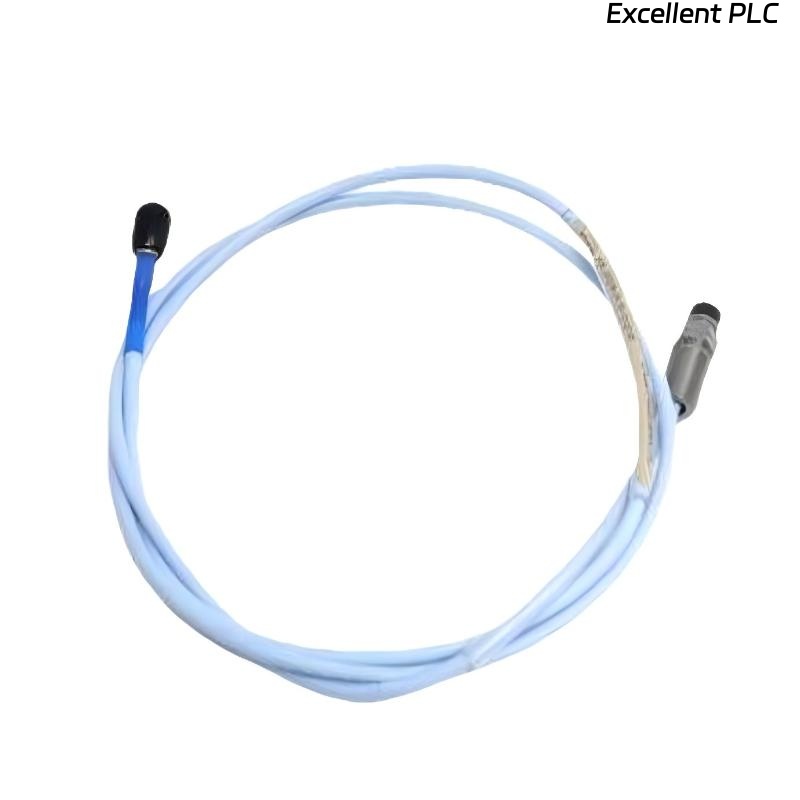

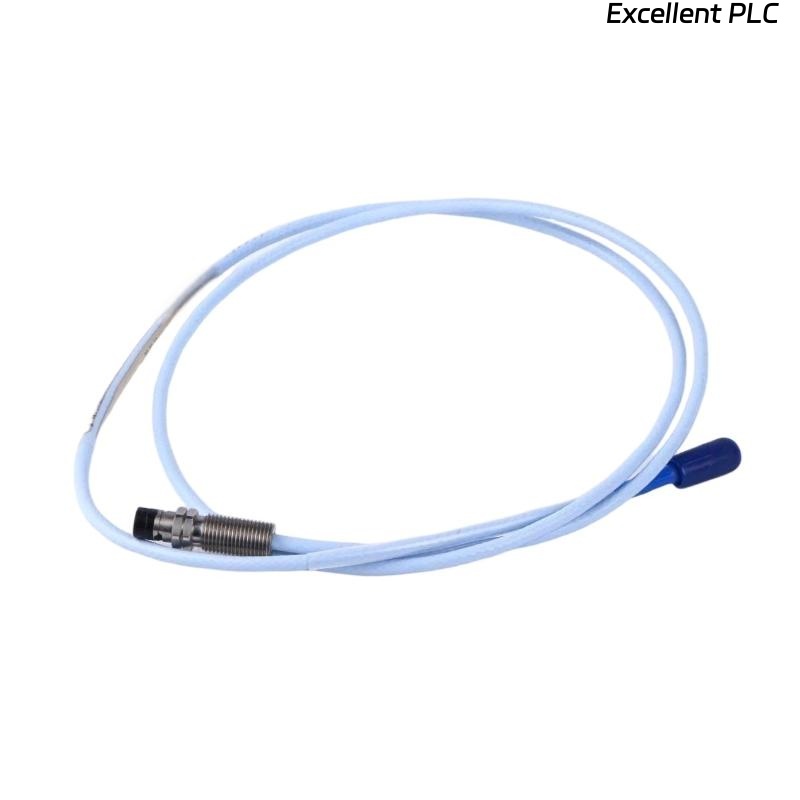

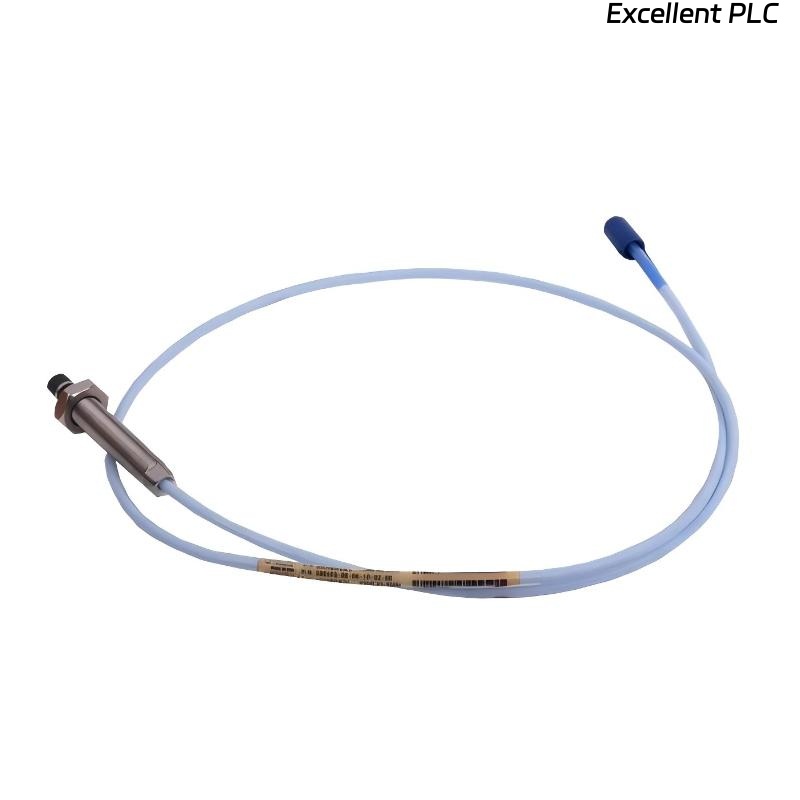

The Bently Nevada 330106-05-30-10-02-TW 3300 XL 8 mm Reverse Mount Probe is a specialized eddy current displacement sensor engineered for non-contact measurement of shaft vibration, radial displacement, and axial position in rotating machinery. This reverse mount configuration allows the probe to be installed in confined spaces or in locations where conventional forward-mount probes are impractical, providing flexibility for complex machinery layouts.
Part of the 3300 XL series, this probe maintains the same high precision, stability, and reliability as standard probes. It generates a high-frequency electromagnetic field at the 8 mm probe tip, and variations in the distance between the probe and a conductive shaft alter the electromagnetic characteristics, producing a proportional voltage output. This signal is processed via a compatible Proximitor® sensor and monitoring module to provide accurate, real-time vibration and displacement data.
With a total length of 1.0 meter, the probe is suitable for installations requiring moderate cable routing while maintaining mechanical stability. It is widely applied in turbines, compressors, pumps, and motors where precise shaft monitoring is critical for machinery protection and predictive maintenance programs.
The 330106-05-30-10-02-TW enhances the versatility of the 3300 XL system by enabling installation in locations with restricted access while maintaining measurement accuracy.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | 3300 XL 8 mm Reverse Mount Probe |
| Model | 330106-05-30-10-02-TW |
| Manufacturer | Bently Nevada |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy Current Non-Contact Displacement |
| Total Length | 1.0 meter |
| System Compatibility | 3300 XL Proximity System |
| Cable Type | Shielded Coaxial Cable |
| Connector Type | Factory-Assembled Coaxial Connector |
| Mounting Type | Reverse Mount Configuration |
| Output Requirement | Requires Compatible Proximitor Sensor |
| Target Material | Electrically Conductive Metal Surface |
| Dynamic Frequency Response | High-Speed Vibration Monitoring |
| Environmental Protection | Industrial Sealed Probe Design |
| Operating Temperature Range | -35°C to +177°C (probe tip typical) |
| Dimensions | Standard 8 mm probe configuration |
| Weight | 0.323 kg |
Applications
• Used for shaft vibration and displacement monitoring in turbines and compressors
• Applied in axial and radial position measurement for high-speed rotating equipment
• Installed in tight or reverse-mounting locations where conventional probe placement is limited
• Integrated into pumps, motors, and generator monitoring systems
• Supports shaft eccentricity and dynamic vibration analysis
• Essential for machinery protection systems compliant with API 670 standards
• Suitable for installations requiring flexible cable routing in constrained spaces
Advantages
• Enables accurate measurement in reverse-mount or restricted locations
• Provides high-resolution non-contact displacement and vibration data
• Maintains linearity and sensitivity across the calibrated gap range
• Industrial-grade shielding ensures low-noise signal transmission
• Fully compatible with 3300 XL monitoring architecture
• 1.0 meter cable length provides installation flexibility without compromising measurement quality
• Stable performance in high-speed, high-vibration machinery
• Supports predictive maintenance through reliable vibration and shaft position data
