Product Overview

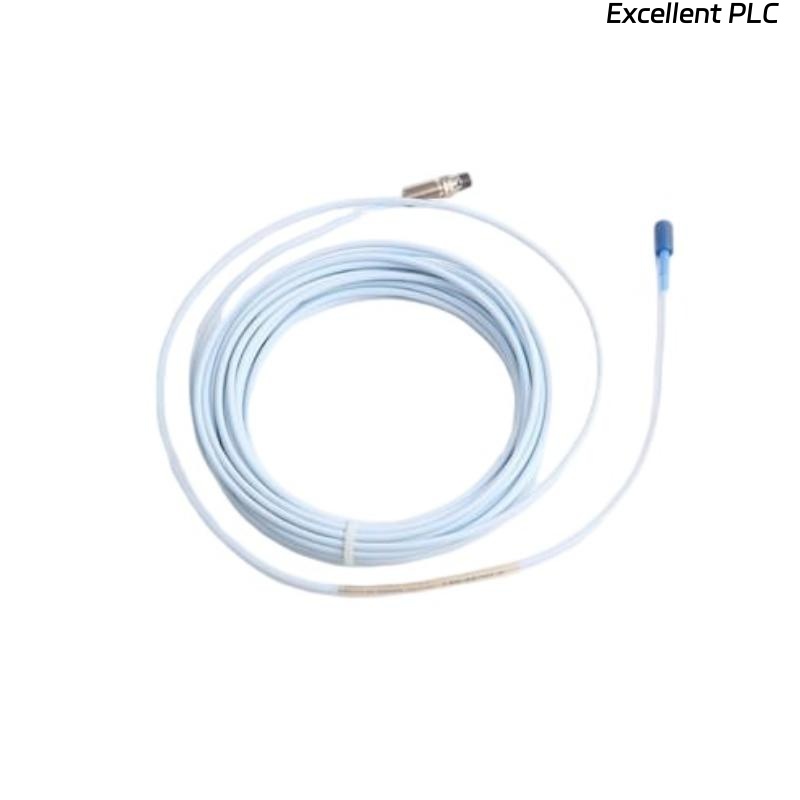

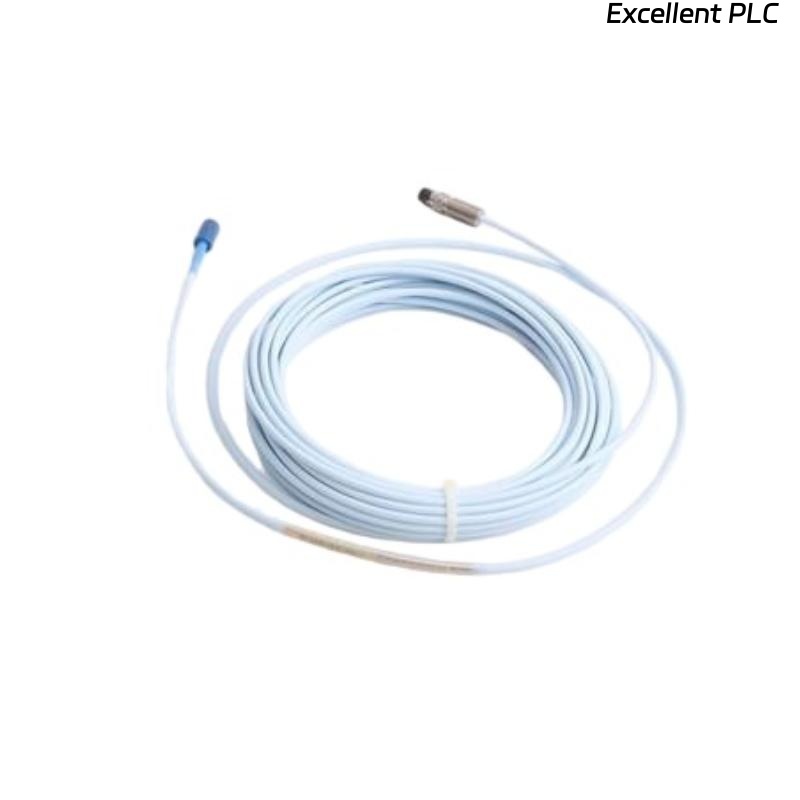

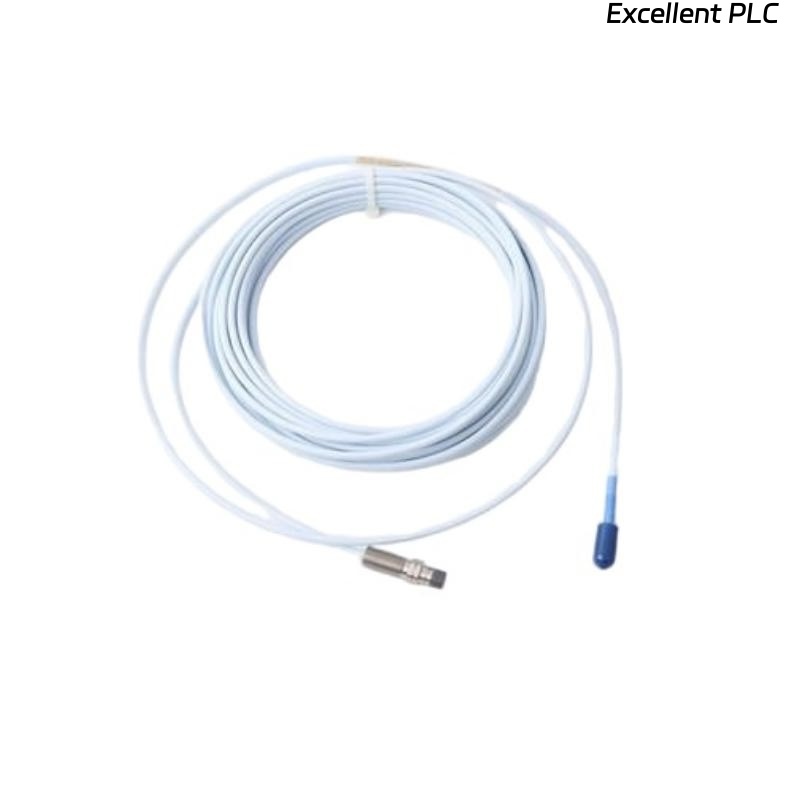

The Bently Nevada 330106-05-30-90-02-00 3300 XL 8 mm Reverse Mount Probe is a precision-engineered eddy current sensor designed for vibration and position monitoring in critical rotating machinery. With its reverse mount design, it provides flexibility in installation while maintaining the high reliability and accuracy expected from the 3300 XL series.
Key Features
-
Reverse mount design for flexible installation
-
High accuracy in shaft vibration and position measurements
-
Fully compatible with Bently Nevada 3300 XL systems
-
Rugged design for long-term industrial use
-
Excellent immunity to oil, dust, and contaminants
-
Reliable performance in high-temperature environments
-
Supports condition monitoring and predictive maintenance programs
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330106-05-30-90-02-00 |
| Product Type | 3300 XL 8 mm Reverse Mount Probe |
| Dimensions | Total Length: 9.0 meters |
| Weight | 2.907 kg |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Reverse mount installation |
| Applications | Shaft vibration, axial position, thrust, and condition monitoring |
Industry Applications
-
Steam and gas turbines
-
Compressors and expanders
-
Industrial pumps and fans
-
Electric motors and generators
-
Gearboxes and heavy-duty rotating machinery
-
Oil, gas, and petrochemical industries
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330106-05-30-90-02-00 probe?
It measures shaft vibration and position in reverse mount applications.
Q2: What systems is this probe compatible with?
It is designed for use with Bently Nevada 3300 XL monitoring systems.
Q3: What is the cable length of this model?
It includes a standard 9-meter cable.
Q4: What is the sensitivity of this probe?
7.87 V/mm (200 mV/mil).
Q5: Can it operate in high-temperature environments?
Yes, it can withstand operating temperatures up to +177 °C.
Q6: What industries use this probe most often?
Oil & gas, power generation, manufacturing, and heavy machinery industries.
Q7: Is it resistant to contamination?
Yes, it resists oil, dust, and moisture in industrial environments.
Q8: Can it be used for thrust and position monitoring as well as vibration?
Yes, it supports multiple monitoring functions.
