Product Introduction

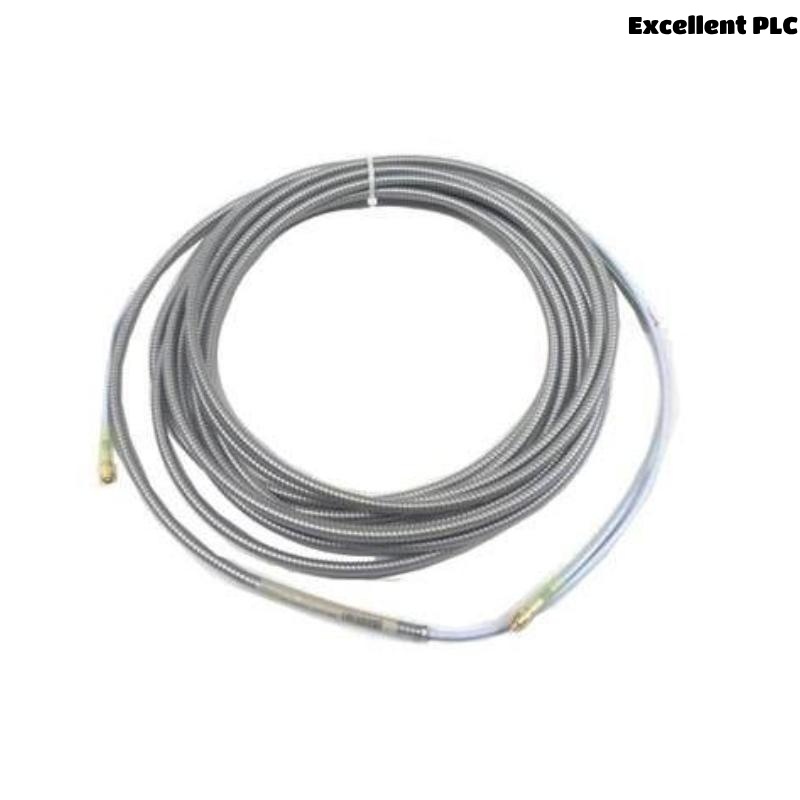

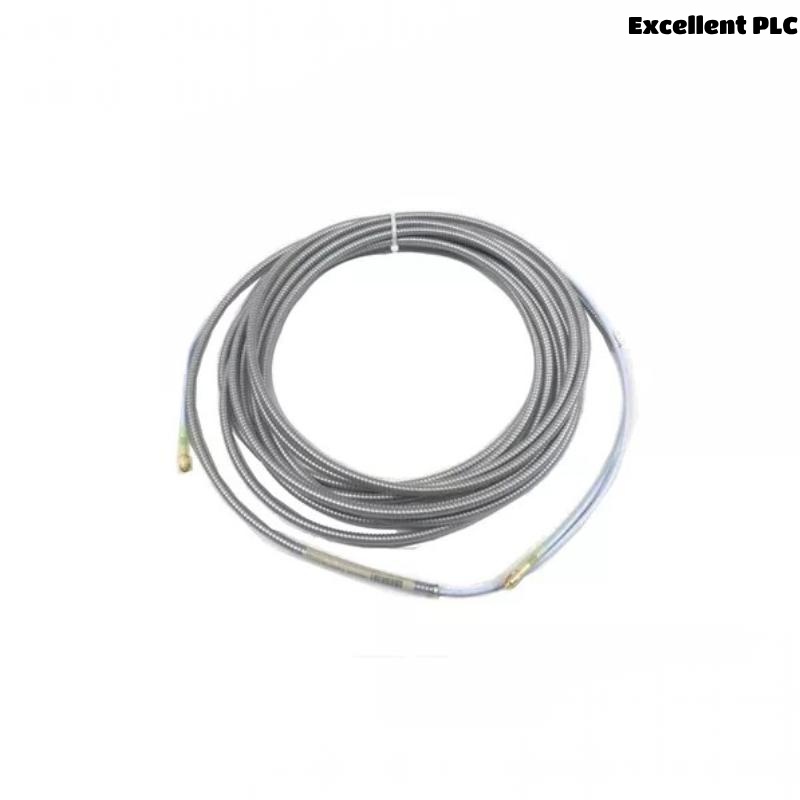

The Bently Nevada 330130-040-01 is a highly reliable extension cable designed for use with the 3300 XL series proximity transducer systems. It is part of the Bently Nevada 3300 XL product line, a global standard for vibration monitoring and machine protection in rotating equipment. This extension cable specifically transmits the signal from the proximity probe to the proximitor sensor, maintaining signal integrity over long distances.
The 330130-040-01 model comes with a fixed cable length of 4.0 meters and includes a 3-pin connector on both ends. It is built to withstand harsh industrial environments including extreme temperatures, oil exposure, and electromagnetic interference. Commonly used in turbines, compressors, and other critical rotating machines, this cable ensures accurate vibration readings essential for predictive maintenance and operational reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | 330130-040-01 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | Proximitor Extension Cable |
| Cable Length | 4 m |
| Connector Type | 3-pin male-to-female |
| Compatible System | 3300 XL Proximitor Sensor |
| Operating Temperature Range | –51°C to +177°C (–60°F to +350°F) |
| Cable Jacket Material | FEP (Fluorinated Ethylene Propylene) |
| Signal Transmission | Low-noise coaxial |
| EMI/RFI Shielding | Yes |
| Weight | 0.412 kg |
| Mounting | Panel mount or conduit adaptable |
Product Advantages
-
High Signal Integrity: Engineered for minimal signal loss over long distances, preserving the accuracy of vibration data.
-
Rugged Construction: The FEP jacket offers superior protection against chemicals, high temperature, oil, and mechanical abrasion.
-
Easy Integration: Compatible with all Bently Nevada 3300 XL Proximitor sensors, ensuring straightforward system compatibility.
-
EMI Shielding: Built-in shielding reduces electromagnetic interference, which enhances the signal quality.
-
Reliable Operation in Harsh Conditions: Rated for extreme industrial environments with wide operating temperature ranges.
-
Maintenance Friendly: Modular design with standardized connectors simplifies replacements and inspections.
Product Applications
The 330130-040-01 is used across a variety of industries and machinery types that rely on precise vibration monitoring:
-
Steam and Gas Turbines – For shaft vibration and position monitoring.
-
Compressors – Ensures bearing health and rotor stability.
-
Motors and Generators – Critical for early fault detection and minimizing unplanned shutdowns.
-
Pumps and Fans – Maintains operational balance and safety.
-
Gearboxes – Helps in early detection of gear misalignment and wear.
-
Oil & Gas, Power Generation, Petrochemical – Suitable for high-demand environments requiring reliable sensor communications.
10 Product FAQs (Q&A Style)
Q1: What systems is the 330130-040-01 cable compatible with?
A1: It is designed for use with the Bently Nevada 3300 XL Proximitor sensor system.
Q2: Can this cable be used in high-temperature environments?
A2: Yes, the cable is rated for operation from –51°C to +177°C, suitable for harsh industrial settings.
Q3: Is this a coaxial cable?
A3: Yes, it is a low-noise coaxial cable with shielding to prevent signal interference.
Q4: What type of connectors are used on this model?
A4: The cable has standard 3-pin connectors on both ends for plug-and-play connectivity.
Q5: Is the cable jacket resistant to oil and chemicals?
A5: Yes, the FEP jacket provides excellent resistance to oil, chemicals, and mechanical stress.
Q6: What is the weight of the 330130-040-01 cable?
A6: It weighs approximately 0.412 kg.
Q7: Can the cable be used in conduit installations?
A7: Yes, it is suitable for both open and conduit installations.
Q8: Is this cable interchangeable with other lengths of the same series?
A8: Yes, the 3300 XL series has various cable lengths like 1m, 5m, 7m, etc., and they are interchangeable as long as system specs match.
Q9: What happens if the cable is bent beyond its radius?
A9: Excessive bending can damage the internal shielding and degrade signal quality; maintain the recommended bend radius.
Q10: Does Bently Nevada offer certification or compliance for these cables?
A10: Yes, the cables meet industrial standards and may be certified for CE, RoHS, and ISO manufacturing compliance upon request.
Recommended Related Models (Same Series)
-
330130-040-00 – Extension cable, 0.5 m length
-
330130-040-02 – Extension cable, 9.0 m length
-
330130-080-00 – High-temperature extension cable, 0.5 m
-
330130-040-03 – Extension cable, 14.0 m
-
330130-040-05 – Extension cable, 24.0 m
-
330130-080-10 – High-temperature extension cable, 10.0 m
Popular Models from the Same Brand (Bently Nevada)
| Model | Description | Cable Length | Weight | Compatibility |
|---|---|---|---|---|
| 330130-040-00 | XL Extension Cable – 0.5m | 0.5 meters | ~0.12 kg | 3300 XL Proximitor Sensor |
| 330101-00-12 | Proximity Probe – 12 mm tip | 1.2 meters | ~0.18 kg | 3300 XL System |
| 330104-00-05 | Proximity Probe, armored | 5.0 meters | ~0.35 kg | 3300 XL, Turbine Monitoring |
| 330180-91-05 | Extension Cable, high-temp, armored | 5.0 meters | ~0.40 kg | High-temperature environments |
| 330400-02-05 | Proximitor Sensor | N/A | ~0.25 kg | Works with 3300 XL probes/cables |
| 330930-040-01-00 | Reverse Mount Probe | 4.0 meters | ~0.30 kg | Confined installation locations |
