Product Overview

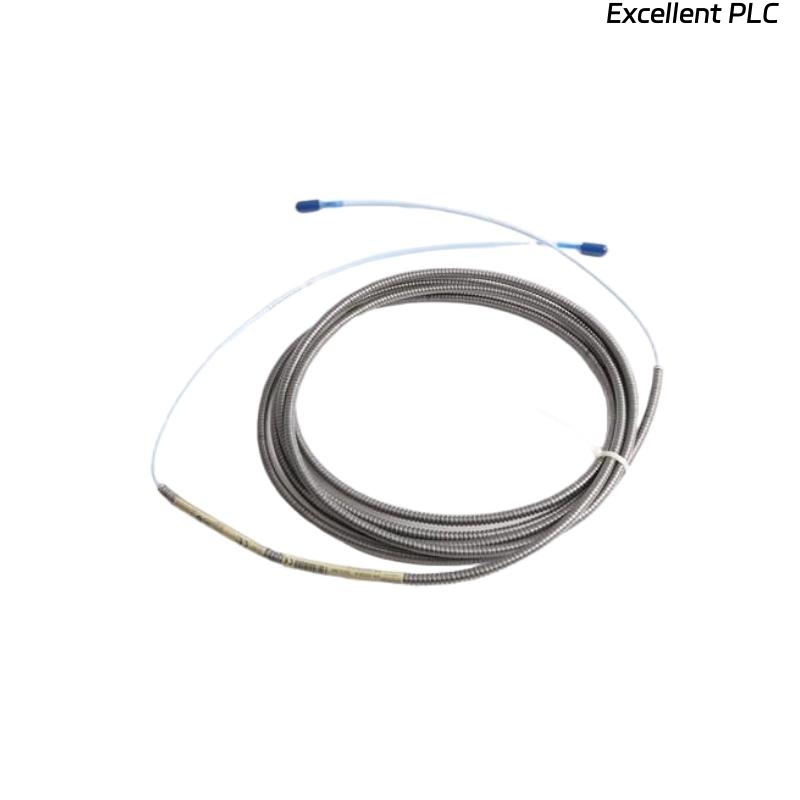

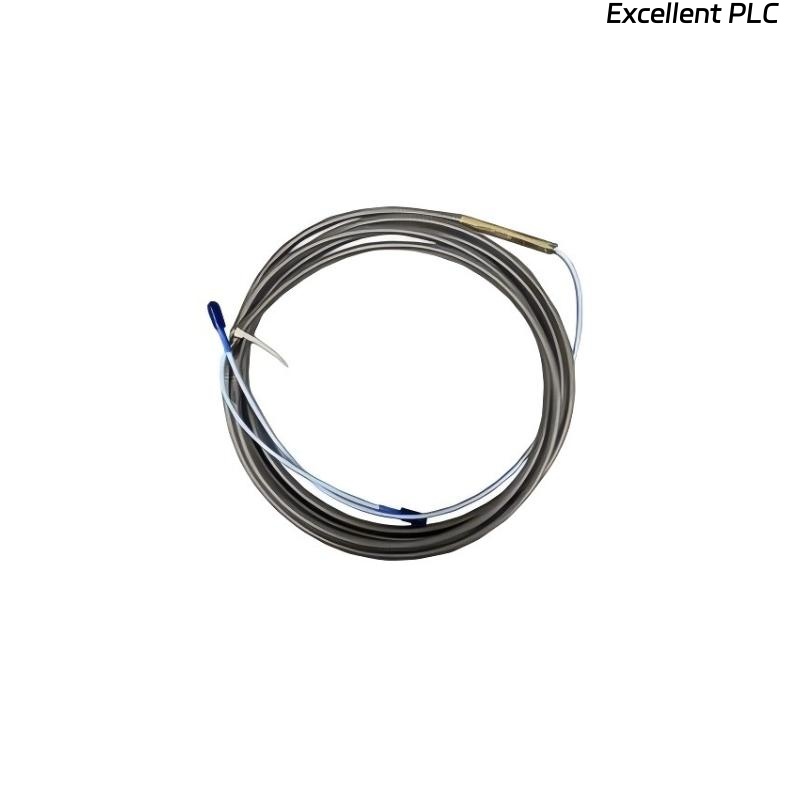

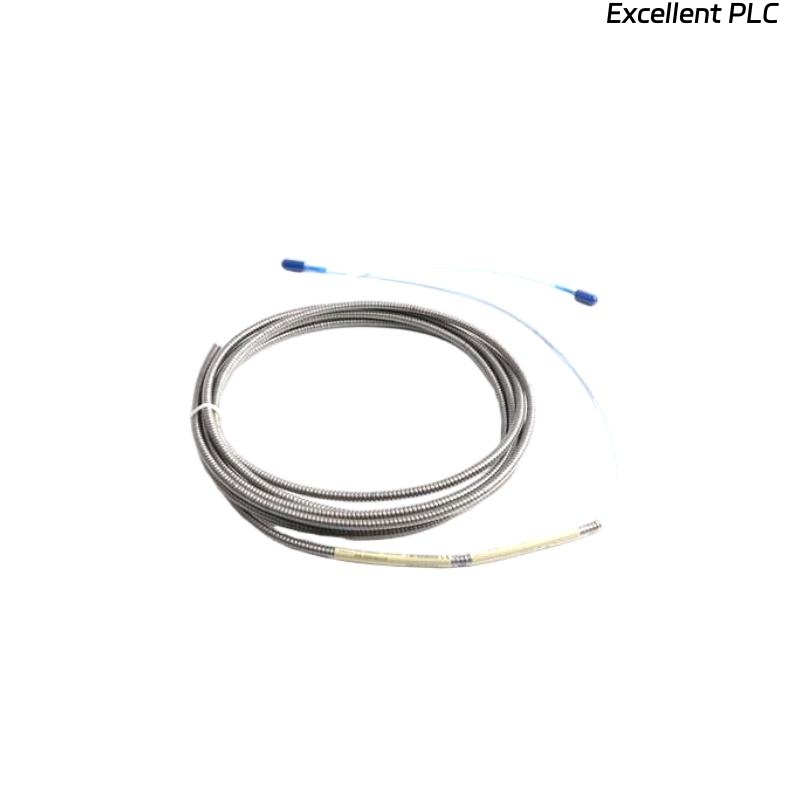

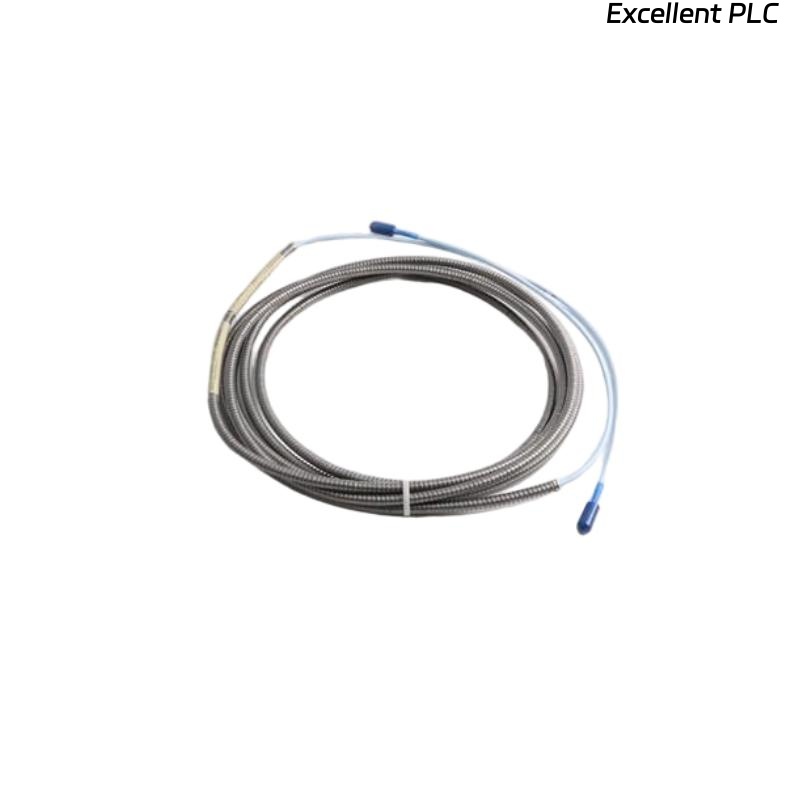

The Bently Nevada 330130-040-01-CN 3300 XL Standard Extension Cable is an essential component for extending the reach of vibration sensors in the Bently Nevada 3300 XL series. This extension cable plays a vital role in transmitting high-quality data from sensors to the monitoring system over longer distances while maintaining the signal integrity necessary for precise condition monitoring. It is commonly used in industrial machinery, rotating equipment, and critical systems where accurate and continuous monitoring is necessary.
Designed for use in harsh environments, this extension cable is constructed with high durability, offering excellent resistance to moisture, dust, and mechanical wear. The 330130-040-01-CN comes with a length of 4.0 meters, providing flexibility for installation in spaces where the sensors cannot be placed close to the monitoring system. Whether used in power plants, refineries, offshore rigs, or manufacturing facilities, the cable ensures seamless integration and reliable performance, contributing to the early detection of faults and optimization of machine performance.
Technical Specifications
Here is a table that outlines the key specifications for the Bently Nevada 330130-040-01-CN 3300 XL Standard Extension Cable:
| Specification | Details |
|---|---|
| Model | 330130-040-01-CN |
| Cable Length | 4.0 meters |
| Weight | 0.412 kg |
| Cable Type | Shielded, flexible, multi-conductor cable |
| Connector Type | Male to Female (compatible with 3300 XL sensors) |
| Operating Temperature | -40°C to 85°C |
| Max Voltage | 30 VDC |
| Cable Insulation | PVC (Polyvinyl Chloride) |
| Protection Rating | IP67 (dust-tight, protected against immersion in water) |
| Conductor Gauge | 22 AWG (American Wire Gauge) |
| Color | Black |
| Response Time | Less than 1 ms |
| Connector Type | Quick connect and disconnect |
Product Applications
The Bently Nevada 330130-040-01-CN 3300 XL Standard Extension Cable is used to extend the connection between vibration sensors and monitoring equipment in several industrial sectors. Typical applications include:
-
Vibration Monitoring: Extends the connection from the sensor to the monitoring system, allowing for precise measurements of vibration, displacement, and position in rotating machinery, pumps, motors, and turbines.
-
Power Generation: Ideal for use in power plants, where continuous monitoring of large rotating machinery is necessary to prevent unplanned downtimes.
-
Oil & Gas: Commonly used in offshore rigs, refineries, and pipelines to monitor equipment in environments prone to extreme conditions.
-
Manufacturing: Used for monitoring the health of manufacturing machines, including conveyors, presses, and robotics, ensuring early detection of faults and inefficiencies.
-
Automotive: In the automotive industry, the extension cable helps with the monitoring of assembly line machinery and critical components to avoid costly failures and ensure optimal operation.
-
Aerospace: Essential for monitoring aerospace equipment, such as turbines and engines, where high precision and reliability are required.
Product Advantages
-
Signal Integrity: The multi-conductor, shielded design of the extension cable ensures that the signal remains unaffected by noise or interference, which is crucial for accurate data transmission over long distances.
-
Durability: The cable is designed to withstand harsh conditions, with PVC insulation offering protection against moisture, dust, and environmental contaminants.
-
Flexible Installation: With a length of 4.0 meters, the extension cable allows flexibility in installation, making it suitable for challenging installations where short cables would not suffice.
-
High Temperature Resistance: The cable can operate in extreme temperatures ranging from -40°C to 85°C, making it suitable for industrial environments with fluctuating temperatures.
-
IP67 Protection Rating: The cable’s IP67 rating makes it resistant to dust and water, ensuring that it performs reliably in rugged, industrial environments.
-
Quick and Easy Installation: The extension cable features quick-connect connectors that simplify the installation process and reduce system downtime.
-
Enhanced Reliability: The cable’s design ensures consistent and reliable performance in critical applications, where data accuracy and reliability are paramount.
FAQ
1. What is the maximum voltage supported by the Bently Nevada 330130-040-01-CN extension cable?
The cable supports a maximum voltage of 30 VDC.
2. What type of insulation is used in the Bently Nevada 330130-040-01-CN extension cable?
The cable is insulated with PVC (Polyvinyl Chloride), providing durability and flexibility.
3. What is the protection rating of the extension cable?
The extension cable has an IP67 protection rating, making it dust-tight and resistant to immersion in water.
4. How long is the Bently Nevada 330130-040-01-CN extension cable?
The cable has a length of 4.0 meters.
5. What is the weight of the Bently Nevada 330130-040-01-CN extension cable?
The cable weighs 0.412 kg.
6. What is the operating temperature range of the extension cable?
The extension cable operates within a temperature range of -40°C to 85°C.
7. What type of connectors does the extension cable use?
The cable uses a male-to-female connector configuration, which is compatible with 3300 XL vibration sensors.
8. How does the Bently Nevada 330130-040-01-CN extension cable ensure signal integrity?
The cable is designed with multi-conductor, shielded construction, which minimizes the effects of electromagnetic interference, ensuring accurate signal transmission over long distances.
9. Is this extension cable suitable for outdoor applications?
Yes, with its IP67 rating, the cable is suitable for use in outdoor and harsh environments.
10. Can the Bently Nevada 330130-040-01-CN extension cable be used in vibration monitoring systems?
Yes, this extension cable is specifically designed to extend the reach of vibration sensors in condition monitoring systems for rotating machinery.
Related Models
| Model Number | Description |
|---|---|
| 330130-060-01-CN | 3300 XL extension cable with 6-meter length |
| 330130-080-01-CN | 3300 XL extension cable with 8-meter length |
| 330130-120-01-CN | 3300 XL extension cable with 12-meter length |
| 330130-050-01-CN | 3300 XL extension cable with 5-meter length |
| 330130-070-01-CN | 3300 XL extension cable with 7-meter length |
| 330130-090-01-CN | 3300 XL extension cable with 9-meter length |
