Product Introduction

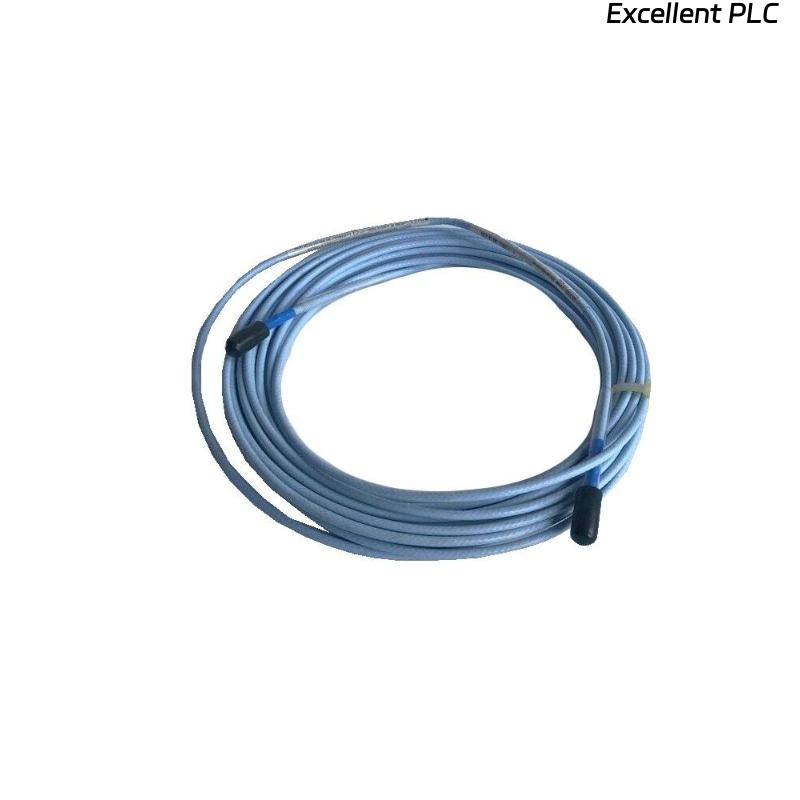

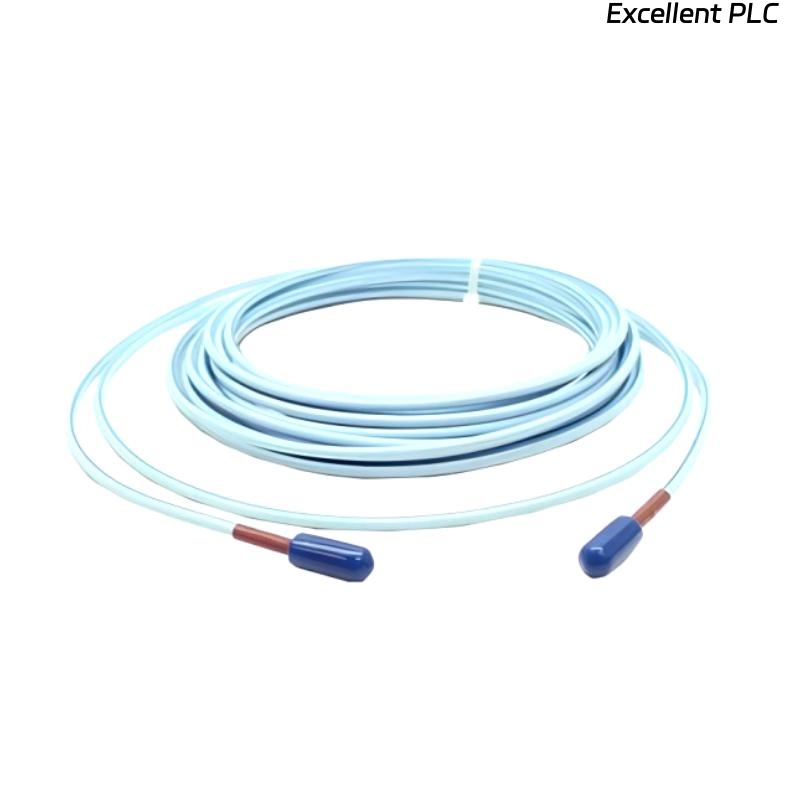

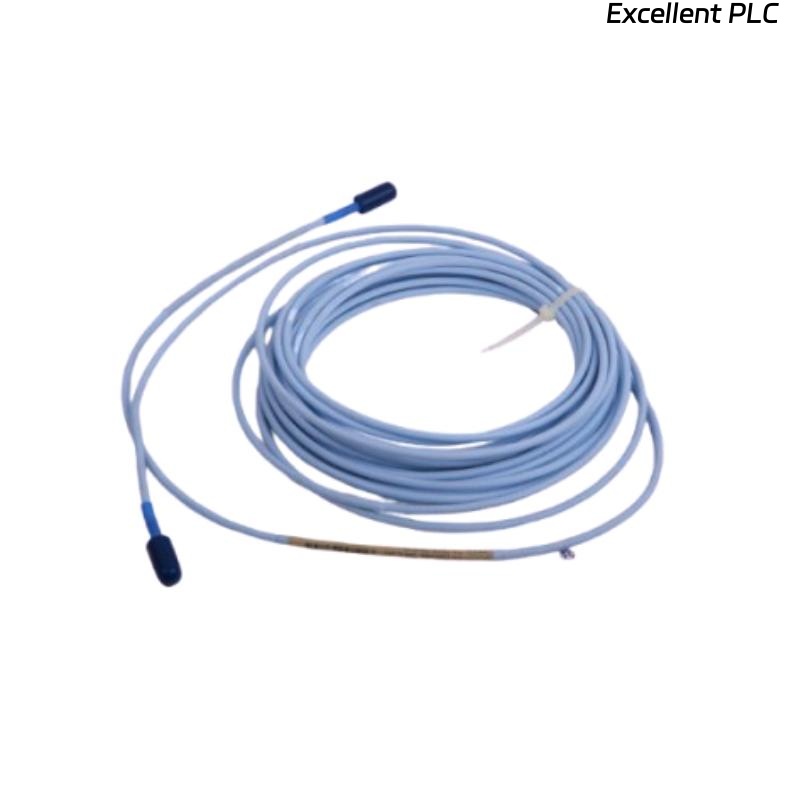

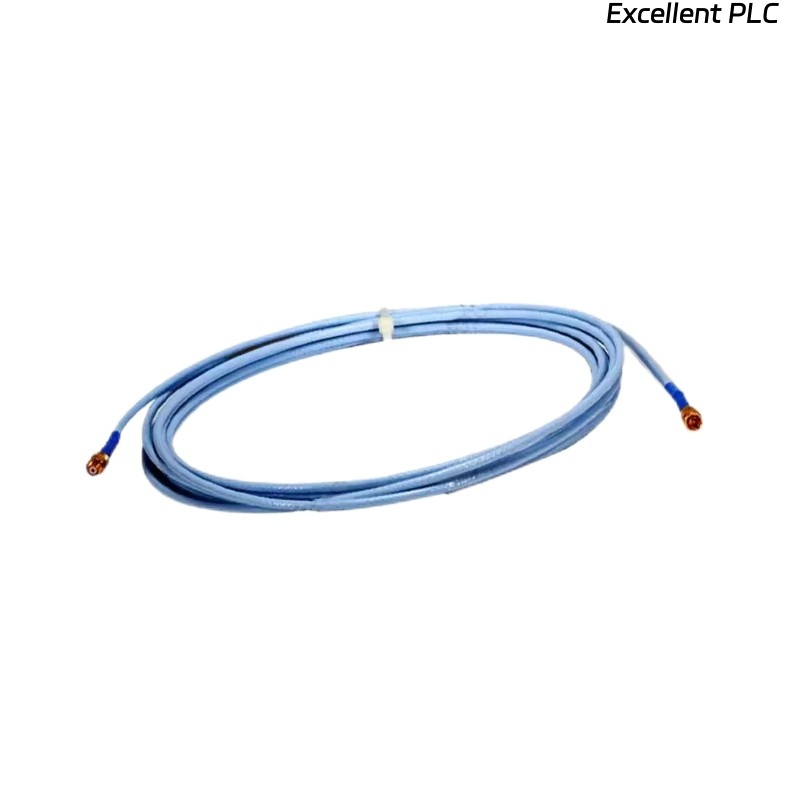

The Bently Nevada 330130-040-01-R0 3300 XL Standard Extension Cord is designed for use with the 3300 XL machinery protection system. This extension cord ensures reliable and consistent signal transmission between proximity probes and monitoring units, maintaining the integrity of vibration and position measurements in critical rotating equipment. Engineered for industrial applications, it supports accurate and secure installation in demanding environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-040-01-R0 |
| Compatible System | Bently Nevada 3300 XL |
| Total Length | 4 m |
| Weight | 0.136 kg |
| Connector Type | Standard BNC-compatible connector |
| Cable Type | Shielded coaxial cable |
| Operating Temperature | -40°C to +85°C |
| Insulation | PTFE |
| Voltage Rating | 300 V AC/DC |
| Environmental Rating | IP65 (when mated) |
Product Applications
-
Extending connections between proximity probes and the 3300 XL monitoring units.
-
Industrial machinery monitoring in turbines, compressors, motors, and generators.
-
Suitable for environments with vibration, temperature fluctuations, and industrial interference.
-
Provides signal continuity for permanent machinery installations.
-
Supports temporary and permanent machinery monitoring setups.
Product Advantages
-
High Signal Integrity: Shielded coaxial design ensures minimal signal loss.
-
Reliable Connectivity: Standardized connectors allow for secure attachment with 3300 XL modules.
-
Flexible Length: 4-meter cord provides sufficient distance for installation needs without additional splicing.
-
Lightweight Design: Weighing only 0.136 kg, it is easy to handle and route in machinery rooms.
-
Durable Construction: PTFE insulation ensures resistance to chemicals, oils, and temperature extremes.
-
Industrial-Grade Compatibility: Designed specifically for the 3300 XL system, ensuring optimal performance.
FAQ
Q1: What type of cable does the 330130-040-01-R0 use?
A1: It uses a shielded coaxial cable with PTFE insulation for high signal integrity and chemical resistance.
Q2: Is this extension cord compatible with other Bently Nevada systems?
A2: It is designed specifically for the 3300 XL system; compatibility with other systems is not guaranteed.
Q3: What is the maximum voltage rating for this cord?
A3: The voltage rating is 300 V AC/DC.
Q4: Can the cord be used outdoors or in wet conditions?
A4: When connectors are properly mated, it achieves IP65 protection, suitable for industrial environments.
Q5: Does the cord support high-frequency vibration signals?
A5: Yes, the shielded coaxial design ensures minimal signal attenuation for high-frequency probe signals.
Q6: How flexible is the cable for installation around tight machinery spaces?
A6: The 4 m length and lightweight design allow for easy routing in complex machinery layouts.
Q7: Is the connector type standard across all 3300 XL modules?
A7: Yes, the cord uses standard connectors compatible with all 3300 XL modules.
Q8: What is the operating temperature range for the cord?
A8: The cord operates reliably between -40°C to +85°C.
Q9: Can this cord be extended further with additional cords?
A9: Yes, multiple cords can be connected, but total system signal integrity should be considered.
Q10: Is the cord resistant to oil, grease, or chemical exposure?
A10: Yes, PTFE insulation provides excellent resistance to oils, chemicals, and industrial contaminants.
Related or Same-Series Models
| Model Number | Description | Total Length | Weight |
|---|---|---|---|
| 330130-020-01-R0 | 3300 XL Standard Extension Cord | 2 m | 0.07 kg |
| 330130-060-01-R0 | 3300 XL Standard Extension Cord | 6 m | 0.20 kg |
| 330130-080-01-R0 | 3300 XL Standard Extension Cord | 8 m | 0.27 kg |
| 330130-100-01-R0 | 3300 XL Standard Extension Cord | 10 m | 0.34 kg |
| 330130-040-02-R0 | 3300 XL Armored Extension Cord | 4 m | 0.15 kg |
| 330130-040-03-R0 | 3300 XL High-Temperature Extension Cord | 4 m | 0.18 kg |
