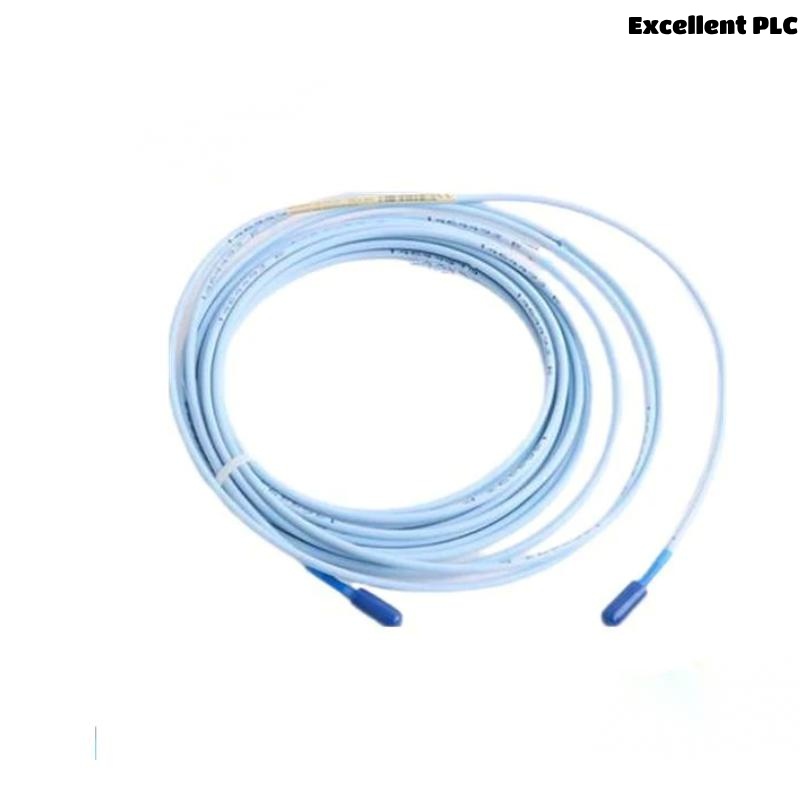

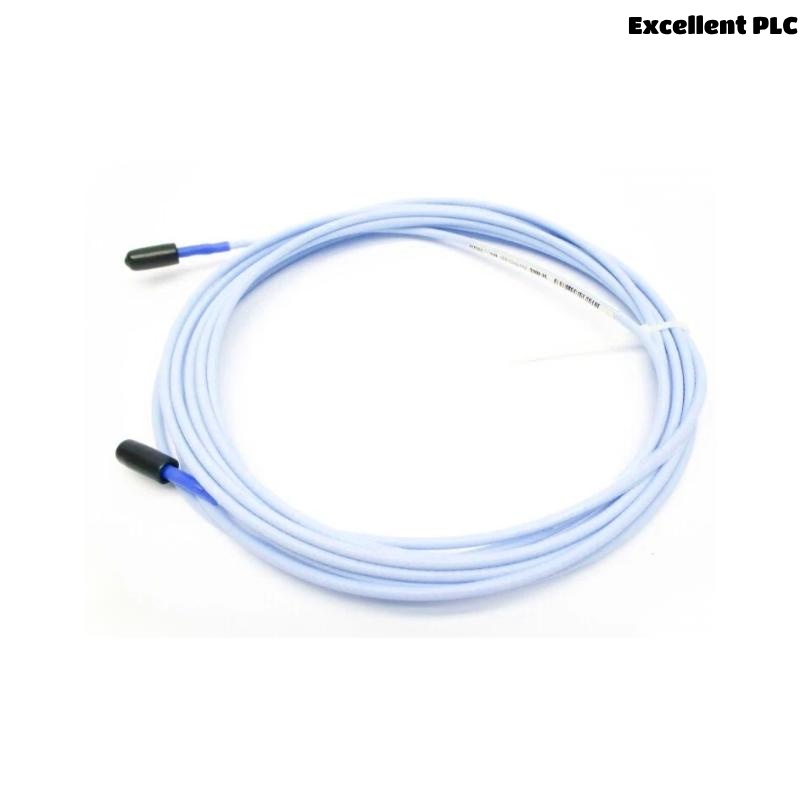

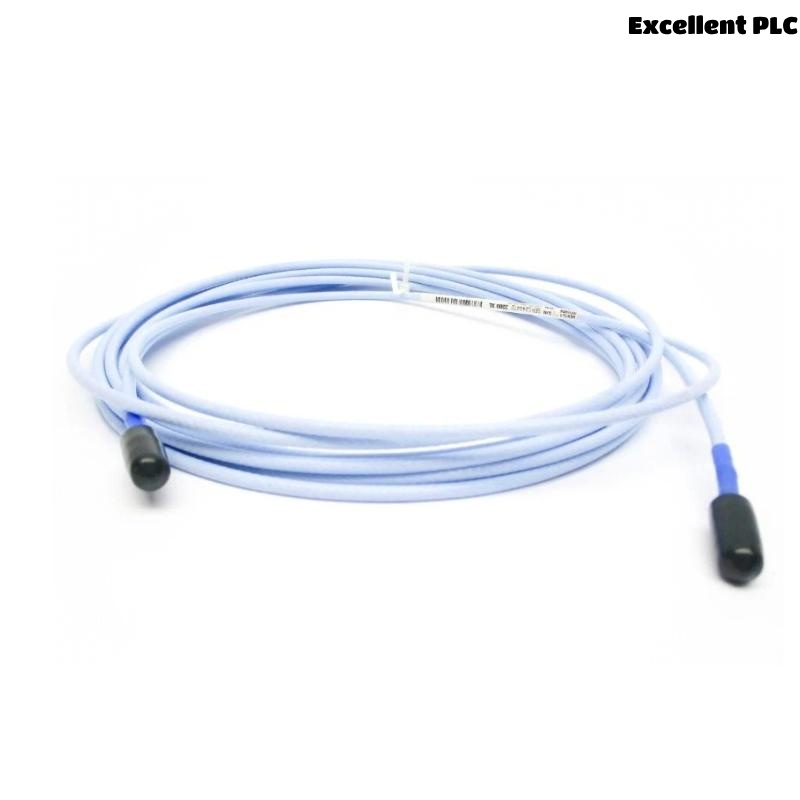

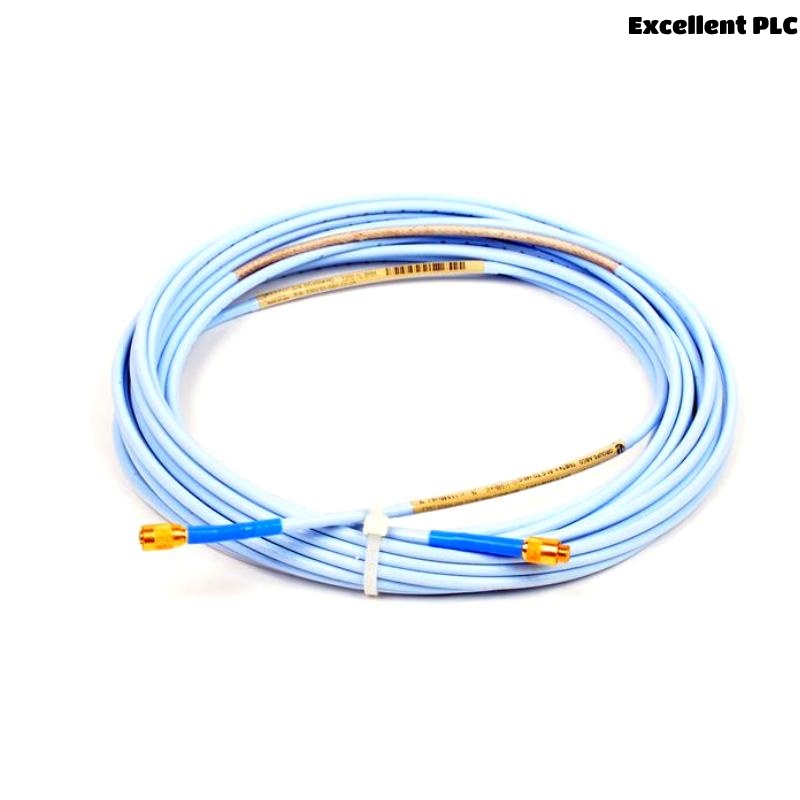

The Bently Nevada 330130-040-02 is a 4.0-meter standard extension cable used in the 3300 XL 8 mm Proximity Transducer System. This system is designed to measure both vibration and position on rotating machinery. The extension cable connects the proximity probe to the Proximitor Sensor, enabling remote sensor installation while maintaining signal integrity.
Product Applications
-
Vibration monitoring on rotating machinery
-
Shaft position and displacement measurement
-
Keyphasor reference signal generation
-
Overspeed protection when combined with probes and sensors
-
Fluid-film bearing machine diagnostics
-
Suitable for harsh industrial environments
Product Advantages
-
ClickLoc Connectors: Gold-plated, corrosion-resistant, finger-tight connectors for secure and tool-free installation
-
High Pull Strength: Patented CableLoc design withstands up to 330 N (75 lbf)
-
Environmental Protection: Optional connector protectors improve sealing in oil-prone environments
-
Flexible Design: Interchangeable with non-XL 3300 series components
-
Optional FluidLoc Cable: Prevents fluid wicking through the cable
-
Rugged Insulation: FEP-insulated triaxial cable resists harsh chemicals and temperatures
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330130-040-02 |
| Cable Length | 4.0 meters |
| Cable Type | 75Ω triaxial, FEP insulation |
| Weight | 0.136 kg |
| Resistance (Core) | 0.88 ± 0.13 Ω |
| Resistance (Jacket) | 0.26 ± 0.05 Ω |
| Capacitance | 69.9 pF/m |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Miniature coaxial, gold-plated ClickLoc |
| Operating Temperature Range | -52°C to +177°C |
| Storage Temperature Range | -52°C to +177°C |
| Compliance | RoHS, CE, FCC, ATEX, IECEx |
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330130-040-02 extension cable?
A1: It links the proximity probe to the Proximitor Sensor, allowing flexible sensor positioning.
Q2: Can this cable be used in high-temperature environments?
A2: Yes, it supports up to 177°C; an extended temperature version is also available for up to 260°C.
Q3: Is the cable shielded against electromagnetic interference (EMI)?
A3: Yes, it uses a triaxial shielded design to minimize EMI.
Q4: Is the cable compatible with non-XL components?
A4: Yes, it is physically and electrically compatible with non-XL 3300 series systems.
Q5: Are special tools required for installation?
A5: No, the ClickLoc connectors allow tool-free installation with a tactile click lock.
Q6: What is the typical installation length between the sensor and monitor?
A6: Up to 305 meters of total field wiring can be used from the Proximitor to the monitor.
Q7: Does it come with environmental protection?
A7: Optional connector protectors are available for enhanced protection.
Q8: What is the tensile strength at the connector?
A8: The cable-to-connector interface withstands up to 270 N (60 lbf).
Q9: Is FluidLoc available with this model?
A9: The standard version does not include FluidLoc; FluidLoc versions are optional.
Q10: What kind of connector material is used?
A10: Gold-plated brass or beryllium copper for corrosion resistance.
Related Models (Same Series or Function)
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330130-030-02 | Extension Cable, Standard, 3.0 m | 3.0 m | 0.102 kg |
| 330130-045-02 | Extension Cable, Standard, 4.5 m | 4.5 m | 0.153 kg |
| 330130-060-02 | Extension Cable, Standard, 6.0 m | 6.0 m | 0.204 kg |
| 330130-040-12 | Extension Cable, FluidLoc, 4.0 m | 4.0 m | 0.136 kg |
| 330130-040-03 | Extension Cable, Armored w/Protector, 4.0 m | 4.0 m | 0.412 kg |
| 330190-040-00 | ETR Extension Cable, Standard, 4.0 m | 4.0 m | 0.136 kg |
